Technical Scheme of 120kW/320kWh Integrated PV-ESS System for Medical Scenarios — 3+3+4 Three-Phase Split Redundant Design Adapted to Extreme Operating Conditions in Afghanistan

阿富汗诊所医护为婴幼儿准备疫苗注射
Operating Mechanism of 120kW/320kWh PV-ESS Integrated System
I. Project Background and Mandatory Power Supply Pain Points in Medical Scenarios

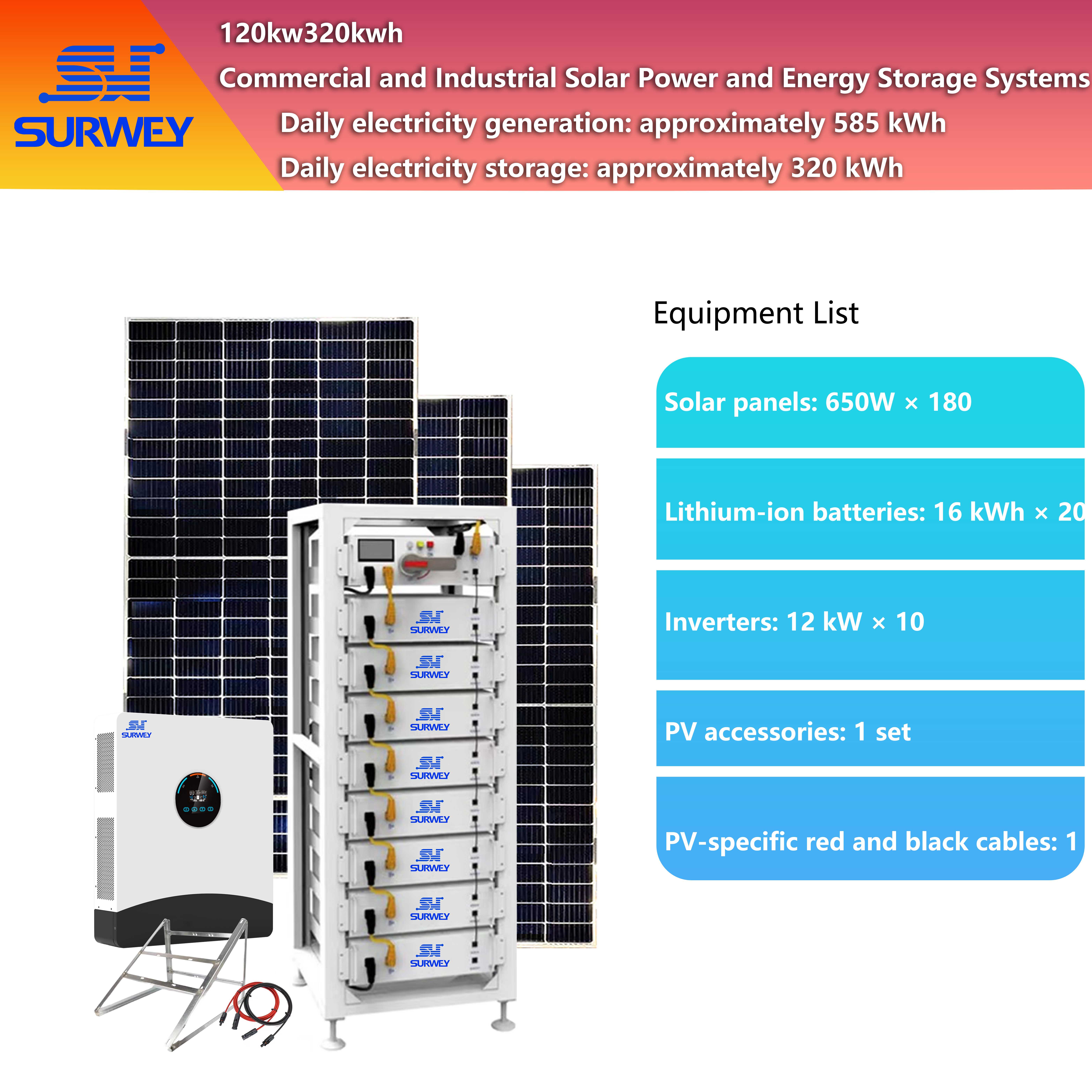

Configuration Diagram of 120kW/320kWh PV-ESS Integrated System

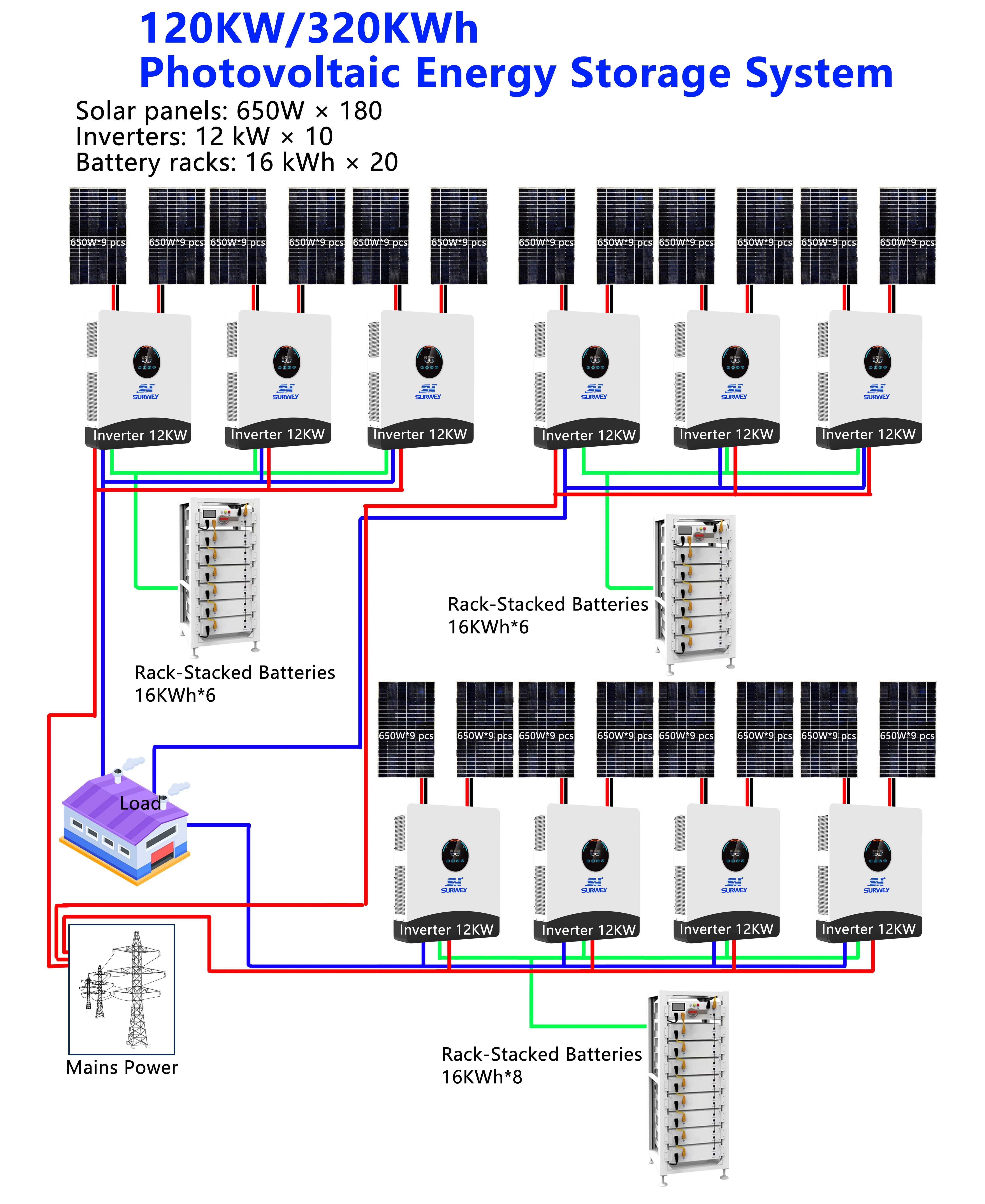

Topology Diagram of 120kW/320kWh PV-ESS Integrated System
II. Core Equipment Selection and Analysis of Key Technical Parameters

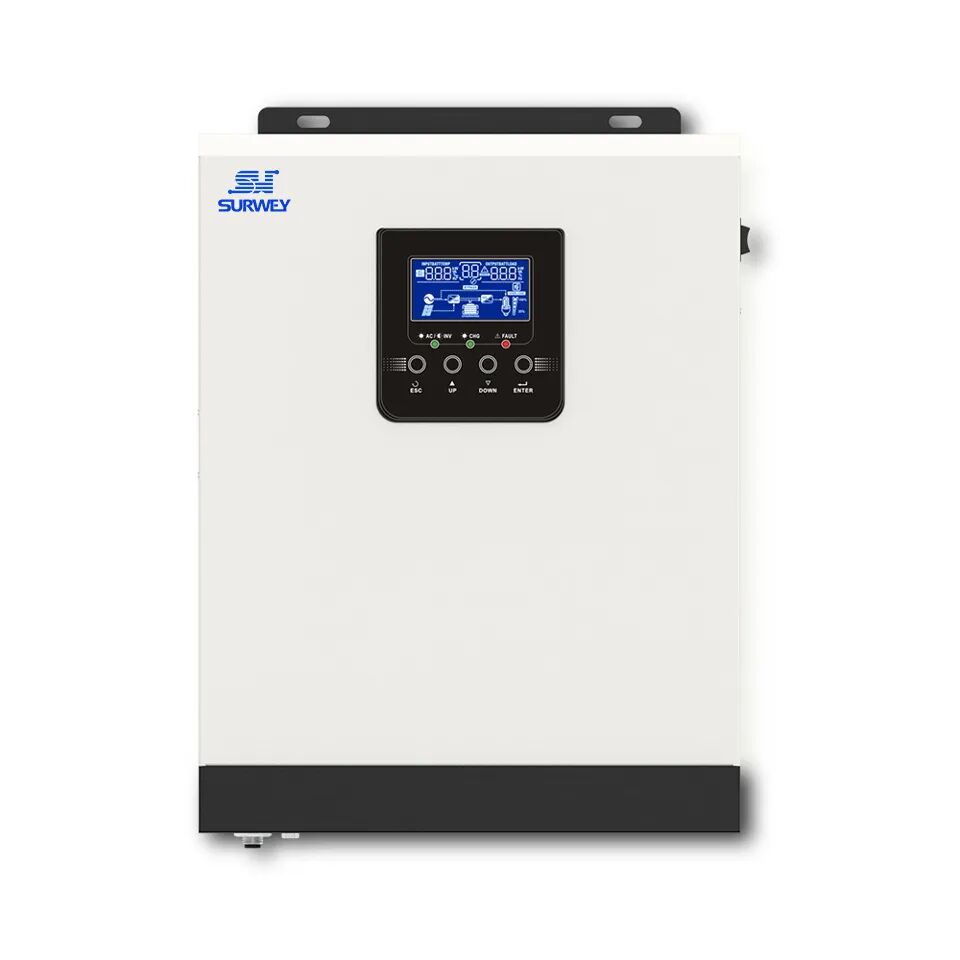

(1) 12kW Hybrid PV-ESS Inverter: SW48120V150-500P
Basic Performance Parameters
Rated output power: 12,000 W; rated output voltage: 230 Vac; power factor: 1.0; peak efficiency: 93%. It delivers an emergency peak power capacity of 200%, capable of sustaining twice the rated power surge for 5 seconds, which perfectly matches the instantaneous peak loads generated by medical equipment such as surgical electrosurgical units and X-ray machines.
Parallel Expansion Capacity
It supports parallel operation of 1 to 6 units, which can be used standalone or interconnected for capacity expansion. In this solution, the parallel configuration of 3 units for Phase A, 3 units for Phase B and 4 units for Phase C falls within the permitted parallel range of the equipment. Dynamic load sharing among parallel units of the same phase is realized, with each unit serving as redundant backup for the others.
Power Switching Performance
It features UPS-level seamless switching within 10 milliseconds. When grid power fails or PV output becomes insufficient, the switchover to battery power is completed within milliseconds. Precision medical devices will not shut down or suffer data loss throughout the process, fully satisfying the zero-outage requirement for medical applications.
Environmental Adaptability
The whole machine boasts an IP54 dustproof and splash-proof rating, allowing direct outdoor wall-mounted or floor-standing installation without an extra protective equipment room. Its operating temperature ranges from -10℃ to +55℃, with an extended operating range of -25℃ to +65℃ for low-temperature conditions. It tolerates relative humidity of 5% to 95% without condensation. It is well-suited to Afghanistan’s extreme climate featuring high summer temperatures, frigid winters and year-round sandstorms, and prevents malfunctions including blocked heat dissipation caused by dust accumulation and short circuits due to water vapor penetrating circuit boards.
PV and Energy Storage Compatibility
The MPPT voltage range is 90 V–500 V, with the operating window of MPPT1 spanning 120 V–450 V, compatible with series configurations of high-power PV modules. The supported battery voltage range is 40.0 Vdc–60.0 Vdc, compatible with both lead-acid and lithium iron phosphate batteries. The built-in battery management system provides comprehensive protection against overcharging, overdischarging, overcurrent and short circuits to ensure safe and stable operation of the energy storage system.
Intelligent Operation and Maintenance Capability
Remote monitoring via WiFi/RS485/GPRS/Bluetooth is supported. Users can check power generation volume, battery state of charge and equipment operating status in real time via a mobile APP. Automatic fault alerts are pushed, and OTA remote firmware upgrade is available. Local general electricians can conduct basic maintenance after simple training, addressing the shortage of professional operation and maintenance personnel in remote overseas regions.

(2) 650W N-Type Double-Sided Double-Glass PV Modules
Basic Electrical Specifications
Adopting 210mm 132 half-cut N-type monocrystalline cells, the module has a nominal power of 650W and dimensions of 2382×1134×30mm with a single-unit weight of 32.3kg. Under standard test conditions, its open-circuit voltage is approximately 49.5V, operating voltage around 41.5V, and maximum system withstand voltage reaches 1500V. The junction box is rated IP68, matched with standard 4mm² PV cables and universal 1500V PV connectors.
High-Efficiency Power Generation Performance
The maximum module conversion efficiency hits 24.6%, with multi-busbar optimized circuits reducing line losses. N-type cells are free from LID and LeTID light degradation; the first-year power attenuation ≤1%, and the linear annual attenuation within 30 years ≤0.35%, delivering far higher lifecycle power output than conventional P-type modules. Its bifacial structure achieves a bifaciality of 80%±5%, enabling the back glass to capture reflected light from rooftops. It can boost power generation by an extra 10%~18% under weak light on cloudy days, dawn and dusk, suiting Afghanistan’s mountainous climate with volatile sunlight.
System String Matching Compatibility
The total open-circuit voltage of 9 modules wired in one string is about 445V. When two strings are connected in parallel, the operating voltage steadily falls within the inverter’s optimal MPPT range of 120V~450V. Voltage rise under high temperatures will not trigger overvoltage protection. The output voltage at dawn and dusk will not drop below the inverter startup threshold, and its weak-light power generation efficiency is over 15% higher than modules with narrow MPPT windows, fully tapping the local solar resource of 300 sunny days per year.
(3) 16kWh Rack-Mounted Energy Storage Battery: SW-T512V16KWH-L2
Superior Safety & Ultra-Long Cycle Life
Adopting automotive-grade lithium iron phosphate cells with excellent thermal stability and low risk of thermal runaway, the battery boasts abundant safety margins. The cell cycle life reaches ≥8,000 times (25℃, 0.5C charge-discharge, 90% DOD). Equipped with self-developed active equalization BMS (Battery Management System), it precisely controls charging and discharging of each cell to avoid overcharging, overdischarging and unbalanced cell voltage differences, greatly extending battery service life and ensuring long-term stable system operation.
Modular & Easy Installation
With a standard rack stacking design, each 16kWh battery can be independently floor-mounted or cabinet-installed, supporting parallel expansion of up to 16 units to meet separate phase configuration demands. Two local workers can complete transportation and installation without large lifting equipment.
Full-Range Electrical Protection
The built-in BMS delivers comprehensive protection against overvoltage, undervoltage, overcurrent, short circuit, over-temperature and cell imbalance. It monitors real-time voltage, temperature and capacity of every single cell, automatically triggering early warnings and circuit cut-off upon abnormalities to prevent damage to precision medical devices such as X-ray machines and patient monitors caused by voltage and current fluctuations.
Wide-Temperature Full-Range Operation Adaptability
Charging temperature range: 1℃~55℃; discharging temperature range: -20℃~55℃. It adapts to frigid mountain winters and scorching summers in Afghanistan. The discharge capacity attenuation under low temperatures is controlled within 10%, enabling continuous stable power supply when there is no solar generation at night.
Multi-Protocol Intelligent Communication
It supports CAN2.0, RS485, Bluetooth and local APP monitoring, and is compatible with mainstream communication protocols of hybrid inverters on the market. It can seamlessly link with the 12kW inverters and EMS energy management system of this project to synchronize charge-discharge strategies and real-time battery SOC status.
III. Overall System Architecture Design: 3+3+4 Three-Phase Separate Redundant Architecture
(1) Core Separate Three-Phase Configuration
Phase A
3 units of 12kW inverters connected in parallel, with a total rated output power of 36kW, matched with 6 sets of 16kWh energy storage batteries for a total energy storage capacity of 96kWh. It serves light loads such as general ward lighting, outpatient departments and air conditioning equipment, featuring stable peak loads with minor fluctuations. The 3 inverters can fully cover full-load demand, and inverters under the same phase act as redundant backups for each other.
Phase B
3 units of 12kW inverters connected in parallel, with a total rated output power of 36kW, matched with 6 sets of 16kWh energy storage batteries for a total energy storage capacity of 96kWh. It carries the same type of loads as Phase A, evenly distributing routine light hospital loads to balance basic three-phase power loads and avoid two underloaded phases plus one overloaded phase, extending the overall service life of inverters.
Phase C
4 units of 12kW inverters connected in parallel, with a total rated output power of 48kW, matched with 8 sets of 16kWh energy storage batteries for a total energy storage capacity of 128kWh. This phase is dedicated to heavy-load equipment including operating rooms, anesthesia machines, high-frequency electrosurgical units, X-ray machines, low-temperature refrigerators and neonatal incubators. Such loads generate instantaneous surge peak power that doubles briefly upon startup. Therefore, an extra inverter is added for Phase C to reserve sufficient margin for peak impact loads, paired with a larger-capacity battery cluster to buffer instantaneous heavy current and prevent voltage drop and inverter overload shutdown.
(2) Overall System Topology
PV Layer
Each of the 10 inverters corresponds to an independent PV array. Every inverter is connected to 2 strings × 9 pieces of 650W PV modules, with a single inverter PV installed capacity of 11.7kW and a total PV capacity of 117kW across 10 inverters. The arrays are divided into three groups corresponding to rooftop PV installations for Phase A/B/C. The PV capacity of Phase C is increased synchronously to match continuous power generation and battery charging demands for heavy loads.
Inverter Layer
Inverters for Phase A/B/C are separately paralleled. Inverters under the same phase are linked via CAN communication bus to realize dynamic load sharing. If any single inverter fails and exits operation, the remaining units under the same phase can fully bear the phase load without power interruption for medical services.
Energy Storage Layer
Phase A/B/C are equipped with completely independent battery clusters, and batteries of each phase only supply power to inverters of the same phase. This eliminates problems arising from shared three-phase batteries, such as overall voltage drop caused by heavy-load phases and battery depletion imbalance on light-load phases. Each phase load owns an independent and complete energy storage backup.
AC Busbar Layer
Outputs of three groups of inverters are connected to Phase A/B/C busbars respectively and aggregated into the main power distribution cabinet. The cabinet outputs two independent outgoing circuits: light-load circuits draw power evenly from Phase A and B, while all heavy loads such as operating rooms and cold storage are connected to Phase C busbar. Precise load zoning is realized to balance three-phase loads from the source.
Scheduling Layer
The EMS energy management system is connected to all 10 inverters, enabling dynamic three-phase load balancing, automatic activation of Phase C redundant units for peak loads, fault bypass protection, and intelligent multi-mode scheduling covering PV, energy storage, municipal grid and diesel generators. It automatically switches to the optimal power supply strategy based on real-time sunlight intensity, load conditions and battery SOC.
IV. Separate-Phase PV System Configuration Design
(1) Rationality of PV String & Parallel Configuration for Single Inverter
9 pieces of 650W modules wired in one string deliver an open-circuit voltage of approximately 445V, which remains unchanged after two strings are paralleled, perfectly falling within the inverter’s optimal MPPT operating window of 120V~450V. Module output voltage will not drop below the inverter startup threshold at dawn and dusk, with weak-light power generation efficiency over 15% higher than inverters with narrow MPPT range. The 1500V system withstand voltage of modules is far higher than the operating voltage of 9 modules in series, so voltage rise under high temperatures will not trigger overvoltage protection, adapting to large day-night temperature differences in Afghanistan.
The low temperature coefficient advantage of modules is fully demonstrated in this configuration. When module temperature rises above 60℃ at noon in summer, voltage attenuation is mild, and the MPPT tracker continuously and stably captures maximum power point. Under equal solar irradiance, its daily power generation exceeds conventional monocrystalline modules. The double-sided double-glass structure paired with light-colored hospital rooftops enables the backside to capture reflected irradiance, further boosting total daily power generation and easing the discharge pressure of energy storage batteries at night. Meanwhile, the double-glass frameless design eliminates risks such as water vapor delamination and backsheet aging cracking, extending service life under sandstorm and high-humidity environments and suiting the local shortage of maintenance personnel.
(2) Separate Zoned PV Configuration for Three Phases
Phase A PV Array
Matched with 3 inverters and 3 groups of 2 strings × 9 pieces modules, with a total PV capacity of 35.1kW, deployed on the left area of the hospital rooftop. PV output fully covers basic power consumption of outpatient departments and wards under Phase A, and surplus daytime electricity is stored in the 96kWh Phase A battery cluster.
Phase B PV Array
Symmetrical to Phase A, equipped with 3 groups of 2 strings × 9 pieces modules with a total PV capacity of 35.1kW, arranged in the central rooftop area. Phase A and B feature balanced PV installed capacity, load demand and energy storage capacity, ensuring synchronized PV power output and battery charge-discharge status across three phases and extending the service life of all equipment.
Phase C PV Array
Matched with 4 inverters and 4 groups of 2 strings × 9 pieces modules, with a total PV capacity of 46.8kW, occupying the large sunlit area on the right rooftop. Phase C carries high-power surgical equipment and operates under continuous heavy loads during daytime. Larger PV installed capacity can supply power to heavy loads in real time and fully charge the large-capacity 128kWh Phase C battery cluster to guarantee uninterrupted power supply for emergency night surgeries and vaccine cold storage.
V. Separate-Phase Energy Storage System Configuration Design
(1) Logic of Separate-Phase Energy Storage Capacity Allocation
Phase A Energy Storage (6 × 16kWh = 96kWh)
The total rated inverter power of Phase A is 36kW, with stable light loads dominated by outpatient lighting and general ward air conditioning, at an average daily load rate of 50%. Under extreme conditions with no PV power and no municipal grid supply, it can sustain stable power output for more than 5 hours. It fully covers basic medical operation power demands during night outpatient shifts and unexpected blackouts, ensuring normal operation of routine diagnosis and basic testing equipment.
Phase B Energy Storage (6 × 16kWh = 96kWh)
Identical in capacity and configuration to Phase A, it realizes hardware symmetry of three-phase energy storage, balancing system charge-discharge loads and avoiding inconsistent battery pack degradation caused by long-term heavy single-phase discharge. It reduces later maintenance and replacement costs and matches evenly distributed routine light loads of hospitals.
Phase C Energy Storage (8 × 16kWh = 128kWh)
The total rated inverter power of Phase C is 48kW, carrying impact-type heavy-load equipment including X-ray machines, high-frequency electrosurgical units, low-temperature vaccine cold storage and neonatal incubators, with instantaneous peak loads reaching twice the rated power. The larger-capacity battery cluster provides sufficient current buffer to suppress voltage drop triggered by load startup and protect precision medical devices. Under extreme conditions without PV generation, it can deliver stable power supply for 4 hours at an average load rate of 60%, fully covering all-time support demands for emergency surgeries, night first aid and constant-temperature vaccine storage.
(2) Technical Adaptation Advantages of Energy Storage System
Safety Redundancy via Separate Independent Power Supply for Each Phase
Different from low-cost conventional three-phase systems sharing one set of batteries, each battery cluster of this system only supplies inverters under the same phase. If batteries of one phase break down or undergo maintenance, loads of the other two phases remain completely unaffected, enabling normal operation of outpatient and ward services. Only heavy-load surgical equipment under Phase C needs to be temporarily shut down, drastically cutting medical risks caused by power outages.
Modular Flexible Capacity Expansion
Standardized 16kWh rack battery modules can be added or removed individually. When hospitals expand operating rooms or add wards in the future, corresponding battery quantities for the target phase can be increased directly without full replacement of the energy storage system, meeting phased upgrading demands of medical institutions.
Ultra-Long Cycle Life Adapted to Remote Maintenance Conditions
The battery cycle life reaches ≥8,000 times, paired with built-in active equalization BMS. Cell voltage differences remain minimal after long-term charge and discharge, and battery degradation proceeds slowly, greatly extending the battery replacement cycle in remote overseas regions. It effectively cuts on-site maintenance and spare parts transportation costs, suiting the local shortage of professional maintenance technicians. The battery discharge temperature range covers -20℃~55℃. Under frigid mountain nights in Afghanistan, discharge capacity attenuation is controlled within 10%, enabling stable power supply to operating rooms and incubators even at sub-zero temperatures.

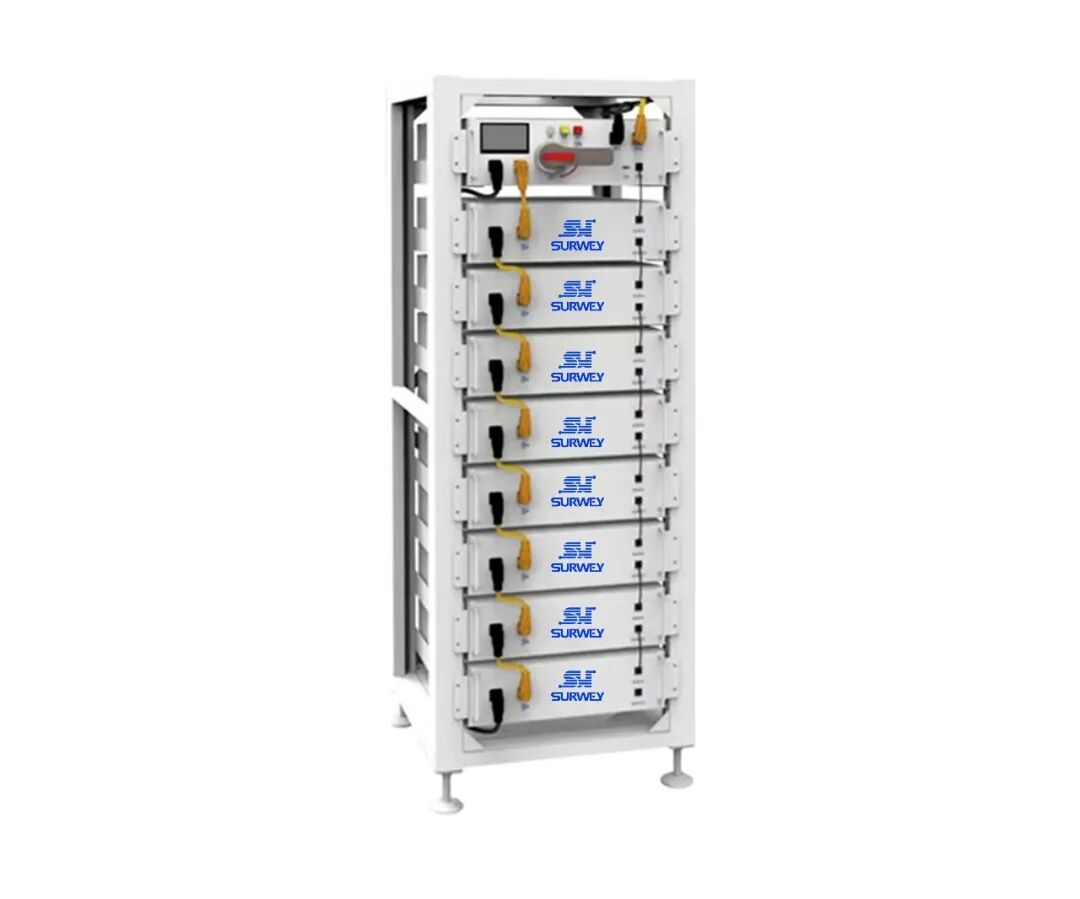

Rack-Mounted Energy Storage Battery
VI. Core Technical Advantages & Adaptability to Extreme Operating Conditions
(1) 3+3+4 Three-Phase Separate Redundant Architecture, Specialized Support for Heavy Medical Loads
(2) Long-Term Stable Power Generation of N-Type Double-Sided Double-Glass Modules, Adapted to Mountainous Solar Characteristics
(3) 10ms UPS-Level Seamless Switching, Zero Power Interruption for Precision Medical Equipment
(4) Wide-Voltage 90~500V MPPT to Maximize Weak-Light Power Generation in Highland Areas
(5) Global Intelligent EMS Scheduling + Remote Cloud O&M, Adapted to Remote Overseas Scenarios
(VI) Fully Modular Split Design for Rugged Mountain Transportation & Installation
VII. Implementation Value & Empowerment for Medical Scenarios
(1) Economic Value: Sharp Reduction of Long-Term Hospital Operating Costs
(2) Medical Value: 24-Hour Uninterrupted Power Supply, Doubled Medical Service Capacity
(3) Environmental Value: Zero-Carbon Clean Energy to Build a Green Medical Benchmark
(4) Social Value: Domestic New Energy Technology Safeguards Grassroots Livelihood Lifelines

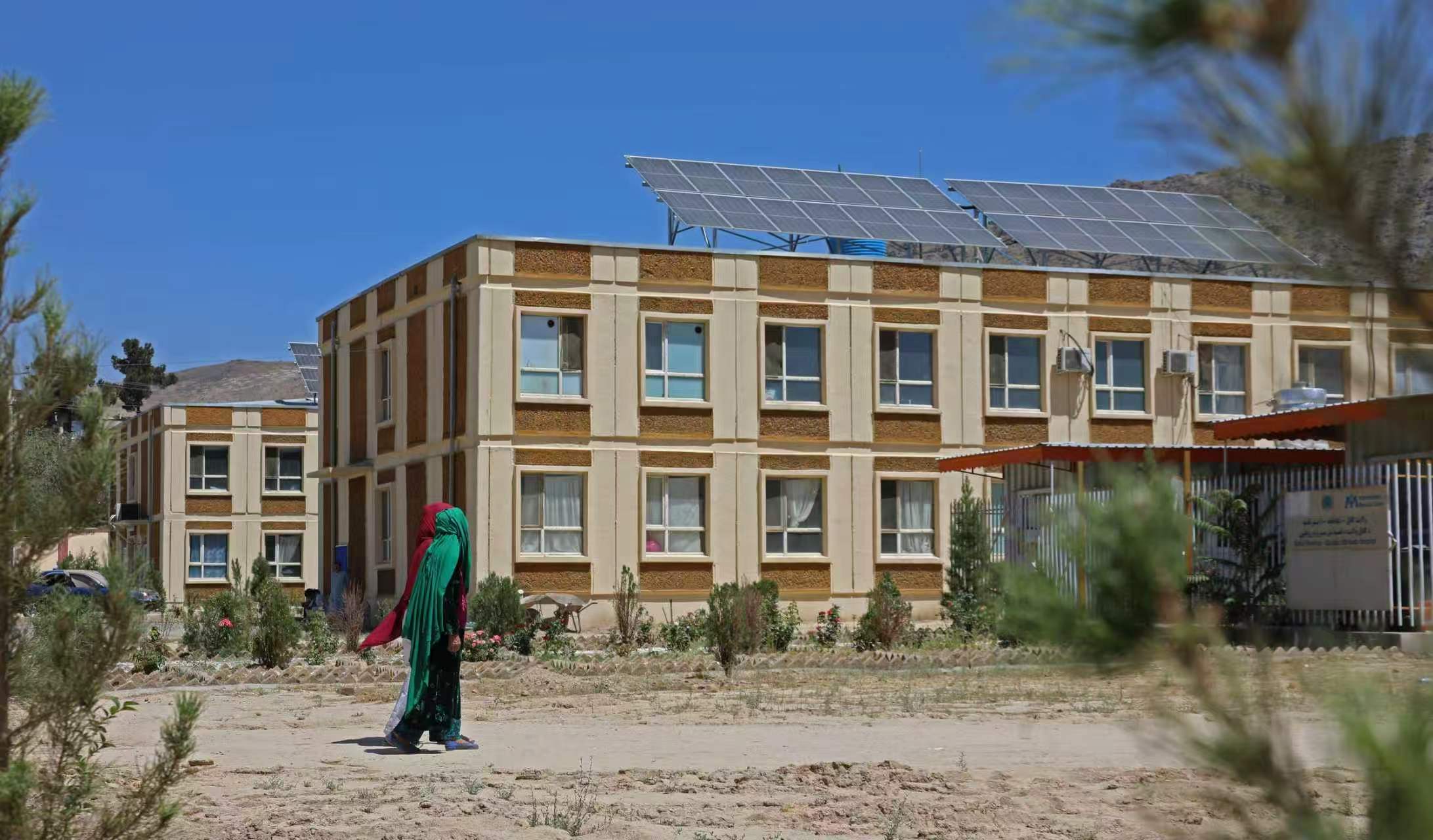

Solar Power Builds a Lifeline for Afghan Hospitals
VIII. Scheme Versatility & Overseas Market Expansion Plan
This 3+3+4 separate-phase PV-ESS scheme with 10 sets of 12kW inverters is not a one-off customized solution for a single project. It features high modular expandability and can be rapidly replicated to various medical scenarios in power-shortage regions including the Middle East, Central Asia and Africa:
- Low-Cost Scheme for Village-Level Health Stations: 3 inverters and 96kWh energy storage for Phase A and B respectively, without heavy-load expansion for Phase C, suitable for basic outpatient clinics and vaccination sites;
- Standard Scheme for Township Clinics: 6 inverters in a 3+3 layout with total energy storage of 192kWh, covering routine outpatient services and minor daytime surgeries;
- High-End Scheme for General Hospitals: Expanded architectures of 10 or more inverters in 3+3+4 / 4+4+4 layouts, matching high-power loads of multiple operating rooms and intensive care units.
Subsequent projects will take this Afghan medical demonstration project as a benchmark, continuously iterating next-generation high-protection PV-ESS equipment adapted to Central Asian plateaus and Middle Eastern deserts, including upgraded IP65 outdoor integrated energy storage machines and higher-efficiency N-type PV modules. Meanwhile, installment procurement and local cooperative after-sales training models will be launched to ease upfront capital pressure on overseas medical institutions. Mature, reliable and cost-effective domestic integrated PV-ESS solutions will be continuously exported to empower grassroots medical livelihoods worldwide with clean energy.
