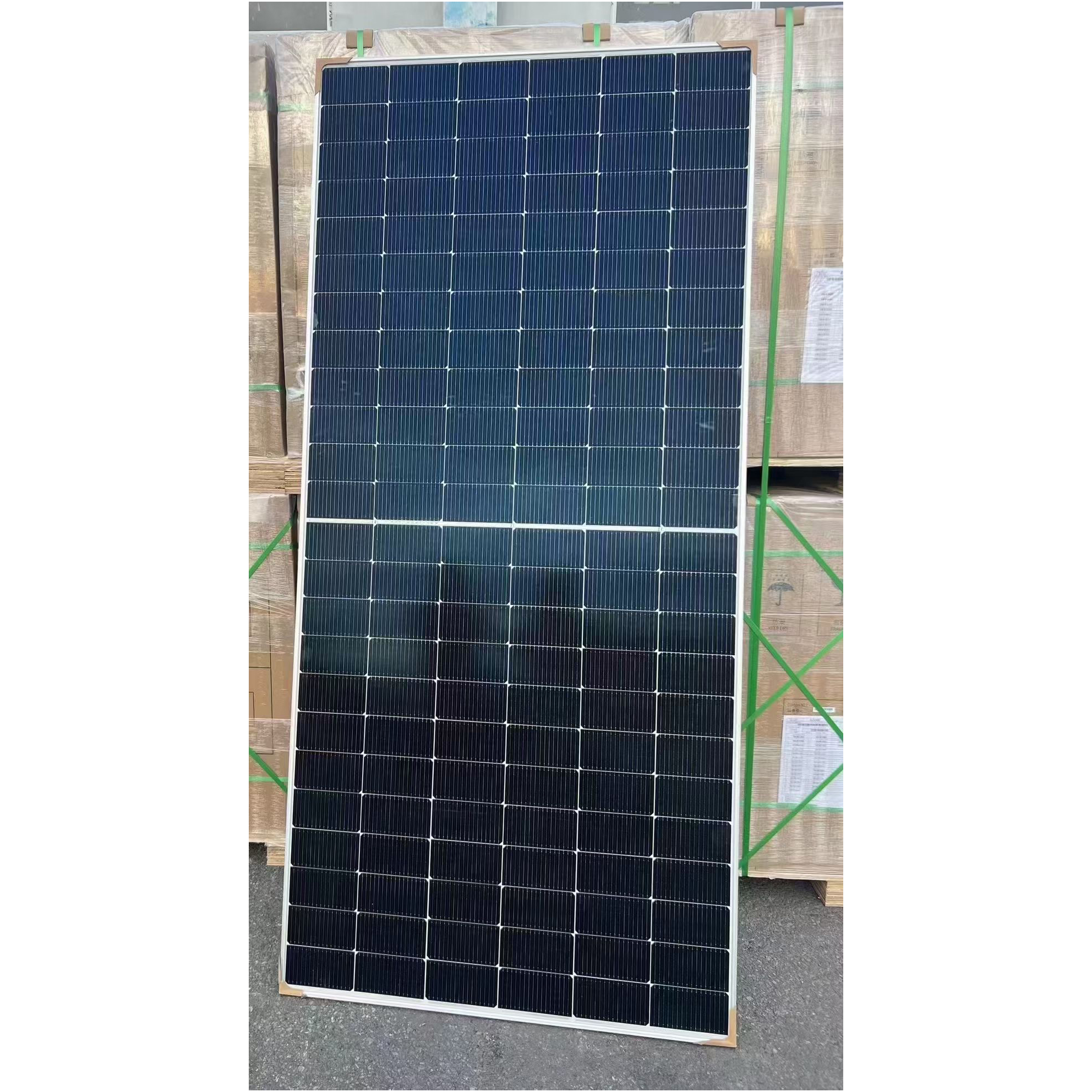

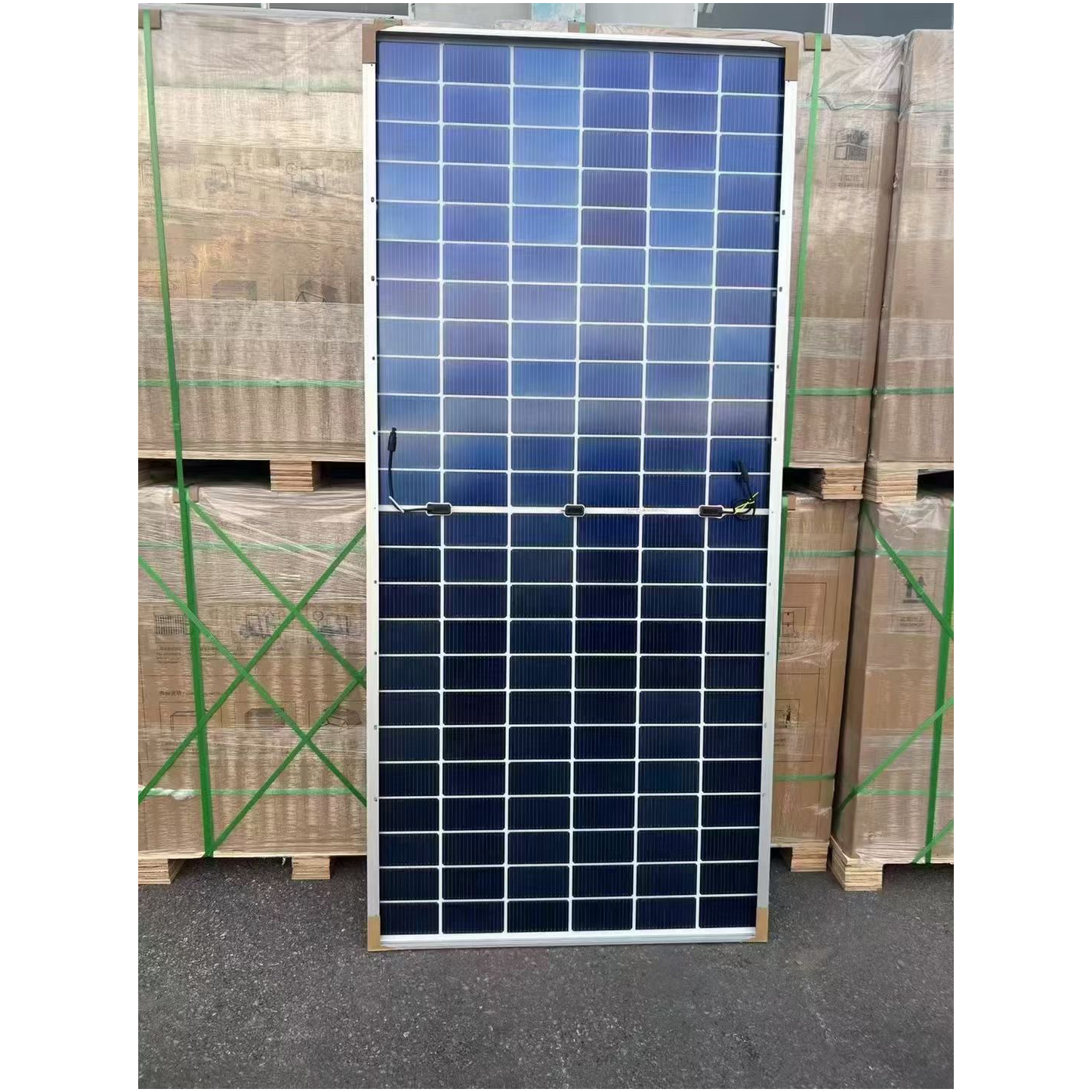

610-655W monocrystalline solar panel
610–650W high-efficiency monocrystalline solar modules, with a conversion efficiency of ≥22.5%, IP68 protection, and wind load resistance of 1800 Pa, suitable for large-scale commercial and industrial solar power plants.
Product Specifications
| Maximum Power - Pmax (W) | 610 | 615 | 620 | 625 | 630 | 635 | 640 | 645 | 650 | 655 |
| Open-Circuit Voltage - Voc (V) | 56.16 | 56.33 | 56.5 | 56.67 | 56.84 | 57.01 | 57.18 | 57.35 | 57.52 | 57.69 |
| Short-Circuit Current - Isc (A) | 13.64 | 13.7 | 13.76 | 13.82 | 13.88 | 13.94 | 14 | 14.06 | 14.12 | 14.18 |
| Maximum Power Voltage - Vmp (V) | 47.15 | 47.33 | 47.5 | 47.68 | 47.85 | 48.03 | 48.2 | 48.37 | 48.53 | 48.07 |
| Maximum Power Current - Imp (A) | 12.94 | 12.99 | 13.05 | 13.11 | 13.17 | 13.22 | 13.28 | 13.34 | 13.39 | 13.45 |
| Conversion Efficiency - % | 21.82 | 22 | 22.18 | 22.36 | 22.54 | 22.72 | 22.9 | 23.07 | 23.25 | 23.43 |
| Maximum Power - Pmax (W) | 673.75 | 679.27 | 684.79 | 690.31 | 695.84 | 701.36 | 706.88 | 712.4 | 717.93 | 723.4 |
| Open-Circuit Voltage - Voc (V) | 56.21 | 56.38 | 56.55 | 56.72 | 56.89 | 57.06 | 57.23 | 57.4 | 57.57 | 57.74 |
| Short-Circuit Current - Isc (A) | 15.07 | 15.13 | 15.2 | 15.26 | 15.33 | 15.4 | 15.46 | 15.53 | 15.6 | 15.66 |
| Maximum Power Voltage - Vmp (V) | 47.18 | 47.36 | 47.53 | 47.71 | 47.88 | 48.06 | 48.23 | 4.4 | 48.56 | 48.73 |
| Maximum Power Current - Imp (A) | 14.28 | 14.34 | 14.41 | 14.47 | 14.53 | 14.59 | 14.66 | 14.72 | 14.78 | 14.85 |
| Short-circuit current - Isc (A) | 16.91 | 16.99 | 17.06 | 17.14 | 17.21 | 17.29 | 17.36 | 17.43 | 17.51 | 17.58 |
| Operating temperature | -40℃~+70℃ | |||||||||
| Maximum system voltage | 1500V | |||||||||
| Maximum rated fuse current | 25A | |||||||||
| Bifaciality | φVoc:98±5%;φIsc:80±5%;φPmax:80±5% | |||||||||
| Safety protection rating | ClassII | |||||||||
| IEC module fire resistance | ClassC | |||||||||
| Maximum static load on front | 5400Pa | |||||||||
| Maximum static load on back | 2400Pa | |||||||||
| Hail impact | 25mmat23m/s | |||||||||
| Packaging information | 37 pieces per trailer 592 pieces per 40-foot high-cube container 740 pieces per 13.5-meter flatbed truck |
|||||||||
| Module dimensions | 2465*1134*30mm | |||||||||
| Cell type | Monocrystalline silicon, 182 mm | |||||||||
| Number of cells | 156H（6×13×2）pcs | |||||||||
| Module weight | 34kg | |||||||||
| Glass | Double-glass, 2.0+2.0 mm semi-tempered glass | |||||||||
| Encapsulation | EVA+EPE | |||||||||
| Frame | Silver anodized aluminum alloy frame | |||||||||
| Junction box | Split junction box, IP68 protection rating | |||||||||
| Cables | 4.0mm2 ,300mm 光伏专用缆线 |
|||||||||
| Connectors | MC4 compatible | |||||||||
