I. General Overview of the System
This integrated photovoltaic-storage system is primarily designed for small- and medium-sized commercial and industrial applications. It specifically addresses industry pain points such as significant voltage fluctuations in regional power grids, insufficient power supply stability, substantial peak-to-off-peak electricity price differentials, and consistently high electricity costs for businesses. The system employs a single 60 kW three-phase high-voltage grid-connected energy storage inverter as its core control unit, paired with a 117 kWp high-efficiency PV array and a 112 kWh high-voltage lithium iron phosphate energy storage system, to create a smart photovoltaic-storage energy system tailored for lightweight commercial and industrial applications. The equipment supports seamless millisecond-level switching between grid-connected and off-grid modes, enabling imperceptible mode changes within 10 ms. It integrates multi-dimensional functions such as on-site PV self-consumption, peak-to-off-peak tariff arbitrage, emergency backup during grid anomalies, and power quality stabilization during grid sags. This system effectively helps users reduce grid electricity purchase costs, enhance end-user power supply reliability, and mitigate production losses caused by power outages, making it fully adaptable to diverse commercial and industrial energy scenarios such as small and medium-sized factories, hotels, and cultural and tourism facilities.
(1) System Configuration List
1. Energy Storage Inverter Equipment: The system is configured with a single 60 kW three-phase high-voltage grid-connected inverter, which provides core functions such as AC/DC power conversion, intelligent multi-source energy dispatch, equipment safety protection, and operating mode switching for the entire system. With a stable rated AC output power of 60 kW, it is well-suited for the project’s photovoltaic over-design and energy storage charging/discharging operating conditions, offering excellent operational efficiency and load matching.
2. Photovoltaic Array: A total of 180 high-efficiency 650W monocrystalline silicon photovoltaic modules are deployed across the site, bringing the system’s total installed capacity to 117 kWp.
3. Energy Storage Battery System: A 112 kWh rack-mounted high-voltage lithium iron phosphate (LiFePO₄) energy storage system is configured, utilizing a modular series architecture. Its operating voltage range is perfectly matched to the 60 kW inverter, effectively reducing AC/DC energy conversion losses. It offers advantages such as high charge/discharge efficiency, long cycle life, and high safety and stability.
4. Electrical Accessories and Supporting Materials: The complete system includes two six-input, one-output PV DC combiner boxes, hot-dip galvanized anti-corrosion PV array mounts, MC4 waterproof connectors, PV-specific high- and low-voltage DC cables, energy storage cabinet mounting accessories, and grounding protection devices, among other supporting equipment, to ensure the system’s safe and stable operation and meet the requirements for long-term outdoor service.
Topology Diagram of a 60 kW/112 kWh Commercial and Industrial Solar PV Energy Storage System
(2) Core Technical Advantages and Application Value of the System
-
1. Optimal power ratio to enhance overall power generation efficiency: The project’s 60 kW energy storage inverter supports a 2x over-design for the PV system, with the equipment capable of accommodating a maximum PV connection capacity of 120 kWp. The 117 kWp PV array configured for this project represents the industry’s optimal mild over-provisioning solution. It effectively smooths out fluctuations in PV power generation during the morning, afternoon, and evening, optimizes the full-day power generation curve, significantly improves the utilization efficiency of the inverter and PV modules, maximizes the site’s power generation revenue, and eliminates idle equipment capacity.
2. Millisecond-level mode switching ensures continuous power supply to loads: The system’s grid-connected to off-grid switching time is strictly controlled within 10 ms, enabling imperceptible and uninterrupted power supply to loads. It is fully compatible with highly sensitive electrical equipment such as industrial precision instruments, server equipment, core operational loads in hotels, and smart automation devices, completely avoiding economic losses—such as equipment downtime, data loss, and production scrap—caused by grid brownouts, power outages, and voltage distortion.
3. Modular and scalable expansion lowers the project investment threshold: The equipment supports future expansion through parallel networking of multiple units. The system’s overall capacity can be gradually upgraded to meet user demands for increased production capacity and growing power loads, with a maximum expandable capacity of 750 kW. The energy storage batteries feature a standardized, modular design, allowing for phased additions of photovoltaic capacity and energy storage capacity without requiring modifications to the existing system architecture. This effectively spreads out initial construction costs, reduces the pressure of one-time investments, and makes the project investment model more flexible and controllable.
4. Highly Adaptable to Multiple Scenarios, Suitable for Domestic and International Operating Conditions: The electrical design of the entire system complies with grid connection standards in most regions worldwide. The equipment features a wide temperature tolerance range and excellent waterproofing, dustproofing, corrosion resistance, and weather resistance. It is perfectly suited for scenarios such as small- and medium-sized manufacturing plants, business hotels, high-end resort estates, and small- and medium-sized commercial complexes. It also adapts to complex overseas operating conditions characterized by high temperatures, high humidity, and poor grid quality. With standardized turnkey implementation, installation and certification are straightforward.
(3) Basic System Operating Capacity
Based on an average daily sunlight duration of 5 hours, the system can generate 585 kWh of photovoltaic power daily, with an available energy storage capacity of 112 kWh. Adopting the mainstream industry intelligent operation logic: "PV power first, self-consumption priority, surplus energy storage, stored power for peak shaving". During daytime, PV power directly supplies factory loads to cut grid electricity usage to the maximum extent. Excess solar power is automatically stored in lithium batteries. On rainy days or at night with low/no PV output, the energy storage system discharges automatically to cover basic production and domestic power demand, boosting local PV consumption and drastically reducing grid electricity costs.
Configuration Diagram for a 60 kW/112 kWh Commercial and Industrial Solar Power and Energy Storage System
II. Analysis of Core Technologies in 60-kW Three-Phase High-Voltage Grid-Tied Inverters
The three-phase high-voltage grid-connected energy storage inverter serves as the core control and energy conversion unit of the entire photovoltaic-storage system. It manages the entire process—including bidirectional conversion, intelligent dispatch, power optimization, safety protection, and mode switching—for DC power from photovoltaic panels, DC power from energy storage batteries, and AC power from the grid. As the core equipment ensuring the system’s efficient, stable, and safe operation, its key technical specifications are as follows:
(1) Performance Advantages on the PV Input Side
The unit has a rated AC output power of 60 kW and supports the connection of photovoltaic systems with a maximum over-configuration of 120 kW, with an over-configuration ratio of up to 2:1, fully meeting the need for yield optimization through lightweight over-configuration in commercial and industrial photovoltaic applications. The unit’s MPPT operating voltage range spans 150 V to 950 V, with a low start-up voltage of just 180 V, enabling earlier start-up and later shutdown in low-light conditions, thereby effectively extending the total daily effective power generation time. The unit is equipped with 10 independent MPPT tracking channels and 20 string input channels, with a maximum input current of 42 A per channel. This perfectly accommodates the project’s 650 W high-power photovoltaic modules. Each channel independently tracks maximum power without interference between channels, effectively mitigating power generation losses caused by module shading and local degradation, thereby enhancing the overall stability of the system’s power generation.
(2) Compatibility with Energy Storage Batteries
The inverter is equipped with two independent BMS battery communication interfaces, with a maximum charging and discharging current of 100A per port and a total maximum charging and discharging current of up to 200A. It supports high-current fast charging and discharging, featuring fast response times and high control precision. The device supports a battery voltage range of 300 V to 950 V and is fully compatible with the entire series of high-voltage lithium iron phosphate battery modules ranging from 100 to 314 Ah. It precisely matches the voltage parameters of the project’s 112 kWh high-voltage energy storage cabinet, significantly reducing AC-to-DC conversion losses. The unit supports dual-redundant CAN/RS485 communication protocols, enabling real-time bidirectional data exchange with the battery BMS system. It accurately collects core battery parameters such as SOC, SOH, temperature, and voltage, and dynamically adjusts charging and discharging strategies. System expansion in the future requires no inverter replacement, ensuring exceptional compatibility and scalability.
(3) AC Output and Off-Grid Load-Carrying Capacity
When connected to the grid, the unit delivers a rated AC output of 60 kW, with a power factor of 0.99 or higher. The total harmonic distortion (THDi) is less than 3%, ensuring a clean output waveform and excellent power quality, which effectively safeguards the stable operation of precision electrical equipment. In off-grid operation, it features exceptional resistance to surge and overload conditions, capable of sustaining 200% of rated power for 200 ms and 1.6 times rated power for 10 seconds. It can smoothly drive inductive surge loads such as air conditioners, water pumps, and motors, completely resolving issues such as voltage drops, tripping, and shutdowns that occur during the startup of high-power equipment. The unit’s on-grid to off-grid switching time is less than 10 ms, ensuring uninterrupted power supply to sensitive loads, with power supply reliability meeting the standards for high-end commercial and industrial loads.
(4) Equipment Protection Rating and Intelligent Operations and Maintenance Capabilities
The entire unit features an IP66 ultra-high protection rating, making it suitable for complex indoor and outdoor installation environments. It is equipped with a proprietary, patented intelligent redundant fan cooling system that offers high cooling efficiency, low noise, and strong stability. It can operate continuously and stably within an ultra-wide temperature range of -25°C to +60°C, easily handling harsh operating conditions such as high temperatures and humidity, as well as significant day-night temperature fluctuations. The device comes standard with multi-mode communication interfaces including Wi-Fi, LAN, and Bluetooth, and supports an optional 4G wireless transmission module. It enables real-time data monitoring via local terminals, on-site debugging of operating parameters, proactive fault alerts, and automatic logging of abnormal data, allowing operations and maintenance personnel to quickly locate faults and conduct on-site troubleshooting. The unit integrates comprehensive safety protection mechanisms, including two-stage DC surge protection, anti-islanding protection, insulation monitoring, DC reverse connection protection, and AFCI arc fault protection. These multiple layers of protection eliminate equipment failures and electrical safety hazards.
(5) Expanding the System’s Operational Capacity
The equipment features a wide range of operational expansion capabilities, supporting modes such as parallel operation of diesel generator sets for coordinated power supply, dynamic reactive power compensation for weak power grids, intelligent tiered load power supply, and precise control to prevent reverse current. It effectively adapts to scenarios such as remote areas without grid access, grids with severe voltage fluctuations, and weak grids with significant harmonic distortion. The system actively optimizes power quality, compensates for reactive power losses, and reduces power factor-related electricity charges, providing comprehensive support for a wide range of complex commercial and industrial power usage environments.
60 kW Three-Phase High-Voltage Grid-Tied Inverter
III. 112 kWh Rack-Mounted High-Voltage Lithium Iron Phosphate Energy Storage Battery System
(1) Battery System Hardware Configuration
The energy storage batteries used in this project feature an industrial-grade, high-voltage modular design. Each battery module has specifications of 51.2V/314Ah, with a usable capacity of 16kWh per module. The system integrates seven sets of battery modules in a high-voltage series configuration within a single cabinet, achieving a total usable capacity of 112kWh. The system’s operating voltage range is perfectly matched to the 60kW inverter, significantly reducing power losses during AC-DC conversion and improving the system’s overall energy efficiency. The batteries utilize a standardized rack-mounted installation structure with uniform interfaces, a neat layout, and easy installation and removal. In the future, capacity can be expanded by directly stacking additional battery modules to meet growing user load demands, without the need to modify existing electrical wiring or equipment architecture, resulting in low expansion costs and high implementation efficiency.
(2) System Safety Features and Service Life
The battery cells are made of automotive-grade lithium iron phosphate material, offering safety advantages such as high thermal stability, a high thermal runaway threshold, and no risk of open flames or explosions. They are suitable for installation in enclosed spaces such as electrical distribution rooms and comply with commercial and industrial fire safety regulations. The battery system exhibits excellent cycle performance; under standard conditions, the system capacity retention rate remains ≥80% even after 6,000 full charge-discharge cycles. Under typical commercial and industrial operating conditions—with one charge and one discharge cycle per day—the system’s overall service life can exceed 15 years, fully covering the project’s return on investment period. The comprehensive charge-discharge efficiency of the entire energy storage system is ≥95%, resulting in extremely low energy loss. This maximizes the retention of solar-generated electricity, thereby increasing the proportion of green electricity used on-site and enhancing the project’s return on investment.
(3) BMS Tiered Intelligent Management and Control System
The battery system employs a hierarchical BMS intelligent management architecture, with each battery module equipped with an independent slave BMS that monitors the voltage, temperature, and internal resistance of each individual cell in real time, dynamically performs cell balancing, and ensures consistent operation of the battery cluster. The cabinet’s main BMS communicates with the energy storage inverter in real time at high speed, synchronously uploading core data such as battery SOC, SOH, fault codes, and temperature anomalies. It dynamically and intelligently adjusts charging and discharging strategies based on on-site load levels, solar irradiance, and time-of-use electricity rates. The battery cabinet integrates comprehensive protection logic against overcharging, over-discharging, overcurrent, overtemperature, short circuits, insulation faults, and arc faults. Paired with a local high-definition display screen, it enables real-time visualization of the system’s operational status, ensuring round-the-clock safety, controllability, and intelligent operation and maintenance.

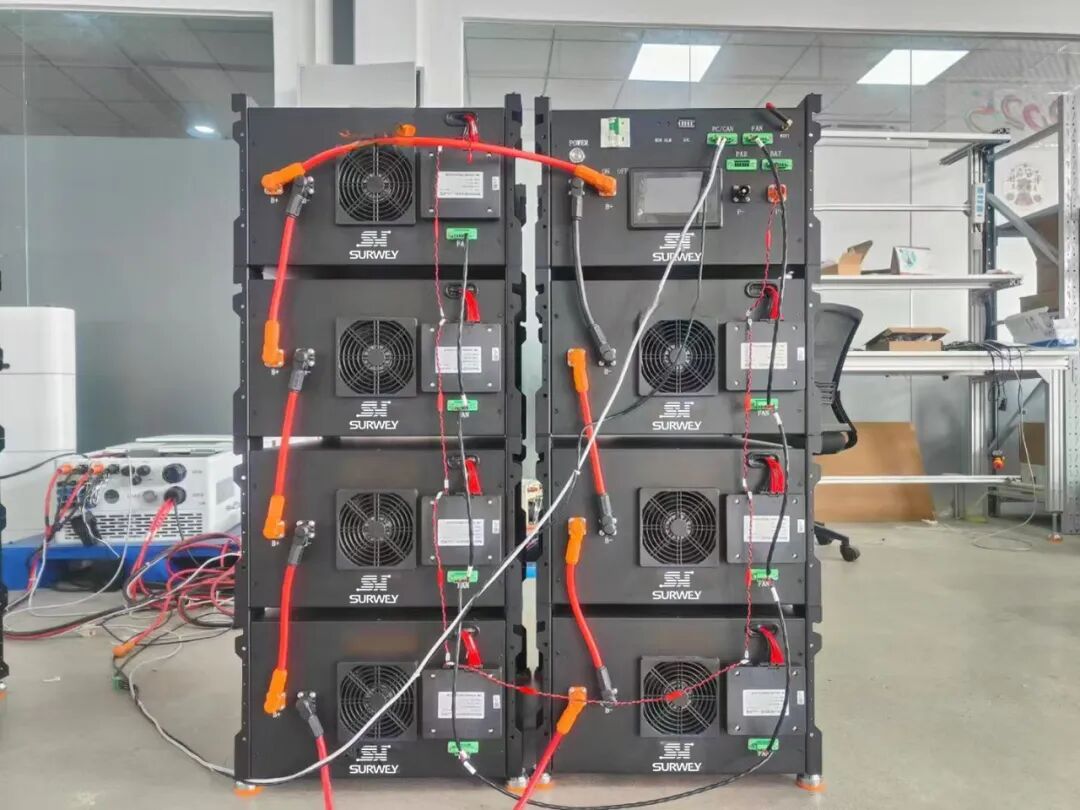

112 kWh Rack-Mounted Lithium Iron Phosphate Energy Storage Battery System
IV. Design of Photovoltaic Arrays and DC Support Systems
4.1 Key Specifications and Advantages of 650W High-Efficiency Monocrystalline Silicon Modules
This project utilizes high-power, 650W, high-efficiency monocrystalline silicon photovoltaic modules. The key electrical parameters are as follows: peak power (Pmax): 650W; open-circuit voltage (Voc): 53V; maximum power operating voltage (Vmp): 41V; short-circuit current (Isc): 16.2A.
4.2 Electrical Matching Design for Photovoltaic Strings
Based on the inverter’s MPPT voltage operating range of 150 V to 950 V, a refined string design was implemented. The 180 photovoltaic modules across the entire site were configured in strings of 18 modules each, resulting in a total of 10 independent PV strings. The theoretical open-circuit voltage of a single string is calculated as 18 × 53 V = 954 V, which is close to the upper threshold of the inverter’s MPPT voltage range. This places the system within a safe and efficient tracking operating range, ensuring compliant electrical matching and optimal power generation efficiency. The 10 strings correspond to the inverter’s 10 independent MPPT channels. Each string performs independent maximum power point tracking; thus, shading, faults, or degradation in a single string will not affect power generation in other strings, significantly enhancing the entire PV system’s fault tolerance and power generation stability.
4.3 DC Support Equipment System
PV Combiner Equipment：The system is configured with two 6-input, 1-output DC combiner boxes. Each unit connects to five PV string circuits and features built-in DC fuses, secondary surge protection devices, and branch fault isolation devices. This configuration enables automatic disconnection and isolation protection in the event of a single-branch fault, preventing a single-point failure from spreading to the entire system and enhancing system operational safety and fault tolerance.
Cables and Connectors：The entire site utilizes 6 mm² and 20 mm² weather-resistant DC cables specifically designed for photovoltaic applications, paired with industrial-grade waterproof MC4 connectors. These cables and connectors are resistant to high and low temperatures, age-resistant, waterproof, dustproof, and feature strong insulation, fully meeting the current-carrying and voltage-withstand requirements for string power generation and power collection and transmission, and are suitable for long-term continuous outdoor operation.
V. The System’s Four Main Intelligent Operating Modes
Mode 1: Grid-Connected Self-Generation and Self-Consumption Operation Mode (Basic Normal Operation Mode)
Under normal grid-connected operating conditions, the system implements an intelligent “PV Priority Local Consumption” strategy. During the day, PV-generated electricity is prioritized to directly supply on-site loads such as production, office operations, and lighting, directly replacing high-cost utility power and reducing basic electricity costs. When PV output exceeds on-site demand, excess energy is automatically stored in the energy storage batteries; Once the batteries are fully charged, the system can, in accordance with grid requirements, either feed surplus power into the grid or activate the anti-backflow function, fully complying with local grid connection regulations. At night or on cloudy and rainy days when PV output is insufficient, the energy storage system automatically supplements power by discharging; once the batteries are depleted, the system seamlessly switches to grid power supply. The entire process is managed through fully automated, intelligent dispatch, requiring no manual intervention.
Model 2: Peak-and-Off-Peak Electricity Price Arbitrage Operation Model (Core Revenue Model)
The system supports the creation of custom multi-time-slot smart scheduling strategies based on local peak-and-off-peak time-of-use electricity pricing policies, enabling revenue generation through electricity price arbitrage. During off-peak grid electricity rates, the system automatically uses grid power to charge the energy storage batteries at low rates; during peak hours, the energy storage system prioritizes full discharge to supply on-site loads, replacing high-cost grid power. This effectively reduces the enterprise’s peak-hour electricity expenses, smooths out electricity demand peaks, significantly lowers monthly and annual total electricity costs, and maximizes the project’s economic returns.
Mode 3: Off-Grid Emergency Standby Operation Mode (Safety Assurance Mode)
When the grid is supplying power normally, the system automatically reserves a minimum amount of emergency power to ensure availability in the event of a sudden power outage. In the event of a grid outage, voltage surges or sags, or abnormal grid faults, the inverter can rapidly and seamlessly switch from grid-connected to off-grid mode within 10 ms. The energy storage system then independently provides continuous power to core critical loads—such as front-end operational equipment, production and processing equipment, precision instruments, and emergency lighting—thereby preventing losses caused by power outages, such as production stoppages, order delays, and equipment damage. Once the grid returns to normal, the system automatically switches back to grid-connected operation, operating unattended with intelligent self-healing capabilities throughout the entire process.
Mode 4: Hybrid Operation Mode Combining Weak Network and Diesel Generator (Extended Adaptive Mode)
Low-Voltage Power Network Application Scenarios：To address issues such as significant voltage fluctuations and poor power quality in certain areas of the power grid, the device incorporates a built-in dynamic reactive power compensation algorithm that optimizes the power factor in real time, offsets reactive power losses, helps avoid penalties for poor power factor, and stabilizes the voltage and frequency at the end-user level.
Off-grid, remote locations：In remote industrial sites, island camps, and other locations without access to the utility grid, the system can operate in parallel with diesel generator sets. By utilizing a combination of solar power and energy storage to handle the main daytime load and peak demand surges, the diesel generator sets operate stably within a high-efficiency, low-consumption range, significantly reducing fuel consumption and losses from frequent start-stop cycles, thereby lowering operating and maintenance costs.
Tiered Load Management：In off-grid emergency conditions, the system supports a tiered power supply strategy for loads, prioritizing continuous power supply to critical loads while reasonably disconnecting non-essential loads. This effectively extends emergency runtime and enhances the system’s emergency support capabilities.
VI. Suitable Scenarios
(1) Core Application Scenarios
-
1. Small and Medium-Sized Hotels: Hotels require continuous, round-the-clock electricity. The power load curves for air conditioning, lighting, and hot water systems align closely with daytime solar power generation periods, resulting in an extremely high on-site consumption rate for solar power and significant cost savings. In the event of a power grid failure, the system ensures uninterrupted power supply to elevators, the front desk, public lighting, and basic electrical needs in guest rooms, thereby preventing the loss of guests and operational losses.
2. Small Processing Plants and Production Workshops: Production equipment in these facilities operates intensively during the day, resulting in pronounced peak loads. PV-storage systems can effectively offset peak grid electricity demand, significantly reducing electricity purchase costs during peak hours. At the same time, the emergency backup power function completely mitigates operational risks—such as production line shutdowns, raw material write-offs, equipment failures, and order delays—caused by sudden power outages, thereby ensuring production continuity.
3. High-end Villas, Estates, and Resorts: These settings allow for the large-scale deployment of photovoltaic arrays, fully utilizing idle land resources to meet the high daily electricity demands of these premium environments. At the same time, they provide an uninterrupted emergency power supply, catering to the self-sufficient energy needs of standalone estates and remote resorts, thereby enhancing power stability and privacy.
Off-Grid Solar Power Systems for Remote Schools in Fiji
Summary of the Proposal
This 60 kW/112 kWh commercial and industrial photovoltaic-storage integrated system features a mature architecture, well-matched specifications, comprehensive safety protections, and diverse operating modes. Based on a single 60 kW high-voltage grid-tied inverter paired with a 117 kW slightly over-sized PV array and a 112 kWh high-capacity energy storage system, it fully supports self-generation and self-consumption of solar power, peak-valley tariff arbitrage, grid emergency backup, weak-grid power management, and intelligent load control. The entire system features high industrial-grade quality, strong weather resistance, easy installation, flexible scalability, and low O&M costs. It comprehensively meets the core needs of commercial and industrial users to reduce costs, improve efficiency, ensure stable power supply and production, and enhance energy self-sufficiency. With high technical maturity, strong practicality, and stable return on investment, it offers significant engineering and application value.
