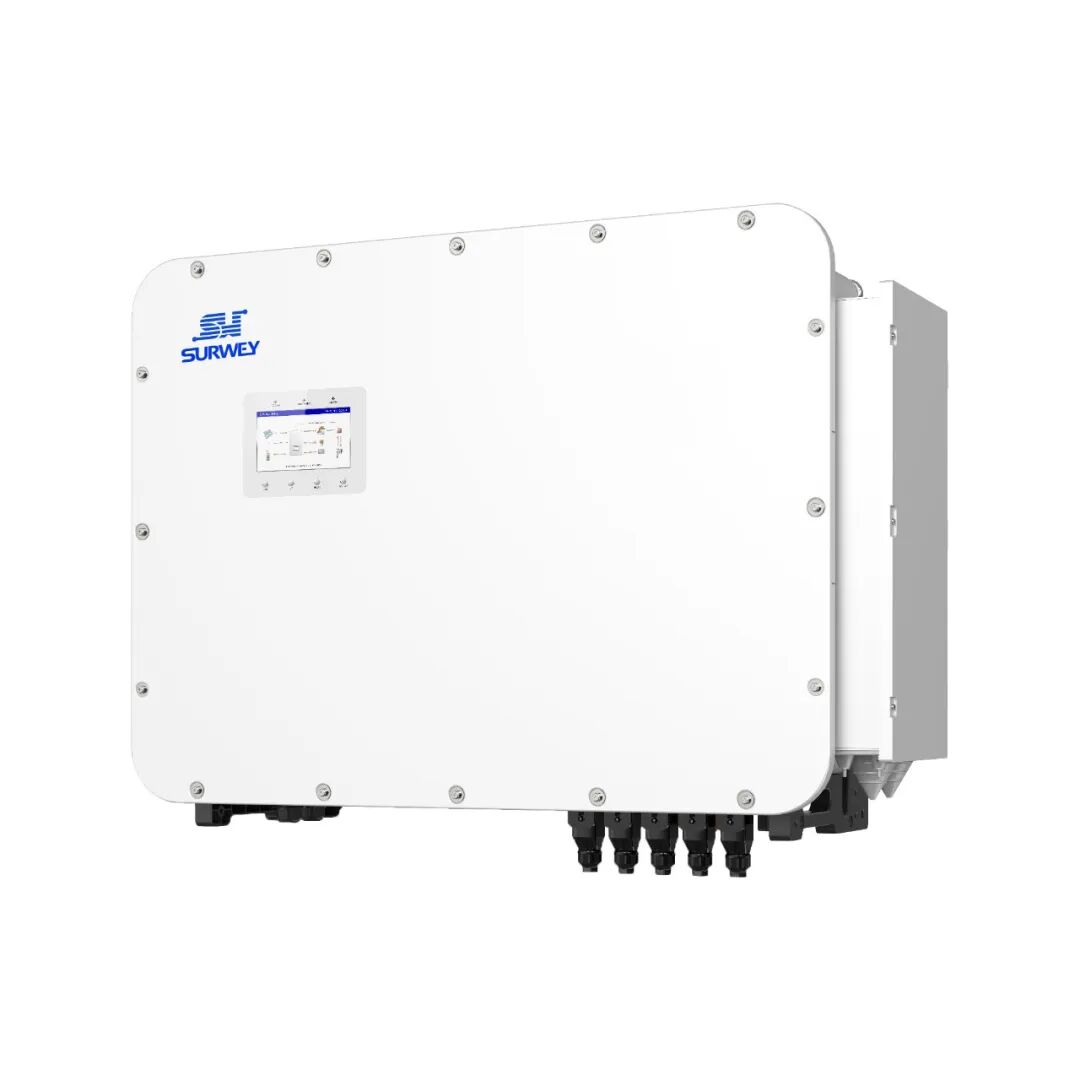

60/75 kW Three-Phase Hybrid Energy Storage Inverter
The 60/75 kW three-phase hybrid energy storage inverter is designed for commercial and industrial energy storage applications. It features dual battery ports and 10 MPPT channels, with millisecond-level grid-tied/off-grid switching to ensure uninterrupted power supply; it has an IP66 rating, supports multi-unit parallel operation and generator synchronization, and integrates with a cloud platform for intelligent remote operation and maintenance.
| DATASHEET | ||
| Models | 60kW | 75kW |
| Input DC(PV side) | ||
| Recommended max.PVarray size | 120 kW | 150 kW |
| Max.usable PVinput power | 120 kW | 150 kW |
| Max.input voltage | 1000V | |
| Rated voltage | 600V | |
| Start-up voltage | 180V | |
| MPPT voltage range | 150-950V | |
| Max.input current | 10×42A | |
| Max.current per DC input | 42A | |
| Max.short circuit current | 10×60A | |
| MPPT number/Max.input strings number | 10/20 | |
| Battery | ||
| Battery type | Li-ion | |
| Battery voltage range | 300-950V | |
| Max.charge/discharge current | 100 A×2/100 A×2 | |
| Number of battery port/Number of BMS port | 2 | |
| Max.charge/discharge current of each port | 100 A | |
| Communication interface | CAN/RS485 | |
| Output AC(Grid side) | ||
| Rated output power | 60 kw | 75kW |
| Max.apparent output power | 60 kVA | 75 KVA |
| Rated grid voltage | 3/(N)/PE,127V/220V,133V/230V | |
| Rated grid frequency | 50 Hz/60 Hz | |
| Rated grid output current | 157.5A/150.6A | 196.8A/188.2A |
| Power factor | >0.99(0.8 leading-0.8 lagging) | |
| THDi | <3% | |
| Input AC(Grid side) | ||
| Max.input power | 95.2 kW/99.6 kW | |
| Input voltage range | 176-265V | |
| Max.input current | 250 A | |
| Output AC(Back-up) | ||
| Rated output power | 60 kw | 75 kW |
| Max.apparent output power | 1.6 times of rated power,10 s; 2 times of rated power,200 ms |
1.4 times of rated power,10 s; 1.6 times of rated power,200 ms |
| Back-up switch time① | <10 ms | |
| Rated output voltage | 3/(N)/PE,127V/220V,133V/230V | |
| Rated frequency | 50 Hz/60 Hz | |
| Rated output current | 157.5A/150.6A | 196.8A/188.2 A |
| Max.AC passthrough current | 157.5A/150.6A | 196.8A/188.2A |
| THDv(@linear load) | <3% | |
| Input AC(Generator side) | ||
| Max.input power | 60 kW | 75 kW |
| Rated input current | 157,5A/150.6A | 196.8A/188.2A |
| Rated input voltage | 3/(N)/PE,127V/220V,133V/230V | |
| Rated input frequency | 50 Hz/60 Hz | |
| Efficiency | ||
| Max.efficiency | 96.00% | |
| EU efficiency | 94.50% | 94.60% |
| BAT charged by PV/AC max.efficiency | 97.6%/95.6% | |
| Battery discharged efficiency | 95.60% | |
| Protection | ||
| Surge protection | DC Typell/AC Type ll | |
| Outputover current protection | Yes | |
| Insulation resistance monitoring | Yes | |
| Residual current detection | Yes | |
| Integrated PVswitch | Yes | |
| DC reverse-polarity protection | Yes | |
| Protection class/Over voltage category | I/DCII,ACⅢ | |
| Integrated AFCI2.0 | Optional | |
| Anti-islanding protection | Yes | |
| General Data | ||
| Max.power per phase(grid &back-up) | 33%rated power | |
| Dimensions(W×H×D) | 1174×814×400 mm | |
| Weight | 170kg | |
| Inverter topology | Transformerless | |
| Self-consumption | <45W | |
| Operating temperature range | -25～+60℃ | |
| Relative humidity | 0-100% | |
| Ingress protection | IP66 | |
| Cooling concept | Intelligent redundant fan-cooling | |
| Max.operation altitude | 3000 m | |
| Grid connection standard② | G99,EN 50549-1&2/EN 50549-10,C10/11,IEC62116,IEC 61727,PORTARIA N0140,PORTARIA N515 | |
| Safety/EMC standard | IEC/EN62109-1/-2,IEC/EN 61000-6-2/-4,EN 55011 | |
| Features | ||
| PV connection | MC4 connector | |
| Battery connection | Terminal connector | |
| AC connection | Terminalblock | |
| Display | 7.0"LCD display &Bluetooth+APP | |
| Communication interface | Standard:WIFI+LAN+Bluetooth,CAN-BMS×2,CAN-Parallel×2,LAN,RS485-Meter,RS485,DRM,DI×5,DO×4;Optional:4G | |
