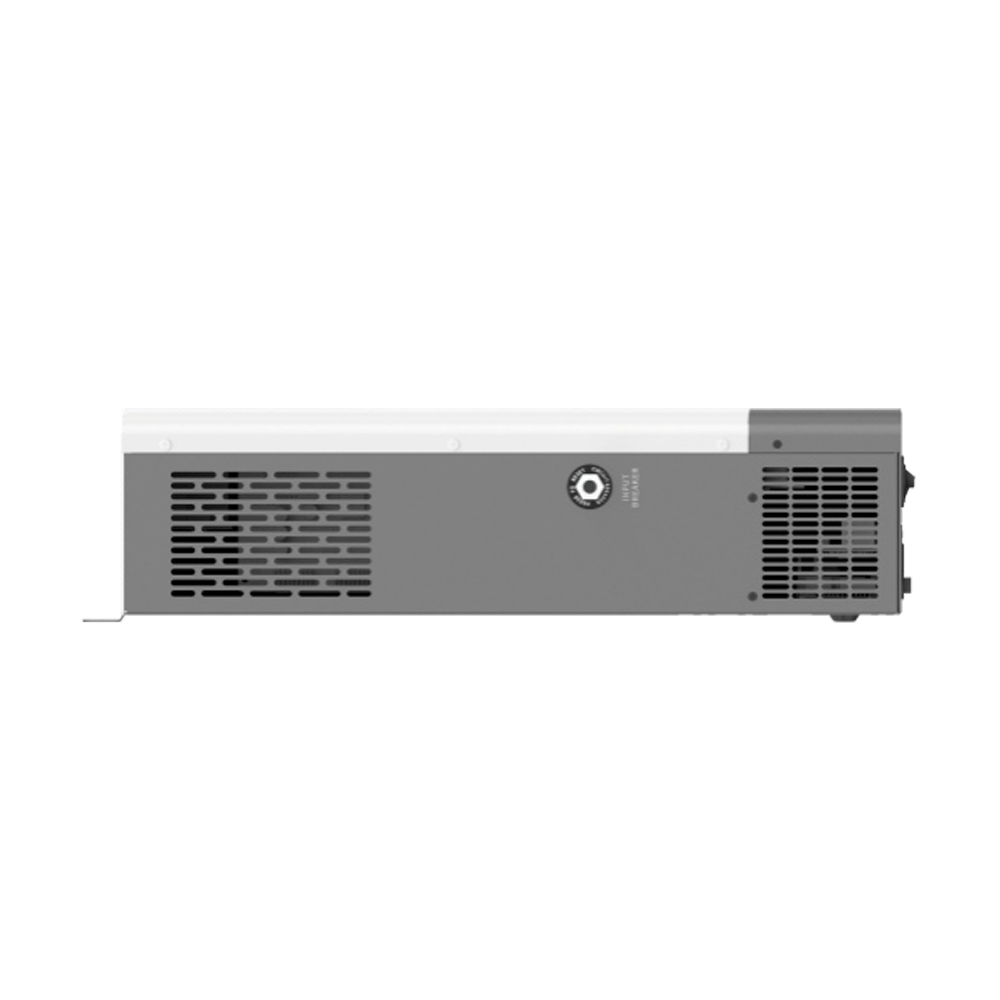

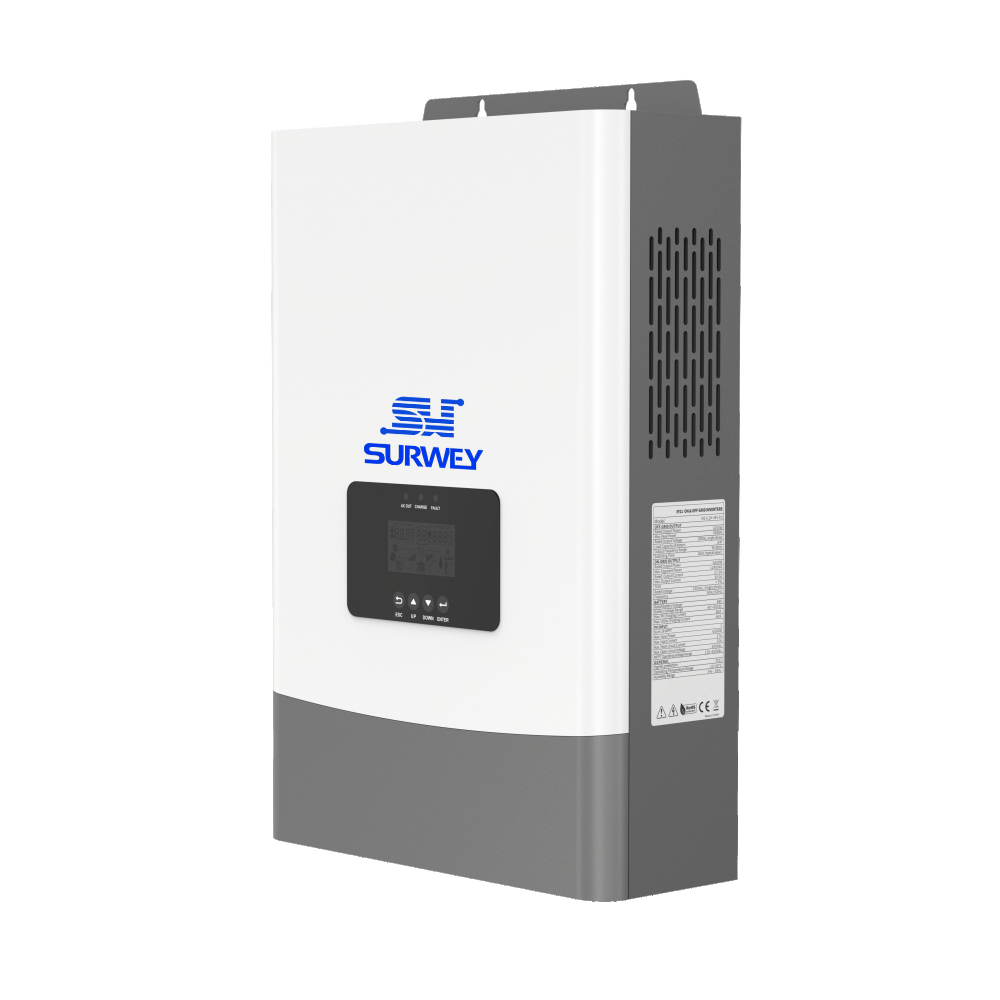

48v 6.2-12kw-EU Hybrid On/Off Grid Inverter (230V Series)
230V Series 6.2kW / 12kW‑48V Hybrid On/Off Grid Inverter. Up to 6 units can be paralleled for capacity expansion.
It features segmented charge & discharge and anti‑backflow grid‑tie function. It can operate without batteries, solar power and grid can supply loads together. Four charging modes optional: Solar Only, Grid Priority, Solar Priority and Hybrid Charging. Dual battery activation, starts up by either grid or solar input.
It features segmented charge & discharge and anti‑backflow grid‑tie function. It can operate without batteries, solar power and grid can supply loads together. Four charging modes optional: Solar Only, Grid Priority, Solar Priority and Hybrid Charging. Dual battery activation, starts up by either grid or solar input.

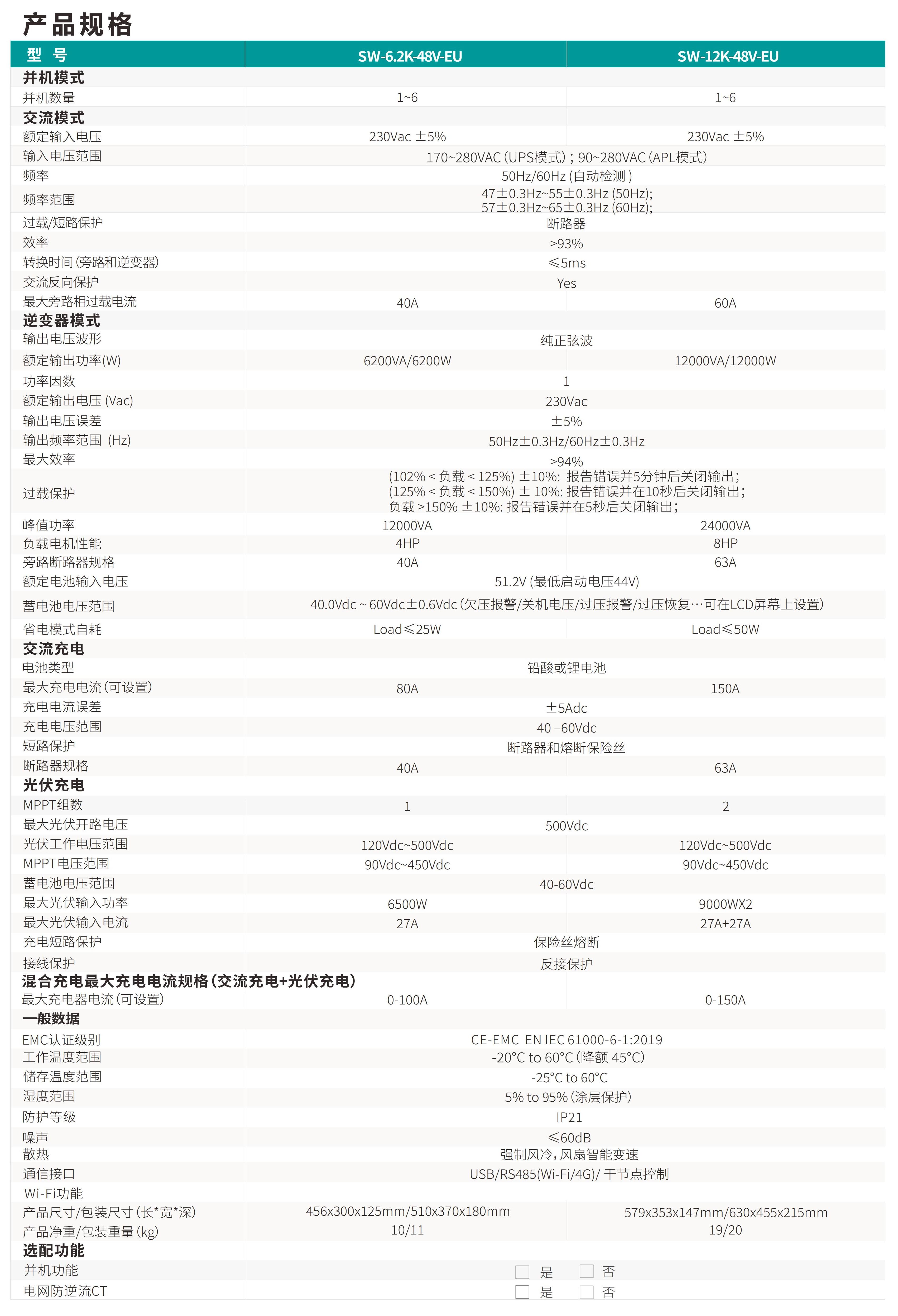

| Product Specifications | ||
| Model | SW-6.2K-48V-EU | SW-12K-48V-EU |
| Parallel Operation Mode | ||
| Number of Units in Parallel | 1~6 | 1~6 |
| AC Mode | ||
| Rated Input Voltage | 230Vac±5% | 230Vac±5% |
| Input Voltage Range | 170–280 VAC (UPS mode); 90–280 VAC (APL mode) | |
| Frequency | 50 Hz/60 Hz (auto-detect) | |
| Frequency Range | 47±0.3Hz~55±0.3Hz(50Hz); 57±0.3Hz~65±0.3Hz(60Hz); |
|
| Overload/Short-Circuit Protection | Circuit Breakers and Fuses | |
| Efficiency | >93% | |
| Switchover Time (Bypass and Inverter) | ≤5ms | |
| AC Reverse Protection | Yes | |
| Maximum Bypass Phase Overload Current | 40A | 60A |
| Inverter Mode | ||
| Output Voltage Waveform | Pure Sine Wave | |
| Rated Output Power (W) | 6200VA/6200W | 12000VA/12000W |
| Power Factor | 1 | |
| Rated Output Voltage (Vac) | 230Vac | |
| Output Voltage Error | ±5% | |
| Output Frequency Range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
|
| Maximum Efficiency | >94% | |
| Overload Protection | (102% < load < 125%) ± 10%: Report an error and shut off the output after 5 minutes; (125% < load < 150%) ± 10%: Report an error and shut off the output after 10 seconds; Load > 150% ± 10%: Report an error and shut off the output after 5 seconds; |
|
| Peak Power | 12000VA | 24000VA |
| Load Motor Performance | 4HP | 8HP |
| Bypass Circuit Breaker Specifications | 40A | 63A |
| Rated Battery Input Voltage | 51.2 V (minimum startup voltage: 44 V) | |
| Battery Voltage Range | 40.0 Vdc to 60 Vdc ±0.6 Vdc (Undervoltage alarm, shutdown voltage, overvoltage alarm, overvoltage recovery, etc., can be set on the LCD screen) | |
| Self-Discharge in Power-Saving Mode | Load≤25W | Load≤50W |
| AC Charging | ||
| Battery Type | Lead-acid or lithium-ion batteries | |
| Maximum Charging Current (Configurable) | 80A | 150A |
| Charging Current Tolerance | ±5Adc | |
| Charging Voltage Range | 40-60Vdc |
|
| Short-Circuit Protection | Circuit Breakers and Fuses | |
| Circuit Breaker Specifications | 40A | 63A |
| Solar Charging | ||
| Number of MPPT Channels | 1 | 2 |
| Maximum PV Open-Circuit Voltage | 500Vdc | |
| PV Operating Voltage Range | 120Vdc~500Vdc 120Vdc~500Vdc | |
| MPPT Voltage Range | 90Vdc~450Vdc | 90Vdc~450Vdc |
| Battery Voltage Range | 40-60Vdc | |
| Maximum PV Input Power | 6500W | 9000WX2 |
| Maximum PV Input Current | 27A | 27A+27A |
| Charging Short-Circuit Protection | Fuse Blown | |
| Wiring Protection | Reverse Polarity Protection | |
| Maximum Charging Current Specifications for Hybrid Charging (AC Charging + Solar Charging) | ||
| Maximum Charger Current (Configurable) | 0-100A | 0-150A |
| General Data | ||
| EMC Certification Level | CE-EMC EN IEC 61000-6-1:2019 | |
| Operating Temperature Range | -20°C to 60°C (derated at 45°C) | |
| Storage Temperature Range | -25°C to 60°C | |
| Humidity Range | 5% to 95% (with coating protection) | |
| Protection Rating | IP21 | |
| Noise | ≤60 dB | |
| Heat Dissipation | Forced air cooling with intelligent variable-speed fan | |

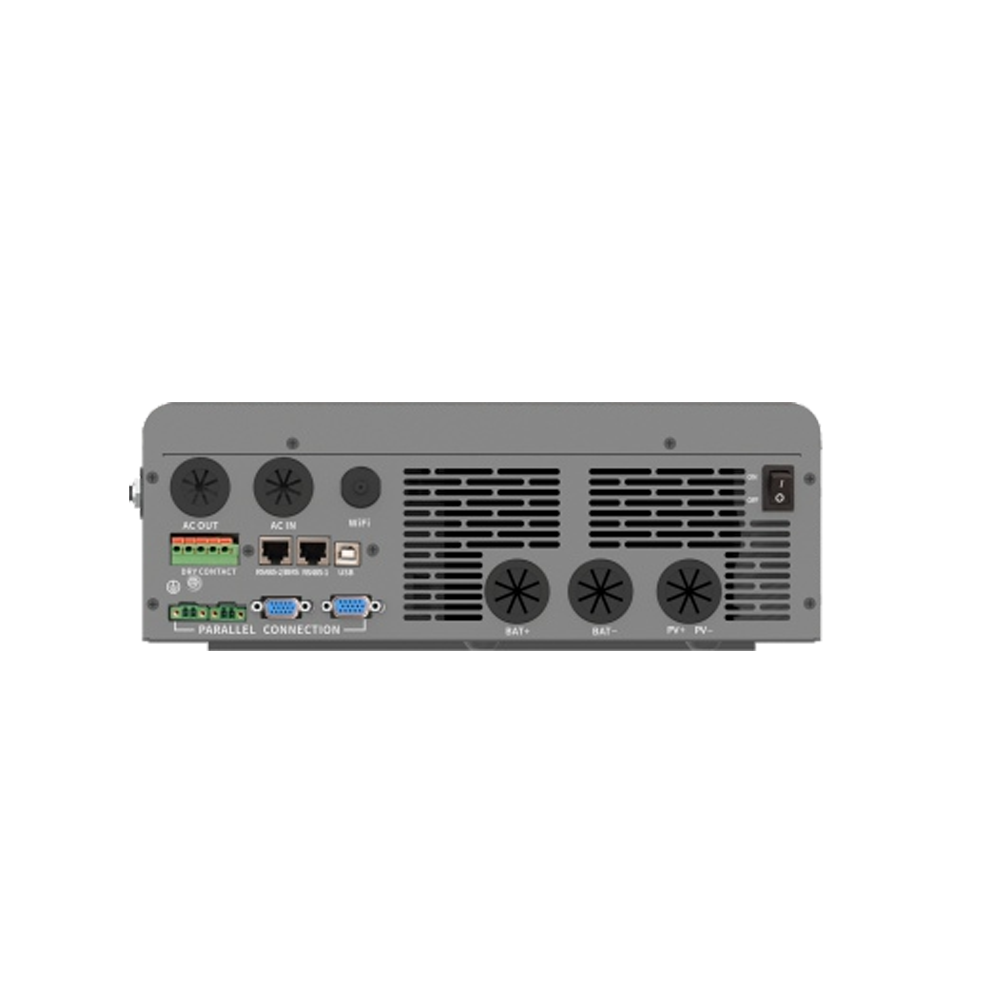

| Communication Interfaces | USB/RS485 (Wi-Fi/4G)/dry contact control | |
| Wi-Fi Features | ||
| Product Dimensions/Package Dimensions (L x W x D) | 456x300x125mm/510x370x180mm | 579x353x147mm/630x455x215mm |
| Net Product Weight/Package Weight (kg) | 10/11 | 19/20 |
| Optional Features | ||
| Parallel Operation Function | □ Yes □ No | |
| Grid Reverse Current Protection CT | □ Yes □ No | |
