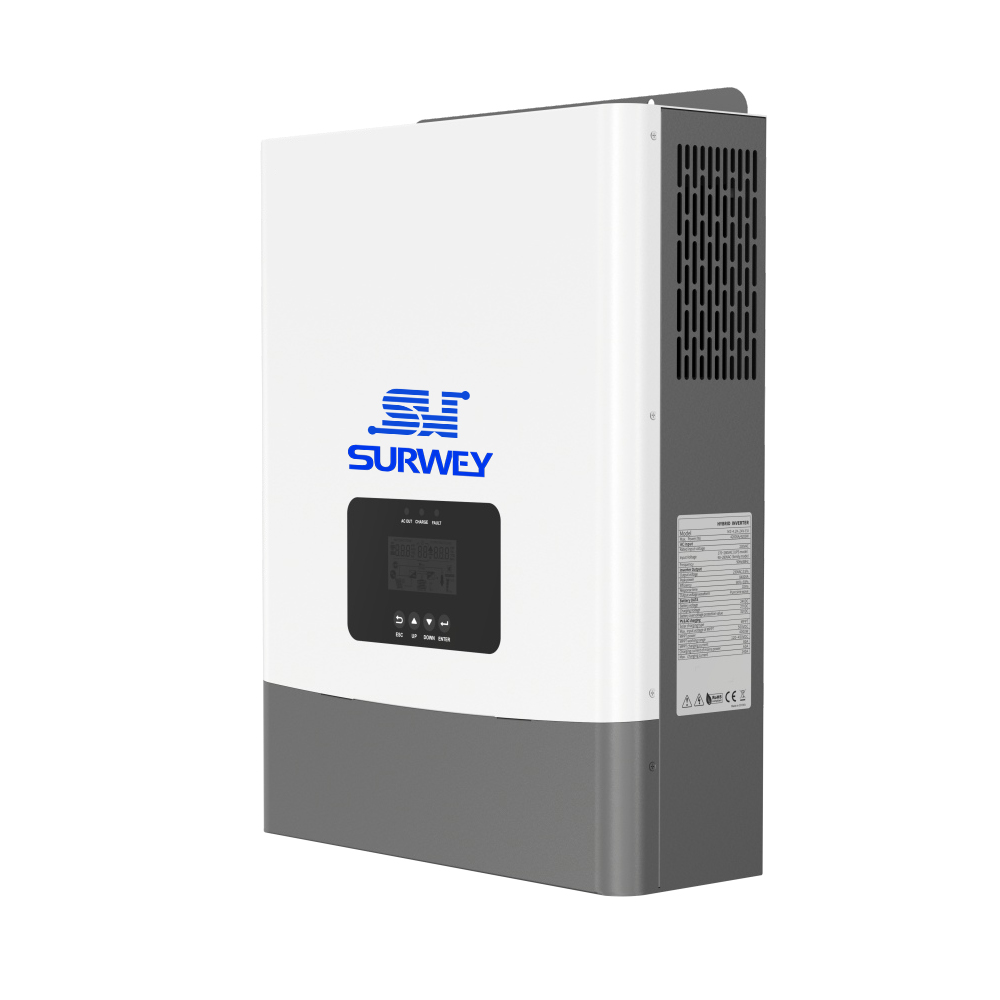

12v/24v 1.2kw-4.2kw-EU Hybrid On/Off Grid Inverter (230V Series )
230V Series Hybrid On/Off Grid Inverter, available in 3 models: 1.2kW-12V, 2.2kW-24V, 4.2kW-24V.
It supports segmented charge and discharge, and can operate without batteries. Solar power and utility grid can supply loads together. Four charging modes are optional: Solar Only, Grid Priority, Solar Priority and Hybrid Charging. Equipped with grid bypass function, transfer time ≤5ms to guarantee uninterrupted power supply.
It supports segmented charge and discharge, and can operate without batteries. Solar power and utility grid can supply loads together. Four charging modes are optional: Solar Only, Grid Priority, Solar Priority and Hybrid Charging. Equipped with grid bypass function, transfer time ≤5ms to guarantee uninterrupted power supply.

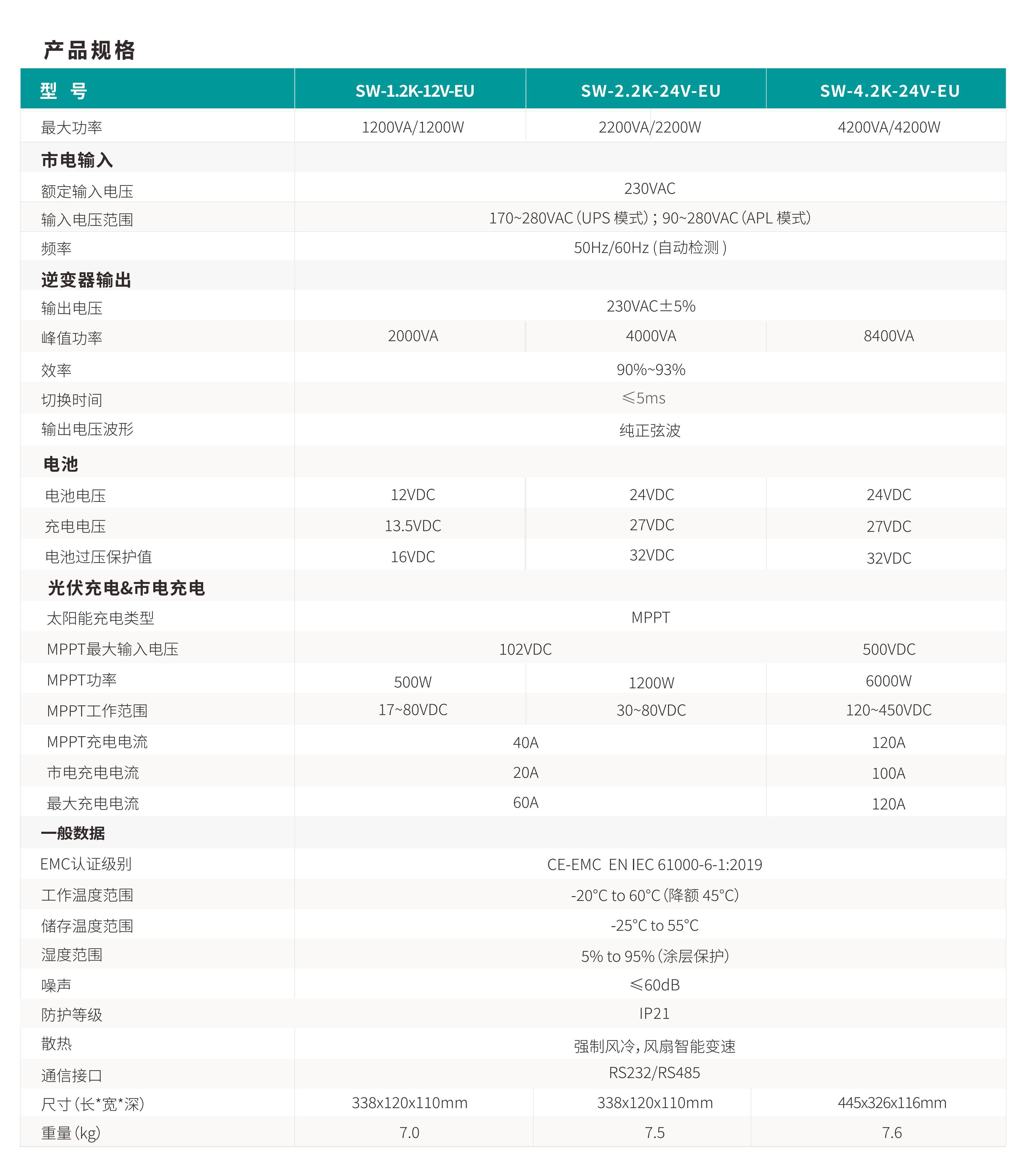

| Product Specifications | |||
| Model | SW-1.2K-12V-EU | SW-2.2K-24V-EU | SW-4.2K-24V-EU |
| Maximum Power | 1200VA/1200W | 2200VA/2200W | 4200VA/4200W |
| Mains Power Input | |||
| Rated Input Voltage | 230VAC | ||
| Input Voltage Range | 170–280 VAC (UPS mode); 90–280 VAC (APL mode) | ||
| Frequency | 50 Hz/60 Hz (auto-detect) | ||
| Inverter Output | |||
| Output Voltage | 230VAC±5% | ||
| Peak Power | 2000VA | 4000VA | 8400VA |
| Efficiency | 90%~93% | ||
| Switching Time | ≤5ms | ||
| Output Voltage Waveform | Pure Sine Wave | ||
| Battery | |||
| Battery Voltage | 12VDC | 24VDC | 24VDC |
| Charging Voltage | 13.5VDC | 27VDC | 27VDC |
| Battery Overvoltage Protection Threshold | 16VDC | 32VDC | 32VDC |
| Solar Charging & Mains Charging | |||
| Solar Charging Type | MPPT | ||
| MPPT Maximum Input Voltage | 102VDC | 500VDC | |
| MPPT Power | 500W | 1200W | 6000W |
| MPPT Operating Range | 17~80VDC | 30~80VDC | 120~450VDC |
| MPPT Charging Current | 40A | 120A | |
| Mains Charging Current | 20A | 100A | |
| Maximum Charging Current | 60A | 120A | |
| General Data | |||
| EMC Certification Level | CE-EMC EN IEC 61000-6-1:2019 | ||
| Operating Temperature Range | -20°C to 60°C (derated at 45°C) | ||
| Storage Temperature Range | -25°℃to 55°℃ | ||
| Humidity Range | 5% to 95% (coating protection) | ||
| Noise | ≤60dB | ||
| Protection Rating | IP21 | ||
| Heat Dissipation | Forced air cooling with intelligent fan speed control | ||
| Communication Interfaces | RS232/RS485 | ||
| Dimensions (L x W x D) | 338x120x110mm | 338x120x110mm | 445x326x116mm |
| Weight (kg) | 7 | 7.5 | 7.6 |
