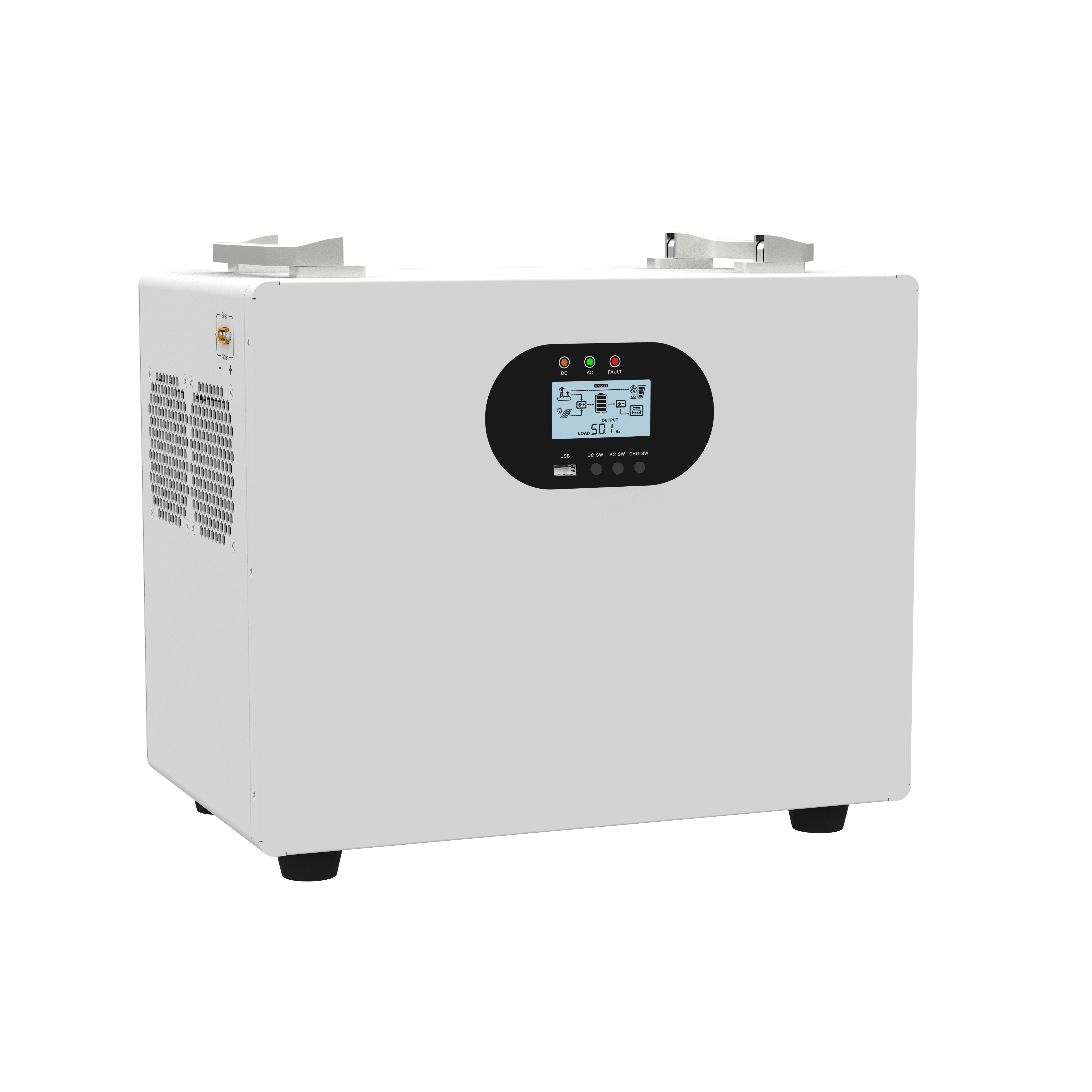

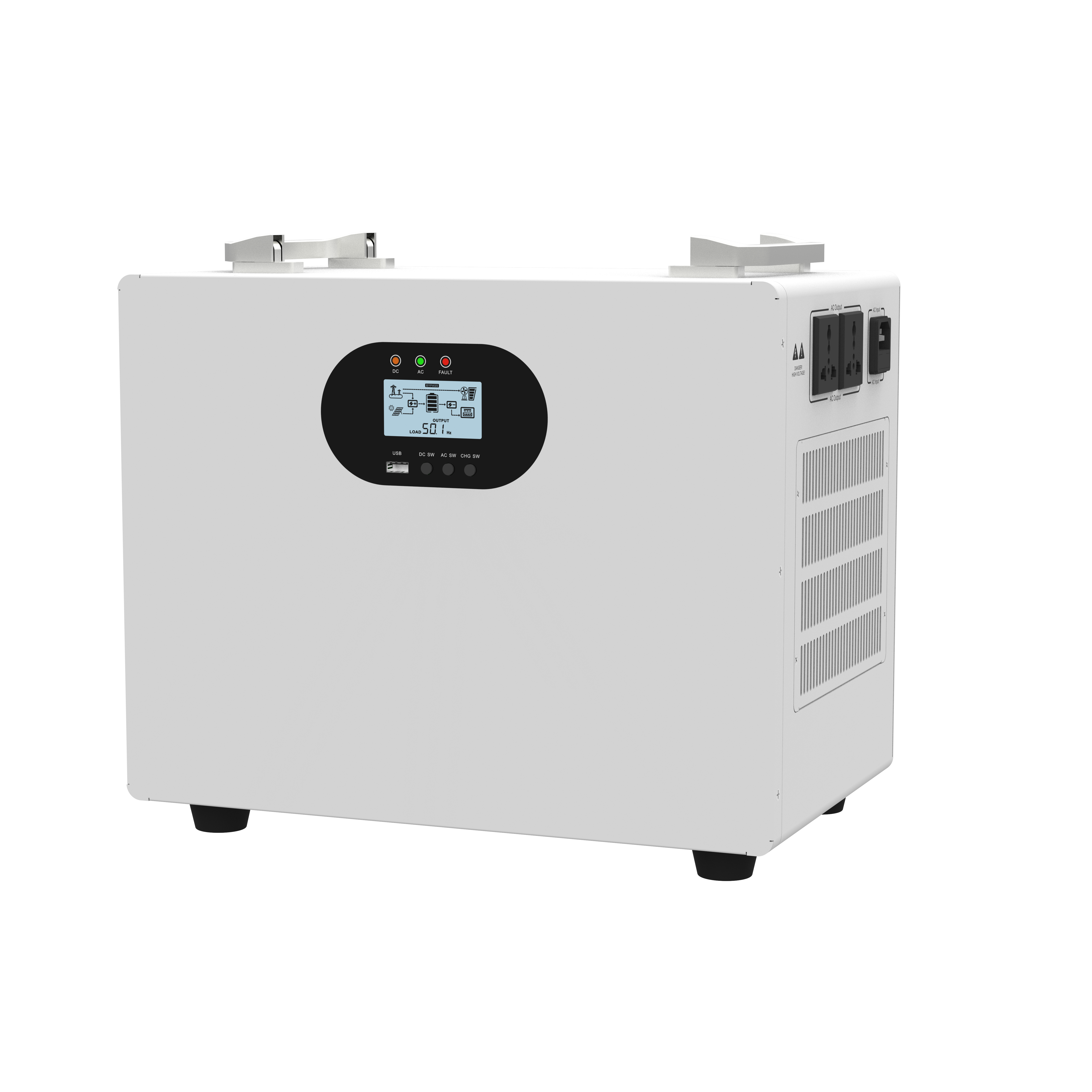

300W/500W/1000W/1800W Portable Power Station for Outdoor Use
Compact, all-in-one portable energy storage system with a built-in inverter and lithium battery, designed specifically for outdoor camping, emergency power outages, field operations, and powering small communication devices—no additional inverter required.
| Model | SW-30132-HV | SW-50132-HV | SW-10264-HV | SW-50132-LV | SW-10264-LV | SW-1802128-HV | |
| AC Input | Rated Voltage | 230VAC | 120VAC | 230VAC | |||
| Voltage Range | 90-280VAC | 60-145VAC | 90-280VAC | ||||
| Frequency Range | 45-65Hz | ||||||
| Power Factor | >0.95 | ||||||
| AC Output | Rated Power | 300W | 500W | 1000W | 500W | 1000W | 1800W |
| Voltage Range | 230VAC±5V | 120VAC±5V | 208V/220V/230V/240V | ||||
| Frequency Range | 50Hz±0.5% | 60Hz±0.5% | 50Hz±0.5% | ||||
| Power Factor | ≥99% | ||||||
| Overload Capacity | CP300W,<170VAC shutdown | CP500W,<170VAC shutdown | CP1000W,<170VAC shutdown | CP500W,<85VAC shutdown | CP1000W,<85VAC shutdown | CP1800W,<170VAC power off | |
| Voltage Waveform | pure sine wave | ||||||
| Harmonic Distortion(THD) | <3%@linear load <5%non-linear load |
||||||
| Convert Time | ≤20ms | ||||||
| USB Output | 5V/1A | ||||||
| PV Input | Voltage Range | 11-55VDC | 18-110VDC | ||||
| Rated Power | 300W(Max) | 550W(Max) | 300W(Max) | 550WW(Max) | 1200WW(Max) | ||
| Maximum Current | 10A(Max) | 15A(Max) | 10A(Max) | 15A(Max) | |||
| Maximum Charging Current | 80A(Max) | 100A(Max) | 80A(Max) | 100A(Max) | |||
| Battery Characteristics |
Battery Type/Rated Voltage | Lithium iron battery/3.2V-206AH | Lithium iron battery/3.2V-314AH | Lithium iron battery/6.4V-314AH | Lithium iron battery/3.2V-314AH | Lithium iron battery/6.4V-314AH | Lithium iron battery/3.2V-314AH*4 |
| Battery capacity | 659WH | 1004WH | 2009WH | 1004WH | 2009WH | 4019WH | |
| Voltage Range | 3.0-3.65VDC | 6.0-7.3VDC | 3.0-3.65VDC | 6.0-7.3VDC | 12.0-14.6VDC | ||
| Maximum Charging Power | 300W | 500W | 1000W | 400W | 1000W | 1800W | |
| AC+PV Maximum Charging Current | 1-100A(configurable) | 1-140A(configurable) | 1-160A(configurable) | 1-140A(configurable) | 1-160A(configurable) | ||
| Other | Communication And Monitoring | USB(serial interface) | |||||
| Working Temperature Range | -10-40℃ | ||||||
| Storage Temperature Range | -15-60℃ | ||||||
| Humidity Range | 5-95%(no condensation) | ||||||
| Noise | ≤50dB | ||||||
| Working Altitude | Applicable for≤3000m 10%reduction for every 1000m increase(over 3000m) |
||||||
| Product Dimensions(length*width*height)mm | 255*135*315 | 255*155*315 | 285*230*315 | 255*155*315 | 285*230*315 | 350*245*401 | |
| Packaging Dimensions(length*width*height)mm | 325*200*350 | 315*220*345 | 355*305*350 | 315*220*345 | 355*305*350 | 395*340*490 | |
| Net Weight(KG) | 7.9 | 10.7 | 19 | 10.7 | 19 | 32 | |
| Gross Weight(KG) | 8.5 | 11.5 | 20 | 11.5 | 20 | 34 | |
