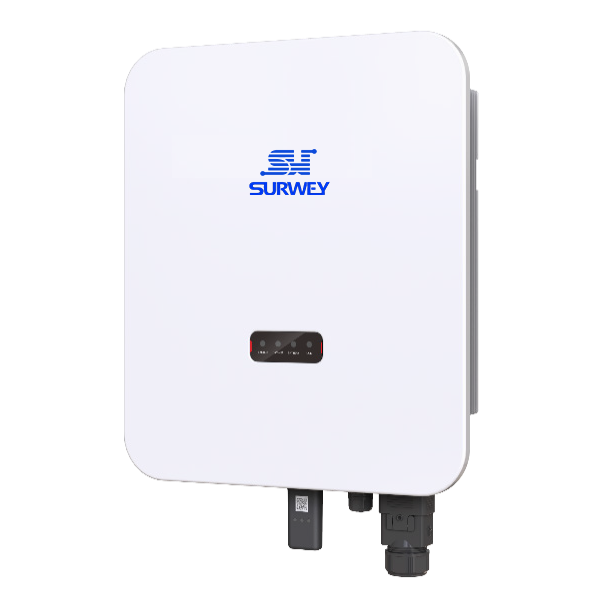

tPower-NL(9.5/9.6/9.8/9.10/9.12KTH) Three-Phase Photovoltaic Storage Inverter
tPower-NL9 5–12kW three-phase hybrid solar inverter integrates PV and energy storage. It supports grid-tied & off-grid modes, fast UPS switch within 10ms, 98.2% max efficiency, IP66 rating and mobile APP remote monitoring for all-home power supply.
| Product Model | tPower-NL9.5KTH | tPower-NL9.6KTH | tPower-NL9.8KTH | tPower-NL9.10KTH | tPower-NL9.12KTH |
| AC-Side Parameters (Grid-Connected Output) | |||||
| Rated Output Power | 5kW | 6kW | 8kW | 10kW | 12kW |
| Maximum Output Power | 5kVA | 6kVA | 8kVA | 10kVA | 12kVA |
| Rated Output Current | 7.6A/7.2A | 9.1A/8.7A | 12.1A/11.5A | 15.2A/14.4A | 18.2A/17.4A |
| Maximum Output Current | 7.6A/7.2A | 9.1A/8.7A | 12.1A/11.5A | 15.2A/14.4A | 18.2A/17.4A |
| Rated Line Voltage | 220/380Vac;230/400Vac | ||||
| Rated Line Frequency | 50Hz/60Hz | ||||
| Line Frequency Range | 45~55Hz/55~65Hz | ||||
| Maximum Total Harmonic Distortion (at Rated Power) |
<2% | ||||
| Power Factor | >0.99 (rated power) / (0.8 lead to 0.8 lag, adjustable) | ||||
| Wiring Configuration | 3P+N+PE | ||||
| AC-Side Parameters (Grid-Connected Input) | |||||
| Maximum Input Power | 10kW | 12kW | 16kW | 20kW | 20kW |
| Maximum Input Current | 15.2A | 17.4A | 24.2A | 30.4A | 30.4A |
| Rated Mains Voltage | 220/380Vac;230/400Vac | ||||
| Rated Mains Frequency | 50Hz/60Hz | ||||
| AC-Side Parameters (Off-Grid) | |||||
| Rated Output Power | 5kW | 6kW | 8kW | 10kW | 12kW |
| Maximum Output Power | 8kVA@60sec | 9.6kVA@60sec | 13kVA@60sec | 16kVA@60sec | 19kVA@60sec |
| Rated Output Current | 7.6A/7.2A | 9.1A/8.7A | 12.1A/11.5A | 15.2A/14.4A | 18.2A/17.4A |
| Rated Voltage | 380/400Vac | ||||
| Rated Frequency | 50Hz/60Hz | ||||
| Maximum Total Harmonic Distortion (at Rated Power) |
<3% | ||||
| Grid-Tied/Off-Grid Switching Time | <10ms | ||||
| Protection Features | |||||
| Islanding Protection | Possess | ||||
| Reverse Connection Protection | Possess | ||||
| Output Short-Circuit Protection | Possess | ||||
| Output Overvoltage Protection | Possess | ||||
| Output Overcurrent Protection | Possess | ||||
| Leakage Current Protection | Possess | ||||
| Surge Protection | DC Typell/AC Type ll | ||||
| Insulation Resistance Testing | Possess | ||||
| DC Switch | Possess | ||||
| String Detection | Optional | ||||
| Intelligent Arc Protection | Optional | ||||
| System Parameters | |||||
| Maximum Efficiency | 97.6% | 97.6% | 98% | 98.2% | 98.2% |
| China Efficiency | 96.5% | 96.5% | 97.2% | 97.5% | 97.5% |
| Maximum Efficiency of PV Cells | 98% | 98% | 98.2% | 98.2% | 98.2% |
| Maximum Efficiency of Cell Discharge | 97.3% | 97.3% | 97.5% | 97.5% | 97.5% |
| Humidity Range | 0–100%, no condensation | ||||
| Cooling Method | Natural cooling | ||||
| Operating Temperature | -30~+60℃ | ||||
| Permissible Altitude | 4000m | ||||
| Human-Machine Interaction | LED/APP/Web | ||||
| Communication | RS485/Bluetooth/CAN/4G (optional)/Wi-Fi (optional) | ||||
| Dimensions (Width × Height × Depth) | 485*571*200mm | ||||
| Weight | 26kg | ||||
| Protection Rating | IP66 | ||||
| Certification Standards | |||||
| Grid Connection Standards | NB/T 32004-2018,EN50549-1/10,VDE-AR-N-4105,VDE V0124-100 | ||||
| Safety Standards | IEC 62109-1/2 | ||||
| Electromagnetic Compatibility | IEC 61000-6-2/4,EN 300328;EN 301489-1/17/52,EN 301908-1/13,EN 62479,EN IEC62311 | ||||
