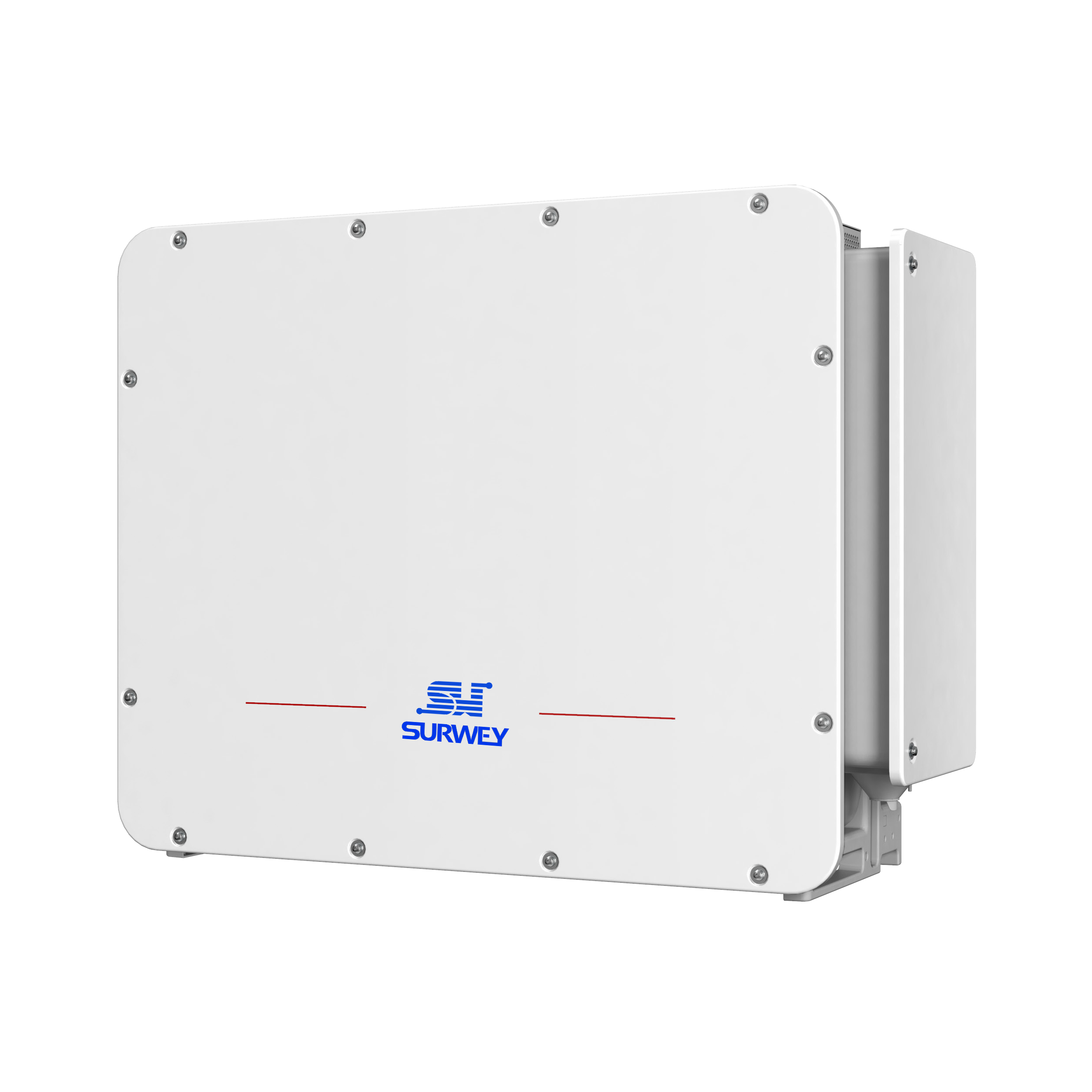

tPower-NL8 1500 KT Three-Phase Grid-Tied Inverter
tPower-NL8.150KT 150kW three-phase grid-tied inverter for large commercial PV stations. Equipped with 7 MPPT channels, peak efficiency up to 98.9%, IP66 protection, full safety designs and cloud monitoring to ensure stable high power output.
| Product Model | tPower-NL8.150KT |
| DC-Side Parameters | |
| Start-up Voltage | 200V |
| Maximum DC Input Voltage | 1100V |
| Maximum Current per MPPT Input Channel | 48A |
| MPPT Voltage Range | 180–1000V |
| Rated Operating Voltage | 600V @ 380 VAC, 720 V @ 480 VAC |
| Number of MPPT Channels | 7 |
| Number of Strings per MPPT Channel | 3 |
| AC-Side Parameters | |
| Rated Output Power | 150 kW |
| Maximum Output Power | 165 kVA |
| Maximum Output Current | 250.7 A @ 380 VAC |
| Rated Grid Voltage | 220 V / 380 VAC, 277 V / 480 VAC |
| Grid Voltage Range | 323–418 V (@380 VAC), 408–528 V (@480 VAC) |
| Rated Grid Frequency | 50 Hz/60 Hz |
| Grid Frequency Range | 45–55 Hz/55–65 Hz |
| Maximum Total Harmonic Distortion (at Rated Power) | <1% |
| Power Factor | >0.99 (rated power)/(0.8 leading to 0.8 lagging, adjustable) |
| DC Component | <0.5% (rated power) |
| Output Wiring Configuration | 3L/N/PE (380V), 3L/PE (480V) |
| Protection Functions | |
| Grid Monitoring | Available |
| Anti-Islanding Protection | Available |
| Input Reverse Connection Protection | Available |
| Output Short-Circuit Protection | Available |
| Output Overvoltage Protection | Available |
| Output Overcurrent Protection | Available |
| Leakage Current Protection | Available |
| Surge Protection | DC Type I/AC Type II |
| Module-Level Insulation Resistance Testing | Available |
| AC/DC Terminal Temperature Monitoring | Available |
| Intelligent String Disconnection | Available |
| DC Switch | Available |
| String Monitoring | Available |
| Intelligent Arc Protection | Optional |
| Module PID Recovery | Optional |
| System Parameters | |
| Maximum Efficiency | 98.6%@380,98.9%@480V |
| China Efficiency | 98.2%@380,98.4% @ 480V |
| Humidity Range | 0–100%, no condensation |
| Cooling Method | Intelligent air cooling |
| Operating Temperature | –40 to +60°C |
| Nighttime Losses | <5 W |
| Permissible Altitude | 5,000 m (derated above 4,000 m) |
| Display | LED/APP/Web |
| Communication | RS485/Bluetooth/4G (optional communication dongle) + APP/PLC (optional) |
| Dimensions (W x H x D) | 1025 × 795 × 380 mm |
| Weight | 100 kg |
| Protection Rating | IP66 |
| Certification Standards | |
| Safety Standards / Electromagnetic Compatibility | NB/T 32004-2018, GB/T 37408-2019, IEC 62109-1/2 |
| Grid-Connection Standards | NB/T 32004-2018, GB/T 29319-2024 |
