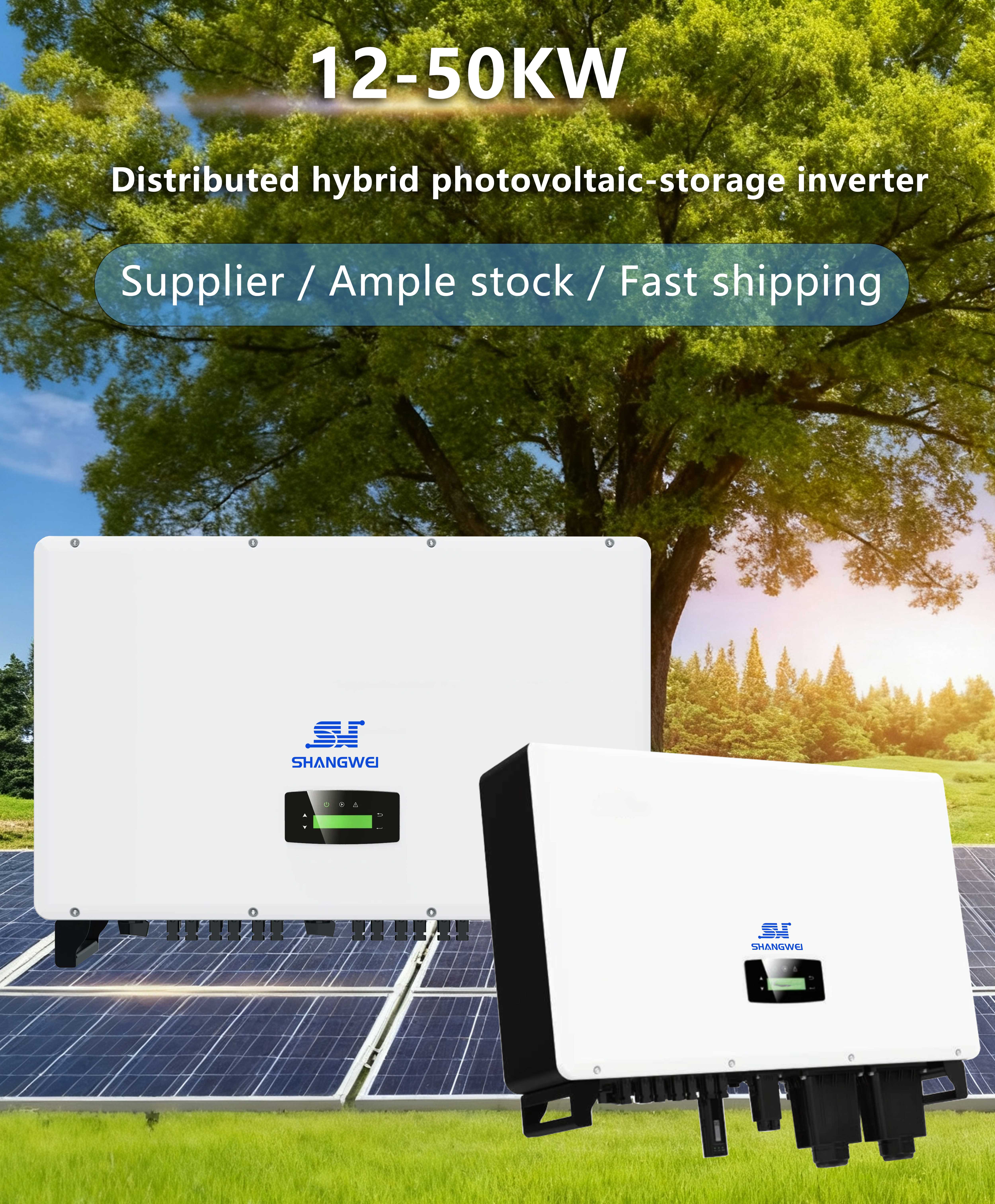

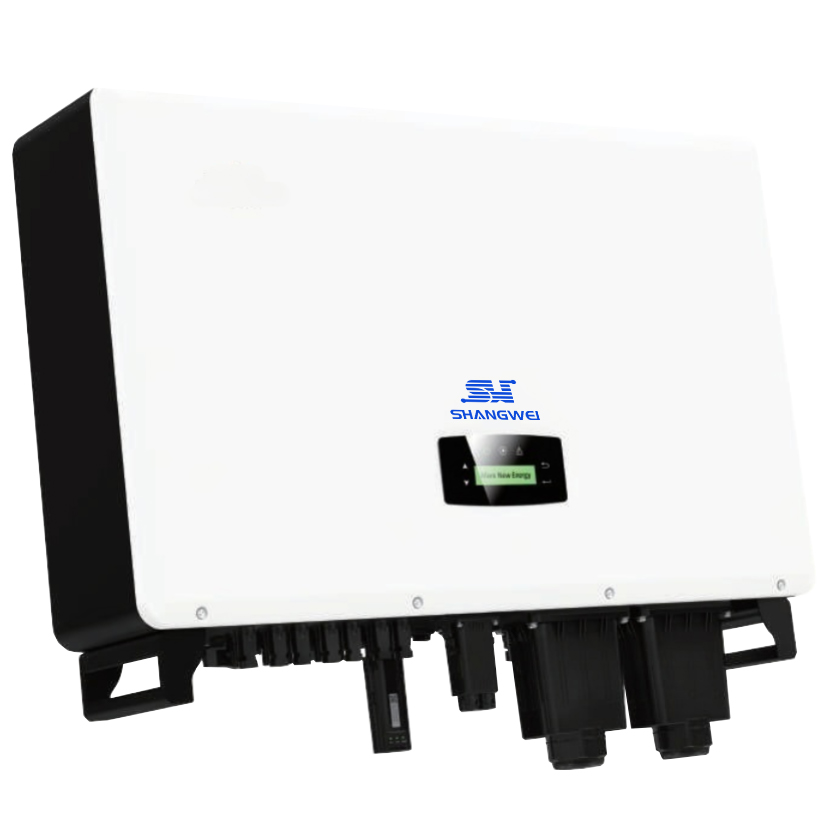

12-50KW Distributed hybrid solar-storage inverter

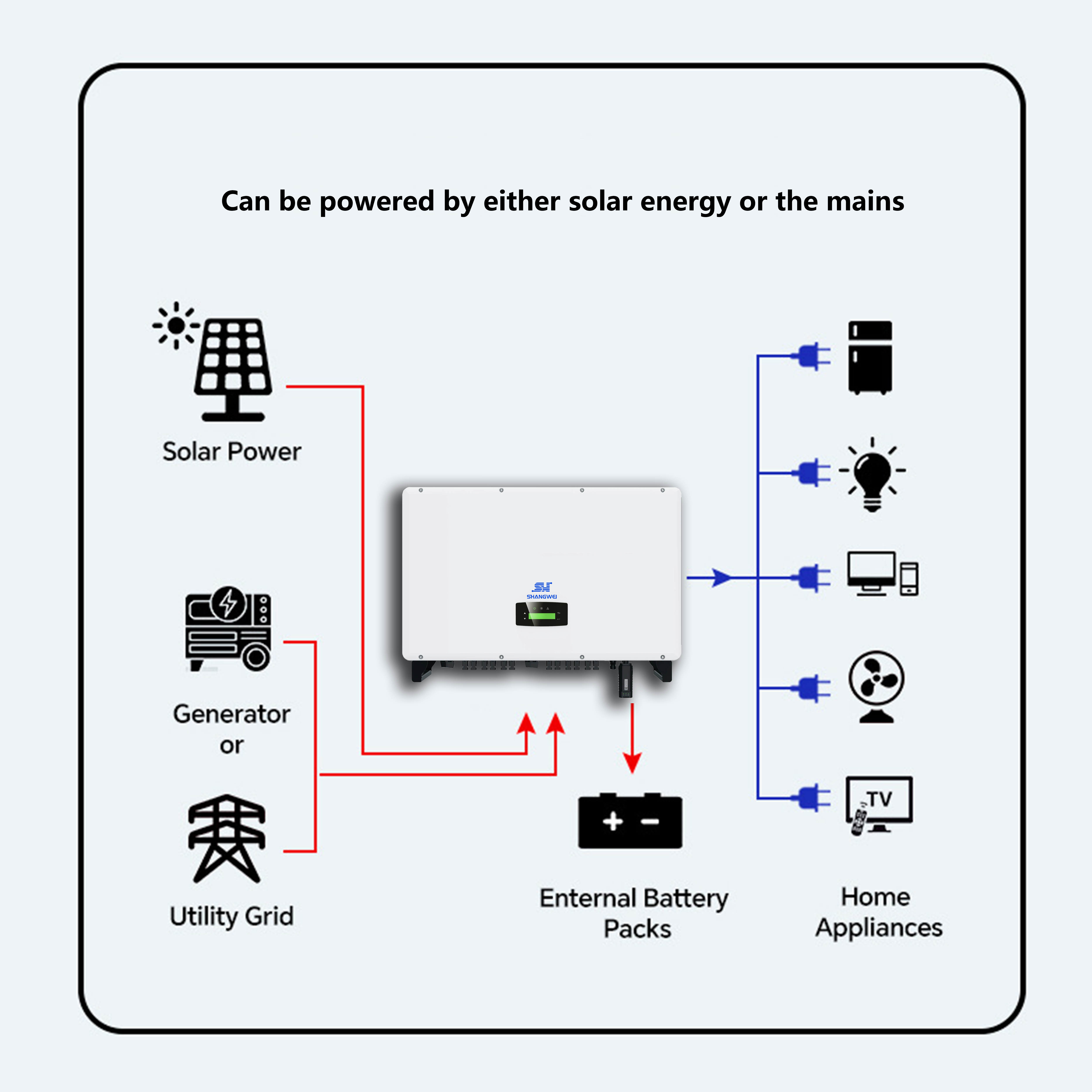

Integrated photovoltaic-storage off-grid and grid-connected system / Supports three-phase unbalanced output / Supports inductive load operation / Optimizes peak-valley electricity management / IP65 waterproof rating
Product Specifications
| Parameters | SW-12KW-HP3 | SW-15KW-HP3 | SW-20KW-HP3 | SW-30KW-HP3 | SW-50KW-HP3 |
| Photovoltaic Parameters | |||||
| Maximum Input Power (W) | 15.0KW | 22.5KW | 30.0KW | 45.0KW | 75.0KW |
| Maximum Input Voltage (V) | 1000V | ||||
| MPPT Operating Range (V) | 180~850V | ||||
| MPPT Rated Voltage (V) | 500V-850V | ||||
| Start-up Voltage (V) | 200V | ||||
| Maximum Input Current (A) | 13A/13A | 20A/32A | 32A/32A | 40A/40A | 40A/40A/40A/40A |
| Maximum Short-Circuit Current (A) | 18A/18A | 30A/48A | 48A/48A | 60A/60A | 48A/48A/48A/48A |
| Number of MPPT Channels | 2 lanes | 2 lanes | 2 lanes | 2 lanes | 4 lanes |
| Number of Strings per MPPT Channel | 2/2 | 3/3 | 4/4 | 4/4 | 8/8 |
| PV MPPT Efficiency (%) | 99% | ||||
| AC Parameters (Grid-Connected Side) | |||||
| Rated Output Power (W) | 12.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Maximum Output Power (kW) | 15.0KW | 22.5KW | 30.0KW | 45.0KW | 100.0KW |
| Maximum Charging Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Hybrid Output Power (kW) | 20.0KW | 30.0KW | 40.0KW | 130.0KW | 130.0KW |
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60Hz | ||||
| Maximum Output Current (A) | 20A | 27A | 32A | 48A | 83A |
| Maximum Three-Phase Output Unbalance | 0-80% | 0-97% | |||
| Power Factor Range | ~1 (0.8 lead/0.8 lag, configurable) | ||||
| Total Harmonic Distortion (THD) (at Rated Power) (%) | <3% | ||||
| AC Parameters (Off-Grid Side) | |||||
| Rated Output Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Rated Output Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Output Frequency (Hz) | 50/60(Hz) | ||||
| Maximum Single-Phase Apparent Output Power (kW) | 3.3KW | 5.0KW | 6.6KW | 10.0KW | 16.7KW |
| Grid-Tied/Off-Grid Switching Time (ms) | 10(ms) | ||||
| Conversion Efficiency (%) | 98.00% | ||||
| AC Parameters (Diesel Generator Side) | |||||
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60(Hz) | ||||
| Rated Input Power (kW) | 12.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Battery Specifications | |||||
| Operating Voltage Range (V) | 130-700V | 150-800V | |||
| Rated Voltage (V) | 480V | 450-550V | |||
| Battery Type | Lithium-ion battery / Lithium iron phosphate (LFP) | ||||
| Rated Charge/Discharge Current (A) | 25A/25A | 50A/50A | 50A/50A | 50A/50A | 120A/120A |
| Maximum Charging Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Temperature Control System | |||||
| Temperature Control System | Automatic cooling / Air cooling | ||||
| Fire Protection System | |||||
| Passive fire protection | Hot gas aerosol fire suppression | ||||
| Basic Specifications | |||||
| Operating Temperature Range (°C) | -25 to 60 (reduced capacity above 45) | ||||
| Operating Altitude (m) | <4000 | ||||
| Noise Emission (dB) | <30-60 | ||||
| Protection Rating | IP20 | ||||
| Relative Humidity Range (%) | 0–95%, non-condensing | ||||
| Dimensions (W x H x D) (mm) | 516*427*183.5MM | 558*555*260MM | 867*715*306MM | ||
| Weight (kg) | 26.0KG | 29.0KG | 36.0KG | 82.0KG | |
| User Interface | LCD/APP | ||||
| Cloud Communication Method | Wi-Fi、GPRS、4G | ||||
| Display Interface | LCD、RS485、CAN、 | ||||
| Certifications | UN38.3 MSDS CE | ||||
| Safety Standards | IEC62109-1/-2 | ||||
| EMC Standards | EN61000-6-1/-3,IEC61000 | ||||
| Compliance Standards | NRS97、G98/G99、EN50549-1、C10/C11、as 4777、VDE-AR-N4105、VDE0126、IEC62040 | ||||
