Analysis of Optical Storage Solar Carport Solution for Villas in Hengyang, Hunan Province, China
☀️ An increasing number of owners of detached villas and self-built houses are upgrading their courtyard facilities: replacing ordinary open-air carports with photovoltaic and energy storage integrated solar carports.

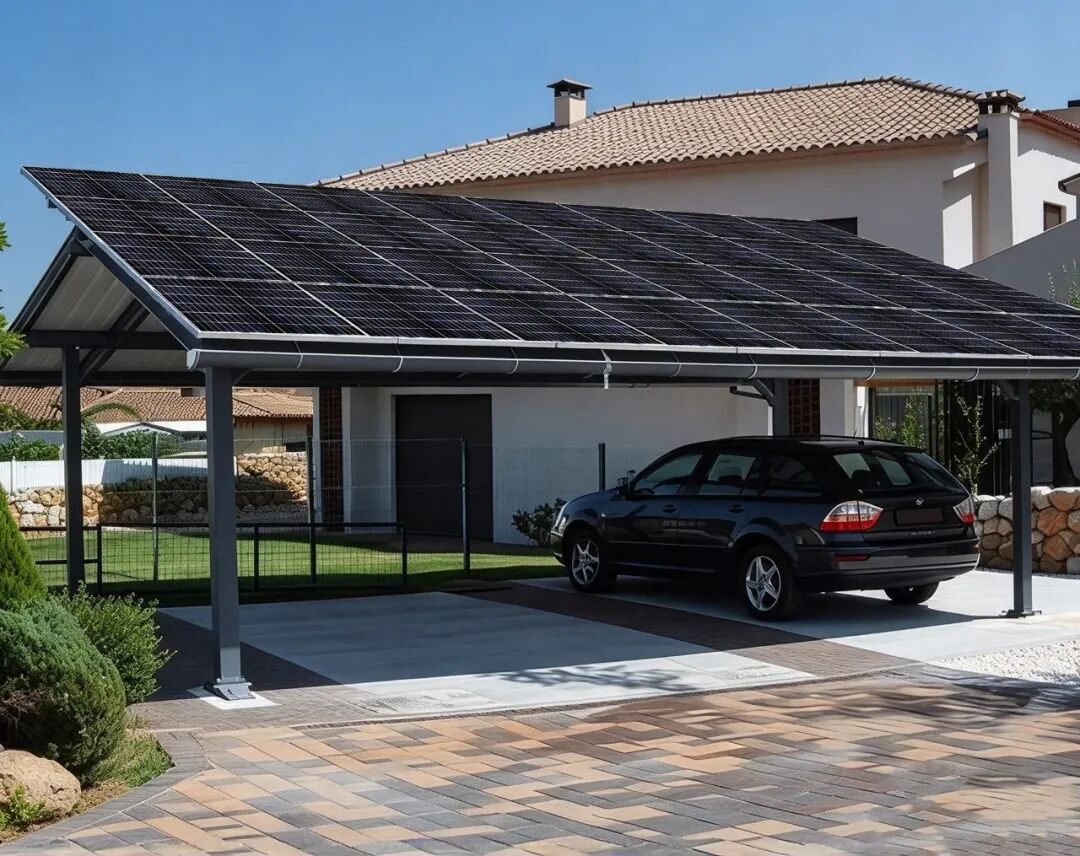

Photovoltaic Array Diagram for Villa Solar Carport
It not only protects vehicles from sun exposure, rain and dust accumulation, but also generates power independently by utilizing the idle space on the roof. Paired with energy storage batteries to store electricity for self-consumption, the system achieves full on-site power generation and self-use with no excess power fed into the grid. It perfectly meets household power demand and saves a substantial amount of electricity bills over the long term.
Today we share a villa-specific optical storage solar carport solution implemented in Hengyang, Hunan Province, China. The system consists of 69 pieces of 630W high-power photovoltaic modules, a 25kW hybrid grid inverter and 21kWh energy storage. No grid connection for power sales or complicated formalities are required. Every kilowatt-hour generated is consumed by the household, supporting daily villa appliances, EV chargers and all regular household loads, delivering outstanding practicality and cost-effectiveness.
🏡 Overview of the Complete Solution

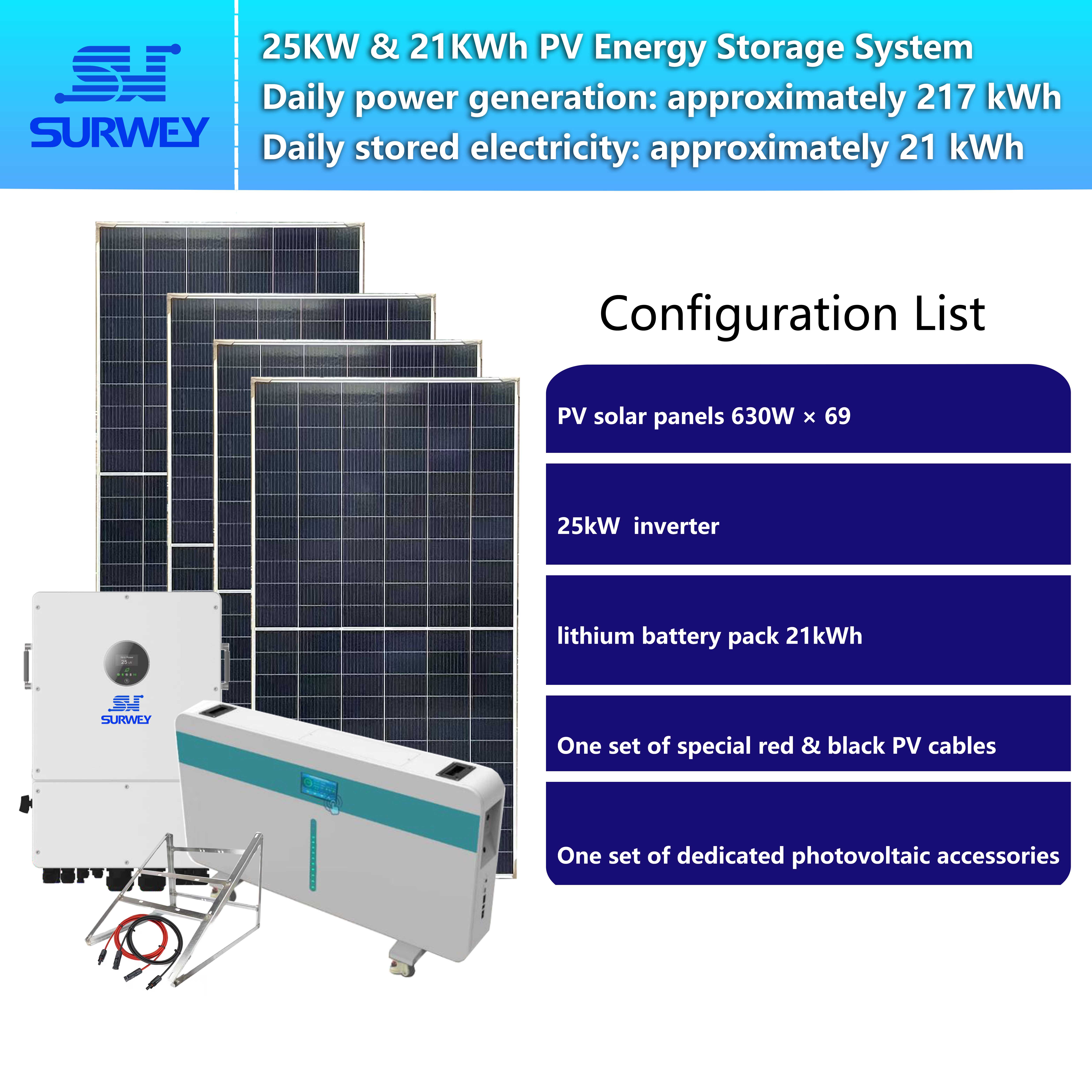

System Configuration Diagram
This optical storage system for villa solar carports has a total installed capacity of 43.47kWp, constructed with 69 pieces of 630W double-sided double-glass photovoltaic modules, equipped with a 25kW dedicated hybrid grid inverter and a 21kWh energy storage battery, perfectly suited for courtyard carport renovation of villas in Hengyang, Hunan Province, China.
Different from traditional photovoltaic systems, this solution features zero excess power feed-in to the grid and full self-consumption, tailor-made for private villa power scenarios: During sunny daytime, photovoltaic power supplies household appliances, air conditioners, smart home devices and EV charging loads with priority. Excess power generated at noon when sunlight is strongest yet household power consumption is low is fully stored in the energy storage battery. At dusk and night with no sunlight, the battery automatically discharges to substitute mains power. No electricity flows back to the power grid throughout operation, which is compliant and hassle-free.
✅ Core Benefits for Villa Owners
- Dual-purpose structure: The carport shelters vehicles from sun and rain while generating power on the roof to cut electricity costs, occupying no extra courtyard space.
- Self-consumption without grid feed-in: No grid connection required, avoiding restrictions on surplus power export for simpler and compliant household use.
- Peak shifting via energy storage: Solves the pain point of surplus daytime generation and high electricity rates during evening peak hours.
- Heat insulation and temperature reduction: The photovoltaic roof significantly cools the courtyard and indoor space, providing excellent summer heat insulation.
- Long-term durability: Modules feature low degradation and high stability, delivering reliable power generation for 25 years.
☀️ Photovoltaic Array of Villa Carport: Scientific Layout of High-Power Modules
The solution adopts 630W double-sided double-glass modules, a premium choice for residential photovoltaic systems, matching the refined renovation demands of villas with both aesthetic appeal and robust performance.
📌 Core Module Parameters: Open-circuit voltage (Voc): 56.21V; Short-circuit current (Isc): 14.19A; Maximum power point voltage: 46.45V; Maximum power point current: 13.56A; Dimensions: 2465×1134×35mm; Weight: 34.7kg; Bifaciality: 80%±5%. Its core advantage is ultra-low degradation: ≤1% power attenuation in the first year, and ≤0.4% annual attenuation thereafter. It maintains excellent power generation performance over 25 years, bringing long-term benefits after one-time installation.
📏 Custom Layout for Villa Carport
Combined with the size of conventional villa courtyard carports, the 69 modules are arranged in a customized layout: 4 rows ×14 modules + 1 row ×13 modules. It fits perfectly with the top dimension of the carport, neatly arranged without awkward appearance or wasted space.
Total installed capacity: 69 × 630W = 43.47kWp The overall designed height of the carport is 4 meters. The module installation tilt angle is controlled at 10°–15°, which maximizes sunlight harvesting for power generation and ensures smooth rainwater drainage to prevent ponding and leakage. The height difference between the front and rear of the array is 1.9–2.2 meters. The space under the canopy is open, with no impact on parking, passage and daily usage.
🔌 Optimized String Design｜Matching Household Inverter for Lower Generation Loss
Based on the operating characteristics of villa optical storage systems, we optimized the series-parallel string scheme to avoid voltage mismatch and power loss, making full use of the power output of each module. Detailed configuration is as follows:
Core layout logic: 14 modules connected in series as one string; two strings in parallel connected to one MPPT channel; 13 modules form an independent string connected to a separate MPPT channel.
1️⃣ String with 14 modules in series: Open-circuit voltage of single string: 786.94V, far below the inverter’s 1000V maximum withstand voltage with sufficient safety margin. Operating voltage: 650.3V, precisely within the inverter’s high-efficiency power generation range. Two identical strings in parallel, total current of single MPPT channel is 27.12A, below the 40A maximum limit for stable operation.
2️⃣ String with 13 modules in series: Open-circuit voltage: 730.73V; Operating voltage: 603.85V, also within the high-efficiency working range. Connected to an independent MPPT channel without interference from other strings.
📌 Precise allocation via 4 MPPT channels: MPPT1 & MPPT2: Each connected to 2 parallel strings of 14 modules (fully utilizing the main power generation array) MPPT3: Independently connected to 1 string of 13 modules MPPT4: Reserved interface for future capacity expansion to meet upgraded household power demand
This configuration features well-matched voltage and minimal loss. Strings on the same MPPT channel share identical specifications to prevent generation imbalance. Multiple independent tracking channels ensure partial shading from fallen leaves or minor obstructions will not affect overall power output, ideal for residential outdoor scenarios.
⚙️ 25kW Inverter + Anti-reflux System: Core Guarantee for Zero Grid Feed-in for Residential Use

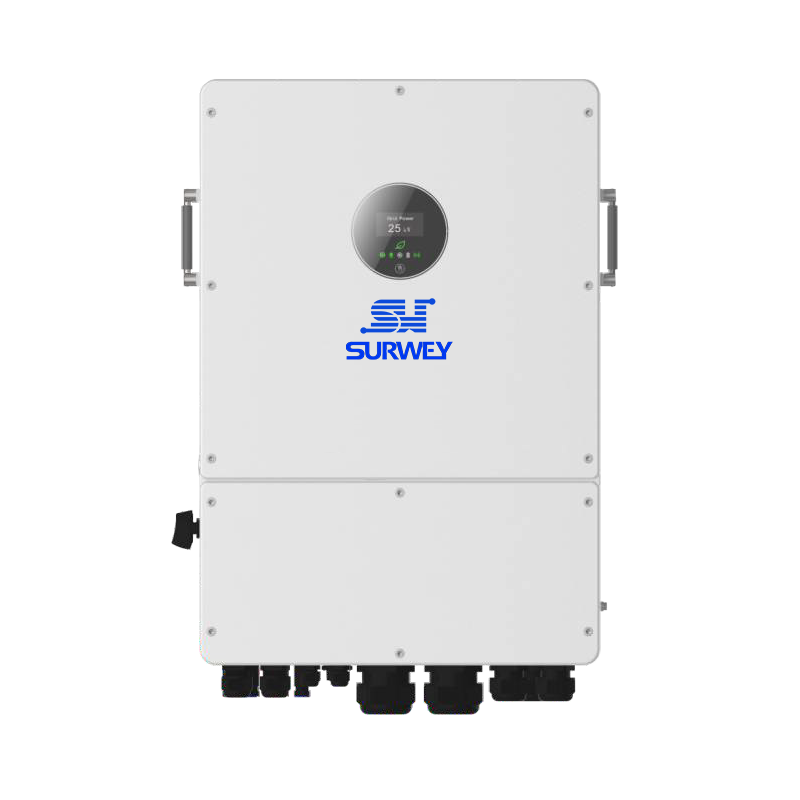

The whole system is equipped with a 25kW three-phase hybrid grid inverter, matching the characteristics of low load and high self-consumption of villa power consumption. Its parameters precisely fit the solution requirements: maximum PV input 50kW, 4 independent MPPT channels, high-efficiency voltage range 150–850V, battery adaptation voltage 40–60V with stable charge and discharge performance.
System DC/AC ratio: 43.47÷25≈1.74, an optimal ratio for residential PV systems. It avoids wasting equipment capacity while maximizing sunlight utilization, achieving excellent power generation cost-effectiveness.
🛡️ Zero Excess Power Feed-in, Compliant for Villa Residential Use Many villa owners wish to avoid complicated grid connection procedures for power sales. This solution perfectly addresses this pain point. The inverter is standardly equipped with an RS485 communication port and paired with a bidirectional smart meter to monitor power flow in real time. Once surplus electricity is about to flow back to the grid, the device will dynamically adjust power output or transfer excess power to the energy storage battery. Zero power reflux to the grid throughout operation. No grid connection for electricity sales is needed, making household application simple, compliant and free of subsequent troubles.
It also overcomes the drawbacks of conventional PV systems: when residents are away during daytime with low power consumption, PV output is forced to be curtailed, wasting power. With energy storage, all surplus power can be stored with no sunlight wasted.
🔋 21kWh Energy Storage Battery: Peak Shaving & Valley Filling Tool for Villa Power Consumption

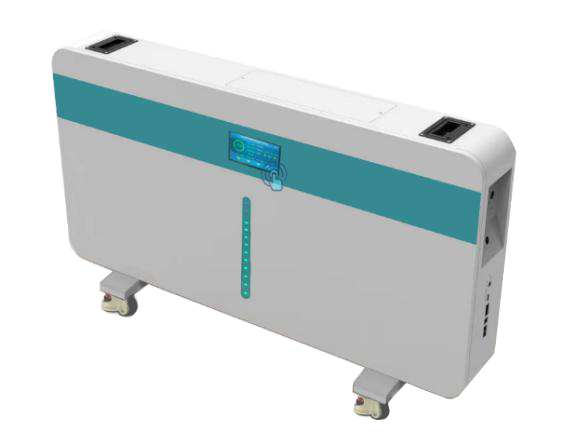

51.2V 420Ah energy storage battery
This solution adopts a 21kWh household lithium iron phosphate energy storage battery. Safe, stable and silent for residential environments, its available usable capacity reaches 19.8kWh at 90% depth of discharge.
For villa households, energy storage is not an optional add-on but a key component to boost electricity saving benefits. Without energy storage, surplus power generated by residential PV in daytime will be forcibly cut by the system, resulting in waste. During evening peak hours when air conditioners and other appliances run, users have to buy expensive mains power instead.
Energy storage enables time shifting of PV power: surplus solar power generated in daytime is stored for use during evening peak hours, well aligned with household daily routines.
📅 Typical Daily Operation Logic of Villa Optical Storage System
Video of System Operating Principle
🌞 08:00–12:00: Sunlight gradually intensifies. PV power prioritizes household daily loads. Surplus power automatically charges the battery; mains power is barely required.
🔥 12:00–14:00: Peak solar generation with low household consumption. PV fully supplies the loads, and all surplus power is stored in the battery with zero mains power consumption.
🌤️ 14:00–17:00: Sunlight weakens. PV and energy storage jointly supply power to meet afternoon household demand.
🌙 17:00–22:00: No PV generation. The battery discharges automatically to support power demand for dinner, air conditioning, home appliances and EV chargers during evening peak hours, sharply reducing mains power purchase.
🌃 22:00–08:00 next day: Residual battery power supplies loads as needed under intelligent control.
⚠️ System strictly follows self-consumption logic: The energy storage battery is only charged by PV surplus power, and no power is drawn from the grid for arbitrage. Green power saving with compliance and safety.
After installing energy storage, the self-consumption rate of villa PV rises from 70%–80% to over 95%, almost eliminating power waste and doubling electricity saving effects.
📈 25-Year Long-Term Electricity Saving Calculation for Hengyang, Hunan Province, China
Based on local sunlight measurement data in Hengyang, Hunan Province, China, the first-year equivalent utilization hours of the villa PV system is 967h, and the average annual utilization hours over 25 years is 902h, delivering stable power generation and long-term returns.
✅ First-year power generation: approximately 42,035 kWh
✅ Average annual power generation over 25 years: approximately 39,210 kWh
✅ Total power generation over 25 years: approximately 980,000 kWh
For this zero grid-feed system, all generated power replaces mains electricity. There is no complicated grid revenue. Every kilowatt-hour generated equals one kilowatt-hour saved, simple and tangible.
🛠️ Villa Solar Carport Structure:
Aesthetic & Durable for Courtyard Renovation Different from ordinary industrial carports, this villa carport features exquisite workmanship, waterproofing, heat insulation and stability. It blends well into courtyard landscapes without spoiling the overall villa style.
🏗️ Structural Details ▪️ Foundation: Ground flange column fixing. Pull-out resistance of expansion bolts ≥3kN, ensuring stability against typhoons and heavy rain. ▪️ Support frame: High-quality aluminum profiles, lightweight, rust-proof and corrosion-resistant for long-term outdoor use. Purlin spacing precisely matches module dimensions for neat and attractive layout. ▪️ Waterproofing: Custom water drainage channels plus aluminum alloy clamps, with sealed joints to completely eliminate carport seepage and leakage. ▪️ Practical value: 4-meter high canopy for both parking and leisure. The top PV layer effectively blocks direct sunlight, greatly lowering temperatures under the canopy and in the courtyard in summer. Balancing aesthetics, practicality and economy.
📝 Solution Summary: Which villas are suitable for installation?
This 43.47kW PV + 21kWh energy storage solar carport is a highly suitable upgrade solution for detached villas and self-built courtyards in Hengyang, Hunan Province, China. It is especially ideal for owners who:
✅ Have idle courtyard space and need to build or renovate a carport;
✅ Have high household power loads, including heavy consumption from air conditioners, floor heating and EV chargers;
✅ Prefer power self-consumption for electricity saving without tedious grid connection formalities;
✅ Wish to upgrade courtyard facilities with a balance of aesthetics, practicality and long-term cost reduction.
It is more than a parking shelter; it is a long-term household power-saving system. One-time renovation delivers 25 years of stable power generation, electricity savings, heat insulation and vehicle protection. It enhances villa property value and continuously cuts household power costs, making it a cost-effective option for high-end courtyard renovation.
💡 Disclaimer: The revenue stated herein is theoretical calculation. Actual power generation is affected by weather, module cleanliness and operation & maintenance. On-site survey is available before implementation to optimize the solution according to villa courtyard dimensions and power consumption habits.
