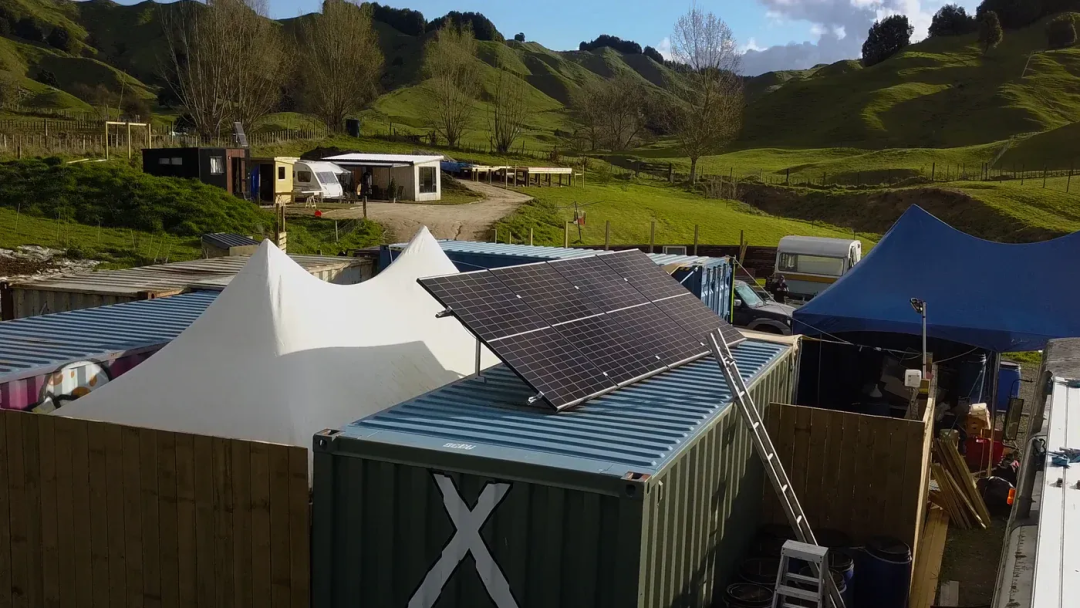

Roof-Mounted Solar Power and Energy Storage Systems in New Zealand
Currently, many rural areas, mountainous regions, and older residential communities face issues with unstable power supply at the end of the grid. During summer peak demand periods, low voltage and frequent circuit breaker trips are common, and seasonal power outages and brief interruptions are widespread. Even after installing a photovoltaic system, ordinary households remain unable to use electricity during power outages, rendering the system ineffective as an emergency power source. However, installing high-capacity off-grid energy storage equipment alone is too costly for most ordinary users to afford. Taking these on-site conditions into account, this solution employs a configuration consisting of a 5 kW PV array, a 12 kW European-standard hybrid grid-tied inverter, and a 10 kWh wall-mounted lithium-ion battery. It is specifically designed for residential scenarios in China characterized by significant grid fluctuations, frequent power outages, and pronounced peak-to-off-peak electricity price differentials. The entire system avoids redundancy and excessive specifications, balancing sufficient capacity, ease of use, and cost-effectiveness.
Operating Principles of a 12 kW, 10 kWh Photovoltaic Energy Storage System
Many customers and contractors have a misconception: Can European-standard models not be used in China? A 12kW European-standard hybrid inverter has a rated output of 230V and supports a voltage range of 220V–240V, making it fully compatible with China’s 220V single-phase residential power grid. It can be used directly in domestic residential settings without the need to adjust parameters or replace components, and all functions—including grid-connected, off-grid, and grid-tied hybrid modes—operate normally. European-standard models feature higher manufacturing standards and a wider voltage tolerance range, making them actually more adaptable to China’s unstable grid with its irregular waveforms. In practice, they offer greater operational stability than standard domestic models that strictly adhere to Chinese national standards.
I. Actual Use Cases and Design Concepts for the Project
This system primarily addresses three common electricity challenges in China: First, in mountainous and rural areas at the end of the power grid, transformer capacity is insufficient, leading to voltage drops as soon as the entire village’s load increases in the summer, resulting in air conditioners failing to run and appliances frequently turning on and off; second, in older residential communities on the outskirts of cities, where grid upgrades have lagged behind, causing occasional power outages due to maintenance and sudden circuit breakers tripping; Third, users in self-built villas and homes, where air conditioners and kitchen appliances create heavy loads, want to save electricity while ensuring uninterrupted power supply.

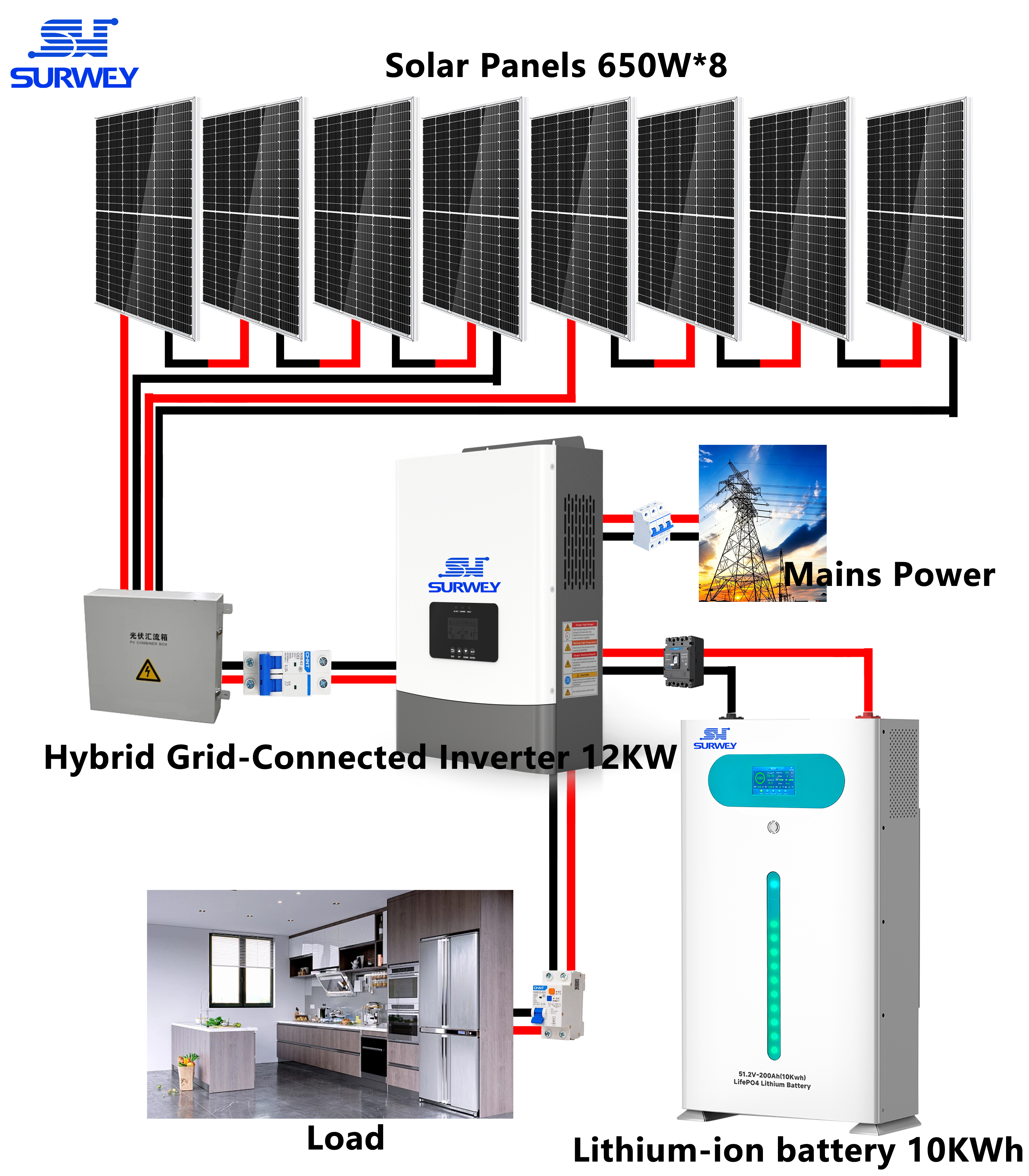

Topology Diagram of a 12 kW, 10 kWh Photovoltaic Energy Storage System
Users’ actual needs are actually quite simple: they want to generate solar power to save on electricity bills on a daily basis; during power outages, essential appliances such as refrigerators, lighting, and air conditioners must remain operational; and the cost of the equipment should not be artificially inflated—they don’t want to waste money on unnecessary redundancy. Therefore, this design does not simply follow a template; instead, it is fully tailored to the household’s actual load, local average daily sunlight, and nighttime electricity consumption, ensuring it provides exactly what is needed without any waste.

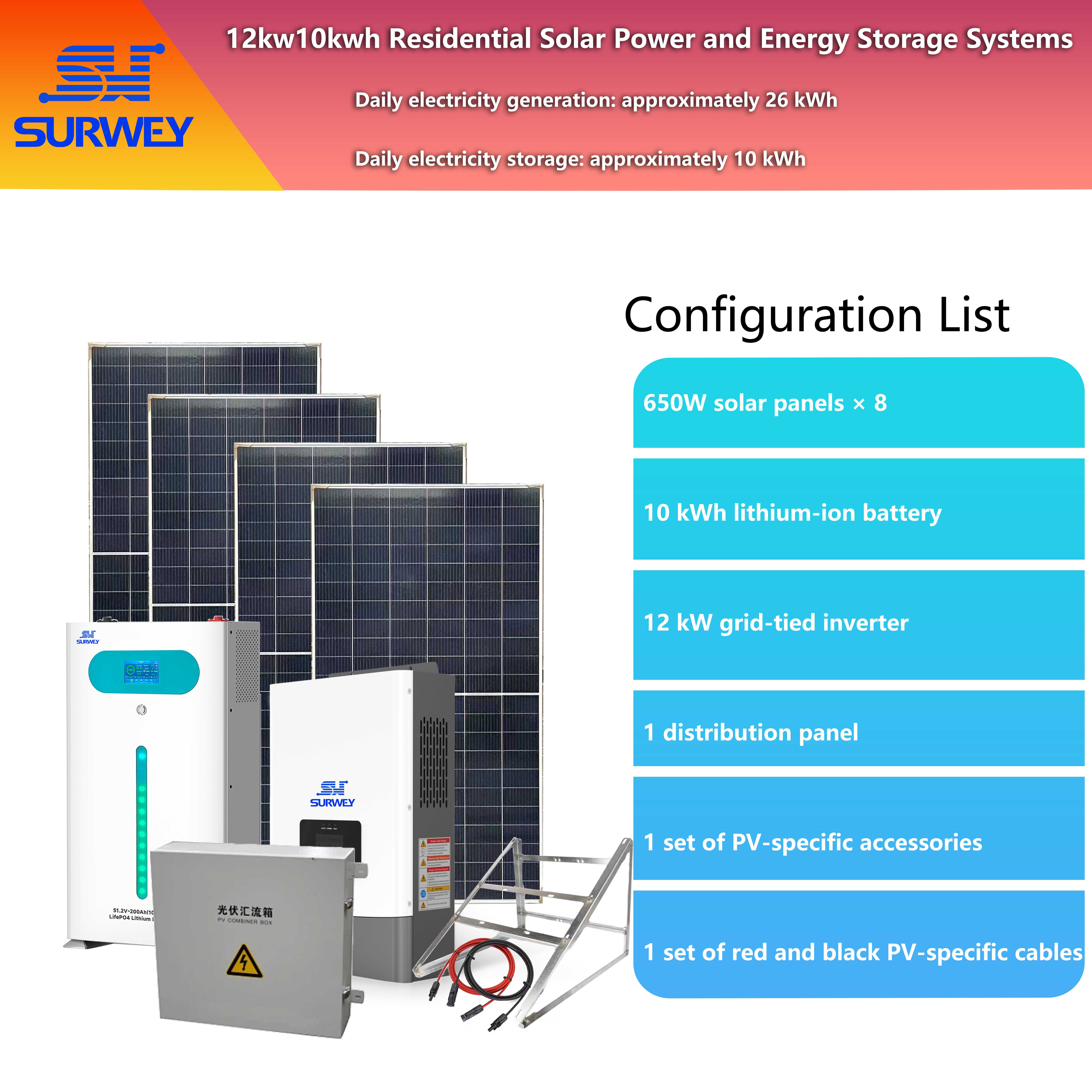

Configuration Diagram for a 12 kW, 10 kWh Photovoltaic Energy Storage System
II. Configuration and Selection Guidelines for the Complete System Equipment
The entire system consists of four components: photovoltaic panels, a hybrid inverter, energy storage batteries, and power distribution protection. All parameters were finalized based on actual on-site operating conditions. The reasons for selecting each component and their actual performance are explained below.
2.1 Photovoltaic Module Configuration (8 high-power 650W modules, total 5.2 kW)
The site uses eight 650W high-power monocrystalline silicon modules. They are arranged in strings of four, with two strings connected in parallel, each connected to a separate MPPT channel on the inverter. The benefits of this configuration are clear: compared to low-power modules, high-power modules take up less roof space, require less wiring, and use fewer mounting materials, resulting in lower overall installation costs.
In terms of power generation, the average daily effective sunlight duration in this area is approximately 5 hours. After accounting for dust, shading, and temperature-related losses, the system’s actual average daily power output remains stable at around 26度. This power output perfectly aligns with daily household consumption. During the day, electricity used for watching TV, cooking, running the air conditioner, and doing laundry can be largely self-supplied by the solar system. Any excess electricity can be stored in the battery—there is no significant waste, nor is there a risk of the battery not being fully charged due to insufficient power generation.
2.2 12 kW European-standard hybrid grid-tied inverter (fully compatible with the domestic 220 V power grid)
The core control equipment for the entire system is a 12 kW single-phase hybrid grid-tied inverter. This inverter is equipped with two independent MPPT tracking channels and operates within a voltage range of 90 V to 450 V, offering excellent flexibility in terms of compatibility and scalability. A single 650W photovoltaic module has an open-circuit voltage of approximately 50V and can operate stably within this voltage range. Based on parameter calculations, a single MPPT channel can support up to 9 650W modules in series, and the two channels combined can accommodate up to 18 modules of the same specification. This provides ample room for photovoltaic capacity expansion, far exceeding the project’s initial configuration of 8 modules. Users who wish to increase power generation in the future will not need to replace the main inverter unit. In addition, the unit features built-in parallel operation capabilities, supporting up to six units running in parallel. This not only allows for future high-power capacity expansion but also enables the configuration of a three-phase power supply system, accommodating advanced needs such as future upgrades to household loads and small-scale residential high-power applications. The unit offers exceptional reusability and scalability.

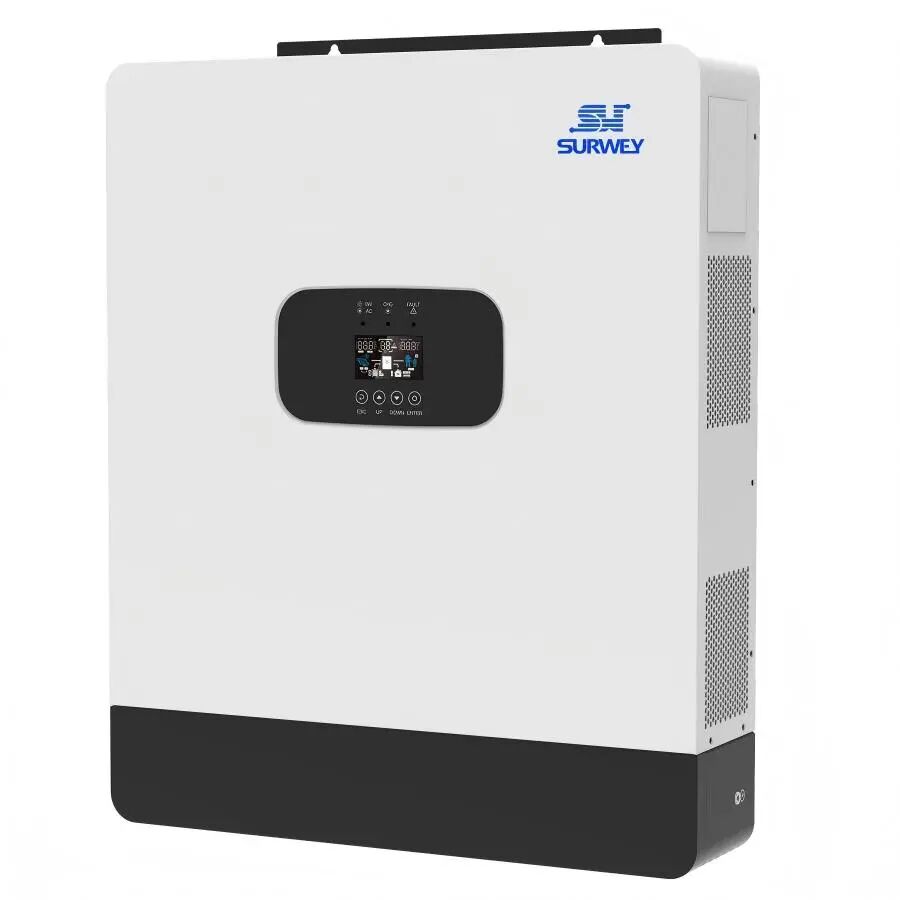

12 kW European Standard Hybrid Grid-Tied Inverter
The unit is rated at 12 kW and has more than enough power capacity. For a typical household running two 1.5-pai air conditioners simultaneously, along with standard loads such as a refrigerator, lighting, a TV, and a router, it can easily handle the instantaneous peak load without overloading, restarting, or failing to power the loads. The unit supports four operating modes: grid-tied, off-grid, solar priority, and utility priority. On sunny days, it primarily generates and consumes solar power on-site, storing excess electricity in the battery; during periods of high electricity rates, users can engage in energy storage arbitrage; in the event of a power outage, it can switch to off-grid mode within milliseconds, ensuring uninterrupted power to household appliances.
The biggest advantage in actual use is its seamless switching capability. While conventional grid-tied PV systems become useless during a power outage, this unit can instantly switch to energy storage mode to power the entire home, making it ideal for areas prone to frequent short-term power outages. It also comes equipped with a full suite of overvoltage, undervoltage, overload, short-circuit, and over-temperature protections, ensuring sufficient safety for daily household use. A mobile app allows users to view power generation, battery charge levels, and electricity consumption data in real time, as well as remotely adjust parameters and switch modes, making operation and maintenance very convenient.
2.3 10.24 kWh Wall-Mounted Lithium-Ion Battery (Precisely matches household energy consumption to avoid wasted costs)
The battery selected is a 51.2V, 200Ah, 10.24kWh wall-mounted lithium iron phosphate battery; this capacity represents the optimal configuration calculated based entirely on the user’s actual electricity consumption.
10.24 kWh Wall-Mounted Lithium-Ion Battery
Based on local sunlight conditions, the photovoltaic system generates an average of 26 kWh of electricity per day. A household’s daily daytime electricity consumption is approximately 16 kWh, leaving a surplus of about 10 kWh that can be stored in the battery. At night, the actual electricity consumption from two air conditioners and basic household appliances is about 8 kWh. The remaining 2 kWh is retained rather than discharged, specifically to trigger the battery’s low-voltage protection mechanism. This effectively prevents damage to the battery cells caused by over-discharge and extends the battery’s service life.
If you blindly opt for a large battery with a capacity of 15 kWh or 20 kWh, the solar power generated during the day will not be enough to fully charge it. The battery will remain in a semi-charged state for extended periods, which not only significantly increases the initial investment but also negatively impacts the battery’s lifespan. Conversely, if the battery is too small, it won’t be able to power the air conditioners during a nighttime power outage, rendering it largely ineffective as an emergency backup. Therefore, considering electricity demand, power generation, and equipment costs, a battery of around 10 kWh is the most suitable specification for the average household.
The battery features a wall-mounted design, eliminating the need for a separate battery cabinet. Installed on an indoor wall, it takes up minimal space. It is waterproof and dustproof, and comes with a built-in BMS for balancing and protection, offering comprehensive safeguards against temperature fluctuations, overcharging, over-discharging, and short circuits, ensuring high safety for residential use. If capacity expansion is needed in the future, units of the same model can be connected in parallel directly, providing excellent flexibility.
III. Overall System Operating Logic (Actual On-Site Operating Status)
The daily operation of the entire system is straightforward and fully automated, requiring no frequent manual intervention. When the grid is operational, solar power takes priority during the day; the home consumes as much solar power as it uses, and any excess is automatically stored in the battery. If the battery is full and there is still excess power, it is fed directly back into the grid.
On cloudy days or when sunlight is weak, if solar power generation is insufficient to meet household needs, the system automatically supplements power from the utility grid, ensuring normal electricity usage is not affected. In the event of a power outage or a grid trip, the system instantly switches to off-grid mode, with power supplied jointly by the battery and the solar panels. During the day, when the sun is shining, the solar panels power the load and provide supplementary power; at night, the system runs solely on battery power, ensuring that critical equipment throughout the home remains operational. Once the grid is restored, the system automatically switches back to grid-connected mode. The transition is seamless throughout, and users will hardly notice any change.
IV. Load Matching and Analysis of Actual Performance
For typical loads in ordinary self-built homes and rural residences, two 1.5-pai inverter air conditioners are the primary power-consuming appliances. Combined with a refrigerator, lighting, a television, and networking equipment, the overall continuous load is not high; however, air conditioners draw a large inrush current and create a significant surge load when starting up. The power headroom of a 12-kW inverter is sufficient to handle this type of inductive load, ensuring smooth startup without system stalling, protection trips, or power limitations.
In terms of energy balance, the average daily power generation of 26 kWh is more than sufficient to cover both daytime household electricity consumption and nighttime emergency power needs. On sunny days, grid power consumption is essentially zero or minimal; during seasons with frequent power outages, the battery can reliably back up electricity usage throughout the night, addressing issues such as stifling heat during rural power outages, spoilage of food in the refrigerator, and daily inconveniences.
Compared to other solutions on the market, pure grid-tied PV systems lack emergency capabilities and become useless during power outages; large-capacity off-grid storage systems are too expensive, making them less acceptable to ordinary users; and low-power hybrid systems cannot power air conditioners, resulting in poor practicality. This configuration represents a “golden ratio” that has been field-tested and proven—it is sufficient, stable, and offers excellent value for money.
V. Safety Precautions and Key Points for Construction, Operation, and Maintenance
The safety protection for the entire system is comprehensive. The DC side of the photovoltaic system is equipped with circuit breakers to prevent short circuits and reverse connections; the inverter itself features dual hardware and software protection, automatically shutting down in the event of voltage abnormalities, overloads, or overheating; and the battery includes built-in balancing and fault protection to prevent cell abnormalities and the risk of thermal runaway. The enclosures, mounting brackets, and cabinets of the entire system are uniformly grounded, in compliance with residential electrical safety standards.
Installation follows standard PV-storage procedures: arrange solar panels on the roof to ensure adequate sunlight and minimize shading; keep high- and low-voltage wiring separate; and ensure all connections are properly waterproofed and insulated. Mount the inverter and battery in a well-ventilated, dry indoor location, allowing sufficient space for heat dissipation. Keep the wiring distance between the battery and the inverter as short as possible to minimize line losses.
Ongoing operation and maintenance are very straightforward; no manual intervention is required during daily use, as the system operates automatically. Users can monitor power generation, consumption, and storage status at any time via a mobile app. The system proactively sends alerts in the event of abnormalities, allowing maintenance personnel to quickly pinpoint issues without the need for complex technical procedures.
VI. Summary of the Value of Implementing the Plan
The greatest advantage of this hybrid solar-storage system is that it is tailored to the actual usage conditions in areas with unstable power grids. For users, this system not only addresses the issue of high daily electricity bills but also solves the problem of being unable to use air conditioning or maintain a normal lifestyle during power outages. At the same time, it avoids an excessive accumulation of equipment, keeps initial investment costs in check, offers a long service life, and requires minimal maintenance—making it ideal for large-scale deployment in areas with unstable power grids, such as rural communities and older residential neighborhoods.
