10-kilowatt Phase-Split Solar Energy Storage System for Residential Use in Ecuador
Foreword
Colombia, Ecuador, Brazil, and Cuba all face widespread issues of unstable grid power supply, frequent power outages, and rising residential electricity rates year after year. At the same time, these regions have abundant solar resources, with average daily peak sunshine hours consistently around 5 hours. As a result, residential photovoltaic (PV) energy storage has become the mainstream solution for residents to reduce electricity costs and ensure an uninterrupted power supply. This complete system is configured with 19 645W photovoltaic modules, an SW-10.2KW-48V U.S.-standard split-phase inverter, and an SW-T512V10KWH energy storage battery. with native 120/240V split-phase output compatible with the standard residential power systems of four countries. Leveraging smart energy management, it supports multiple functions including self-generation for self-consumption, energy storage for backup, and off-grid emergency power. The system is easy to install and convenient to maintain, making it a cost-effective, integrated clean energy solution tailored for Latin American households.
How the 10.2 kW Residential Phase-Split PV Energy Storage System (U.S. Standard) Works
I. Overall System Configuration and Power Generation Estimates
1.1 List of Core Hardware
PV Array: 19 monocrystalline silicon modules, each rated at 645W, with dimensions of 2382×1134×30mm; total installed capacity: 12.255 kWp
Energy Storage Inverter: SW-10.2KW-48V US-standard split-phase hybrid inverter, 48V DC platform, dual MPPT channels, grid-tied and off-grid dual-mode, 120/240V dual-output pure sine wave
Energy Storage Unit: SW-T512V10KWH wall-mounted lithium iron phosphate battery, nominal voltage 51.2V, capacity 200Ah, supports capacity expansion via parallel connection of multiple units
Supporting Accessories: PV cables, DC combiner boxes, AC distribution panels, lightning protection and grounding kits, Wi-Fi/GPRS remote monitoring components, dedicated battery communication harnesses
Configuration Diagram for a 10.2 kW Residential Phase-Split PV Energy Storage System (U.S. Standard)
1.2 Calculation of Average Daily Electricity Generation
Calculation formula: Average daily power generation = Total PV capacity × Peak sunlight duration × System overall efficiency: 12.255 kW × 5 h × 0.99 ≈ 60.61 kWh, which perfectly matches the designed average daily output of 61 kWh. Daily PV-generated electricity is prioritized to meet the household’s real-time load, with a surplus of 10 kWh stored in the energy storage battery. Electricity is consumed on-site during the day, and the battery discharges at night. During power outages, the PV system and battery provide combined power, forming a complete closed-loop energy system capable of meeting the household’s basic electricity needs throughout the day.
Topology Diagram of a 10.2 kW Residential Phase-Split PV Energy Storage System (U.S. Standard)
1.3 Five Smart Operating Modes
The SW-10.2KW-48V is equipped with an EMS (Intelligent Energy Management System) that automatically switches operating modes based on sunlight, grid conditions, and battery charge level:
Direct PV Supply Mode
When sunlight is sufficient, the PV system directly powers household appliances, with zero grid power consumption;
Excess Power Storage Mode
When power generation exceeds the load, excess electricity is stored in the 10kWh battery; charging automatically stops when the battery is fully charged;
Nighttime Discharge Mode
During periods without sunlight, the battery supplies power to cover all household loads, including lighting, refrigerators, televisions, and more;
Grid-Complementary Mode
On cloudy or rainy days when power generation is insufficient, the grid automatically supplements the power deficit; the grid can also charge the battery in reverse;
Off-Grid Emergency Mode
Switches over within 10 milliseconds of a grid outage to ensure continuous operation of critical loads, eliminating the risk of shutdown due to power loss.

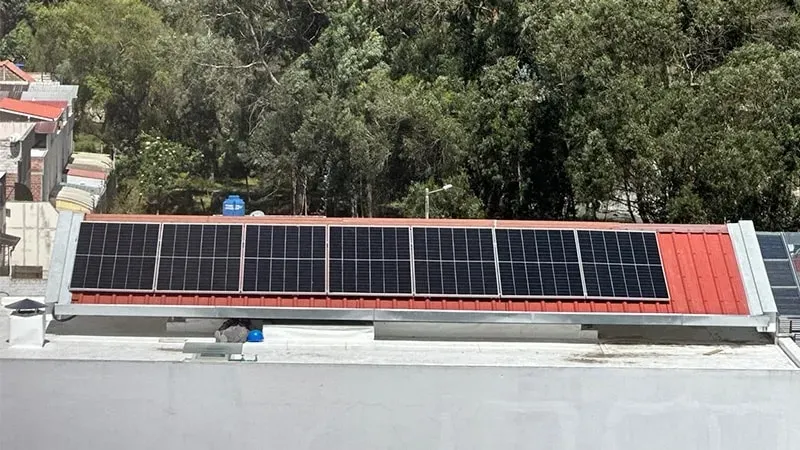

II. Electrical Matching Design for Photovoltaic Arrays
The total PV power is 12.26 kW. The SW-10.2KW-48V dual-channel MPPT system has a maximum total load capacity of 13.2 kW, providing ample power headroom. The modules are divided into two groups of 9 and 10 modules connected in parallel. The open-circuit voltage of a single string is below the inverter’s 500 VDC upper limit, so overvoltage protection will not be triggered even in high-temperature environments. The MPPT achieves a maximum tracking efficiency of 99%, maximizing solar energy capture. The combiner box integrates overcurrent, short-circuit, and basic protection features; a failure in a single module will not cause the entire array to stop generating power, making it suitable for the simple maintenance conditions found in rural areas of the four countries.
III. Analysis of the Core Technology of the SW-10.2KW-48V Split-Phase Inverter
3.1 Compatible with 120/240V household power supplies in Latin America
Residential buildings in Colombia, Ecuador, Brazil, and Cuba all use the American-standard split-phase power supply, with two 120V circuits (L1/N and L2/N) and 240V between phases. The SW-10.2KW-48V features a native split-phase architecture that requires no external transformers. With a rated output of 10.2 kW and a short-term peak of 14 kW, it can simultaneously power 240V air conditioners and water pumps, as well as 120V small appliances; It delivers a pure sine wave output that does not damage inverter-driven or precision household equipment, supports 50/60 Hz auto-adaptation, and is compatible with the grid frequencies of four countries.
SW-10.2KW-48V Split-Phase Inverter
3.2 Key Advantages of Integrated Solar-Storage Systems
Dual independent MPPT channels, with a maximum single-channel PV input of 6,600 W and a maximum charging current of 160 A, ensuring high solar energy utilization;
The 48 V DC busbar is perfectly matched to 51.2 V energy storage batteries. It features a built-in lithium battery auto-activation function, allowing new batteries to be used without external equipment;
Seamless grid-tied/off-grid switching with a switching time of ≤10 ms, designed to handle frequent grid fluctuations in four countries;
Battery-free operation mode: With limited initial budget, the system can power loads using PV alone; energy storage can be added later by installing batteries;
Comprehensive electrical protection: Overvoltage, undervoltage, overload, short circuit, overheating, and islanding protection; automatic shutdown in case of grid abnormalities to protect equipment;
Dual remote communication via Wi-Fi and GPRS; the mobile app allows real-time monitoring of power generation, energy storage, and load data, as well as remote troubleshooting.
3.3 Verification of System Power Matching
The inverter continuously outputs 10.2 kW, and excess solar power generated during the day can be fully stored in the 10 kWh energy storage system; the battery’s maximum charging current ensures a full charge within 5 hours of sunlight, reliably achieving the design target of storing 10 kWh per day. The capacity ratios of the solar panels, inverter, and energy storage system are well-balanced, eliminating power waste and ensuring there are no gaps in power supply.
IV. Technical Compatibility of the SW-T512V10KWH Energy Storage Battery
4.1 Basic Battery Parameters
Features lithium iron phosphate (LiFePO₄) cells with a nominal voltage of 51.2V and capacity of 200Ah, providing 10kWh of usable energy storage; recommended charge/discharge current is 150A, with a short-term peak of 300A, and supports a 90% depth of discharge; With a cycle life of over 6,000 cycles, it is equipped with an active balancing BMS and dual RS485/CAN communication, enabling direct integration with the SW-10.2KW-48V inverter to monitor cell status in real time and prevent overcharging and over-discharging.

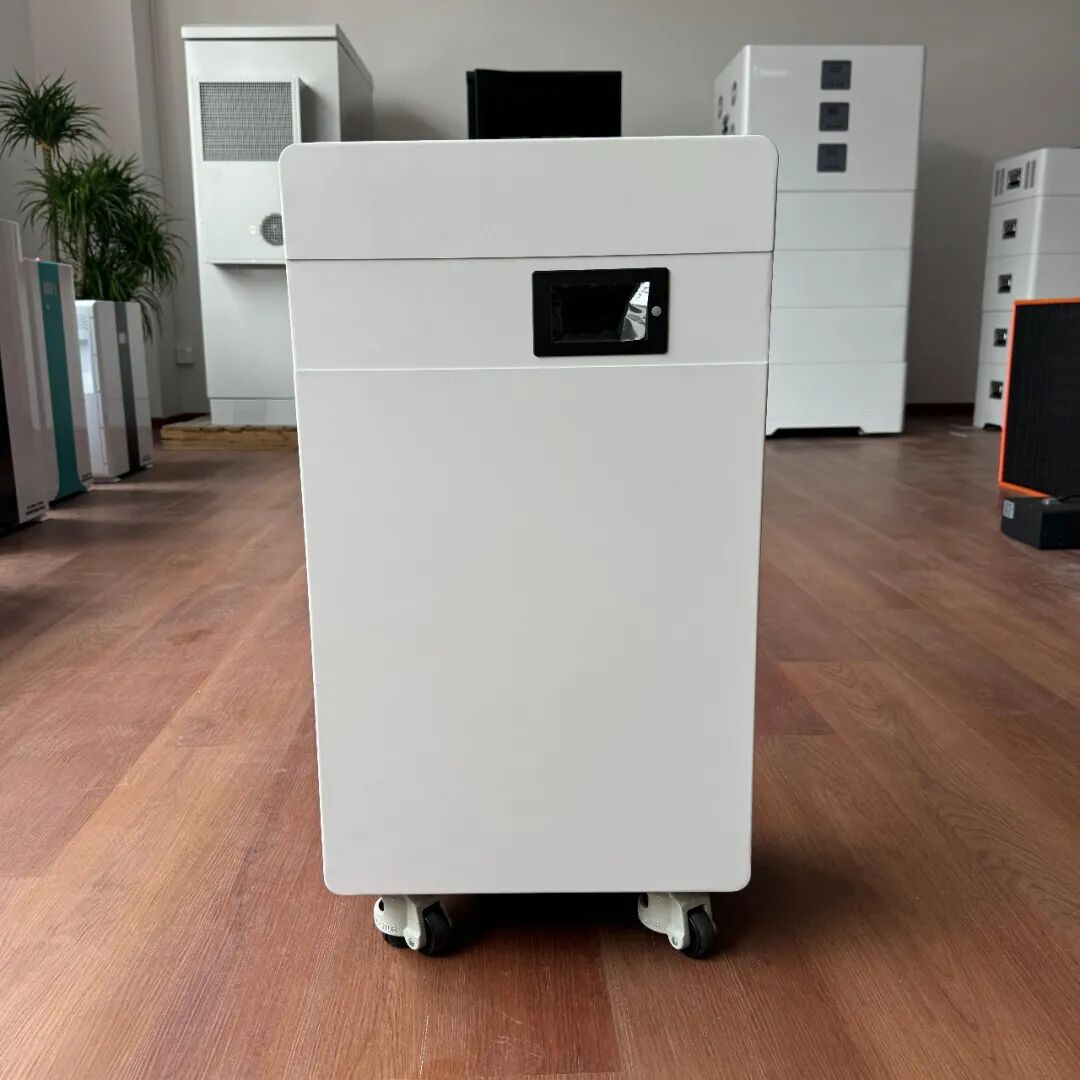

SW-T512V10KWH Energy Storage Battery
4.2 Advantages of the Localization Structure
The unit supports both wall-mounted and floor-standing installation options and is equipped with casters, allowing it to be placed in a standard garage or storage room. Its 3.2-inch local LCD screen lets you check the remaining battery charge and device status without needing a smartphone. With a wide operating temperature range, it is suitable for both the high summer temperatures and the cold, high-altitude conditions found in four countries. Up to 16 units can be connected in parallel, allowing for direct expansion of energy storage capacity when additional loads—such as air conditioners or swimming pools—are added later.
4.3 Design Rationale for the 10 kWh Capacity
The average daily electricity consumption of a typical household in the four countries is 40–50 kWh. The system generates an average of 61 kWh per day, and the surplus electricity after daytime consumption is just enough to fully charge the battery. On sunny days, the system can operate completely off the grid; on cloudy or rainy days, the stored energy makes up for the shortfall in generation; and during power outages, it can support the home’s basic load for more than 8 consecutive hours. The system’s capacity strikes a balance between usage needs and equipment procurement costs.

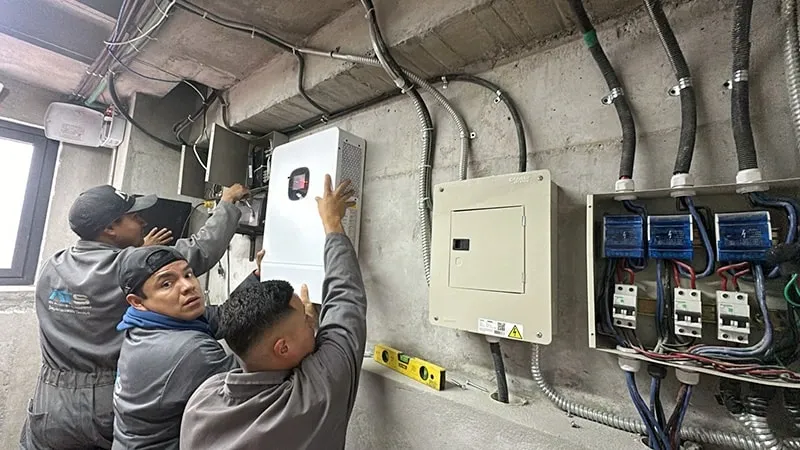

V. System Electrical Topology and Wiring Safety
5.1 Overall Topology Architecture
PV array → combiner box → dual-channel MPPT DC input of the inverter; inverter energy storage DC port → SW-T512V10KWH battery; inverter 120/240V split-phase AC output → residential distribution panel; inverter utility bypass → local public grid. The PV DC, energy storage DC, and AC utility power lines are completely electrically isolated, with separate wiring for AC and DC to reduce the risk of short circuits.
5.2 Wiring and Lightning Protection Design
On the PV side, use weather-resistant, flame-retardant cables designed for this application, along with DC fuses and surge protectors;
The energy storage circuit uses high-current, oxidation-resistant copper cables that do not generate heat under high-current conditions;
On the AC side, L1, L2, and N are independently branched, with high-power equipment equipped with its own circuit breakers;
PV mounting structures, inverters, batteries, and distribution boxes are uniformly grounded and equipped with multi-level surge protection devices to withstand regional thunderstorms;
Three-level overload circuit breaker protection (DC, inverter, and AC) ensures that a fault in a single circuit will not cause the entire system to shut down.
VI. System Economic Benefits and Adaptability Value for the Four Countries
6.1 Estimation of Electricity Revenue
Based on the average electricity price in Latin America of $0.80/kWh, the system can save 61 kWh in electricity costs per day, resulting in daily savings of $48.80, monthly savings of approximately $1,464, and annual electricity savings exceeding $17,500. The photovoltaic modules have a 25-year service life, while the inverter and batteries come with a 5-year warranty. The entire system pays for itself in 3–4 years, and long-term operation results in virtually no electricity costs.
6.2 Leveraging the Core Strengths of the Four Countries
Solves the problems of power outages and voltage fluctuations; off-grid mode ensures basic household power supply;
Significantly reduces monthly electricity bills and helps offset rising electricity prices;
Features a surplus power feed-in function; in some regions, users can earn additional income by selling excess electricity;
Standardized, complete system packages with all necessary components, resulting in a short on-site installation period;
Dual monitoring via a local display screen and a mobile app, eliminating the need for daily maintenance by a professional electrician;

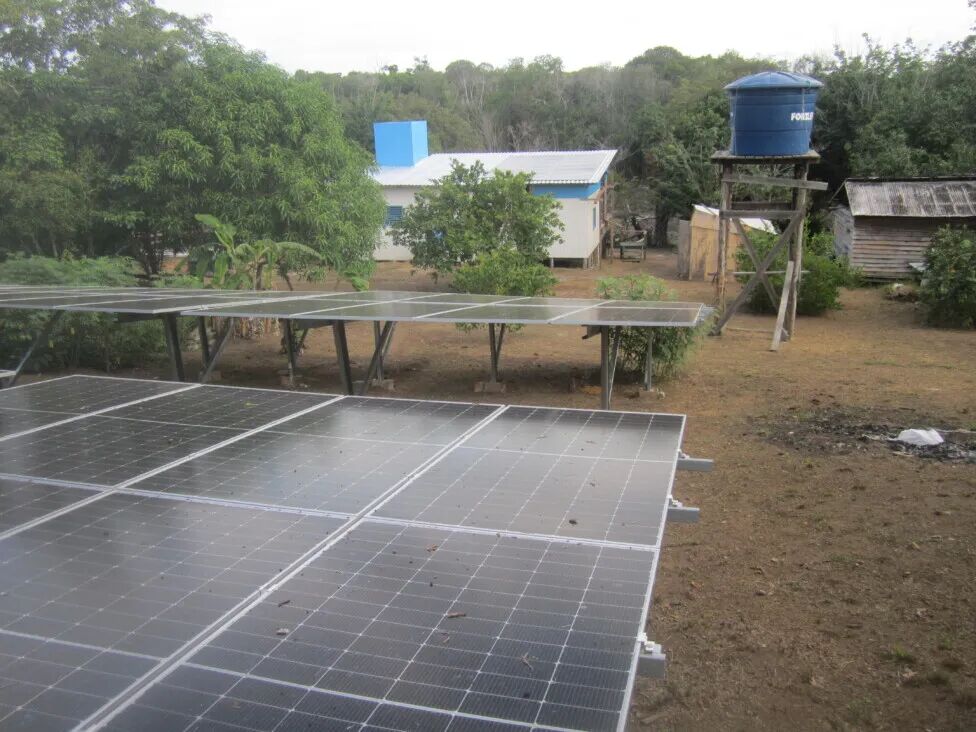

Solar Energy Helps Indigenous Peoples in the Brazilian Amazon Thrive
VII. Warranty and Service Life Information
645W PV modules: 10-year warranty on the entire unit, 25-year linear power warranty;
SW-10.2KW-48V split-phase inverter: 5-year warranty on the entire unit;
SW-T512V10KWH energy storage battery: 5-year warranty, 6,000 charge-discharge cycles;
Accessories such as cables, mounting brackets, and surge protection devices come with a 2-year warranty; the entire system is designed for a 20-year service life, with low long-term operation and maintenance costs.
VIII. Conclusion
This kit is compatible with residential solar-plus-storage systems in Colombia, Ecuador, Brazil, and Cuba. It consists of 19 645W photovoltaic modules, an SW-10.2KW-48V U.S.-standard split-phase inverter, and a 10kWh lithium iron phosphate battery. Designed for an average of 5 hours of sunlight per day, the system reliably generates an average of 61kWh of electricity and stores 10kWh of energy daily. The system features 120/240V split-phase output, compliant with the residential power standards of these four countries, and leverages intelligent energy management to support multiple functions, including solar power generation, energy storage, grid-tied operation, and emergency off-grid operation. With a streamlined design, simple operation and maintenance, and a short return on investment, this complete system is the preferred clean energy solution for single-family homes, rural residences, and small businesses throughout Latin America.
