Technical Analysis Report on the 15 kW–48 kWh Three-Phase High-Voltage Photovoltaic-Storage Hybrid Stacked System

Created on：2026-06-01

This solution utilizes the SW15KW-48KWH-HP3-H3 distributed photovoltaic-storage hybrid micro-power station (stacked type) as its core equipment, combined with 18 high-efficiency 730W solar panels to form a 15kW three-phase photovoltaic hybrid power system. The system offers key advantages such as stacked modularity, seamless switching between grid-connected and off-grid modes, and flexible power adaptation. It enables efficient collection, storage, and intelligent dispatch of photovoltaic energy, making it suitable for diverse applications including distributed power consumption in commercial and industrial settings and power supply for small-scale campuses. The following outlines the system’s core technical solution and performance analysis.

15 kW Solar Power System

I. Analysis of Core System Configuration and Compatibility

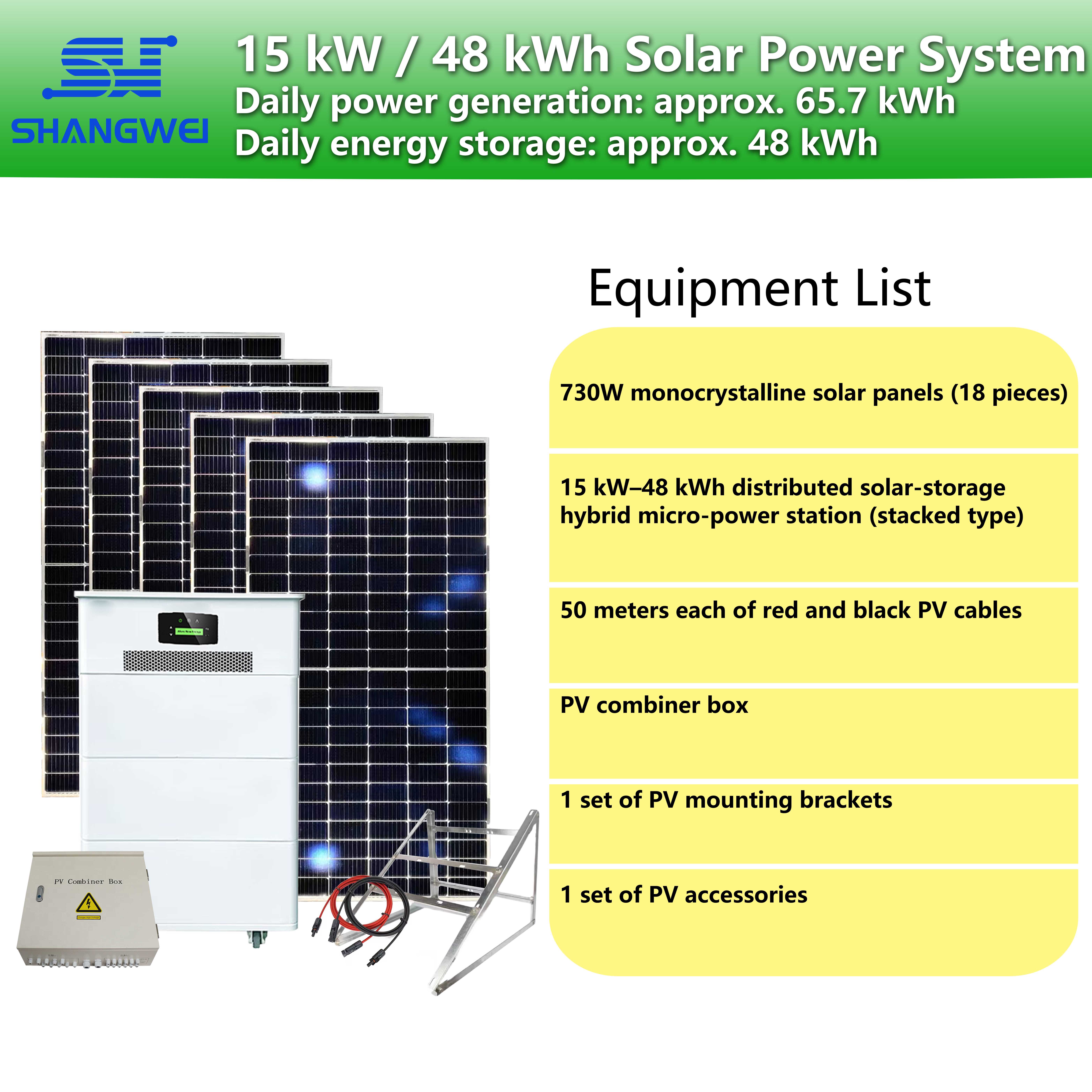

15 kW–48 kWh Three-Phase High-Voltage Photovoltaic-Storage Hybrid System Configuration Diagram

The core equipment of this system is the SW15KW-48KWH-HP3-H3 distributed photovoltaic-storage hybrid micro-power station. The photovoltaic side is equipped with 18 high-efficiency 730W monocrystalline solar panels, arranged in strings of 9 panels each and connected in parallel (2 strings), which is highly compatible with the system’s photovoltaic-side parameters. The maximum input power of the system’s PV side is 22.5 kW, which is significantly higher than the total installed capacity of 13.14 kW from the 18 730W modules. This provides ample power redundancy to effectively handle power fluctuations caused by variations in sunlight; The modules’ optimal operating voltage is 42.5 V. When 9 modules are connected in series, the string voltage is 382.5 V, which falls within the equipment’s MPPT operating range of 180–850 V and is close to the optimal range of 500–850 V for the MPPT rated voltage. This maximizes the efficiency of tracking and collecting photovoltaic energy.

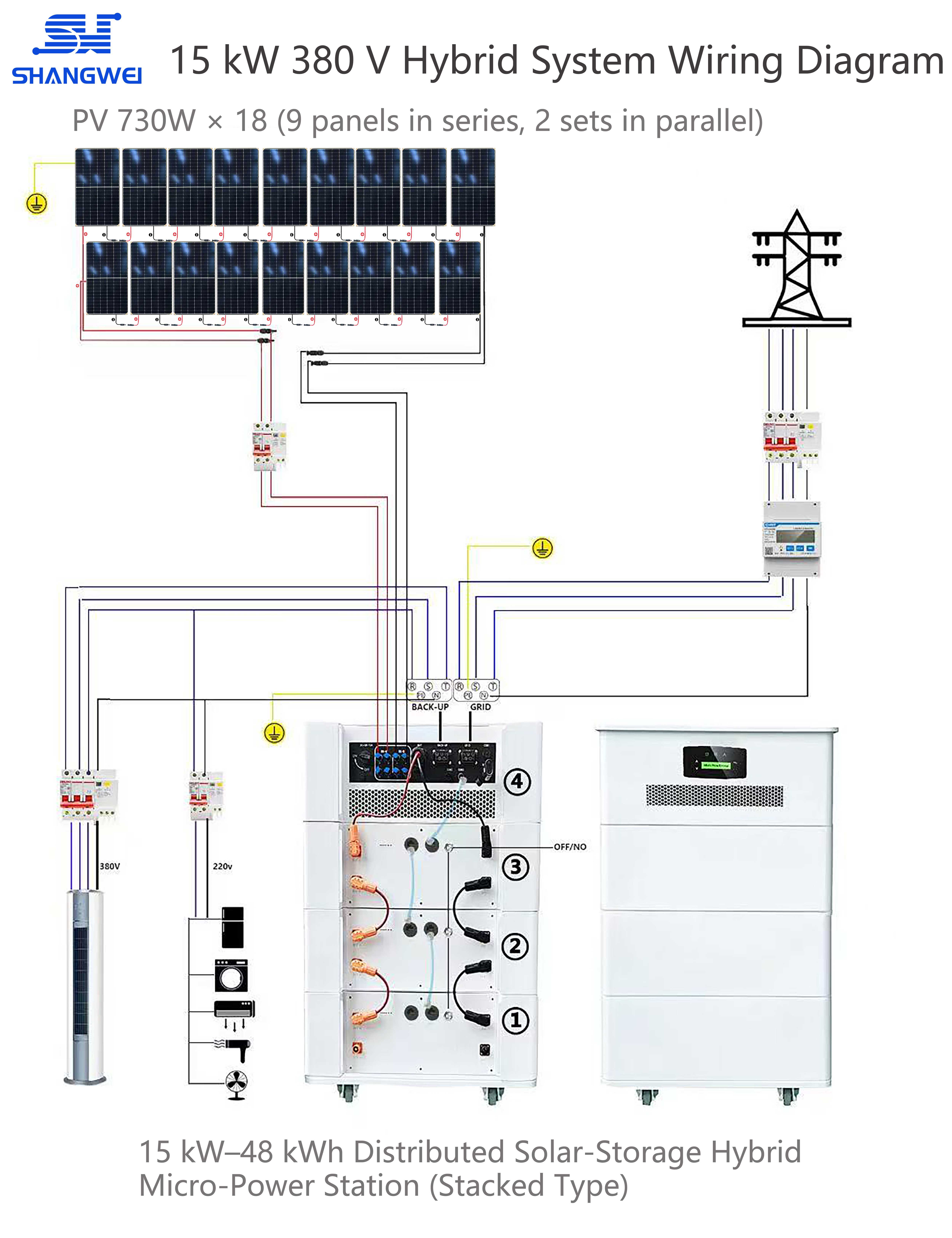

15 kW–48 kWh Three-Phase High-Voltage Photovoltaic-Storage Hybrid System Wiring Diagram

The modules have an optimal operating current of 17.21 A and a short-circuit current of 18 A. When connected in a 2-string configuration, these parameters match the equipment’s maximum input current of 20 A/32 A and maximum short-circuit current of 30 A/48 A on the PV side, thereby preventing equipment protection triggered by current overloads while ensuring that the modules’ output current is fully utilized. The device is equipped with two MPPT channels, each connected to a 382.5V PV string, enabling independent tracking. This effectively reduces mismatch losses between strings and further enhances power generation efficiency on the PV side.

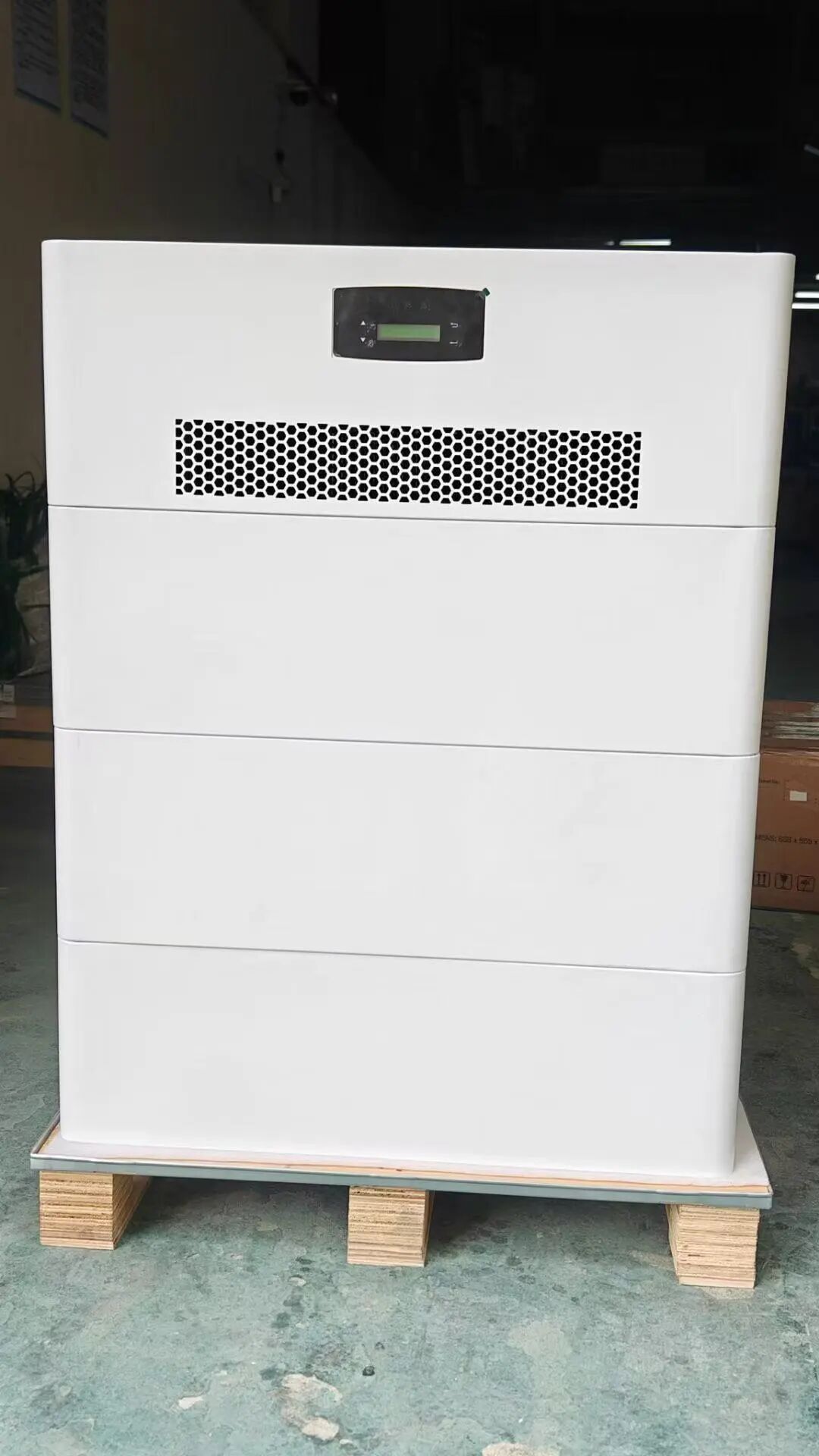

SW15KW-48KWH-HP3-H3 Distributed Solar-Storage Hybrid Micro Power Station (Front View)

The energy storage system uses lithium iron phosphate (LiFePO₄) power batteries, specifically the SW-T512V314AH-A model, Three battery packs provide a rated capacity of 48 kWh, with an operating voltage range of 400–460 V, fully compatible with the energy storage side parameters of the equipment. With a rated charge/discharge current of 50 A/50 A and a maximum charging power of 15 kW, the system enables rapid storage of photovoltaic energy and on-demand discharge, effectively matching the generation characteristics of the PV side with the load demands of the consumption side.

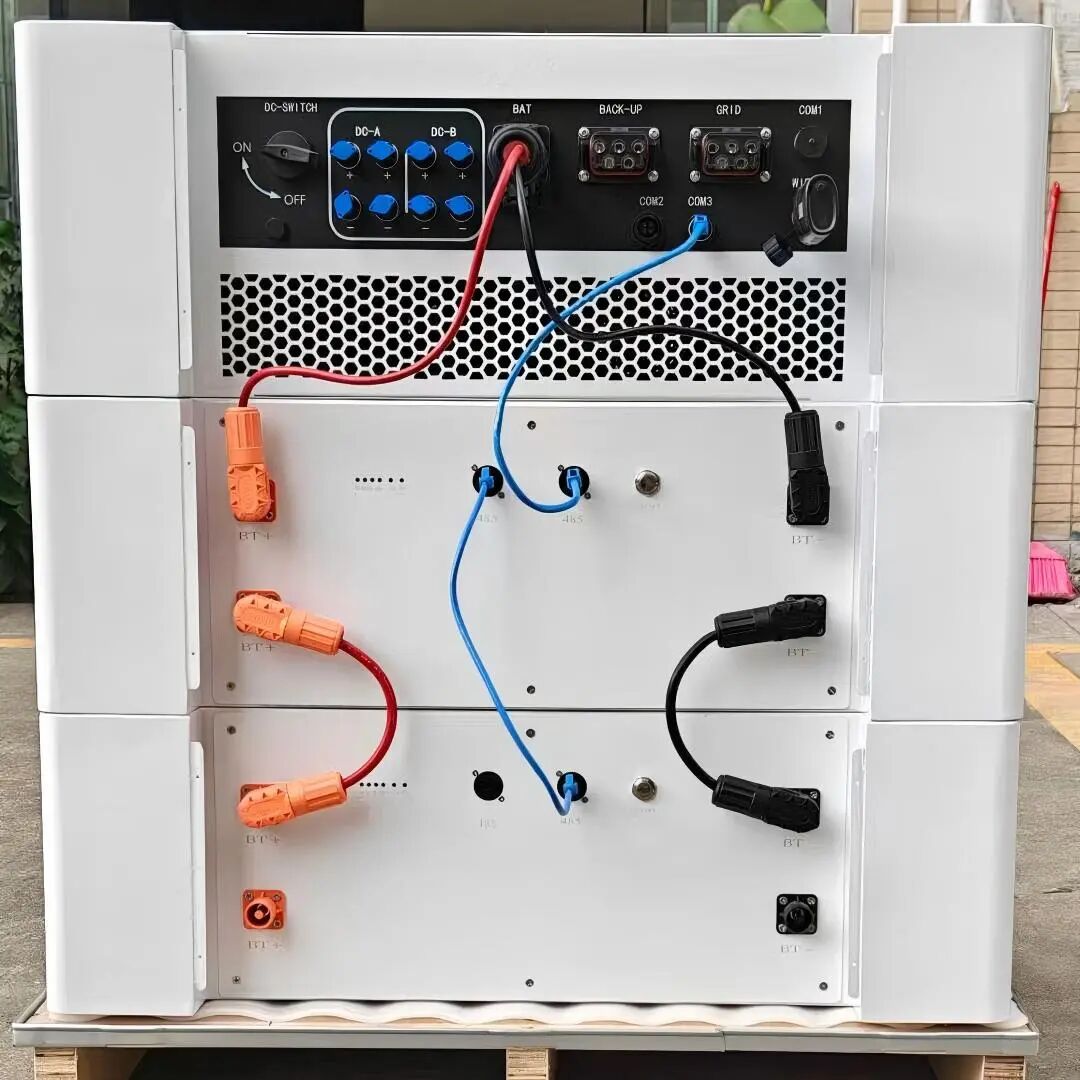

SW15KW-48KWH-HP3-H3 Distributed Photovoltaic-Storage Hybrid Micro Power Station (Rear View)

II. Core System Performance and Operational Capabilities

(1) Power Generation and Energy Conversion Efficiency

Assuming 5 hours of effective sunlight per day, this system can generate up to 65.7 kWh of electricity daily. With a photovoltaic module efficiency of 23.5%—which is at the high end of the industry—and combined with the equipment’s 99% photovoltaic MPPT efficiency, it achieves highly efficient capture of solar energy; The device’s AC-side conversion efficiency reaches 98%. Under all operating conditions—including direct PV supply, energy storage charging and discharging, and grid-tied/off-grid switching—energy loss is kept to a minimum, ensuring high overall energy utilization efficiency for the system.

(2) Grid-Connected and Off-Grid Operation and Power Supply Stability

The system supports 380/400V three-phase grid-connected operation, with a rated output power of 15 kW and a maximum output power of 22.5 kW. maximum charging power of 15 kW, hybrid output power of 30 kW, and a power factor that can be flexibly set within the range of 0.8 leading to 0.8 lagging. Total current harmonic distortion is <3%. During grid-connected operation, there is no harmonic pollution to the grid, and the system can optimize scheduling via the EMS energy management system based on peak-off-peak electricity rates, reducing electricity costs through off-peak discharge.


In off-grid mode, the unit has a rated output power of 15 kW and a rated output voltage of 380/400 V, with a maximum single-phase apparent power output of 5.0 kW, capable of independently powering both three-phase and single-phase loads; the grid-to-off-grid switching time is only 10 ms, ensuring seamless transition. In the event of sudden grid outages or faults, the system instantly switches to off-grid mode to ensure continuous power supply to critical loads, thereby resolving issues of unstable grid power supply. Additionally, the device supports connection to a diesel generator with a rated input power of 15 kW. When photovoltaic power is insufficient or energy storage levels are low, it can coordinate with the diesel generator to provide power, further enhancing the system’s power supply reliability.

(3) Power and Capacity Scalability

This system features a stackable, modular design with the easy installation typical of home appliances. It breaks free from the fixed power and capacity limitations of traditional solar-storage systems. As electricity demand grows or the need arises to expand the PV installation, users can flexibly upgrade both power and capacity by stacking battery packs and adding PV strings—without having to replace the entire system. This approach reduces the cost of future expansion and retrofitting, ensuring the system adapts to evolving electricity needs at every stage.

III. Key Technical Highlights of the System

(1) Smart Energy Management and Remote Monitoring

The system is equipped with a professional EMS (Energy Management System) that enables intelligent optimization of peak-off-peak electricity usage, automatically charging during off-peak grid hours and discharging during peak hours to maximize economic benefits by leveraging the difference in peak and off-peak electricity rates; It also features an LCD local human-machine interface and remote control via a mobile app, supporting Wi-Fi, GPRS, and 4G cloud communication. Designers and users can view real-time operational data—including power generation, energy storage, discharge, and grid connection—and remotely adjust parameters or switch modes, enhancing the convenience of system operation, maintenance, and management. The device also features display and communication interfaces such as RS485 and CAN, enabling interconnectivity with other electrical equipment and monitoring systems to create an intelligent microgrid system.

(2) Safety Protection and Environmental Adaptability

The energy storage side is equipped with a passive fire suppression system that utilizes thermal aerosol fire suppression technology. In the event of safety hazards such as battery thermal runaway, the system can be rapidly activated to extinguish the fire, ensuring the safety of both the equipment and the site. The temperature control system employs an automatic cooling/air-cooling design to effectively regulate the equipment’s operating temperature, thereby preventing performance degradation and safety risks caused by excessive heat.


The equipment operates within a temperature range of -25°C to 60°C (derated operation above 45°C), at altitudes below 4,000 meters, and in relative humidity conditions ranging from 0% to 95% (non-condensing). It can operate stably in various complex environments, including high altitudes, low temperatures, high temperatures, and high humidity, meeting installation and usage requirements across different regions; With an IP20 protection rating and noise emissions of <30–60 dB, the unit operates quietly and imposes no special requirements on the installation environment. It can be directly installed in industrial and commercial facilities, small-scale campus substations, and similar locations.

(3) Electrical Performance

The equipment supports a maximum three-phase output imbalance of 0–97%, enabling it to adapt to real-world conditions where three-phase loads on the consumer side are unbalanced, thereby preventing equipment failures and power losses caused by load imbalance.

IV. System Value and Application Scenarios

This 15 kW–48 kWh hybrid solar-storage system, with its moderate power output, flexible configuration, and stable operation, is widely suitable for small and medium-sized commercial and industrial enterprises, street-front shops, small industrial parks, agricultural cultivation bases, and other similar scenarios. In regions with peak-off-peak electricity price differentials, the EMS system’s peak-off-peak scheduling can significantly reduce corporate electricity costs. In areas with weak grid coverage and poor power supply stability, the system’s seamless grid-tied/off-grid switching and diesel generator integration ensure continuous power for production and daily life. Additionally, the modular design allows the system to flexibly adjust to actual user load, balancing initial investment with future expansion to maximize cost-effectiveness.


Overall, by integrating multiple energy sources—including solar PV, energy storage, the utility grid, and diesel generators—this system achieves efficient energy utilization and intelligent dispatch. It not only addresses the intermittency and volatility of solar power generation but also enhances the reliability and cost-effectiveness of power supply on the consumer side, making it an excellent solution for distributed energy utilization.
