12–50 kW Three-Phase High-Voltage Photovoltaic-Storage Hybrid Stacked System
Distributed hybrid solar-storage micro-power stations for commercial and industrial use, featuring lithium iron phosphate battery cells and EMS intelligent management, support peak-valley power optimization, and efficiently meet commercial and industrial power consumption and emergency power supply needs.
Product Specifications
| Distributed Hybrid Solar-Storage Micro-Power Station (Stacked Type) 12–50 kW / 32–160 kWh |
|||||
|

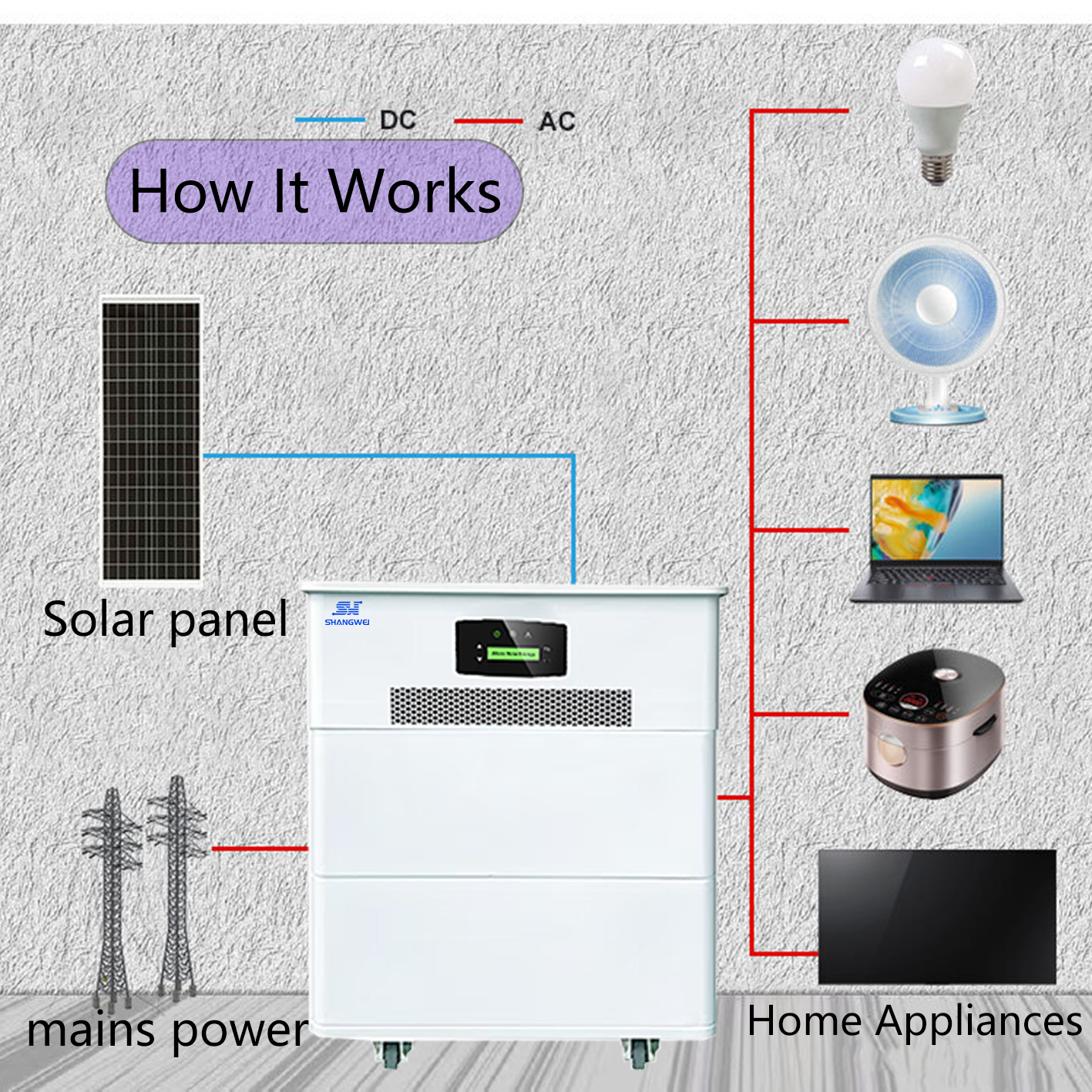

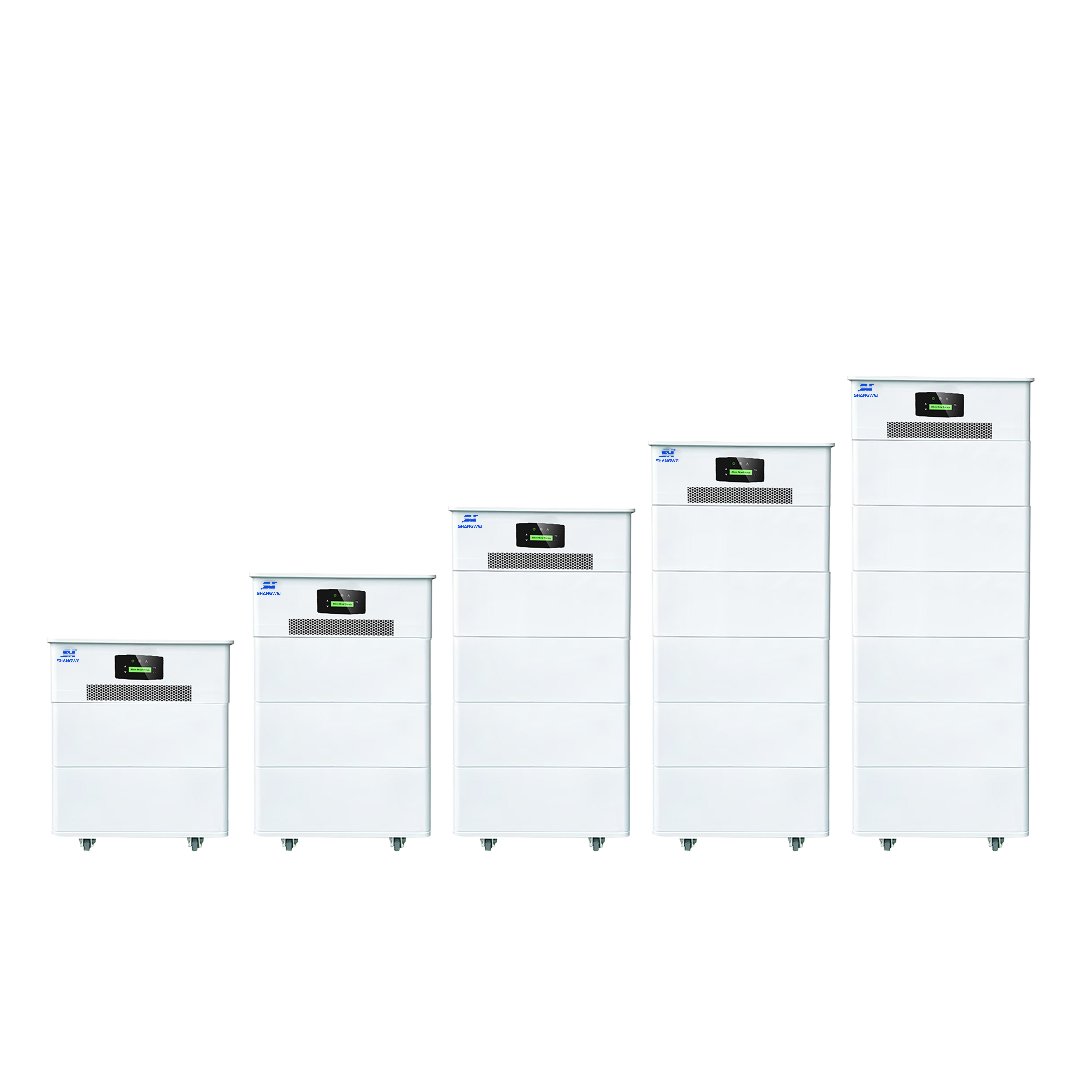

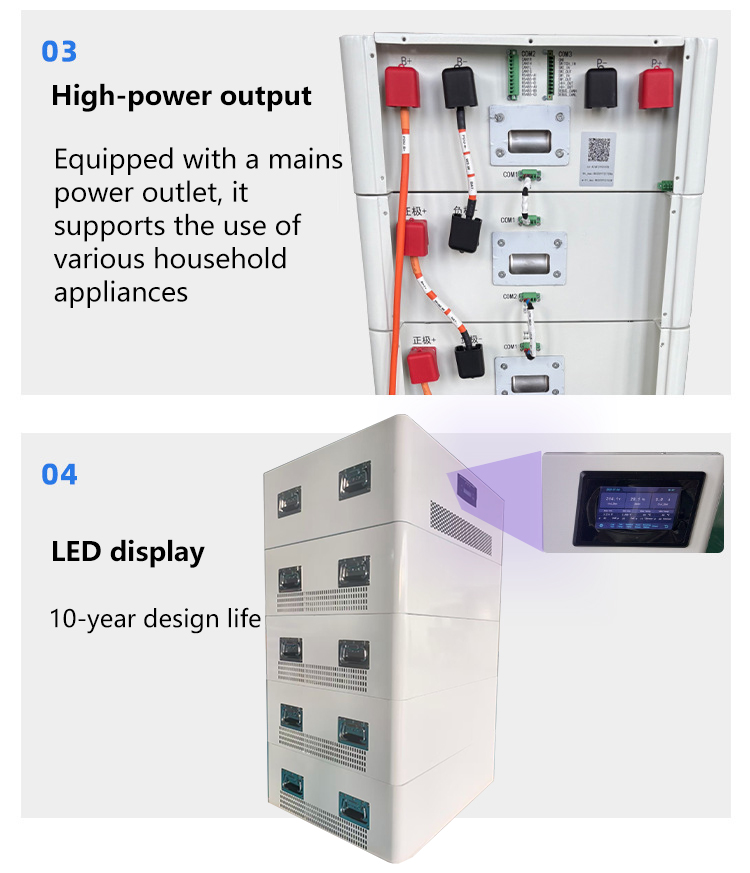

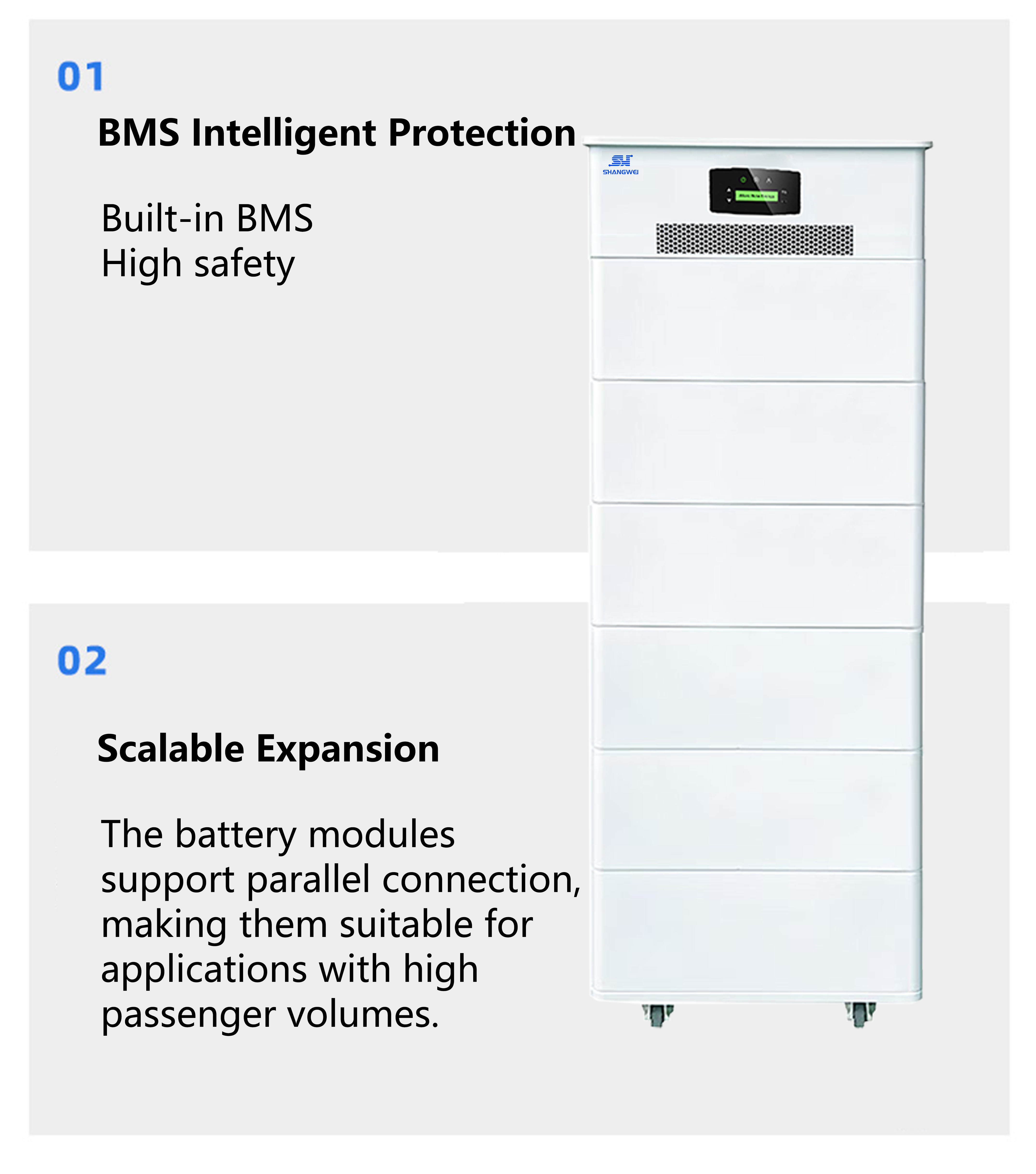

Stackable modular design / Home appliance-style aesthetics / Seamless switching between grid-tied and off-grid modes / Flexible power adaptation / Scalable capacity / EMS energy management system for optimized peak-valley power management |
|||||
| Parameters | SW12KW-32KWH-HP3-H2 | SW15KW-48KWH-HP3-H3 | SW20KW-64KWH-HP3-H4 | SW30KW-96KWH-HP3-H6 | SW50KW-160KWH-HP3-H10 |
| Photovoltaic Parameters | |||||
| Maximum Input Power (W) | 15.0KW | 22.5KW | 30.0KW | 45.0KW | 75.0KW |
| Maximum Input Voltage (V) | 1000V | ||||
| MPPT Operating Range (V) | 180~850V | ||||
| MPPT Rated Voltage (V) | 500V-850V | ||||
| Start-up Voltage (V) | 200V | ||||
| Maximum Input Current (A) | 13A/13A | 20A/32A | 32A/32A | 40A/40A | 40A/40A/40A/40A |
| Maximum Short-Circuit Current (A) | 18A/18A | 30A/48A | 48A/48A | 60A/60A | 48A/48A/48A/48A |
| Number of MPPT Channels | 2路 | 2路 | 2路 | 2路 | 4路 |
| Number of Strings per MPPT Channel | 2/2 | 3/3 | 4/4 | 4/4 | 8/8 |
| PV MPPT Efficiency (%) | 99% | ||||
| AC Parameters (Grid-Connected Side) | |||||
| Rated Output Power (W) | 12.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Maximum Output Power (kW) | 15.0KW | 22.5KW | 30.0KW | 45.0KW | 100.0KW |
| Maximum Charging Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Hybrid Output Power (kW) | 20.0KW | 30.0KW | 40.0KW | 130.0KW | 130.0KW |
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60Hz | ||||
| Maximum Output Current (A) | 20A | 27A | 32A | 48A | 83A |
| Maximum Three-Phase Output Unbalance | 0-80% | 0-97% | |||
| Power Factor Range | ~1 (0.8 lead/0.8 lag, configurable) | ||||
| Total Harmonic Distortion (THD) (at Rated Power) (%) | <3% | ||||
| AC Parameters (Off-Grid Side) | |||||
| Rated Output Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Rated Output Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Output Frequency (Hz) | 50/60(Hz) | ||||
| Maximum Single-Phase Apparent Output Power (kW) | 3.3KW | 5.0KW | 6.6KW | 10.0KW | 16.7KW |
| Grid-Tied/Off-Grid Switching Time (ms) | 10(ms) | ||||
| Conversion Efficiency (%) | 98.00% | ||||
| AC Parameters (Diesel Generator Side) | |||||
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60(Hz) | ||||
| Rated Input Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Battery Specifications | |||||
| Operating Voltage Range (V) | 400-460V | ||||
| Battery Type | Lithium iron phosphate (LFP) | ||||
| Battery Model | SW-T512V314AH-A | ||||
| Rated Charge/Discharge Current (A) | 20A/20A | 50A/50A | 50A/50A | 50A/50A | 120A/120A |
| Maximum Charging Power (kW) | 10.0KW | 15.0KW | 20.0KW | 30.0KW | 50.0KW |
| Number of Battery Packs | 2 | 3 | 4 | 6 | 10 |
| Capacity per Battery Pack (kWh) | 16.0KWH | ||||
| Rated Capacity (kWh) | 32.00 | 48.00 | 64.0 | 96.0 | 160.0 |
| Temperature Control System | |||||
| Temperature Control System | Automatic cooling / Air cooling | ||||
| Fire protection system | |||||
| Passive fire protection | Hot gas aerosol fire suppression | ||||
| Basic Specifications | |||||
| Operating Temperature Range (°C) | -25 to 60 (reduced capacity above 45) | ||||
| Operating Altitude (m) | <4000 | ||||
| Noise Emission (dB) | <30-60 | ||||
| Protection Rating | IP20 | ||||
| Relative Humidity Range (%) | 0–95%, non-condensing | ||||
| Dimensions (W x H x D) (mm) | 800*620*890MM | 800*620*1140MM | 800*620*1390MM | 800*620*1890MM | 800*620*1360MM/2PS/900*1000*500MM |
| Weight (kg) | |||||
| User Interface | LCD/APP | ||||
| Cloud Communication Method | Wi-Fi、GPRS、4G | ||||
| Display Interface | LCD、RS485、CAN、 | ||||
| Certifications | UN38.3 MSDS CE | ||||
| Safety Standards | IEC62109-1/-2 | ||||
| EMC Standards | EN61000-6-1/-3,IEC61000 | ||||
| Network Standards | NRS97、G98/G99、EN50549-1、C10/C11、as 4777、VDE-AR-N4105、VDE0126、IEC62040 | ||||
