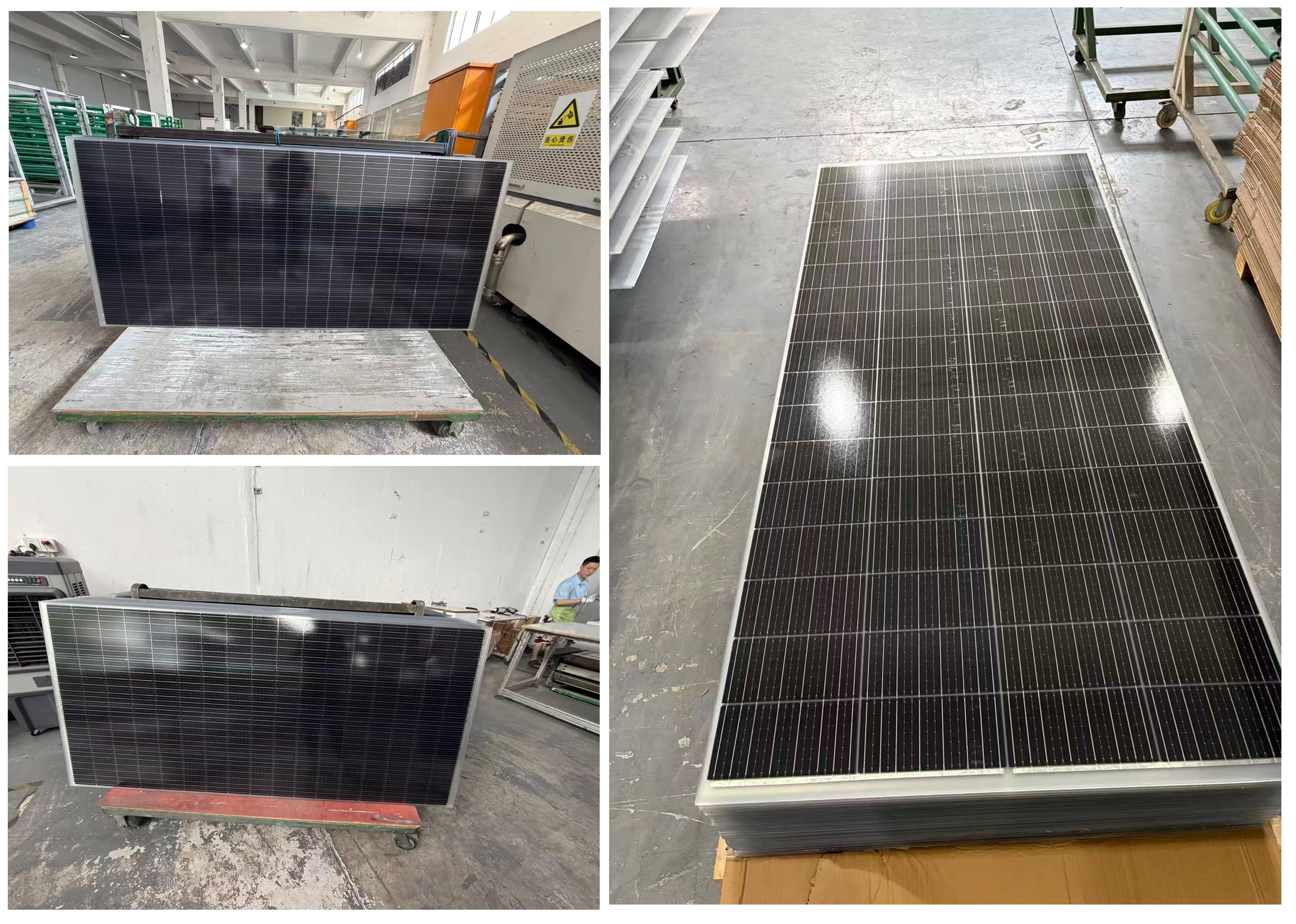

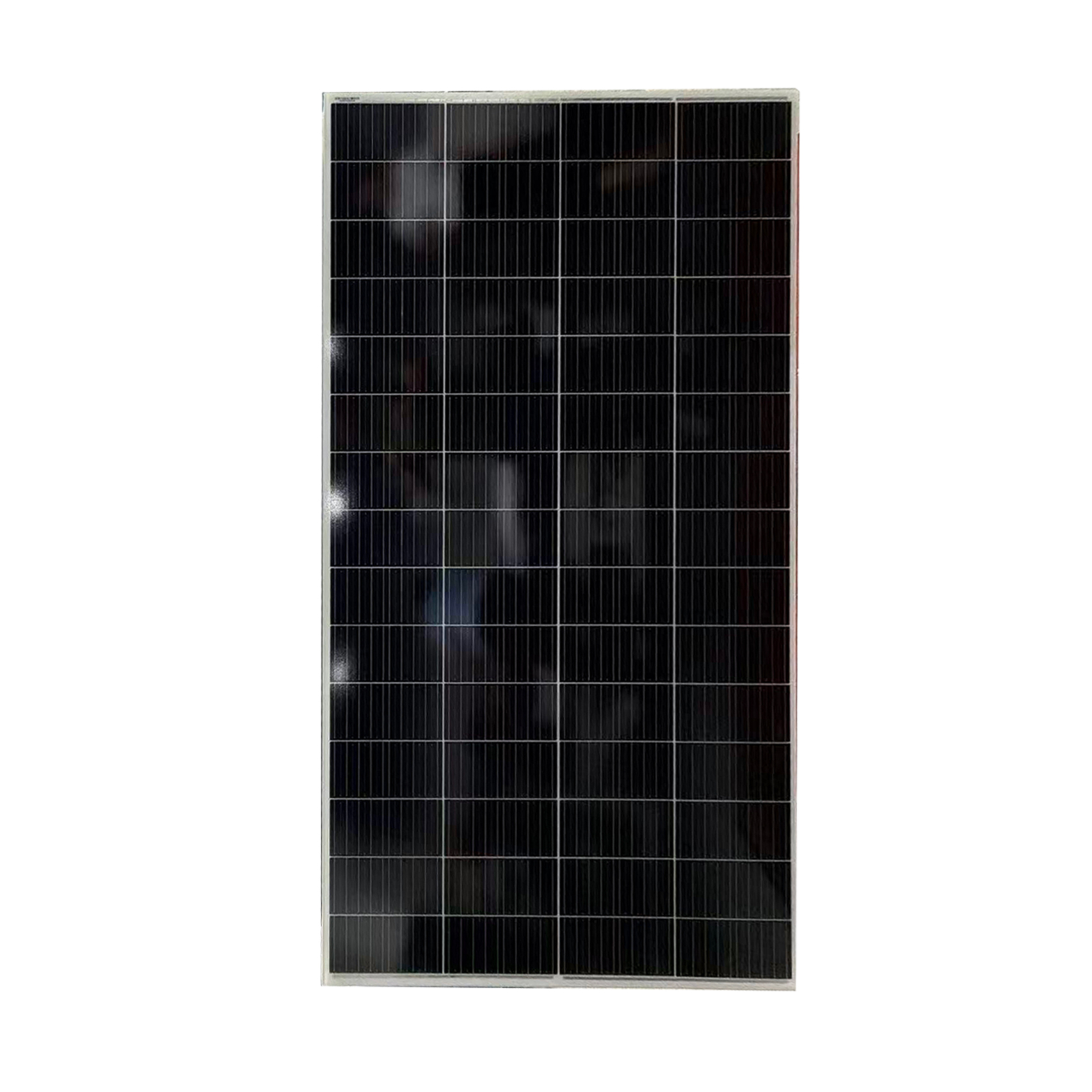

360W monocrystalline solar module

This 360W monocrystalline solar module adopts 68 pieces of 210*105mm solar cells. Its cell efficiency exceeds 23.5% and module efficiency is over 21.2%. With 1500V max system voltage, it works from -40℃ to 85℃ and has ±3% power tolerance. The aluminum frame withstands wind, snow and hail. It comes with a 10-year product warranty and a 25-year power output warranty. Weighing 20kg per piece, it suits residential and small commercial PV storage projects.
CONTACT US

Product Details

Parameter Value
Max Power (Wp) 360 W
Max Power Voltage (Vmp) 40.8 V
Max Power Current (Imp) 8.82 A
Open Circuit Voltage (Voc) 48.28 V
Short Circuit Current (Isc) 9.44 A
Cell Quantity 68 Pcs
Module Dimensions 1870 × 880 × 30 mm (cell 210×105 mm)
Max System Voltage 1500 V
Temp. Coeff. Isc +0.065 ± 0.015 %/°C
Temp. Coeff. Voc −(2.23 ± 0.1) mV/°C
Temp. Coeff. Pmax −(0.5 ± 0.05) %/°C
Temp. Coeff. Imp +0.1 %/°C
Temp. Coeff. Vmp −0.38 %/°C
Operating Temp. Range −40 °C ~ +85 °C
Power Tolerance ±3%
Surface Load Capacity 30 m/s (200 kg/m²)
Hail Test Steel ball from 1 m height
Weight 20 kg/pc
Cable Length 90 mm
Cell Efficiency > 23.5%
Module Efficiency > 21.2%
Frame Anodized Aluminum
Test Conditions AM1.5, 100 mW/cm², 25 °C
Warranty 10-year product; 25-year 80% power
Fill Factor 75%
Packing 37 pcs/pallet
