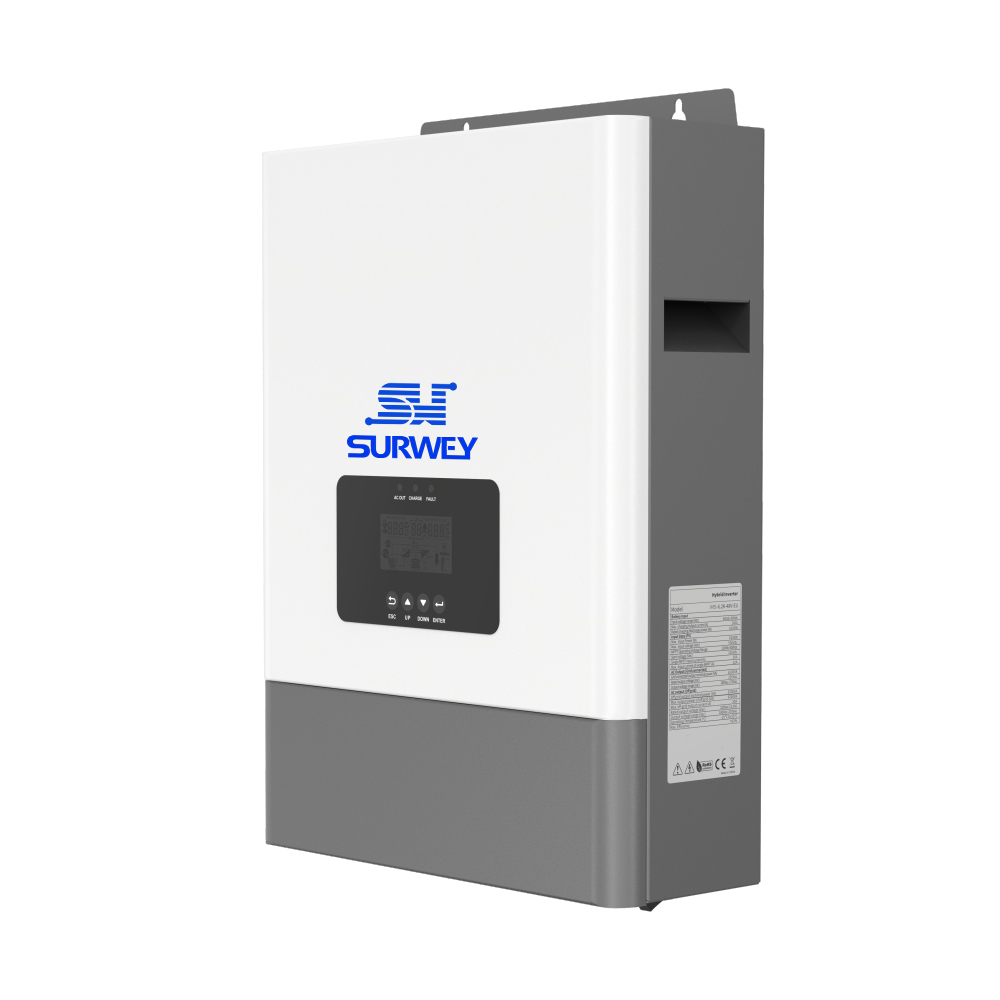

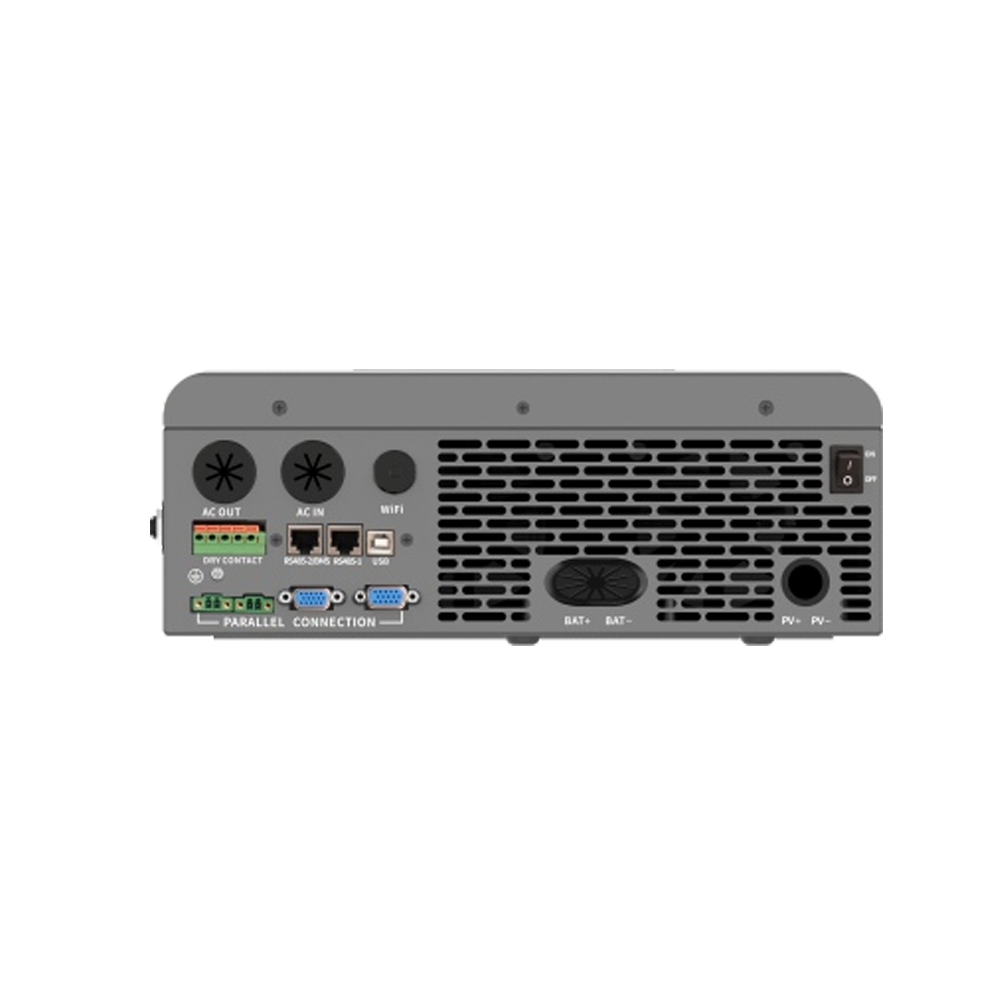

24v/48v 4.2-12kw-EU IP54 Hybrid On/Off Grid Inverter ( 230V Series )

230V Series IP54 Hybrid On/Off Grid Inverter, models SW-4.2K-24V-EU, SW-6.2K-48V-EU and SW-12K-48V-EU. Up to 6 units can be paralleled.
It supports segmented charge & discharge and anti-backflow grid-tie function. It can operate without batteries, solar power and utility grid can supply loads together. Four charging modes are available: Solar Only, Grid Priority, Solar Priority and Hybrid Charging. Grid bypass enables uninterrupted power supply.
CONTACT US

Product Details

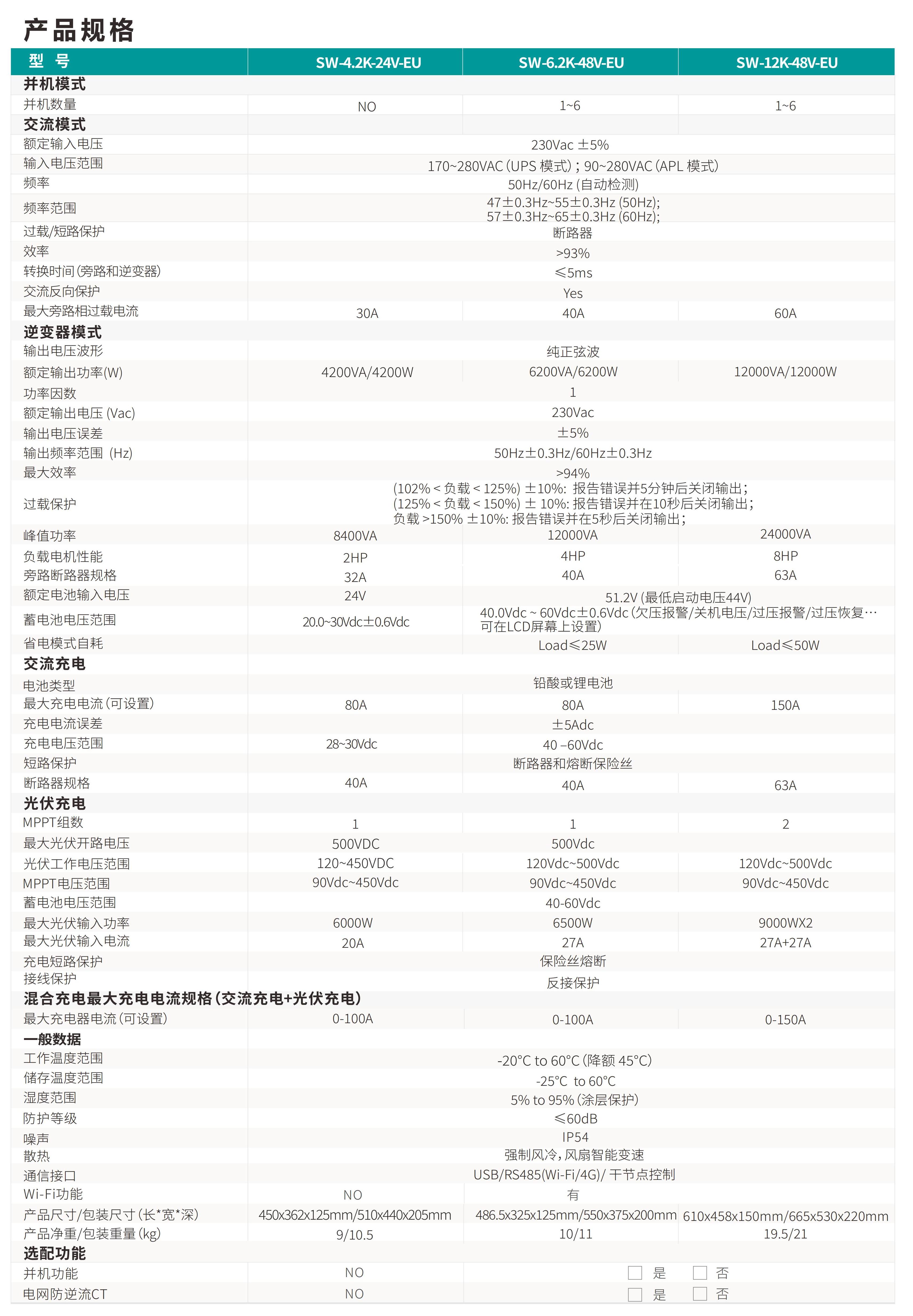

Product Specifications
Model SW-4.2K-24V-EU SW-6.2K-48V-EU SW-12K-48V-EU
Parallel Operation Mode
Number of units in parallel NO 1~6 1~6
Communication Mode
Rated Input Voltage 230Vac±5%
Input Voltage Range 170–280 VAC (UPS mode); 90–280 VAC (APL mode)
Frequency 50 Hz/60 Hz (auto-detect)
Frequency Range 47±0.3Hz~55±0.3Hz(50Hz);
57±0.3Hz~65±0.3Hz(60Hz);
Overload/Short-Circuit Protection Circuit Breakers and Fuses
Efficiency >93%
Switchover Time (Bypass and Inverter) ≤5ms
AC Reverse Protection Yes
Maximum Bypass Phase Overload Current 30A 40A 60A
Inverter Mode
Output Voltage Waveform Pure Sine Wave
Rated Output Power (W) 4200VA/4200W                   6200VA/6200W                  12000VA/12000W
Power Factor 1
Rated Output Voltage (Vac) 230Vac
Output Voltage Error ±5%
Output Frequency Range (Hz) 50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency >94%
Overload Protection (102% < load < 125%) ± 10%: Report an error and shut off the output after 5 minutes;
    (125% < load < 150%) ± 10%: Report an error and shut off the output after 10 seconds;
    Load > 150% ± 10%: Report an error and shut off the output after 5 seconds;
Peak Power 8400VA 12000VA 24000VA
Load Motor Performance 2HP 4HP 8HP
Bypass Circuit Breaker Specifications 32A 40A 63A
Rated Battery Input Voltage 24V 51.2 V (minimum startup voltage: 44 V)
Battery Voltage Range 20.0~30Vdc±0.6Vdc 40.0 Vdc to 60 Vdc ±0.6 Vdc (undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery…
can be set on the LCD screen)
Self-Discharge in Power-Saving Mode   Load≤25W Load≤50W
AC Charging
Battery Type Lead-acid or lithium-ion batteries
Maximum Charging Current (Configurable) 80A 80A 150A
Charging Current Tolerance ±5Adc
Charging Voltage Range 28~30Vdc 40-60Vdc
Short-Circuit Protection Circuit Breakers and Fuses
Circuit Breaker Specifications 40A 40A 63A
Solar Charging
Number of MPPT Channels 1 1 2
Maximum PV Open-Circuit Voltage 500Vdc
PV Operating Voltage Range 120~450VDC 120Vdc~500Vdc 120Vdc~500Vdc
MPPT Voltage Range 90Vdc~450Vdc 90Vdc~450Vdc 90Vdc~450Vdc
Battery Voltage Range 40-60Vdc
Maximum PV Input Power 6000W 6500W 9000WX2
Maximum PV Input Current 20A 27A 27A+27A
Charging Short-Circuit Protection Fuse Blown
Wiring Protection Reverse Polarity Protection
Maximum Charging Current Specifications for Hybrid Charging (AC Charging + Solar Charging)
Maximum Charger Current (Configurable) 0-100A 0-100A 0-150A
General Data
Operating Temperature Range -20°C to 60°C (derated at 45°C)
Storage Temperature Range -25°C to 60°C
Humidity Range 5% to 95% (with protective coating)
Protection Rating ≤60 dB
Noise Level IP54
Heat Dissipation Forced air cooling with intelligent variable-speed fan
Communication Interfaces USB/RS485 (Wi-Fi/4G)/dry contact control
Wi-Fi Capability NO Yes
Product Dimensions/Packaging Dimensions (L x W x D) 450x362x125mm/510×440×205mm 486.5x325x125mm/550×375×200mm 610×458x150mm/665×530×220mm
Net Weight/Packaging Weight (kg) 9/10.5 10/11 19.5/21
Optional Features
Parallel Operation Function NO
Grid Reverse Current Protection CT NO
