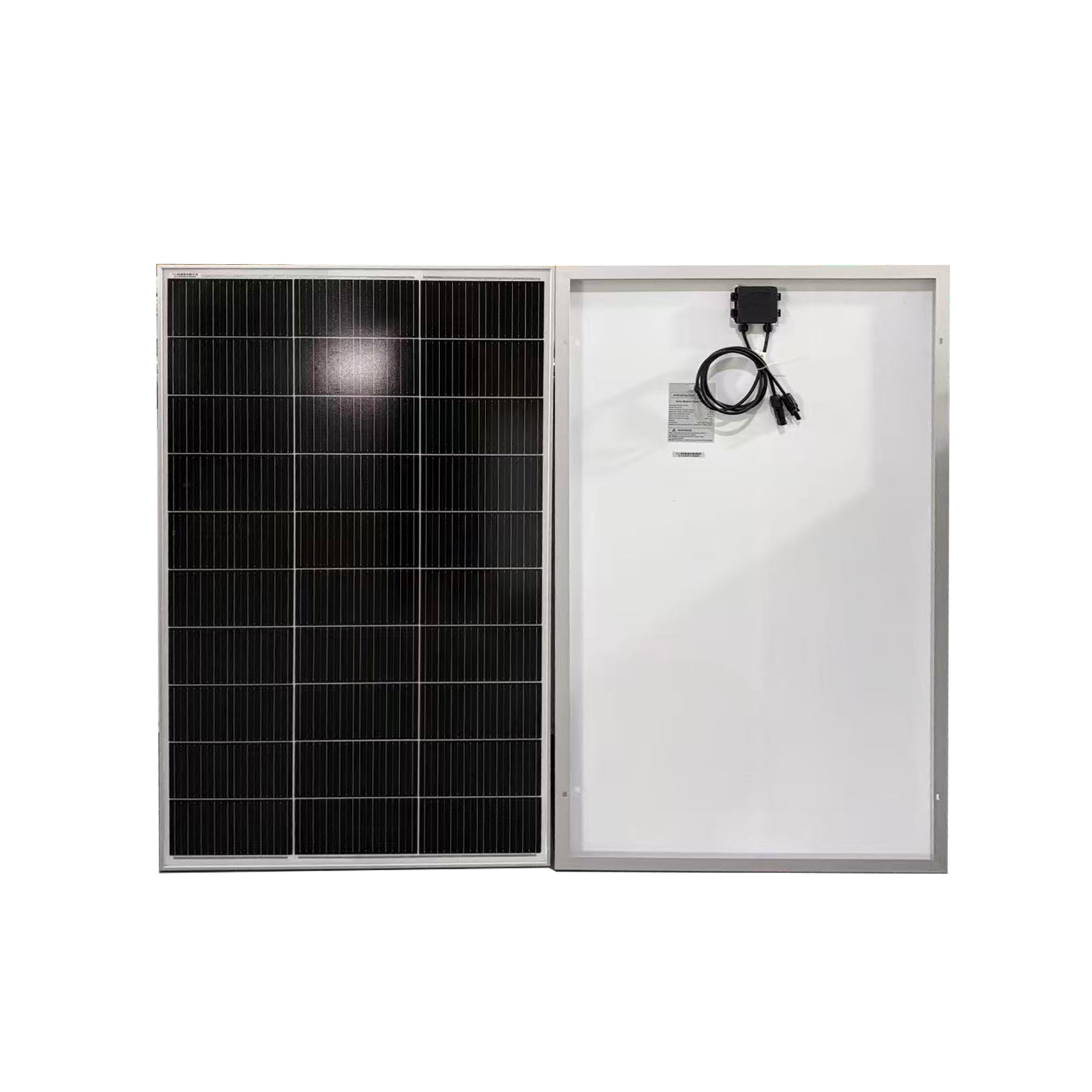

150W photovoltaic panel module

This 150W solar module is equipped with 30 cells and delivers module efficiency above 20%, with 1000V maximum system voltage. Working temperature ranges from ‑40℃ to +85℃. Its aluminum frame offers great wind and hail resistance with ±3% power tolerance. Suitable for residential and off‑grid PV‑storage projects, backed by 10‑year product warranty and 25‑year 80% power output guarantee.
CONTACT US

Product Details

Maximum power (Wp)  150wp
Maximum power voltage (V) 18
Maximum power current (A) 8.33
Open circuit voltage (V)  22.16
Short circuit current (A) 8.92
Number of cells (Pcs)  30
Size of module (mm) 1120*670*30mm( 210*105mm cell)
Brand Name of Solar Cells
Maximum system voltage (V) 1000
Temperature coefficients of Isc (%) 0.065+/-0.015%/℃
Temperature coefficients of Voc (%) -（2.23+/-0.1）mv/ ℃
Temperature coefficients of Pm (%) -（0.5+-0.05）/ ℃
Temperature coefficients of Im (%) +0.1/ ℃
Temperature coefficients of Vm (%) -0.38/ ℃
Temperature Range  -40℃～+85℃
Tolerance Wattage (e.g. +/-5%)  +/-3%
Surface Maximum Load Capacity 30m/s(200kg/sq.m)
Allowable Hail Load  steel ball fall down from 1m height
Weight per piece (kg)  7
Junction Box Type
Length of Cables (mm)  0
Cell Efficiency (%)  ＞22.7%
Module Efficiency (%)  ＞20%
Output tolerance (%)  +/-3%
Frame (Material, Corners, etc.)  Aluminum
Standard Test Conditions AM1.5  100mW/C㎡  25’C
Warranty  10years product warranty and 25 years 80% of power
FF (%) 75%
Packing Overpack packaging
