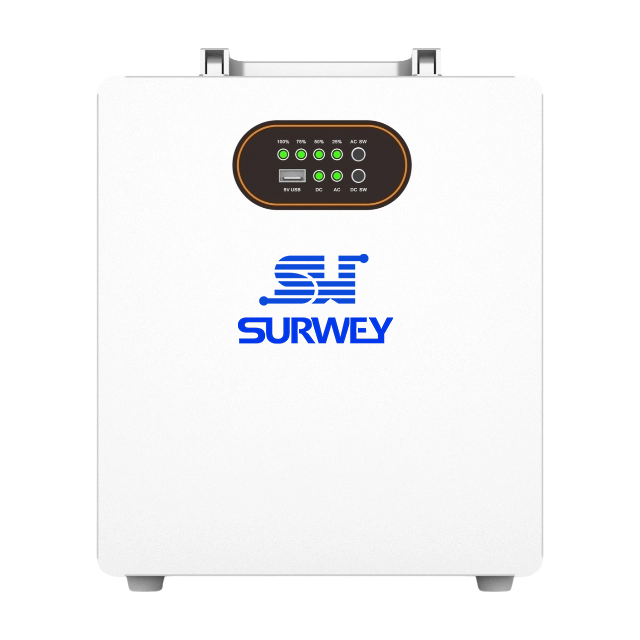

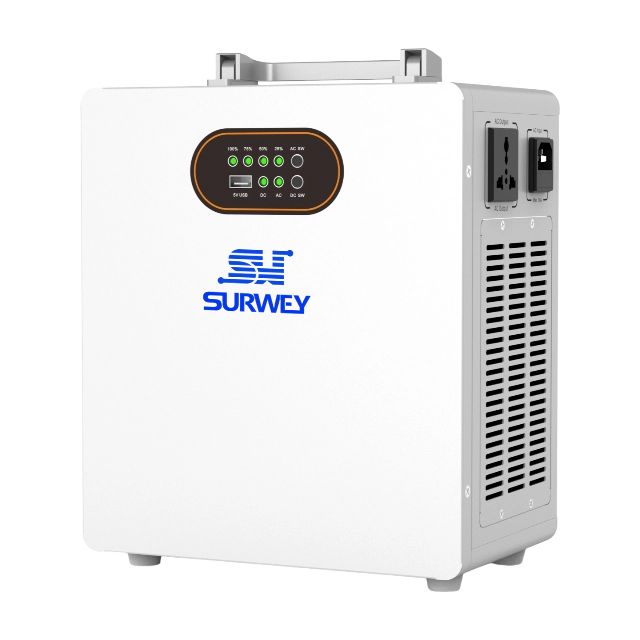

300/500/1000 W integrated solar-storage systems

The SW series of portable power banks is available in 300W, 500W and 1000W models, featuring pure sine wave output and ideal for outdoor use. They support charging via solar panels and mains power, have a long lithium-ion battery cycle life, and are equipped with intelligent air-cooling. Featuring a clear display and simple operation, they offer multiple safety protections against overcurrent, overvoltage, overheating and short circuits.
CONTACT US

Product Details

Product Specifications
Model SW-30132-HV SW-50132-HV SW-10264-HV SW-50132-LV SW-10264-LV
AC Input Rated Voltage 230VAC 120VAC
Voltage Range 90-280VAC 60-145VAC
Frequency Range 45-65Hz
Power Factor >0.95
AC Output Rated Power 300W 500W 1000W 500W 1000W
Voltage Range 230VAC±5V 120VAC±5V
Frequency Range 50Hz±0.5% 60Hz±0.5%
Power Factor ≥99%
Overload Capacity CP300W,<170VAC shutdown CP500W,<170VAC shutdown CP1000W,<170VAC shutdown CP500W,<85VAC shutdown CP1000W,<85VAC shutdown
Voltage Waveform pure sine wave
Harmonic Distortion (THD) <3%@linear load
<5%non-linear load
Convert Time ≤20ms
USB Output 5V/1A
PV Input Voltage Range 11-55VDC
Rated Power 300W(Max) 550W(Max) 300W(Max) 550W(Max)
Maximum Current 10A(Max) 15A(Max) 10A(Max) 15A(Max)
Maximum Charging Current 80A(Max) 100A(Max) 80A(Max) 100A(Max)
Battery
Characteristics		 Battery Type/Rated Voltage Lithium iron battery/3.2V-206AH Lithium iron battery/3.2V-314AH Lithium iron battery/6.4V-314AH Lithium iron battery/3.2V-314AH Lithium iron battery/6.4V-314AH
Battery capacity 659WH 1004WH 2009WH 1004WH 2009WH
Voltage Range 3.0-3.65VDC 6.0-7.3VDC 3.0-3.65VDC 6.0-7.3VDC
Maximum Charging Power 300W 500W 1000W 400W 1000W
AC+PV Maximum Charging Current 1-100A(configurable) 1-140A(configurable) 1-160A(configurable) 1-140A(configurable) 1-160A(configurable)
Other Communication And Monitoring USB(serial interface)
Working Temperature Range -10-40℃
Storage Temperature Range -15-60℃
Humidity Range 5-95%(no condensation)
Noise ≤50dB
Working Altitude Applicable for≤3000m
10%reduction for every 1000m increase(over 3000m)
Product Dimensions(length*width*height)mm 255*135*315 255*155*315 285*230*315 255*155*315 285*230*315
Packaging Dimensions(length*width*height)mm 325*200*350 315*220*345 355*305*350 315*220*345 355*305*350
Net Weight (KG) 7.9  10.7  19  10.7  19
Gross Weight(KG) 8.5  11.5  20  11.5  20
