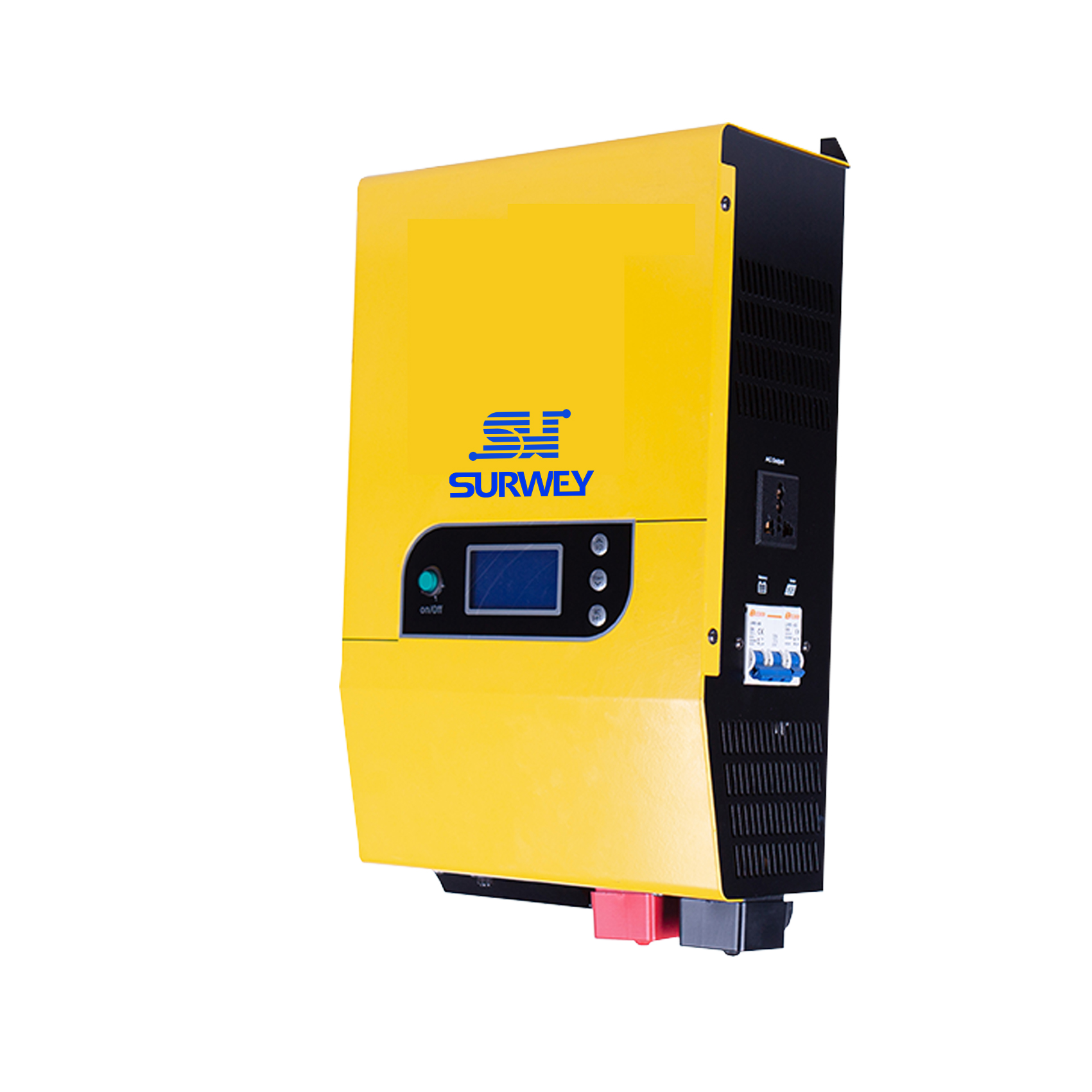

Wall-mounted Hybrid Inverter 1/2/3/4/5/7kW
This wall-mounted solar hybrid inverter offers power options from 1kW to 7kW with pure sine wave output. It supports automatic mains complementary switching and intelligent CPU control. PWM or MPPT solar charging is optional, compatible with lead-acid and lithium batteries. Multiple safety protections are built-in. Ideal for households, islands, fishing boats and remote mountain areas to deliver stable power supply.
| Technical Specifications | |||||
| Model | SW-1K | SW-2~3K | SW-4K | SW-5K | SW-7K |
| Rated power | 1000W | 2000W-3000W | 4000W | 5000W | 7000W |
| Battery | |||||
| Rated voltage | DC12V/24V | DC24V/48V | DC48V/96V | DC48V/96V | |
| Charging voltage | 13.5V/27,5V(±2%) | 27.5v(±2%) | 54v(±2%) | ||
| Charging current | 5A-30A | 10A-50A | |||
| Input | |||||
| Mains input voltage range | 165-260VAC | ||||
| Mains input frequency | 45-50HZ | ||||
| Type of solar controller | PWM | MPPT | |||
| Solar input current | 30A | 30A-60A | |||
| Solar input voltage range | 12/24V(18-75VDC)48V(60-180VDC) | ||||
| Output | |||||
| Voltage range | 220 VAC ±5% (inverter mode) | ||||
| Frequency | 50 Hz ±5% (inverter mode) | ||||
| Output waveform | Sine wave | ||||
| Switching time | <10 ms (typical load) | ||||
| Efficiency | >85% (80% negative load) | ||||
| Overload | 110–120%/30 s > 160%/300 ms | ||||
| Protection functions | Battery overvoltage and undervoltage protection, overload protection, short-circuit protection, overtemperature protection, etc. | ||||
| Operating ambient temperature | 0–40 °C | ||||
| Storage ambient temperature | –15 to +50 °C | ||||
| Operating/storage environment | 0–90% (non-condensing) | ||||
