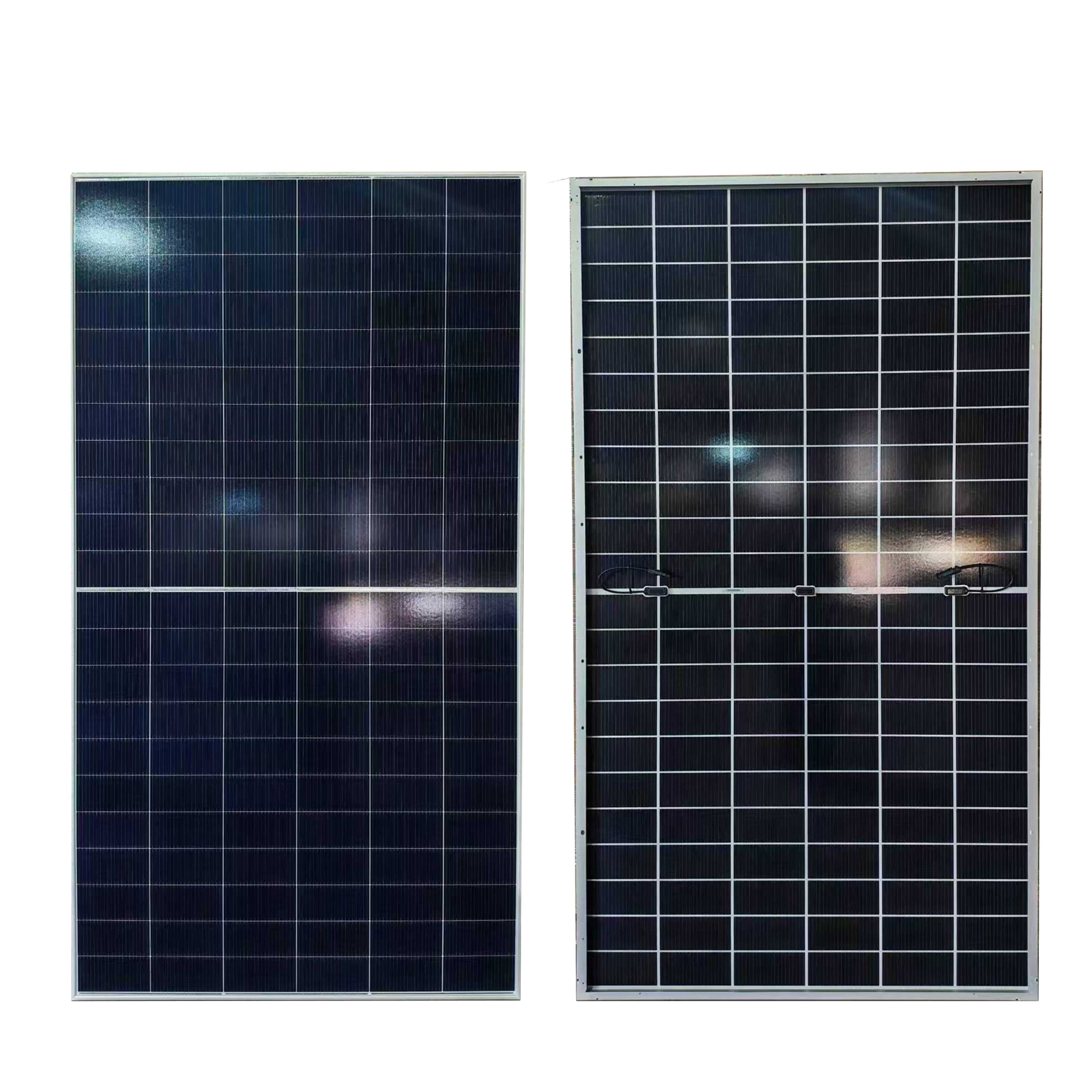

695–730W Bifacial Dual-Glass PV Modules

This N-type  bifacial dual-glass solar module adopts 210mm cells with power ranging from 695W to 730W and a maximum efficiency of 23.50%, free from LID and PID losses. The double-glass design delivers outstanding durability and superior output under weak light and high temperatures. It only suffers 1% degradation in the first year and 0.4% annually afterwards. Certified by IEC and ISO standards, it comes with a 12-year product warranty and 30-year linear power warranty, ideal for residential,
CONTACT US

Product Details

 Bifacial Double-Glass Solar Module, 210mm Cell, 695–730W
*STC (Standard Test Conditions): Irradiance 1000 W/m², cell temperature 25°C, AM1.5 spectrum, maximum power measurement tolerance: ±3%
Module Model AB1 695 700 705 710 715 720 725 730 735
Maximum Power Pmax (W) 695  700  705  710  715  720  725  730  735
Open-circuit Voltage Voc (V): 49.71 49.71  49.80  49.89  50.02  50.14  50.26  50.40  50.54  50.68
Short-circuit Current Isc (A) 17.45  17.53  17.61  17.69  17.77  17.85  17.93  18.01  18.07
Maximum Power Voltage Vmp (V) 41.73  41.83  41.94  42.04  42.14  42.24  42.34  42.47  42.53
Maximum Power Current Imp (A) 16.67  16.75  16.83  16.91  16.98  17.06  17.14  17.21  17.30
Module Efficiency η (%) 22.37  22.53  22.70  22.86  23.02  23.18  23.34  23.50  23.70
Operating Electrical Parameters (BNPI**)
**BNPI (Test Condition): Front irradiance 1000 W/m²,
rear reflected irradiance 135 W/m²
Maximum Power Pmax (W)  774.75  780.33  785.90  791.47  797.05  802.62  808.19  813.77  819.30
Open-Circuit Voltage Voc (V)  49.71  49.80  49.89  50.02  50.14  50.26  50.40  50.54  50.73
Short-Circuit Current Isc (A)  19.45  19.54  19.63  19.72  19.81  19.90  19.99  20.08  21.01
Maximum Power Voltage Vmp (V)  41.73  41.83  41.94  42.04  42.14  42.24  42.34  42.47  42.53
Maximum Power Current Imp (A)  18.59  18.68  18.76  18.85  18.93  19.02  19.11  19.18  19.21
Maximum System Voltage (V) DC1500(IEC)
Maximum Rated Fuse Current (A) 35
Front Static Load (Pa) 5400
Rear Side Static Load (Pa) 2400
Operating Temperature (°C) 40 ~+85
Hail Resistance Maximum diameter 25 mm, impact speed: 23 meters per second
Fire Class Rating Class C
NOCT (Nominal Operating Cell Temperature) 44℃±2℃
Temperature Coefficient of Peak Power (Pmpp) 0.26%℃
Temperature Coefficient of Open-Circuit Voltage (Voc) 0.24%℃
Temperature Coefficient of Short-Circuit Current (Isc) 0.04%℃
Mechanical Parameters
Cell Type Monocrystalline heterojunction, 210×105 mm (N-type)
Solar Cell Array 132 cells (6*11*2 layout)
Module Dimensions 2384*1303*33 mm
Module Weight 38 kg
Junction Box IP68 protection rating
Cable 4.0 mm² cable; positive lead (+): 300 mm, negative lead (-): 300 mm (excluding connector)
Connector Type MC4 compatible
Glass 2.0 mm + 2.0 mm laminated double glass
Frame Anodized aluminum alloy frame
Logistics Information
Quantity per carton 33 pieces
Loading capacity of 17.5-meter pallet 759 pieces
Loading capacity per 40HC container 594 pieces
