Mobile Wheeled Home Energy Storage Battery Bank, 15kWh (51.2V, 300Ah)

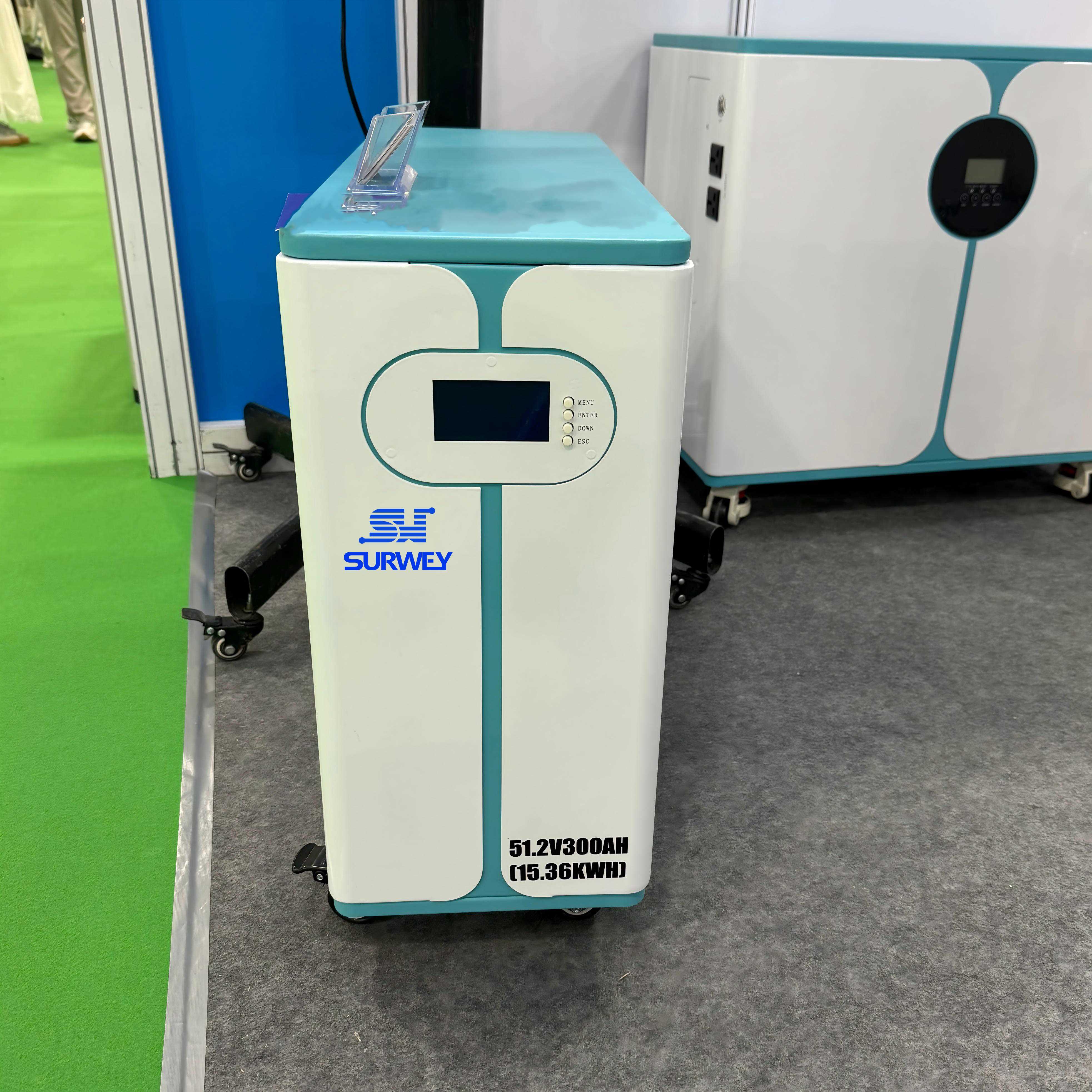

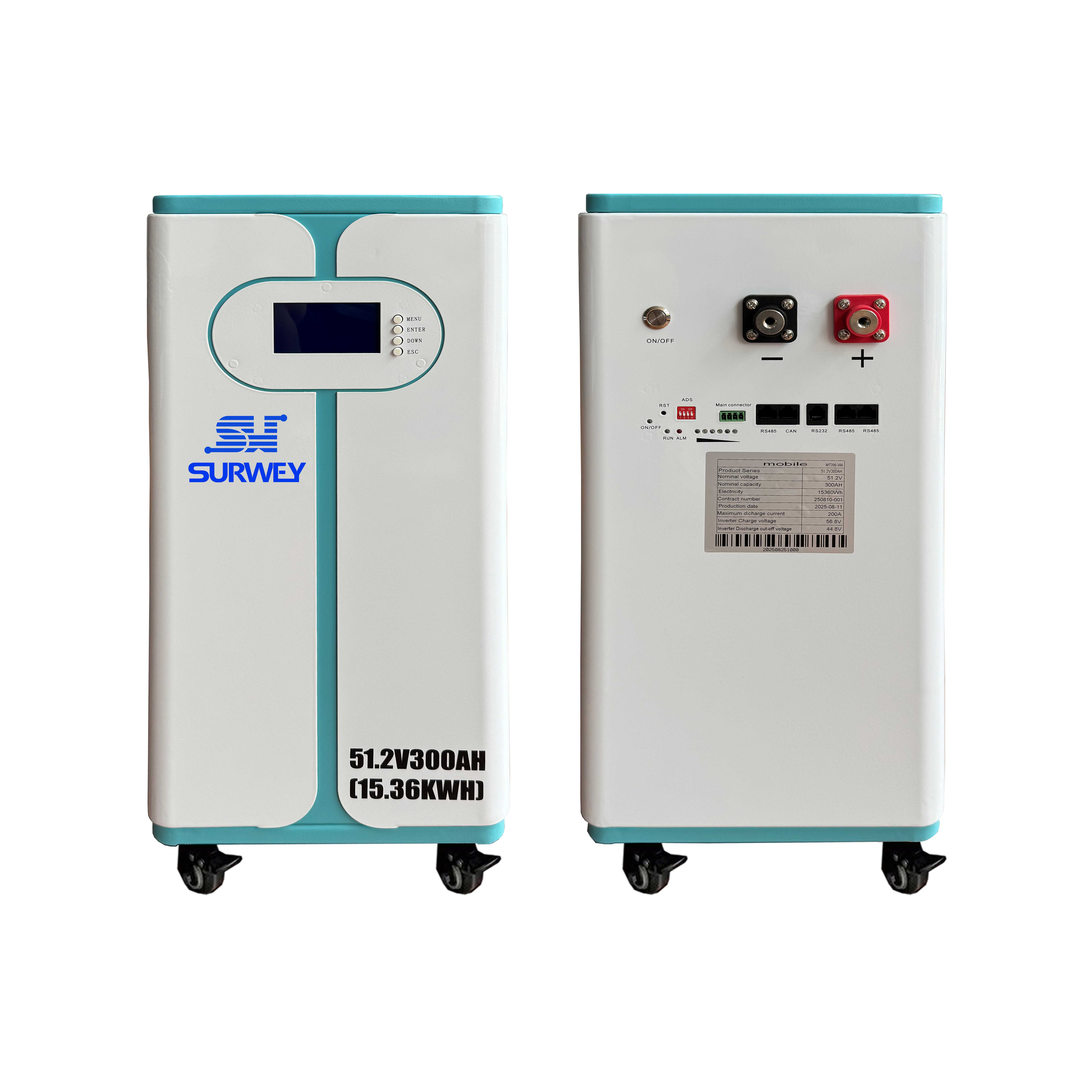

This wheeled home storage battery is 51.2V 300Ah with 15360Wh capacity, equipped with wheels for flexible movement. It supports 200A max discharge current and multi-protection functions, together with CAN & RS485 communication ports. Widely used in PV storage, UPS backup, medical emergency power supply etc, its cycle life exceeds 6000 times for stable long-term operation.
| 型号Model | 51 .2V300AH(轮式) |
| 标称电压Nominal votage | 51.2V |
| 标称容量Nominal capacity | 300Ah |
| 额定能量/Rated energy | 15360WH |
| 持续充电电流/Continuous charge current | 0-150A |
| 持续放电电流/Continuous dscharge current | 0-200A |
| 充电终止电压/Charge termination voltage | 58.4V |
| 放电终止电压/Discharge termination voltage | 44.8-46.5V |
| 通讯接口/Communication interface | RS232、RS485、CAN |
| 循环寿命/Cycle life | ≥6000 |
| 工作环境/Work environment | 温度：-20°~60°;湿度：≤95%;海拔≤4000m/Temperature:-20°~60°;Humidity.≤95%;Altitude≤4000m |
| 保护功能/Protection finction | 过压、低压、过载、短路、过温等/Over voltage,low voltage,overload,short circuit,over temperature,etc. |
| 产品和包装尺寸/Product &package size | 680*320*500/765*415*760mm |
| 产品和包装重量/Product &package weight | 116.2/135kg |
