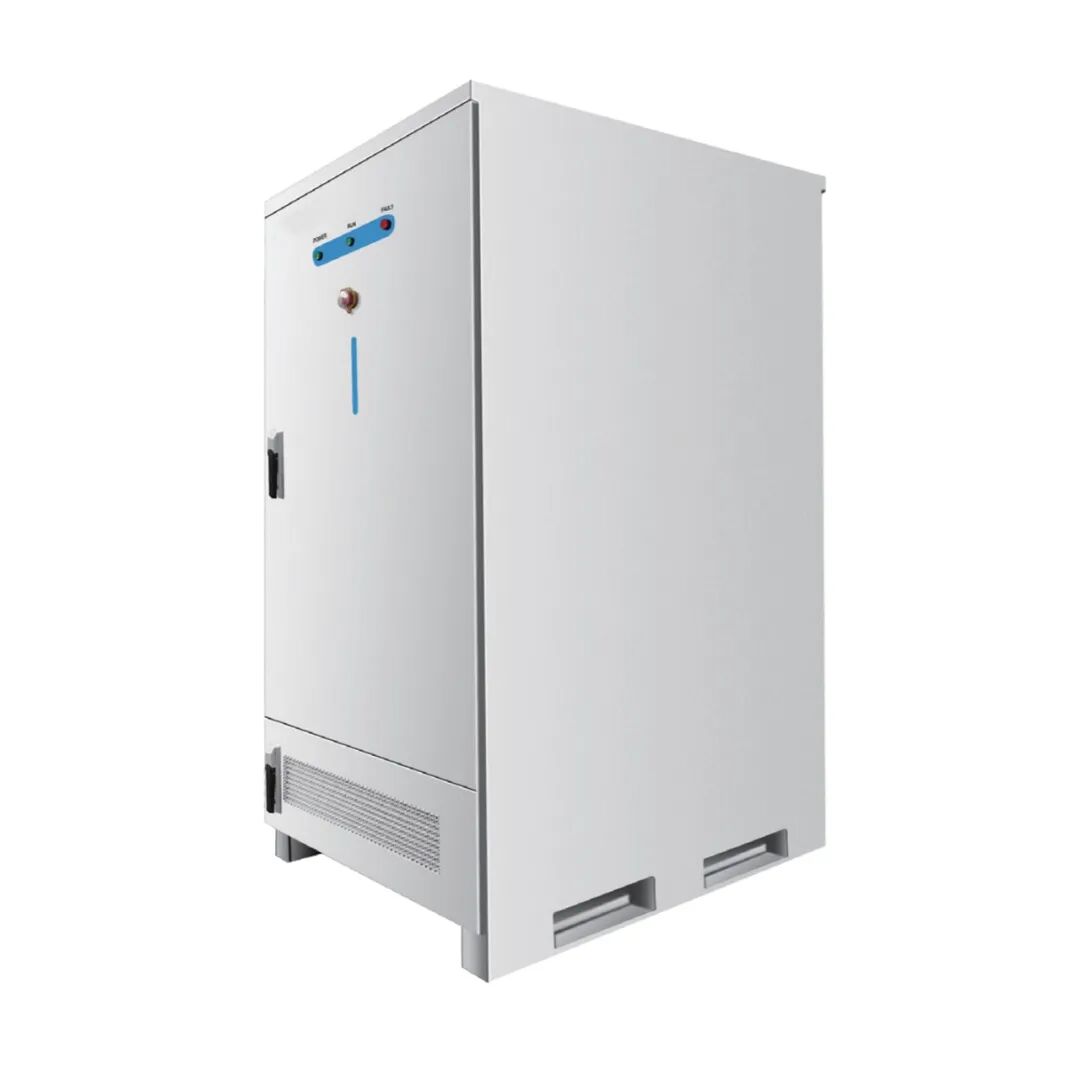

Outdoor All-in-One Energy Storage Cabinet, 241kWh/125kW

SW-E240 Outdoor All-in-One C&I Energy Storage Cabinet, rated 241kWh/125kW. It adopts LFP lithium iron phosphate batteries and is compatible with three-phase four-wire AC380V power grid. Supporting fast charging and discharging with excellent cycle life, it features IP54 protection and stable operation under wide temperature range. Equipped with complete fire protection system as well as RS485 and CAN communication, it is ideal for peak-valley arbitrage and backup power supply in factories.
CONTACT US

Product Details

Type & Parameters Model No. SW-E240
Battery Parameters Type 241KWh/125KW
Battery Cell LFP314Ah
Battery Pack 51.2V 314Ah
Rated Voltage (V) 768V (15 modules in series)
Rated Energy (kWh) 241.15KWh/215.04KWh
Voltage Range (V) 672~864
Communication System Grid-tied Parameters Grid Type Three-phase four-wire system
Rated Charge & Discharge Power (kW) 125
Rated Grid Voltage (V) AC380
Applicable Grid Frequency (Hz) 50
Rated Current (A) 189
Total Harmonic Distortion of Current (THDi) <3%
Power Factor Range 1 (Lead) ~ 1 (Lag)
Basic Parameters Dimensions: W × D × H (mm) 1300*1260*2375
Weight (kg) 2500kg (excluding PCS)
Horizontal IP54
Operating Temperature Range (℃) -20~50℃
Relative Humidity 0~95%
Altitude (m) <2000
Cooling Method Air Cooling (Cooling, Ventilation, Heating)
Noise Level s75dB
System Efficiency ≥90%
Fire Protection System Complete
Communication Function RS485,CAN
