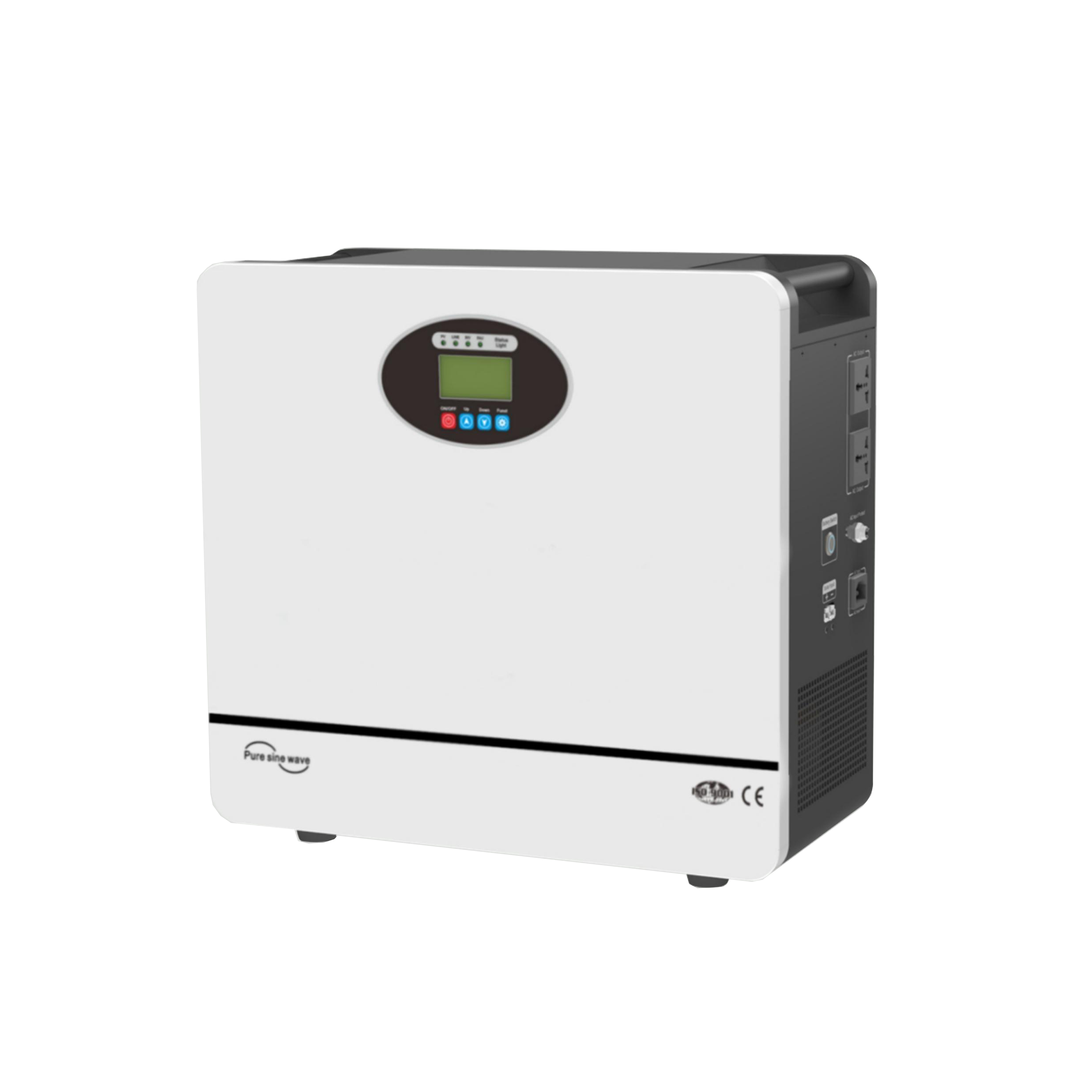

600W-10KW All-in-One Solar Energy Storage Inverter

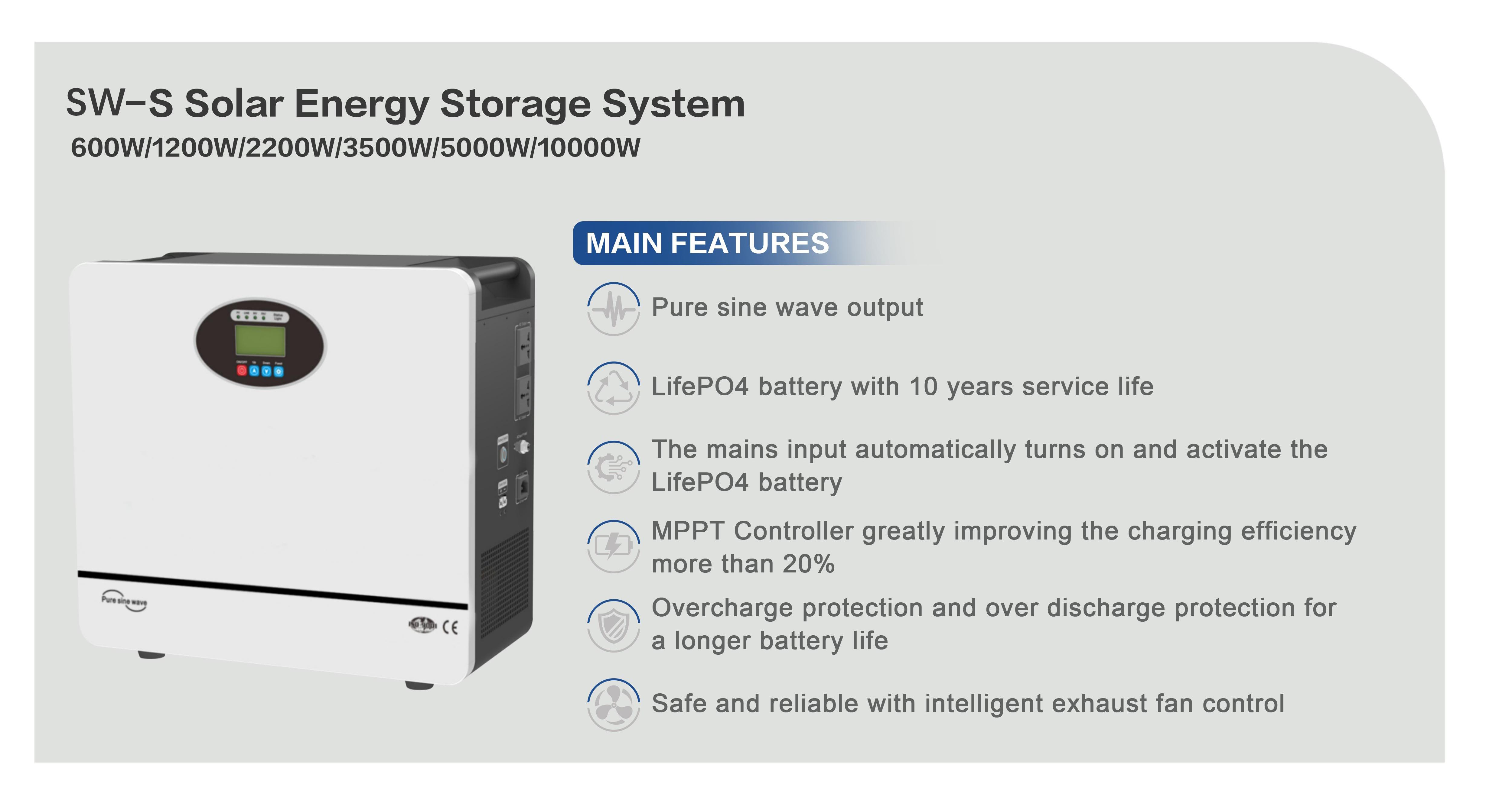

SW-S all-in-one solar storage inverter ranges from 600W to 10kW, built-in long-life LiFePO4 battery & high-efficiency MPPT. Pure sine wave output, auto mains charging, full charge-discharge protection and smart cooling for home and off-grid power use.
| Product Specifications | |||||||
| Model | SW-S600 | SW-S1200 | SW-S2200 | SW-S3500 | SW-S5000 | SW-S10K | |
| Inverter | Battery Voltage | 12.8V | 25.6V | 51.2V | |||
| In-built Battery Specification | 50AH/12.8V | 50AH/25.6V | 100AH/25.6V | 100AH/51.2V | 100AH/51.2V | 200AH/51.2V | |
| Rated Power | 600W | 1200W | 2200W | 3500W | 5000W | 10000W | |
| Output Voltage | 110/120/220/230/240VAC | 220/230/240VAC | |||||
| Output Frequency | 50/60Hz | ||||||
| Output Waveform | Pure Sine Wave | ||||||
| Input Voltage Range | 73~138/145~275VAC | 85~138/170~275VAC | 170~275VAC | ||||
| Input Frequency | 45~65Hz | ||||||
| MPPT Charge | Maximum Photovoltaic Voltage | 100V | ≤200V | ||||
| PV Input Range Voltage | 18~100V | 34~100V | 65~200V | ||||
| Rated Charge Current | 30A | 60A | |||||
| Maximum Power | 420Wp | 840Wp | 1650Wp | 3400Wp | |||
| Voltage Of Floating Charge | 14.2V | 28.4V | 56.8V | ||||
| MPPT Efficiency | ≥97% | ||||||
| DC Output | Voltage Of High Voltage Protection | 17V | 34V | 68V | |||
| Voltage Of High Voltage Recovery | 15V | 30V | 60V | ||||
| Voltage Of Low Voltage Recovery | 13V | 26V | 52V | ||||
| Voltage Of Low Voltage Protection | 11.2V | 22.4V | 44.8V | ||||
| 5VDC USB Output Port | 2 Units/MAX 2A | ||||||
| 12VDC Output Port | 2 Units/MAX 2A | ||||||
| Other | Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | |||||
| Ambient Temperature For Operation | 0~40℃ | -20~50℃ | |||||
| Ambient Temperature For Storage | -25~55℃ | ||||||
| Operation/Storage Conditions | 0~90%(no condensation) | ||||||
| External Dimensions:L*W*H(mm) | 460*182*397 | 485*202*406 | 540*229*464 | 577*350*644 | 627*405*664 | 780*447*724 | |
| Packing Dimensions:L*W*H(mm) | 527*267*470 | 552*277*477 | 570*310*535 | 665*450*825 | 715*505*845 | 875*545*922 | |
| Net Weight(KG) | 13 | 26 | 41.5 | 77 | 112 | 153 | |
| Gross Weight(KG) | 15 | 27.5 | 43 | 97 | 137 | 182 | |
