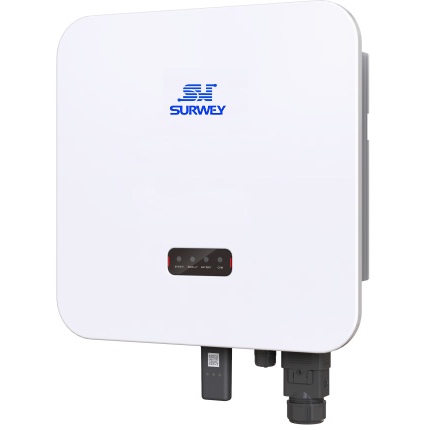

tPower-NM5 (3/3.6/4/4.6/5/6k-sh) Single-Phase Solar-Storage Inverter
The tPower-NM5 single-phase photovoltaic-storage inverter has a power range of 3–6 kW, features an integrated photovoltaic-storage system, dual MPPT channels, and supports both grid-connected and off-grid operation. With a maximum efficiency of 97.6% and IP66 protection, it includes remote monitoring via an app to meet household self-sufficiency in electricity.
| Product Model | tPower-NM5- 3K-SH |
tPower-NM5- 3.6K-SH |
tPower-NM5- 4K-SH |
tPower-NM5- 4.6K-SH |
tPower-NM5- 5K-SH |
tPower-NM5- 6K-SH |
| Battery-Side Parameters | ||||||
| Battery Type | Lithium-ion battery | |||||
| Battery Voltage Range | 48V(44~57V) | |||||
| Maximum | ≤60V (configurable) | |||||
| Maximum Continuous Charging Current | 75A | 90A | 100A | 110A | 120A | 120A |
| Maximum Continuous Discharge Current | 75A | 90A | 100A | 110A | 120A | 120A |
| PV-Side Parameters | ||||||
| Maximum Input Power | 6kW | 7.2kW | 8kW | 9.2kW | 10kW | 12kW |
| Maximum Input Voltage | 500V | |||||
| MPPT Voltage Range | 150~450V | |||||
| Start-up Voltage | 125V | |||||
| Maximum Input Current | 18A | 18A*2 | ||||
| Number of MPPT Channels | 1 | 2 | ||||
| Number of Strings per MPPT Channel | 1 | 1/1 | ||||
| AC-Side Parameters (Grid-Connected) | ||||||
| Rated Voltage | 220/230Vac | |||||
| Frequency | 50Hz/60Hz | |||||
| Maximum Current | 15A | 18A | 20A | 22A | 25A | 27A |
| Maximum Active Power | 3.3kW | 3.96kW | 4.4kW | 5kW | 5.5kW | 6kW |
| Maximum Reactive Power | 3.3kVA | 3.96kVA | 4.4kVA | 5kVA | 5.5kVA | 6kVA |
| Power Factor | 1/(0.8 lead to 0.8 lag, adjustable) | |||||
| AC-Side Parameters (Off-Grid) | ||||||
| Rated Voltage | 230Vac | |||||
| Frequency | 50Hz/60Hz | |||||
| Rated Current | 14A | 16A | 18A | 21A | 23A | 27A |
| Maximum Active Power | 3kW | 3.6kW | 4kW | 4.6kW | 5kW | 6kW |
| Overload Capacity | >200%,15sec | |||||
| Efficiency | ||||||
| Maximum Efficiency | 97.6% | |||||
| Battery-Side to AC-Side Maximum Efficiency |
94.5% | |||||
| European Efficiency | 97% | |||||
| Protection Features | ||||||
| Islanding Protection | Possess | |||||
| Reverse Connection Protection | Possess | |||||
| Output Short-Circuit Protection | Possess | |||||
| Output Overvoltage Protection | Possess | |||||
| Output Overcurrent Protection | Possess | |||||
| Leakage Current Protection | Possess | |||||
| Surge Protection | Possess | |||||
| Insulation Resistance Testing | Possess | |||||
| DC Switch | Possess | |||||
| System Parameters | ||||||
| Operating Temperature | -25~+60℃ | |||||
| Relative Humidity | 0~95% | |||||
| Maximum Operating Altitude | 4000m | |||||
| Cooling Method | Natural cooling | |||||
| Human-Machine Interface | LCD/APP | |||||
| BMS Communication Method | CAN/RS485 | |||||
| Electric Meter Communication Method | RS485 | |||||
| External Communication Method | RS485/GPRS/Wi-Fi (optional) | |||||
| Weight | 20kg | |||||
| Dimensions (W x H x D) | 198*427*554mm | |||||
| Protection Rating | IP66 | |||||
| Certification Standards | ||||||
| Grid Connection Standards | NB/T32004-2018,IEC62109,IEC61000,IS16169&IS16221(BIS) | |||||
| Safety Standards | IEC61727,EN50549-1,VDE-4105,NRS-097-2-1,OVE-Richtlinie R25,UNE217001/2,Ordinace No.140 | |||||
| Electromagnetic Compatibility | IEC61683,IEC62116,EN50530,IEC60068 | |||||
