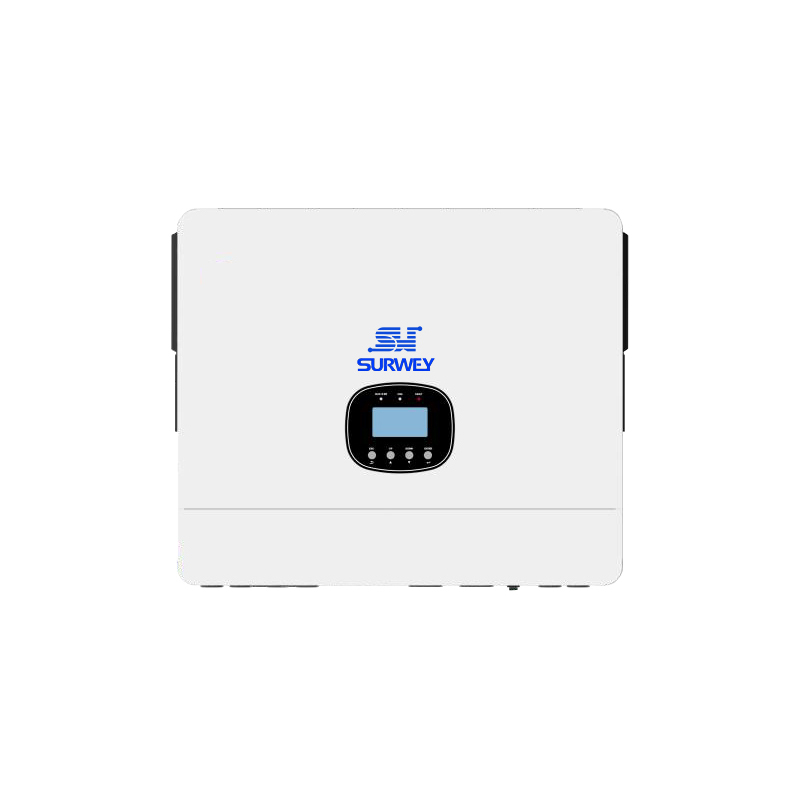

SW8~12kW hybrid solar inverter with dual MPPT
SW8~12kW hybrid solar inverter with dual MPPT, max 550VDC PV input, parallel up to 108kW, grid peak shaving, WiFi & 4G communication for home storage.
| Datasheet | SW 8000 ES | SW 10000 ES | SW 12000 ES |
| Input data(DC) | |||
| Max.recommended PV power (for module STC) |
10000W | 12500W | 15000W |
| Max.DC voltage | 550V | ||
| Start voltage | 120V | ||
| MPP voltage range | 60V-480V | ||
| No.of MPP trackers | 2 | ||
| No.of PV strings per MPP tracker | 1 | ||
| Max.input current per MPP tracker | 27A | ||
| Max.short-circuit current per MPP trackers | 34A | ||
| Output data(AC) | |||
| AC nominal power | 8000W | 10000W | 12000W |
| Max.AC apparent power | 8000VA | 10000VA | 12000VA |
| Nominal AC voltage | 230V | ||
| AC grid frequency | 50/60Hz | ||
| Output current | 34.8A | 43.5A | 52.2A |
| Adjustable power factor | 0.8leading.….0.8lagging | ||
| THDi | <5% | ||
| Max.conversion efficiency(PV/AC) | 96.5% | ||
| European efficiency @vnominal(PV/AC) | 95.5% | ||
| Battery data(DC) | |||
| Nominal DC voltage | 48V | ||
| Max charging and discharging current | 190A/200A | 220A/240A | 250A/280A |
| Type of battery | Lithium/Lead-acid | ||
| Backup power(AC) | |||
| AC nominal output power | 8000W 10000W 12000W | ||
| Nominal AC output voltage | 230V | ||
| Nominal AC output frequency | 50/60Hz | ||
| Switch time | <20ms@Single <30ms@Parallel |
||
| Efficiency | |||
| Peak.efficiency | 96.5% | ||
| European efficiency | 95.5% | ||
| General data | |||
| Dimensions(W/H/D) | 550/465/150mm | ||
| Weight | 21.5kg | ||
| Operating temperature range | -10℃...+50℃ | ||
| Noise emission(typical) | <75dB | ||
| Self-consumption | <75W | ||
| Topology | Tranformerless | ||
| Cooling | DC fan | ||
| Protection degree | IP20 | ||
| Relative humidity | 5%~95%non-condensing | ||
| Altitude | <2000m | ||
| Communication WiFi/4G | |||
| CE,NRS097 | |||
