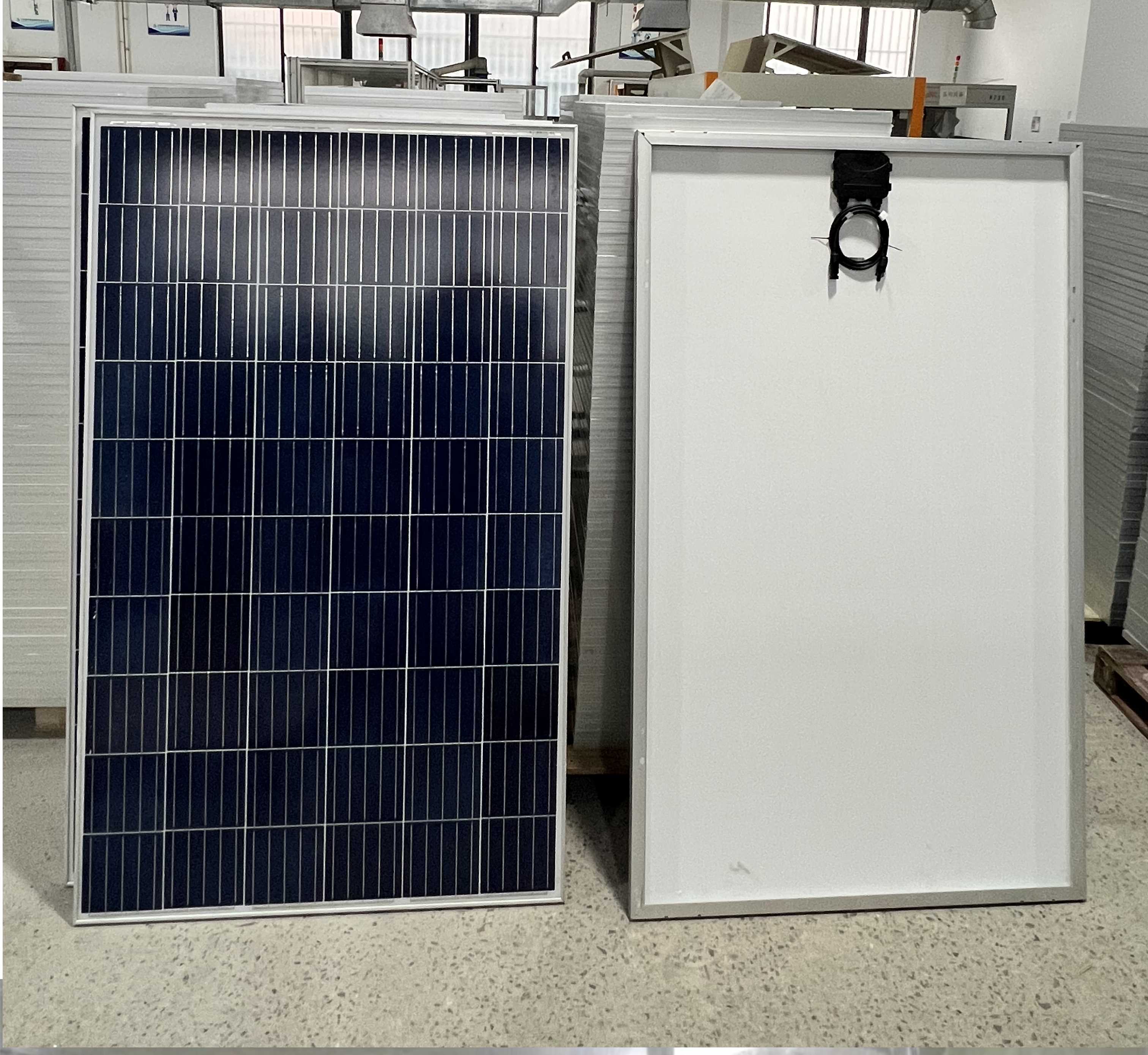

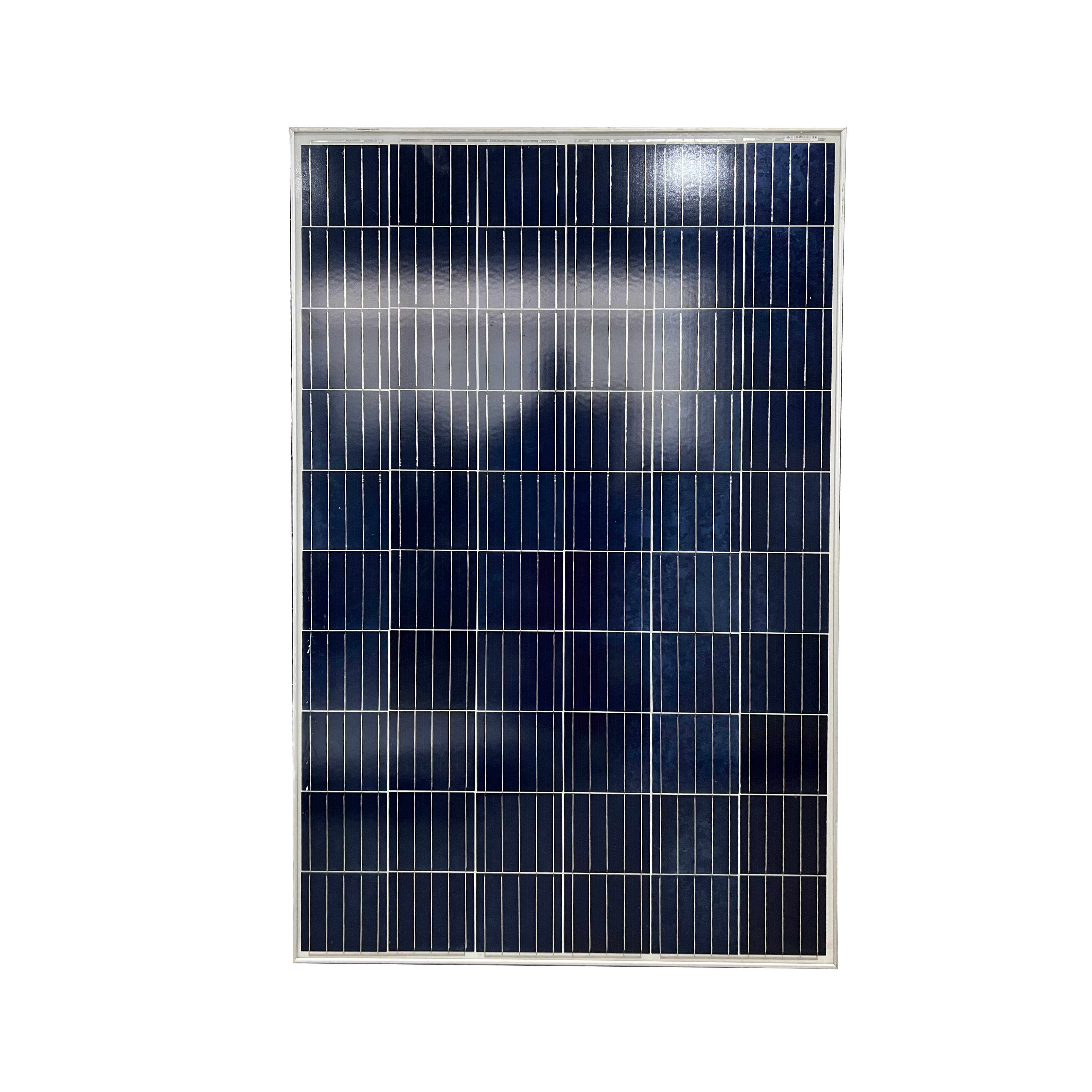

Polycrystalline solar panels, 270–290 W
Assembled using European components, featuring an ultra-stable 40mm-thick frame, with customisable finishes available; power output tolerance: 0 to +5W; optional Stäubli connectors.
| Model | SW60 270W |
SW60 275W |
SW60 280W |
SW60 285W |
SW60 290W |
| Peak power: Pmax (W) | 270 | 275 | 280 | 285 | 290 |
| Classification tolerance: | 0/+5W | 0/+5W | 0/+5W | 0/+5 W | 0/+5 W |
| Voltage Pmax: Vmpp (V) | 31.61 | 31.65 | 31.68 | 31.74 | 31.92 |
| Current Pmax: Impp (A) | 8.86 | 8.81 | 8.96 | 8.98 | 9.09 |
| Open circuit voltage: Voc (V) | 38.68 | 38.72 | 38.75 | 38.79 | 38.91 |
| Short-circuit current: Isc (A) | 9.35 | 9.38 | 9.43 | 9.46 | 9.55 |
| Maximum system voltage: (V) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Module efficiency: (%) | 17.21 | 17.33 | 17.42 | 17.52 | 17.90 |
| Maximum fuse rating: (A) | 15 | 15 | 15 | 15 | 15 |
| Weight, dimensions and packaging | 18 Kg | 1640 mm x 992 mm x35 mm | 27 pcs pallet | 864 pcs truck | ||||
| Cells: | 60 (6x10) Polycrystalline Silicon | ||||
