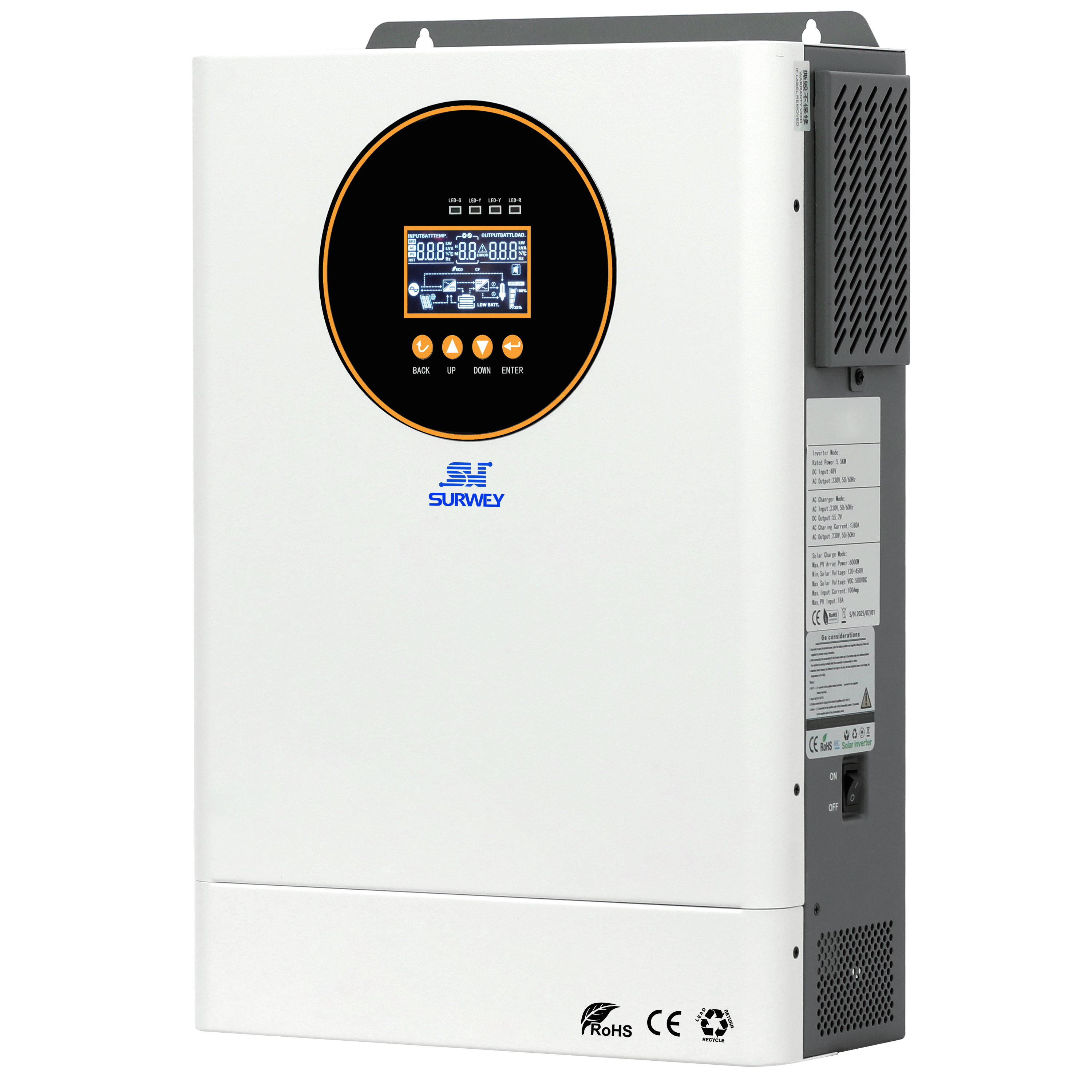

SW-GP 2 KW High-frequency frequency converter
2 kW high-frequency inverter with built-in MPPT solar charge controller, featuring selectable voltage and charging current, cold start, overload and short-circuit protection, and support for utility power priority and automatic restart.
| Model | SW-GP2000-12 |
| Rated Power | 2000VA/2000W |
| Parallel Connection | Not supported |
| Lithium Battery Activation | Yes(solar or grid power) |
| AC Input | |
| Rated voltage | 230 VAC |
| Voltage range | 170-280 VAC(computer applications);90-280 VAC (home appliances) |
| Frequency | 50/60 Hz(auto-detect) |
| AC Output | |
| Rated Voltage | 220/230 VAC±5% |
| Surge Power | 4000 VA |
| Frequency | 50/60 Hz |
| Output Waveform | Pure sine wave |
| Mode Switching Time | 10ms (computer applicatons);20ms (home appliances) |
| Maximum Efficiency (PVInverter) | 96% |
| Maximum Efficiency (Battery Inverter) | 93% |
| Overload Protection | 5s at≥140%load;10 s at 100%-140%load |
| Peak Factor | 3:1 |
| Power Factor | 0.6-1(capacitive or inductive) |
| Battery | |
| Rated Voltage | 24Vdc |
| Float Charge Protection | 27Vdc |
| Overcharge Protection | 31Vdc |
| Charging Mode | CC/CV |
| PV/AC Charger | |
| PV Charging Type | MPPT |
| Maximum PV Power | 1200W |
| Maximum PV Open-Circuit Voltage | 160VDC |
| MPPT Range | 30VDC~160VDC |
| Maximum PVInput Current | 30A |
| Maximum PV Charging Current | 40A |
| Maximum AC Charging Current | 40A |
| Maximum Total Charging Current | 80A |
| Physical Properties | |
| Machine Dimensions,LxWxH(mm) | 317.7x258x106 |
| Packaging Dimensions,LxWxH(mm) | 384x339x174 |
| Net Weight(kg | 4.2 |
| Gross Weight(kg) | 5.4 |
| Work Environment | |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -15℃~60℃ |
| Operating Humidity | 5%to 95%relative humidity(non-condensing |
| Protection Rating | IP21 |
