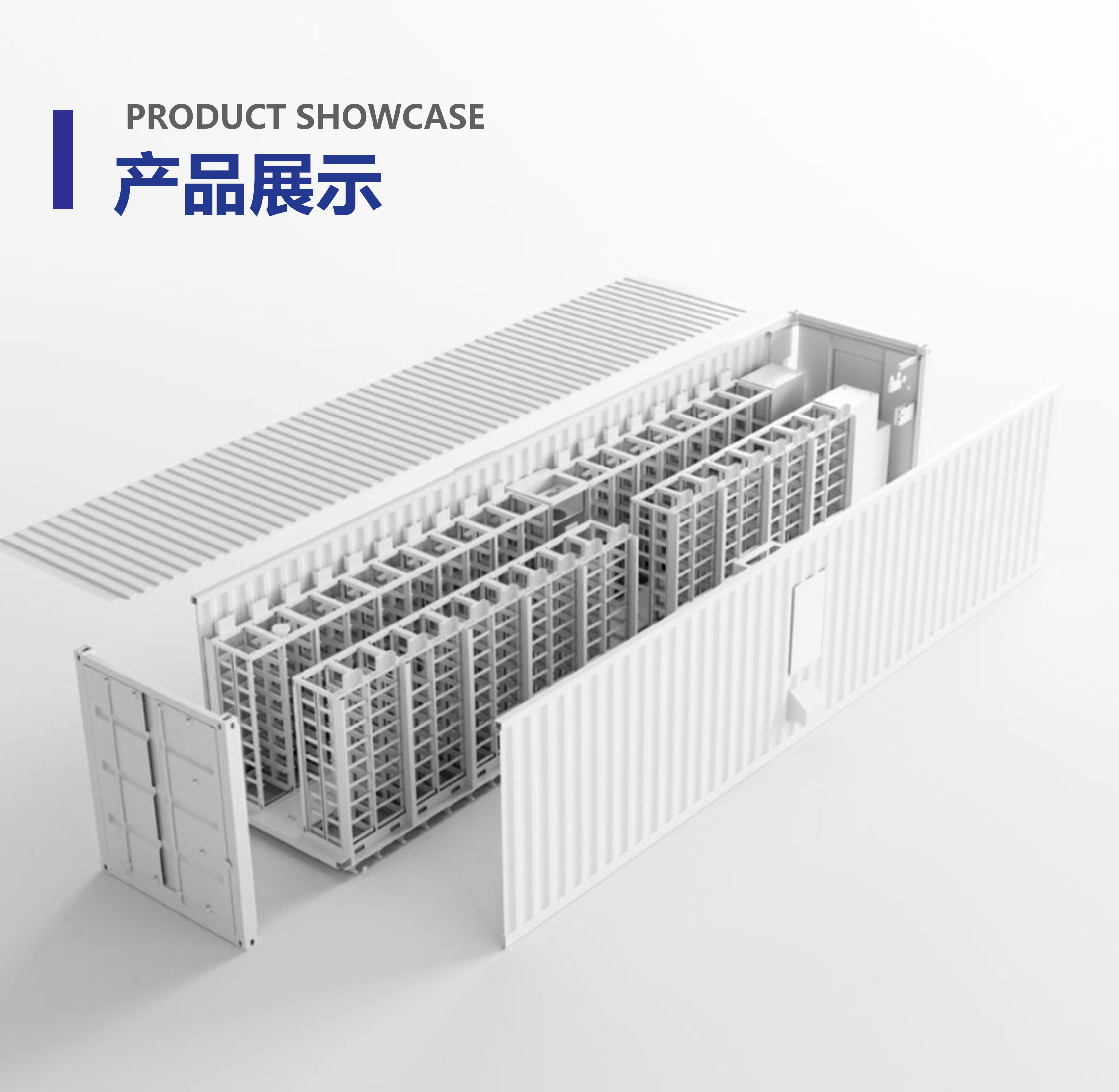

5MWH Outdoor Cabinet-Type Air-Cooled Energy Storage System
The SW Series of large-scale liquid-cooled energy storage systems offers modular, flexible scalability, meets IP protection standards, undergoes comprehensive quality control throughout the entire production process, is available for global wholesale, and undertakes various new energy storage projects.
Product Specifications
| Model | SW-MC10C-B5010-A-R2 |
| DC-side parameters | |
| Cell Type | LFP |
| System Configuration | 2×5×1P416S |
| Available Energy @ Full Charge | 5010kWh |
| Rated Voltage | 1331.2V DC |
| Battery Voltage Range | 1081.6V~1497.6V DC |
| Rated Charge/Discharge Power | 2×1252.5kW |
| Basic Specifications | |
| Dimensions (mm) (W × D × H) | 6650×2510×3300 |
| Weight | <43500kg |
| IP Rating | IP55 |
| Salt Fog Resistance | C4/C5 (optional) |
| Cooling Method | Liquid-cooled |
| Operating Temperature Range | -30℃~+55℃ |
| Relative Humidity | 5%～100% |
| Noise Level | ≤75dBA |
| Fire Suppression System | Perfluorohexane fire suppression systems, water sprinkler systems |
| Auxiliary Power Interface | AC 380 V ±5%/50 Hz, three-phase four-wire |
| Communication Protocol | Modbus TCP/IEC 61850 |
| Standard Colors | RAL 7035 |
| Compliance Standards | GB/T 36276,GB/T 34131 |
| SWEPS-2500C | |
| Rated Power | ≥2500kW |
| AC Rated Voltage | 690V |
| AC Rated Current | 2092A |
| Rated Grid Frequency | 1000-1500V |
| Full-Power DC Voltage Range | 1000-1500V |
| Maximum Conversion Efficiency | 99.0% |
| Charge/Discharge Switching Time | <100ms |
| Enclosure Protection Rating | IP55 |
| Noise | ≤75dB |
| Cooling Method | Air-cooled |
| Communication Interface | RS-485*1, Ethernet*1 (expandable to 2 ports) |
| Transformer Specifications | |
| Rated Capacity | 2500kVA |
| Overload Capacity | 2750kVA |
| Rated Voltage | 36.75±2×2.5%/0.69kV |
| Maximum Operating Voltage | 40.5kV |
| Rated Frequency | 50Hz |
