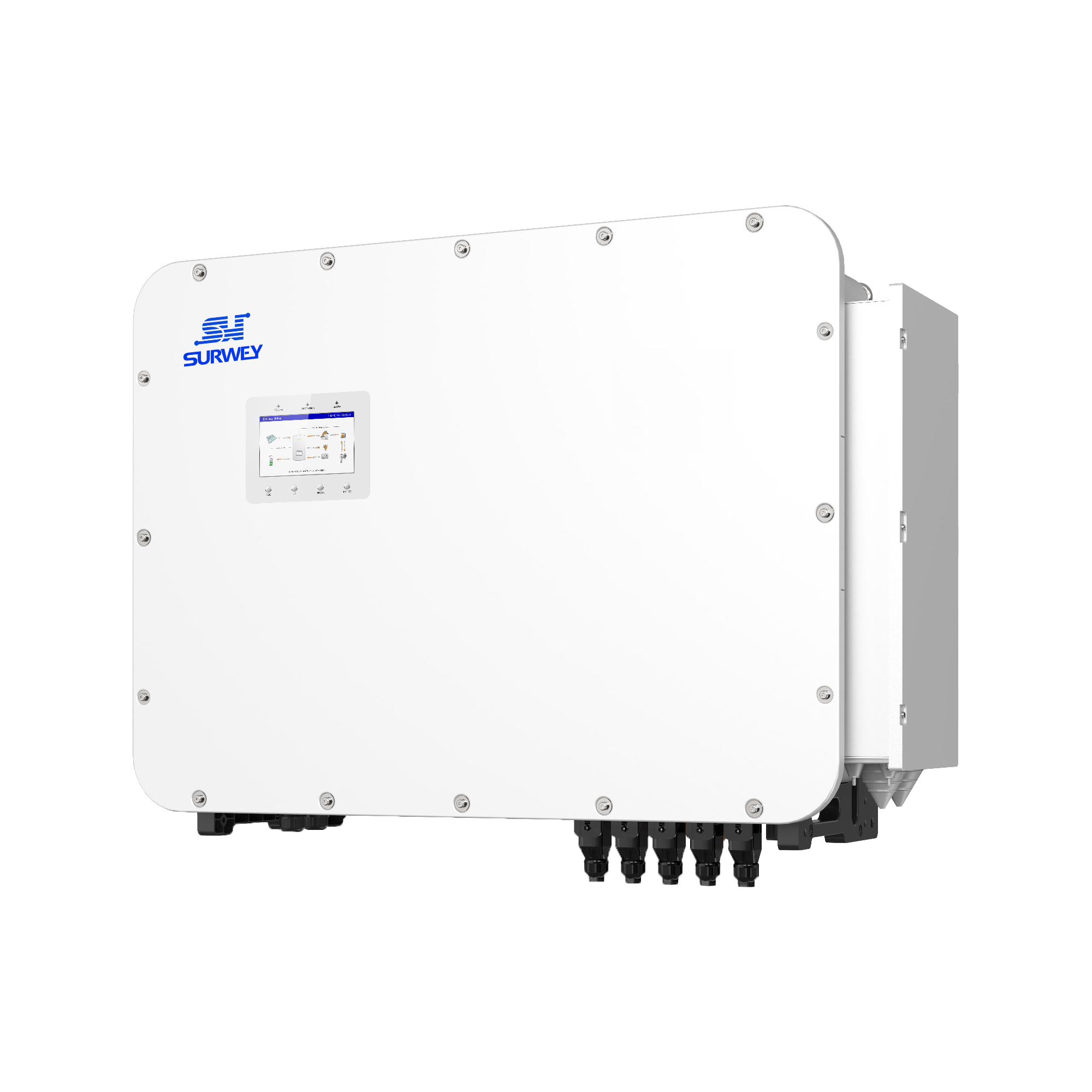

High-Voltage Three-Phase Energy Storage Photovoltaic Grid-Connected Inverter (29.9–50 kW)

Three-phase high-voltage energy storage inverter, supporting multi-energy sources such as solar and diesel generators, with rapid grid-tie switching and high durability under off-grid overload conditions, specifically designed for commercial and industrial energy storage applications.
CONTACT US

Product Details

Technical Specifications S6-EH3P(29.9-50)K-H
Product Model   29.9K 30K   40K 50K
DC Input (PV Side)
Recommended Maximum PV Module Power   59.8kW 60kW 80 kW 100 kW
Maximum Available PV Input Power   59.8kW 60 kW 80 kW 96kW
Maximum Input Voltage 1000V
Rated Input Voltage 600V
Start-up Voltage 180V
MPPT Voltage Range 150-850V
Maximum Input Current 40A/40A/40A   4×40A
Maximum Input Short-Circuit Current 60A/60A/60A 4×60A
Number of MPPT Channels / Maximum Number of Input Strings 3/6 4/8
Battery
Battery Type Lithium-ion battery
Battery Voltage Range 150-800V
Maximum Charge/Discharge Power   32.1kW 33kW 44kW 55kW
Maximum Charge/Discharge Current   70A×2
Number of Battery Input Ports   2
Maximum Charge/Discharge Power per Battery Channel   32.1kW 33kW 35kW 35kW
Communication Method CAN/RS485
AC Output (Grid Side)
Rated Output Power   29.9 kW 30kW 40 kW 50 kW
Maximum Apparent Output Power 29.9KVA 30 KVA 40 kVA 50 kVA
Rated Mains Voltage 3/N/PE,220V/380V,230V/400V
Rated Mains Frequency 50 Hz/60Hz
Rated Mains Output Current 45.4A/432A    45.6A/43.3A                                 60.8A/57.7A  76A/72.2A
Maximum Output Current 45.4A/432A    45.6A/43.3A                                 60.8A/57.7A  76A/72.2A
Power Factor >0.99 (0.8 leading... 0.8 lagging)
Total Current Harmonic Distortion <3%
AC Input (Grid Side)
Maximum bypass current 90.8A/86.4A    91.2A/86.6A 121.6A/115.4A 152A/144.4A
Rated input voltage 3/N/PE,220V/380V,230V/400V
Rated input frequency 50 Hz/60Hz
Generator Input
Maximum Input Power 29.9kW 30kW 40kW     50 kW
Rated Input Current 45.4A/432A    45.6A/43.3A               60.8A/57.7A 76A/72.2A
Rated Input Voltage 3/N/PE,220V/380V,230V/400V
Rated Input Frequency 50 Hz/60Hz
AC Output (Off-Grid Side)
Rated Output Power 29.9kW    30 kW  40kW 50 kW
Maximum Apparent Output Power Supports continuous output of 1.6 times the rated power for 2 seconds
Grid-Tie/Off-Grid Switching Time  <10ms
Rated Output Voltage 3/N/PE,220V/380V,230V/400V
Rated Frequency 50 Hz/60Hz
Rated Output Current 45.4A/432A   45.6A/43.3A 60.8A/57.7A 76A/72.2A
Total Voltage Harmonic Distortion <2%
Efficiency
Maximum Efficiency 97.80%
European Efficiency 97.40%
Maximum PV Charging Efficiency   98.5%
Maximum Battery Charge/Discharge Efficiency   97.5%
Protection
Islanding Protection possess
AC Overcurrent Protection possess
AC Short-Circuit Protection possess
Integrated DC Switch possess
DC Reverse Connection Protection possess
Surge Protection DC Level 2 / AC Level 2
DC Arc Fault Protection Optional
Basic Specifications
Dimensions 530×880×290mm
Weight 73kg
Topology Transformerless
Standby Power Consumption 35W
Operating Temperature/Humidity  -25℃~+60℃/0~100%
Protection Rating IP66
Cooling Method Smart Air-Cooled
Maximum Operating Altitude 4000m
Grid Connection Standards G99,VDE-AR-N4105VDEV0124,EN50549-1/EN50549-10,VDE0126/UTEC        15/NFR:2019,
NTS631/RD   1699/RD  244/UNE  206006/UNE  206007-1,CE10-21,C10/11,NRS  097-2-1,TOR,EIFS2018.2,
IEC62116,IEC 61727,IEC 60068,IEC61683,EN 50530,MEA,PEAPORTARIAN°140,DE 21DE MARCO DE 2022
Safety/EMC Standards   IEC/EN62109-1/-2,IEC/EN61000-6-2/-4,EN55011
Features
PV Port MC4 Quick Connectors
Battery Port Terminal Blocks
AC Port Terminal Blocks
Display LCD Display, Bluetooth + App
Communication Methods CAN/RS485/Ethernet/Wi-Fi (optional)/Cellular (optional)/LAN (optional)
ꄴPrevious： null

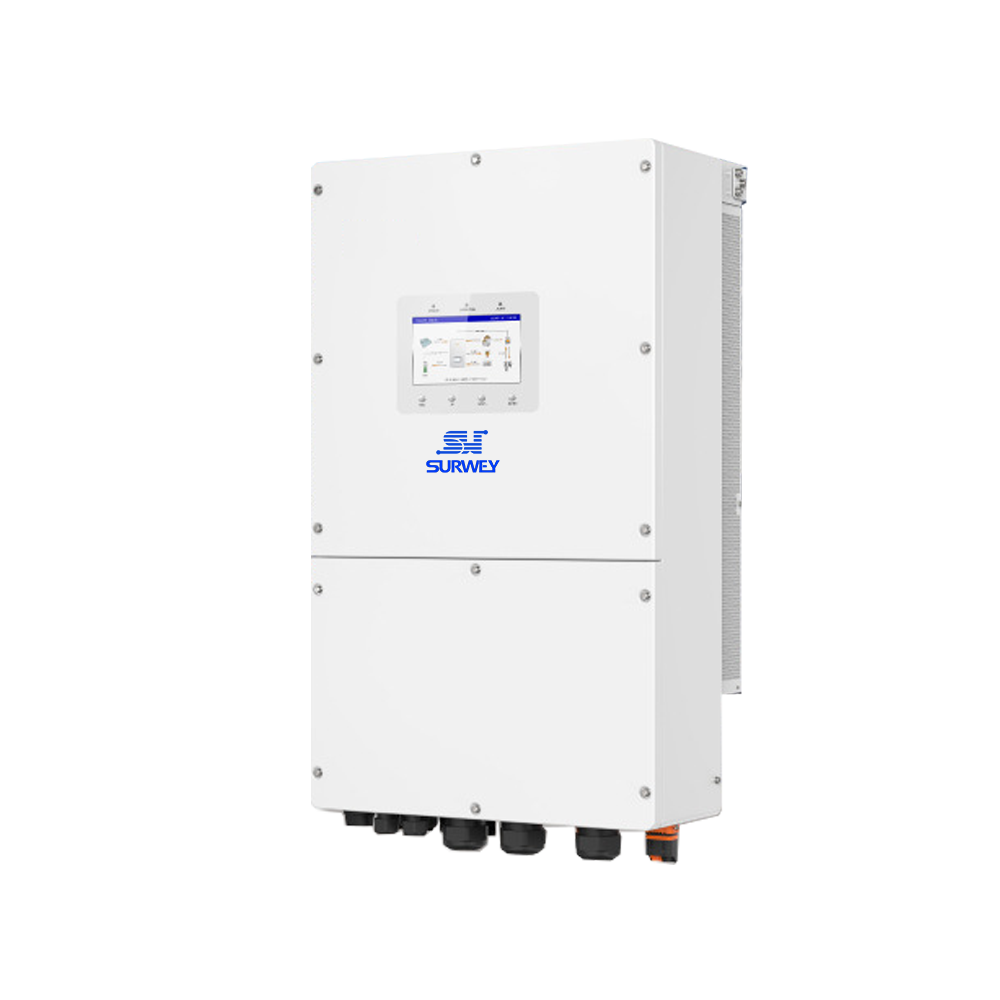

ꄲNext： 30kw-60kw Three-Phase Hybrid Inverter for Grid-Connected and Off-Grid Systems with Solar and Battery Storage
