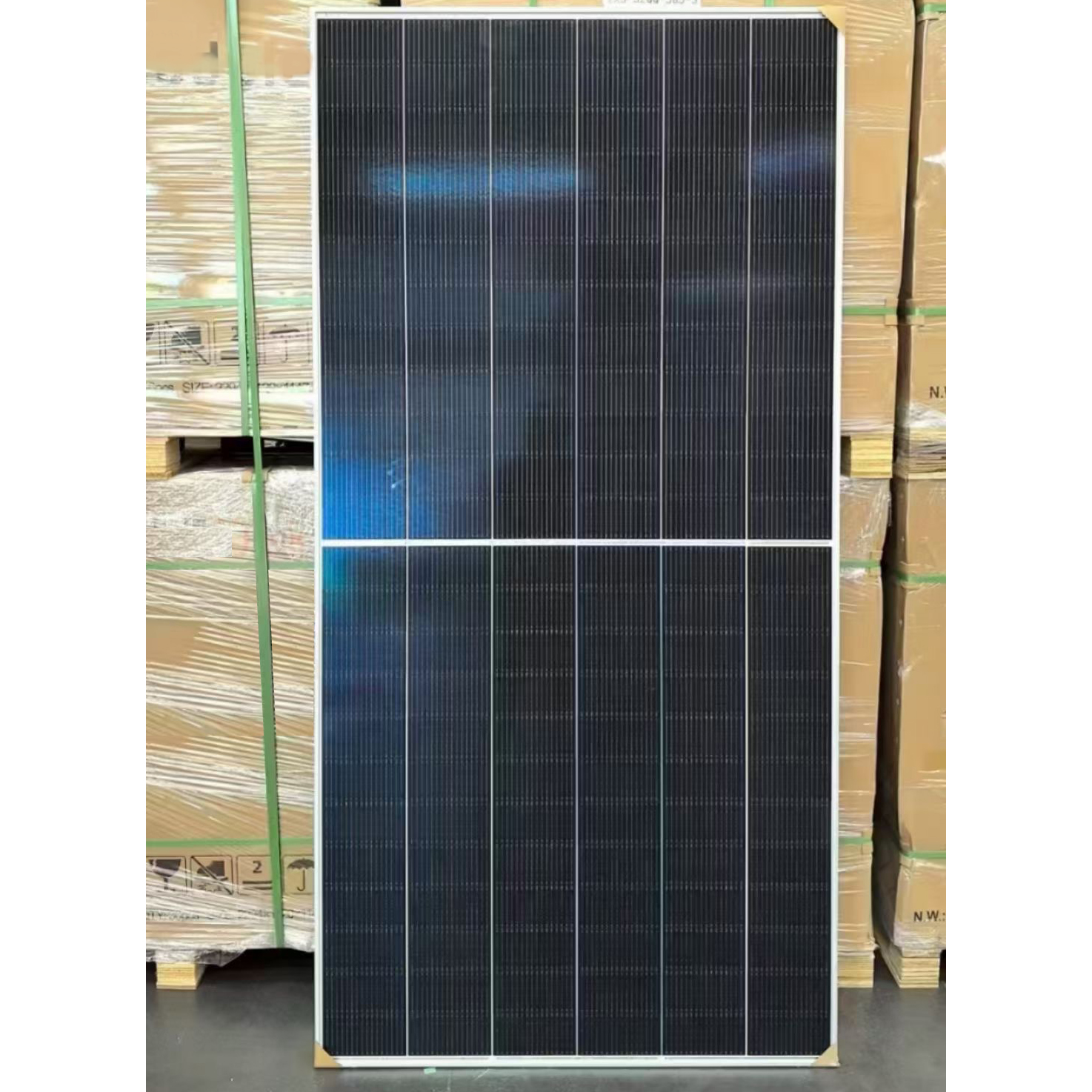

540–600 W laminated monocrystalline silicon solar panels
This series of photovoltaic modules features outstanding electrical performance, with a maximum conversion efficiency of 23.22%. The modules utilize 182mm monocrystalline silicon cells, arranged in a 144H (6×12×2) configuration, and are encapsulated in double-glass 2.0 + 2.0 semi-tempered glass. It meets Class II safety standards and Class C fire resistance, withstands harsh environmental conditions, and is designed for convenient packaging and transportation.
| Component Parameters | |||||||||||||
| Maximum Power - Pmax (W) | 540 | 545 | 550 | 555 | 560 | 565 | 570 | 575 | 580 | 585 | 590 | 595 | 600 |
| Open-Circuit Voltage - Voc (V) | 50.25 | 50.45 | 50.65 | 50.85 | 51.05 | 51.25 | 51.45 | 51.65 | 51.85 | 52.05 | 52.25 | 52.45 | 52.65 |
| Short-Circuit Current - Isc (A) | 13.52 | 13.58 | 13.64 | 13.7 | 13.76 | 13.82 | 13.88 | 13.94 | 14 | 14.06 | 14.12 | 14.18 | 14.24 |
| Maximum Power Voltage - Vmp (V) | 42.35 | 42.5 | 42.65 | 42.82 | 42.99 | 43.15 | 43.32 | 43.49 | 43.66 | 43.83 | 44 | 44.17 | 44.34 |
| Maximum Power Current - Imp (A) | 12.75 | 12.82 | 12.89 | 12.96 | 13.03 | 13.09 | 13.16 | 13.22 | 13.28 | 13.35 | 13.41 | 13.47 | 13.53 |
| Conversion Efficiency - % | 20.89 | 21.09 | 21.28 | 21.48 | 21.67 | 21.86 | 22.06 | 22.25 | 22.44 | 22.64 | 22.83 | 23.02 | 23.22 |
| Maximum Power - Pmax (W) | 596.4 | 602 | 607.5 | 613 | 618.5 | 624 | 629.6 | 635.1 | 640.6 | 646.1 | 651.7 | 657.2 | 662.7 |
| Open-Circuit Voltage - Voc (V) | 50.3 | 50.5 | 50.7 | 50.9 | 51.1 | 51.3 | 51.5 | 51.7 | 51.9 | 52.1 | 52.3 | 52.5 | 52.7 |
| Short-Circuit Current - Isc (A) | 14.93 | 15 | 15.07 | 15.13 | 15.2 | 15.26 | 15.33 | 15.4 | 15.46 | 15.53 | 15.6 | 15.66 | 15.73 |
| Maximum Power Voltage - Vmp (V) | 42.38 | 42.53 | 42.68 | 42.85 | 43.02 | 43.18 | 43.35 | 43.52 | 43.69 | 43.86 | 44.03 | 44.2 | 44.37 |
| Maximum Power Current - Imp (A) | 14.07 | 14.15 | 14.23 | 14.3 | 14.38 | 14.45 | 14.52 | 14.59 | 14.66 | 14.73 | 14.8 | 14.87 | 14.93 |
| Short-circuit current - Isc (A) | 16.67 | 16.84 | 16.91 | 16.99 | 17.06 | 17.14 | 17.21 | 17.29 | 17.36 | 17.43 | 17.51 | 17.58 | 17.66 |
| Operating temperature | -40℃~+70℃ | ||||||||||||
| Maximum system voltage | 1500V | ||||||||||||
| Maximum rated fuse current | 25A | ||||||||||||

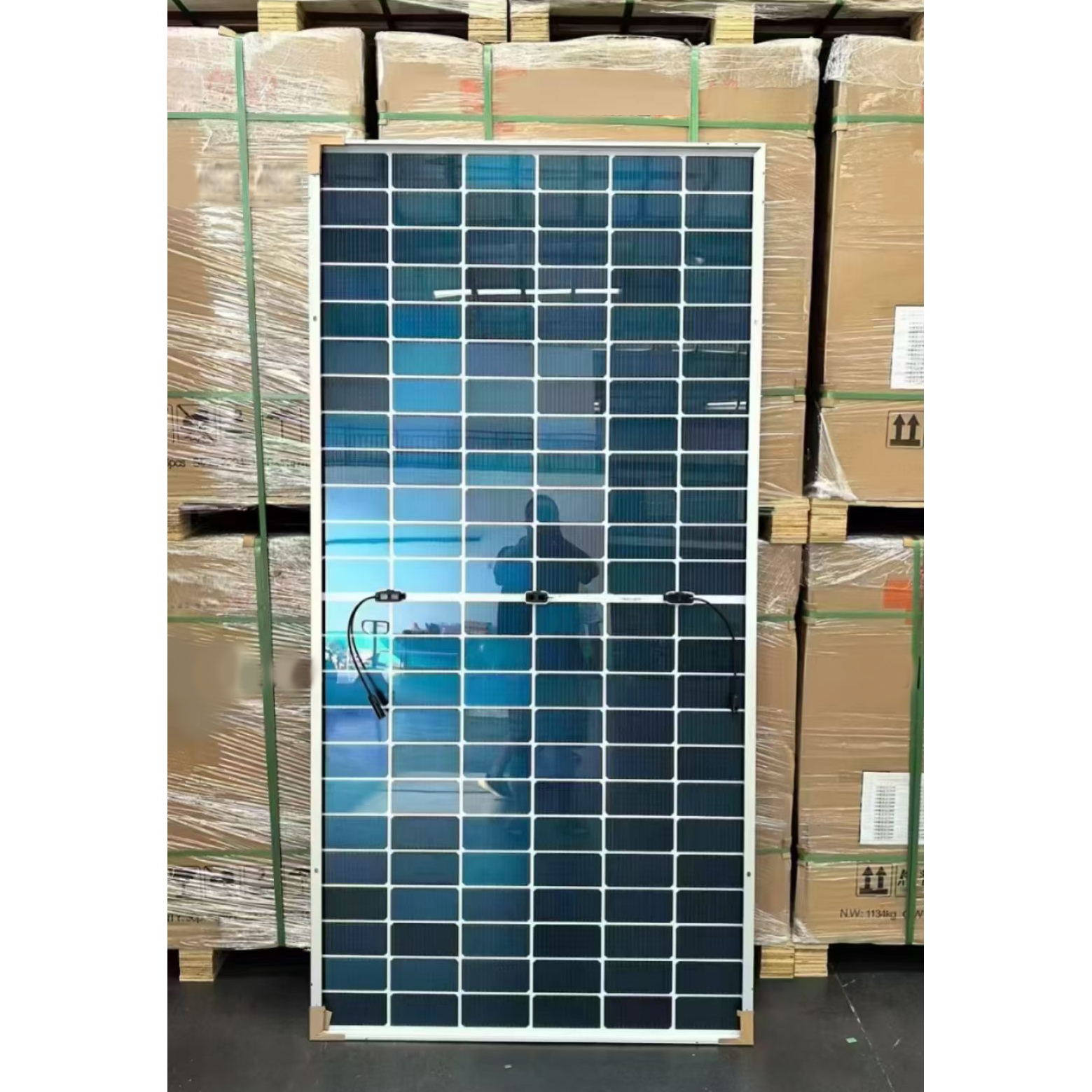

| Bifaciality | φVoc:98±5%;φIsc:80±5%;φPmax:80±5% | ||||||||||||
| Safety protection rating | ClassII | ||||||||||||
| IEC module fire resistance | ClassC | ||||||||||||
| Maximum static load on front | 5400Pa | ||||||||||||
| Maximum static load on back | 2400Pa | ||||||||||||
| Hail impact | 25mmat23m/s | ||||||||||||
| Packaging information | 37 pieces per trailer 740 pieces per 40-foot high-cube container 814 pieces per 13.5-meter flatbed truck |
||||||||||||
| Module dimensions | 2279*1134*30mm | ||||||||||||
| Cell type | 单晶硅 182mm | ||||||||||||
| Number of cells | 144H（6×12×2）pcs | ||||||||||||
| Module weight | 31kg | ||||||||||||
| Glass | Double-glass, 2.0+2.0 mm tempered glass | ||||||||||||
| Encapsulation | EVA + EPE | ||||||||||||
| Frame | Silver anodized aluminum alloy frame | ||||||||||||
| Junction box | Split junction box, IP68 protection rating | ||||||||||||
| Cables | 4.0 mm², 300 mm PV-grade cable | ||||||||||||
| Connectors | MC4 compatible | ||||||||||||
