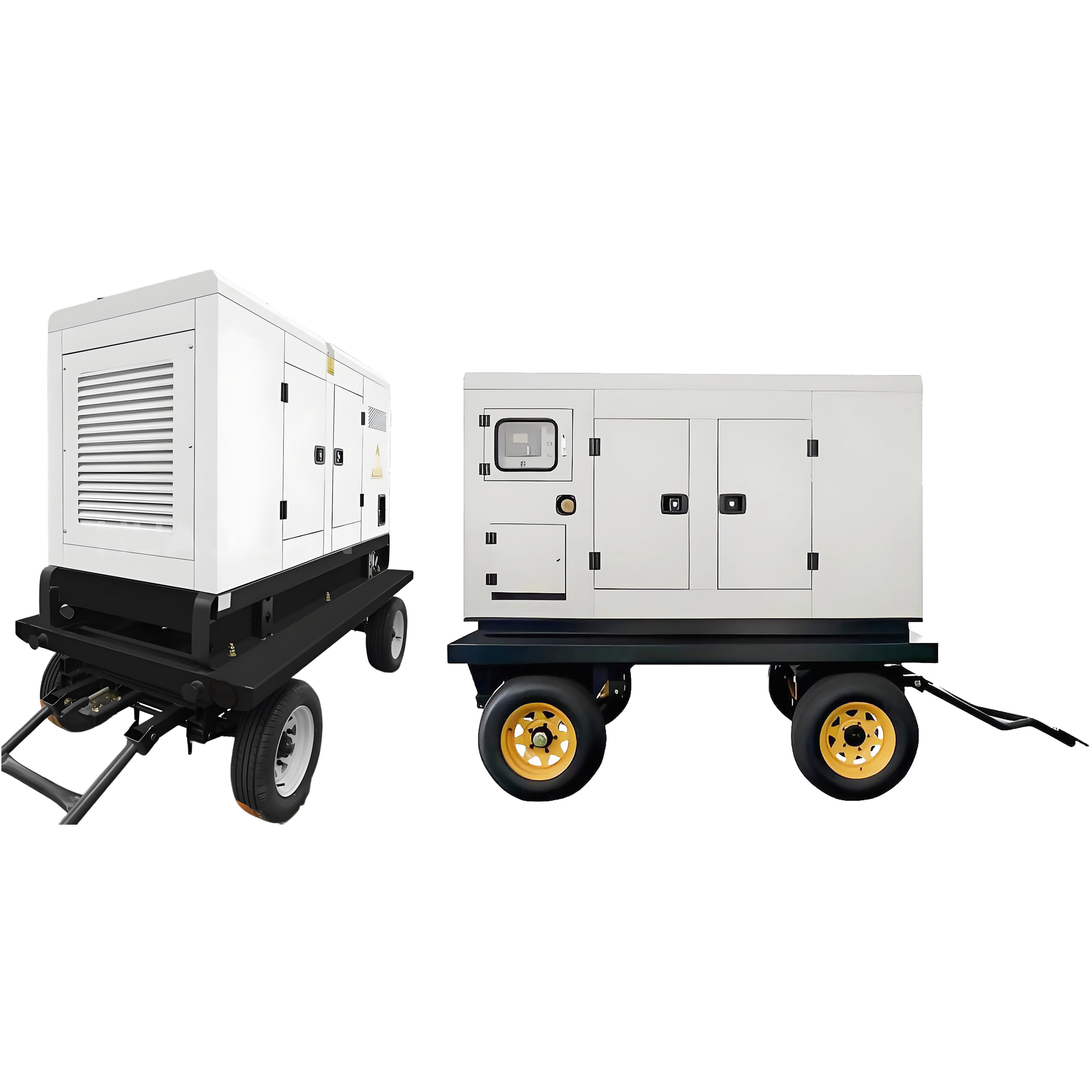

10 kW and 50 kW Mobile Solar-Storage Micro-Power Stations
Portable containerized solar-storage micro-power stations, featuring solar-diesel hybrid power supply, suitable for both off-grid and grid-tied operation, with mobile deployment capabilities, specifically designed for cross-border use, and ideal for remote construction sites and areas without electricity.

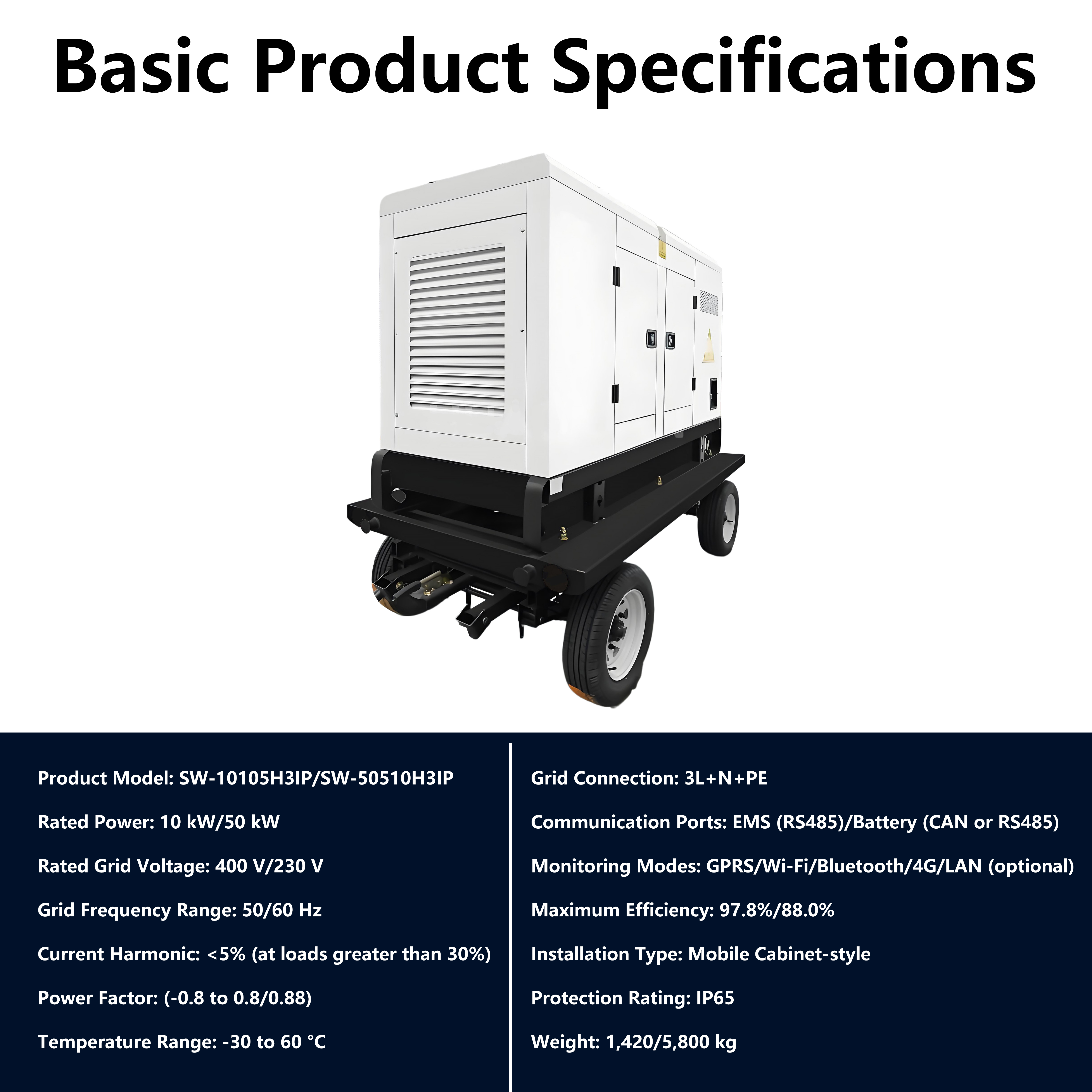

| Parameters | SW-10105H3IP | SW-50510H3IP |
| Mains/Diesel Input Port | ||
| Rated Power | 10.0KW | 50.0kW/60.0KW |
| Rated Line Voltage | 400V/230V | |
| Line Voltage Range | -20%~15% | |
| Line Frequency Range | 50Hz/47Hz~52Hz | |
| 60Hz/57Hz~62Hz | ||
| Current Harmonics | <5%(大于30%负载) | |
| Power Factor | (-0.8~0.8/0.88) | |
| Grid Connection Method | 3L+N+PE | |
| AC Side (Off-Grid Output) | ||
| Rated Output Power | 10.0KW | 50/60.0kW |
| Maximum Output Power | 11.0KVA | 66.0kVA |
| Rated Output Current | 15.2A | 87.0A |
| Maximum Output Current | 16.5.0A | 96.0A |
| Rated Voltage | 400V/230V | |
| Output Voltage Harmonics | <3% (resistive load) | |
| Unbalance | 100% | |
| Frequency Range | 50/60Hz | |
| Grid Connection Method | 3L+N+PE | |
| Isolation Method | Power-frequency transformer isolation | |
| Output Overload (Current) | 16A<lload≤18A100s | 96A<Iload≤108A/100s |
| Lithium Iron Phosphate Battery Specifications | ||
| Battery Voltage | 358.4V | 819.2V |
| Minimum Battery Voltage | 322.0V | 698.0V |
| Battery Capacity | 105.0KWH | 510.0KWH |
| Photovoltaic (PV) Parameters | ||
| Maximum Power | 10.0KW | 19.2kW+19.2kW |
| Maximum PV Voltage | 1000V | 850V/900V |
| PV Start-up Voltage | 360V | 716V/850V |
| MPPT Voltage Range | 400V-830V | 600V-830V/ |
| Maximum PV Power | 14.0KW | 76.0KW |
| Maximum PV Current | 13A+13A | 32A+32A+32A+32A |
| Maximum Number of PV MPPT Channels | 2 | 2/2+2 |
| System Parameters | ||
| Communication Ports | EMS: RS485 Battery: CAN or RS485 | |
| DIDO | D I: 2 channels; D O: 2 channels | |
| Monitor Mode | GPRS/Wi-Fi/Bluetooth/4G/LAN (optional) | |
| Maximum Efficiency | 97.8%/88.0% | |
| Mounting Method | Mobile cabinet-style | |
| Device Protection | DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, overvoltage load shedding protection, ground fault current monitoring , arc fault circuit interrupter (optional), power grid monitoring, islanding protection monitoring, ground fault detection, DC input switch, DC terminal insulation resistance monitoring, residual current device (RCD) detection , surge protection rating. |
|
| Number of Units in Parallel | Supports up to 10 units in parallel | |
| Loss | Standby power <3W, no-load power <30W (excluding transformer) | Standby power <10 W, no-load power <100 W (excluding transformer) |
| Protection | IP65 | |
| Temperature Range | -30--60℃ | |
| Humidity Range | 5-95% | |
| Cooling Method | Intelligent forced air cooling | |
| Altitude | 2,000 m (90%/80% reduction for 3,000 m/4,000 m) | |
| Dimensions | 2680*1000*1980MM | 4360*1520*2980MM |
| Weight | 1420.0KG | 5800.0KG |
| Safety/EMC Standards | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | |
| Certifications | CE,IEC62019,IEC62477,IEC6100,EN50549 | |
