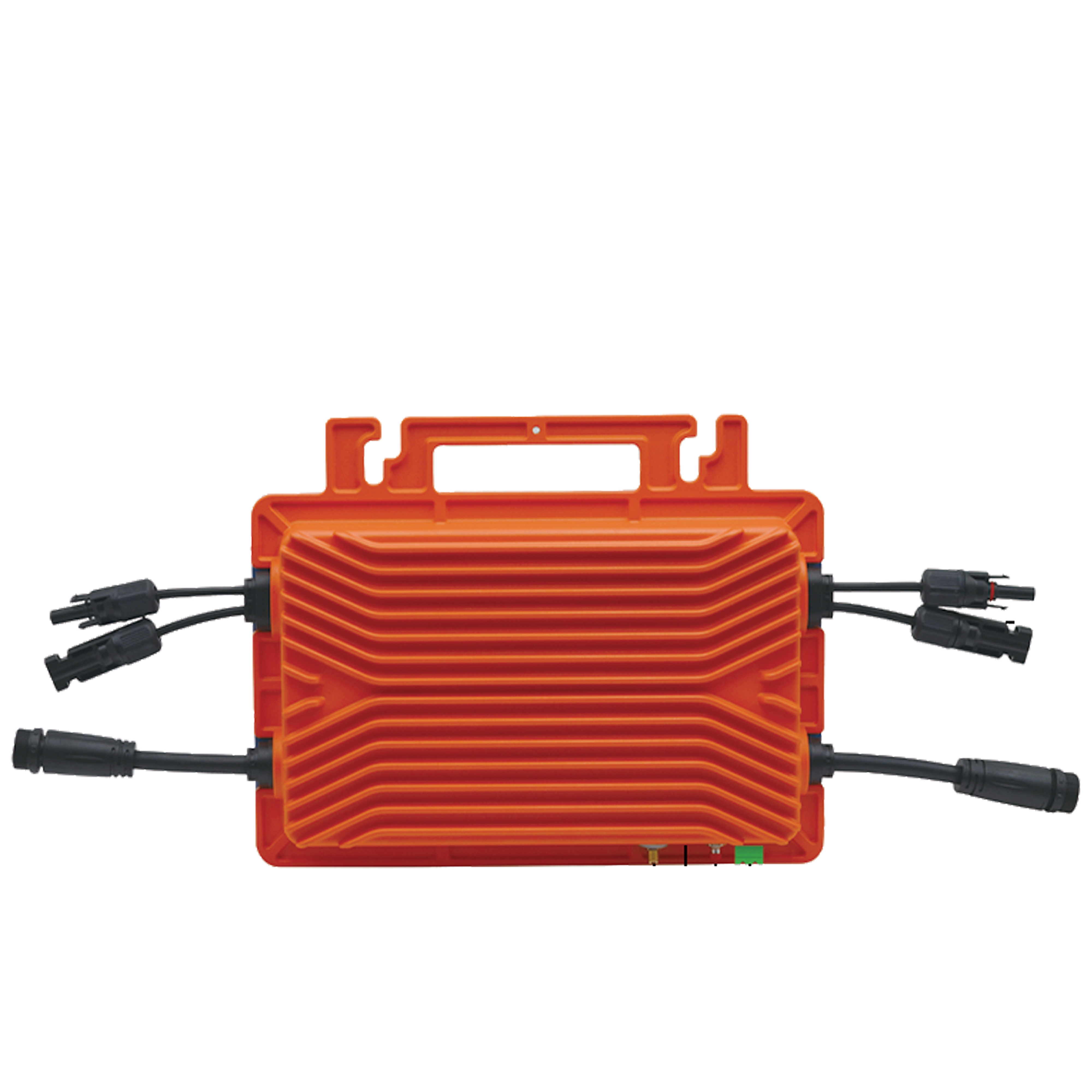

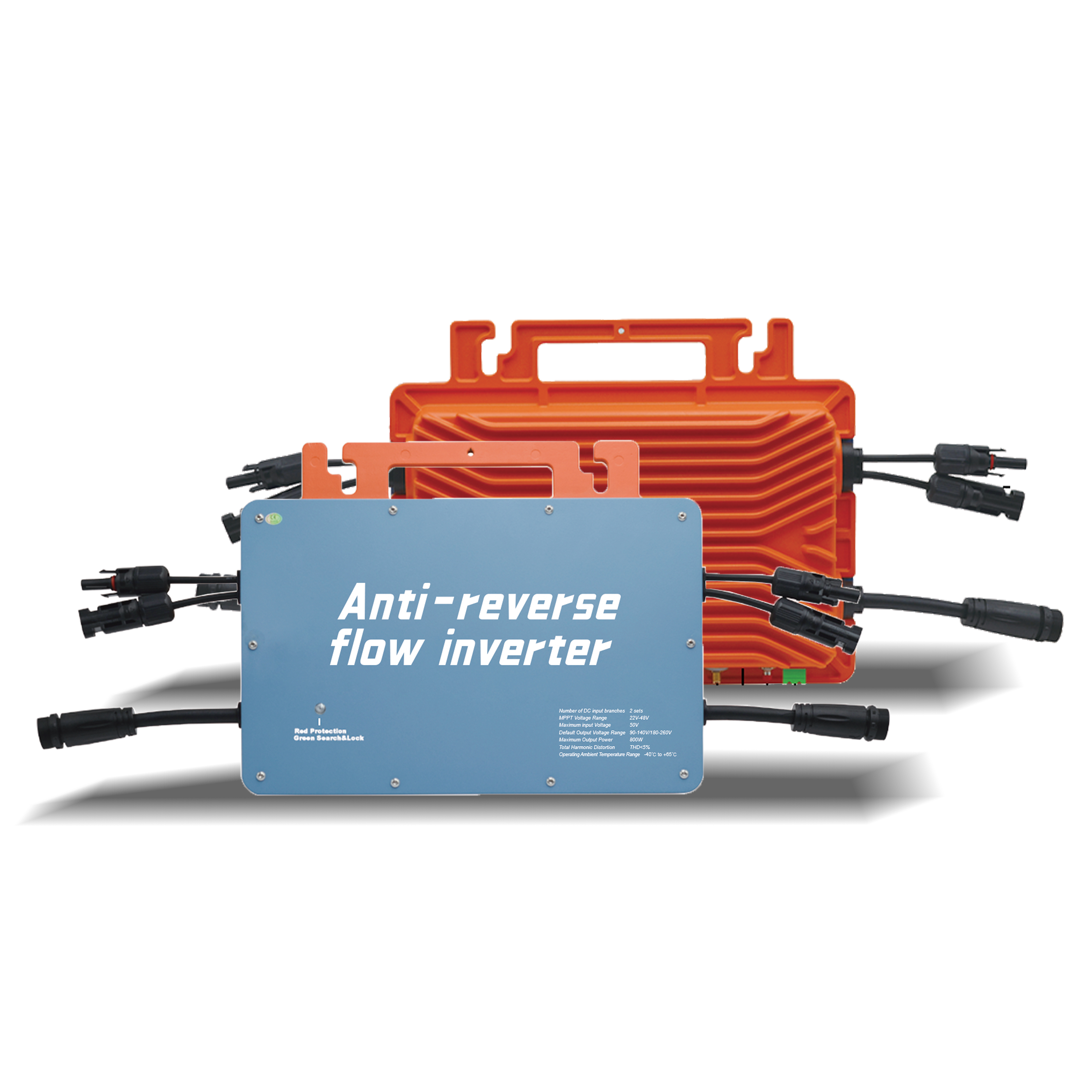

Anti-reverse flow microinverter 800W 1000W
PV anti-backfeed micro-grid-tied inverter with an all-aluminum housing for excellent heat dissipation, full certification, and stable output; available for OEM customization and suitable for small residential PV systems.

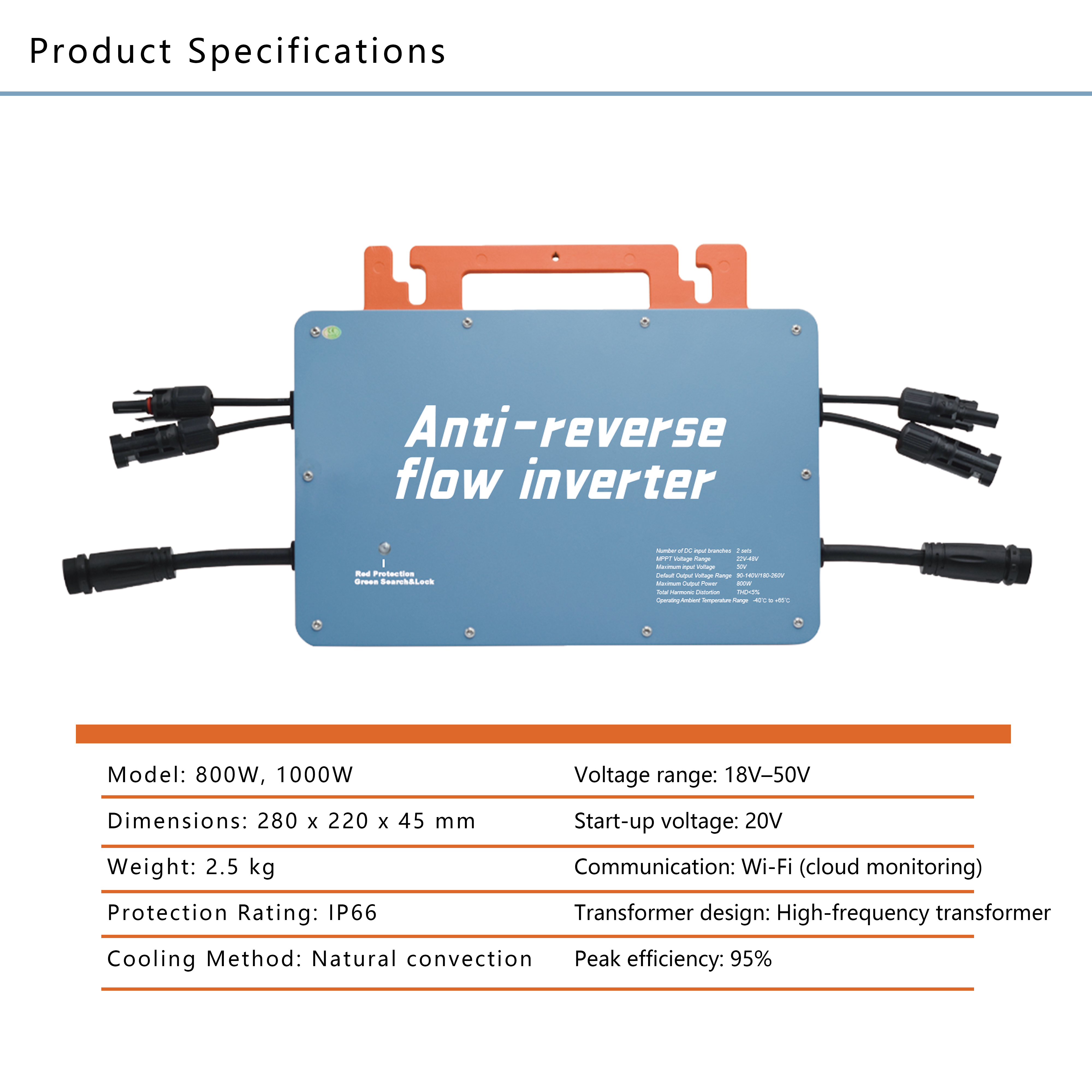

| Model | 800W 1000W |
| Input Data(DC,PV) | |
| Number of DC input branches | 2sets |
| MPPT Voltage Range | 22V-48V |
| Operation Voltage Range | 18V-50V |
| Maximum Input Voltage | 60V |
| Startup Voltage | 20V |
| Maximum Input Power | 800W 1000W |
| Maximum input Current | |
| Output Data(AC) | 15A*2 |
| Single-Phase Grid Type | 120V&230V |
| Rated Output Power | 800W 1000W |
| Maximum Output Power | 800W 1000W |
| Nominal Output Current | @120VAC:6.6A/@230VAC:3.4A @120VAC:8.3A/@230VAC:4.3A |
| Nominal Output Voltage | 120VAC/230VAC |
| Default Output Voltage Range | 90-140V/180-260V |
| Nominal Output Frequency | 50Hz/60Hz |
| Default Output Frequency Range | 48-62 |
| Power Factor | >0.98% |
| Total Harmonic Distortion | THD<5% |
| working status | monitor/Mobile APP |
| Efficiency | |
| Peak Efficiency | 95% |
| Nominal MPPT Efficiency | 99.5% |
| Night Power Consumption | <3w |
| Mechanical Data | |
| Operating Ambient Temperature Range | -40℃ to +65℃ |
| Storage Temperature Range | -40℃ to +85C |
| Dimensions(W*H*D) | 280x220x45mm(not include connectors and cable) |
| Weight | 2.5kg |
| Max Current of AC Bus Cable | 20A |
| Waterproof Grade | IP66 |
| Cooling Mode | Natural cooling |
| Other Features | |
| Communication | Wi-Fi(Cloud monitoring) |
| Transformer Design |
High frequency transformer |
| Integrated Ground | Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
| Protection Functions | Island protection、Voltage Protection。 Frequency Protection、Temperature Protection、Current Protection,etc. |
Design Compliance |
EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021,EN IEC55014-2:2021, |
