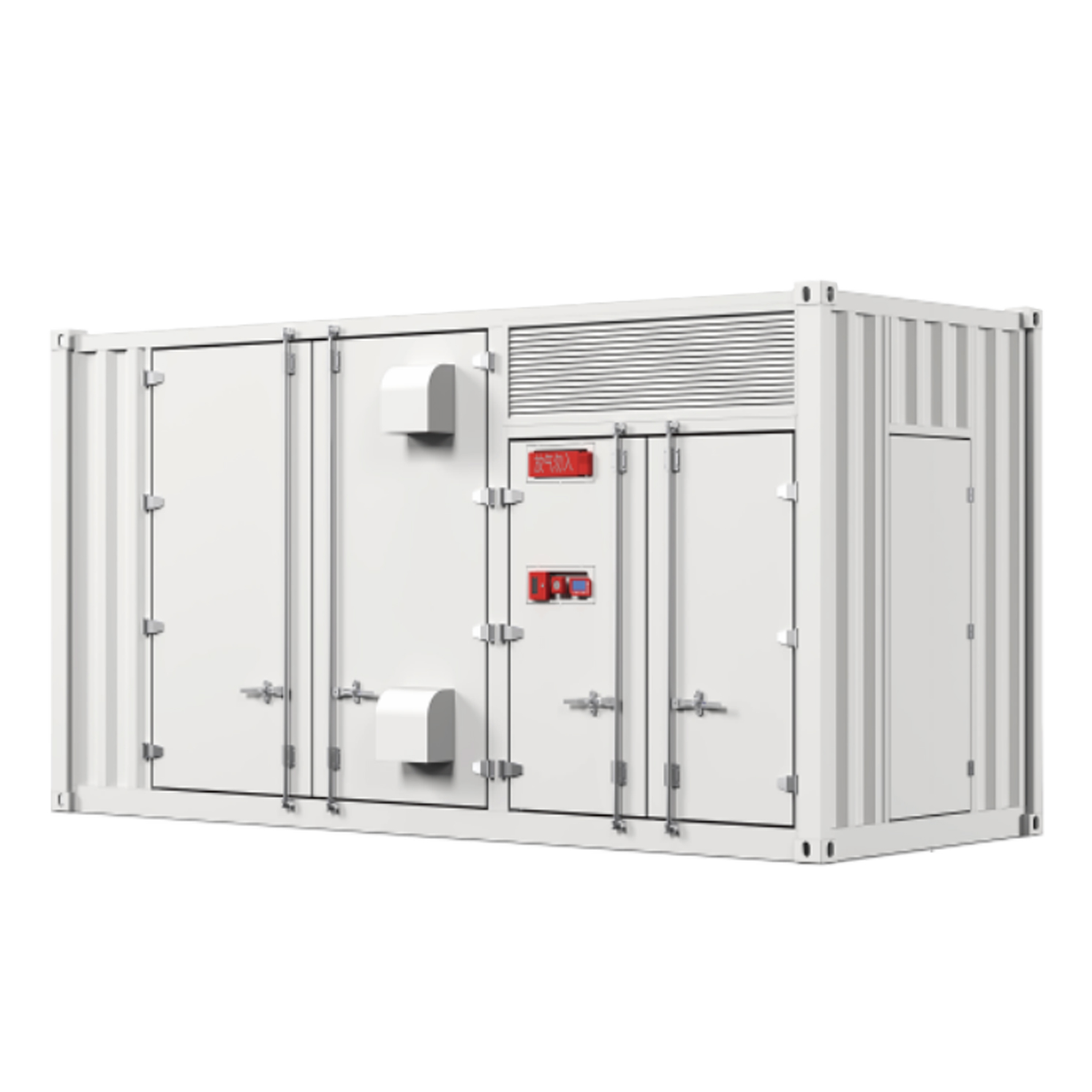

20-GP-1.2 MWh Containerized Energy Storage System
High Adaptability: Stable operation in environments ranging from -10°C to 50°C
Modular Design: Supports flexible scalability, minimizes the impact of failures, and simplifies operation and maintenance.
High Safety: Features a zoned fire protection design to prevent DC loop losses, improving system efficiency by 2%.
Flexible Deployment: Supports rapid installation and large-scale deployment, suitable for commercial and industrial applications, microgrids, and other scenarios.
Modular Design: Supports flexible scalability, minimizes the impact of failures, and simplifies operation and maintenance.
High Safety: Features a zoned fire protection design to prevent DC loop losses, improving system efficiency by 2%.
Flexible Deployment: Supports rapid installation and large-scale deployment, suitable for commercial and industrial applications, microgrids, and other scenarios.
| PRODUCT PARAMETER | |
| Model number: | 20-GP CONTAINERIZED ENERGY STORAGE SYSTEM |
| Battery type: | LiFePO4 |
| Rated capacity(Ah): | 1570 |
| Rated energy(MWh): | 1.2 |
| Voltage range(V): | 672~864 |
| Rated voltage(V): | 768 |
| Efficiency: | 96% |
| Depth of discharge: | 90% |
| System charging rate: | 0.5C |
| System discharge rate: | 0.5C~1C |
| Size:L*W*H(mm): | 6058*2438*2896 |
| Weight (t): | 16 |
| Operating temperature(℃): | 0-50 |
| Temperature control method | Air cooling |
| Altitude(m): | <2000 |
| Humidity: | 5%-95% |
| Battery module configuration: | 75 pieces of 51.2V 314Ah |
| Design lifespan (years): | above 15 |
| Combination method: | parallel connection |
| Communication mode: | CANBUS/Modbus TCP/IP |
