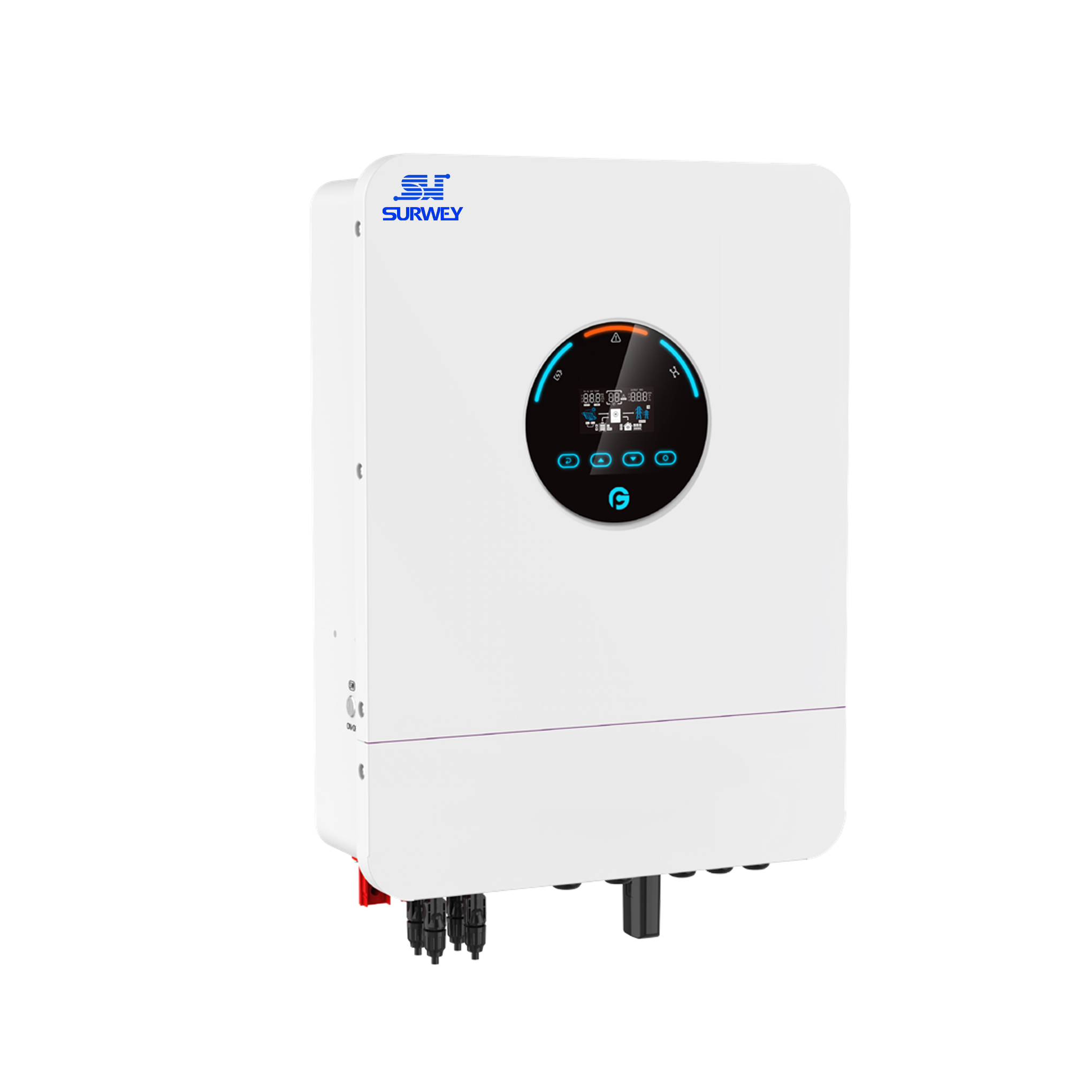

8kW Single-phase EU Standard Off-grid Energy Storage PV Inverter
8 kW Single-Phase European Standard Off-Grid Energy Storage Solar Inverter, dual PV/AC input and output, IP65 protection, supports up to 12 units in parallel. Features built-in BMS communication, wide MPPT voltage range, 5-year warranty, and complete cross-border certification. Direct from factory, with OEM/ODM customization available.
Product Specifications
| SW-08KL1-2 | |
| PV(DC Input) | |
| Recommended max.PV input power | 1600OW |
| Max.input voltage(Voc) | 500V |
| MPPT operating voltage range | 85V-450V(@85V start up) |
| Number of MPPT | 2 |
| Max.number of input strings per MPPT | 2 |
| Max.input current per MPPT | 27/27A(MAX:54A) |
| Max.short-circuit current per MPPT | 32A/32A |
| Grid(AC Input) | |
| Max input power | 14950W |
| Max input current | 65A |
| Rated grid voltage | 220/230/240Vac |
| Rated grid frequency | 50/60Hz |
| Acceptable range | 170-280Vac(For UPS);90-280Vac(For Home Appliances) |
| Battery parameters(Bidirection) | |
| Battery type | LiFePO4/Lead-acid |
| Battery voltage range | 40~60Vdc |
| Rated Battery Voltage | 48Vdc |
| Max.charge/discharge current | 160A/180A |
| BMS communication mode | RS485 |
| Back-up Output (AC Output) | |
| Rated output power | 800ow/8000VA (Twin output) |
| Rated output current | 36.4A |
| Rated output voltage/Frequency | 220/230/240Vac 50/60Hz |
| Parallel Capacity | Single-phase Max.9 units; Three-phase Max.12 units |
| Surge power | 1600OVA 5s |
| THDv(@linear load) | <3% |
| Switching time | 10ms typical (For UPS)20ms typical(For Home Appliances) |
| Efficiency | |
| Peak efficiency | 98% |
Max.MPPT efficiency |
99.9% |
| Protection | |
Inner protection |
√Output short-circuit protection √Output overvoltage protection |
Surge protection |
PV:Type Ⅲ,AC:Type Ⅲ |
IP rating |
IP65 |
| General Parameters | |
Operating temperature range |
-10℃~55℃ |
| Relative humidity range | 10%~95% |
Max.operating altitude |
>2000m derating |
Standby self-consumption |
<20W |
Installation type |
Wall-mounted |
Cooling mode |
Smart cooling |
| Communication | RS232/RS485/Dry contact/WI-FI |

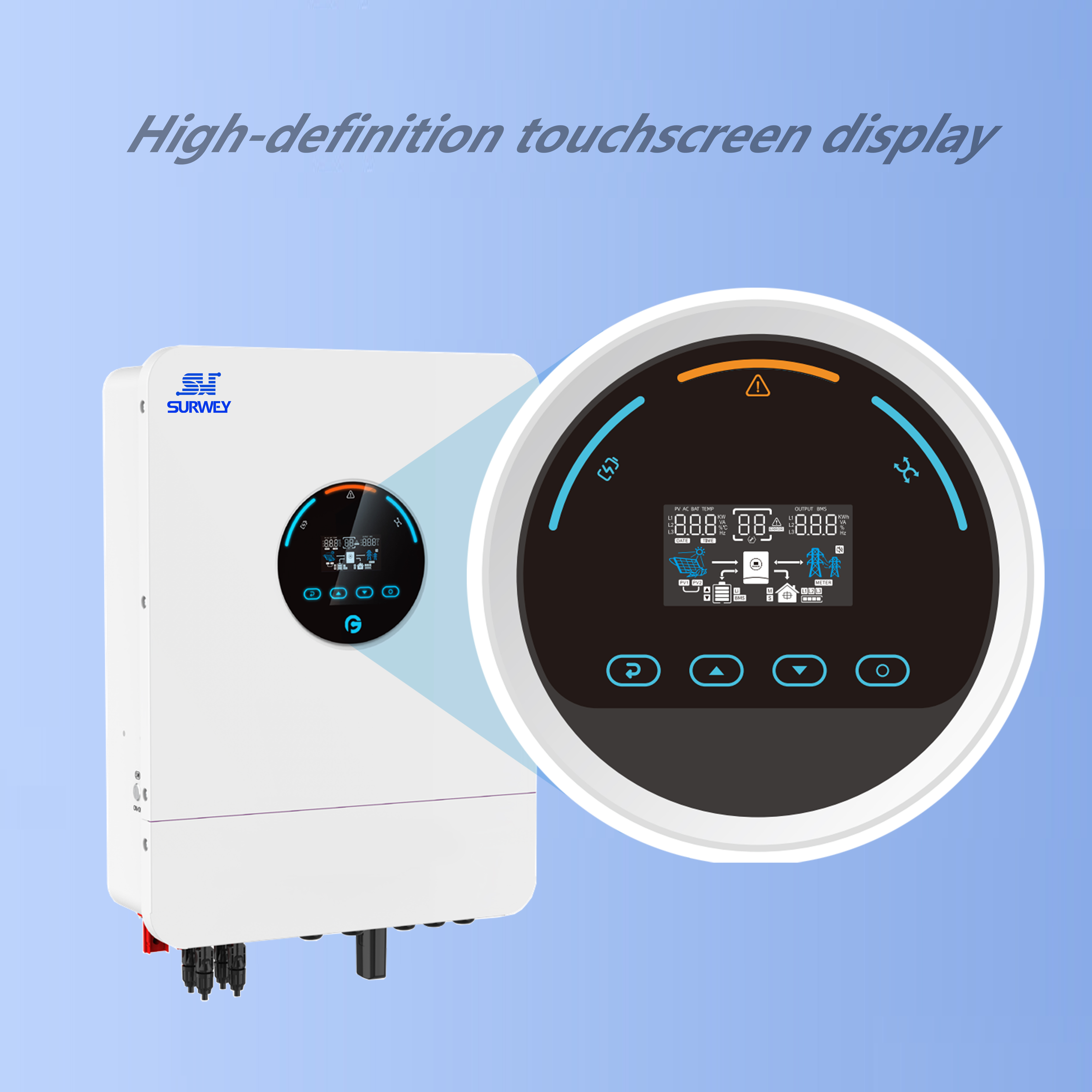

Display |
LCD |
Inverter dimensions(L*W*H)(mm) |
598.8*454*217.2 |
Net weight (kg) |
20.5 |
Carton dimensions(L*W*H)(mm) |
756*555*313 |
Gross weight (kg) |
22.8 |
Warranty Period |
5 Years |
| Mechanical Specifications | |
