Flexible Solar Panel 18.2v 100w/42.3v 520w

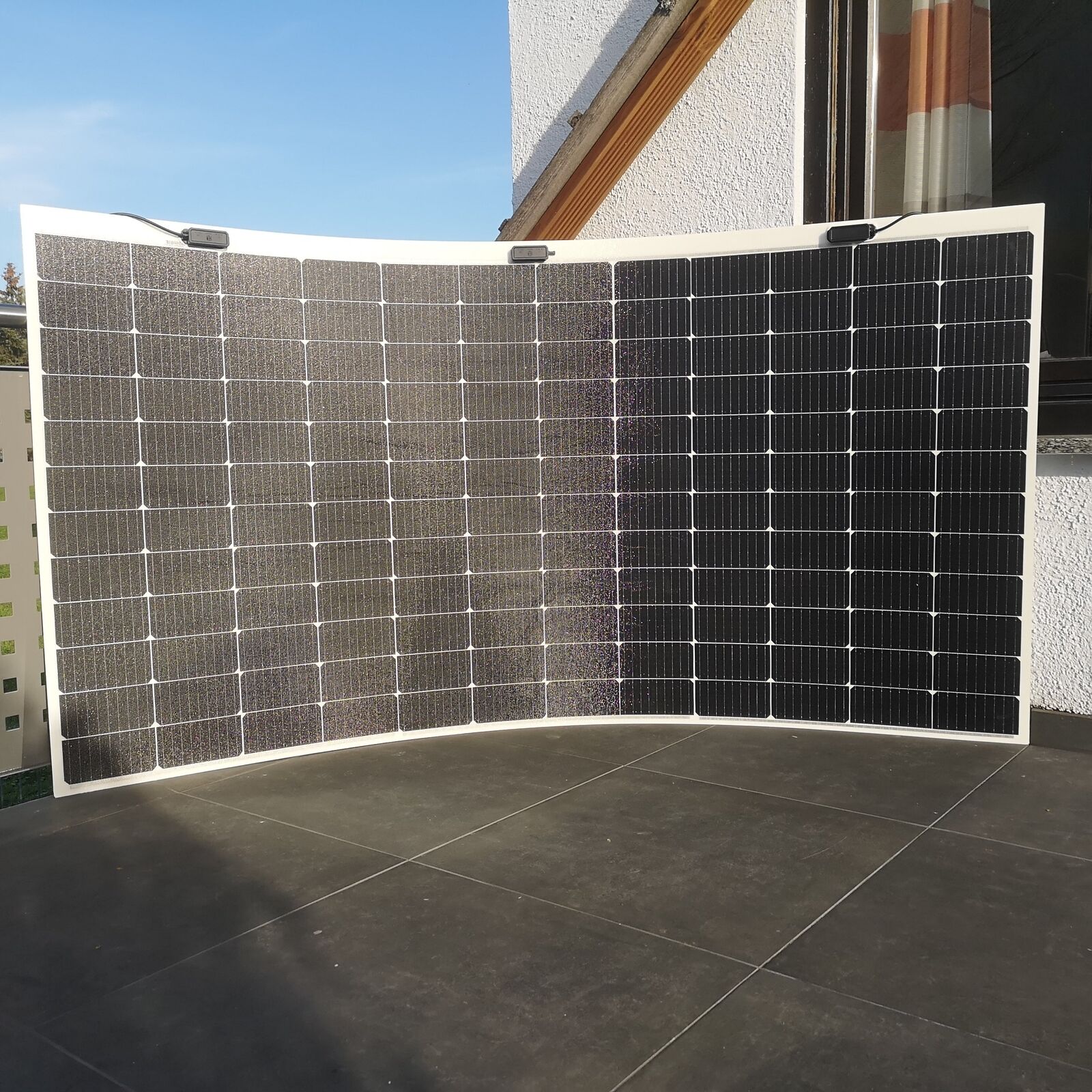

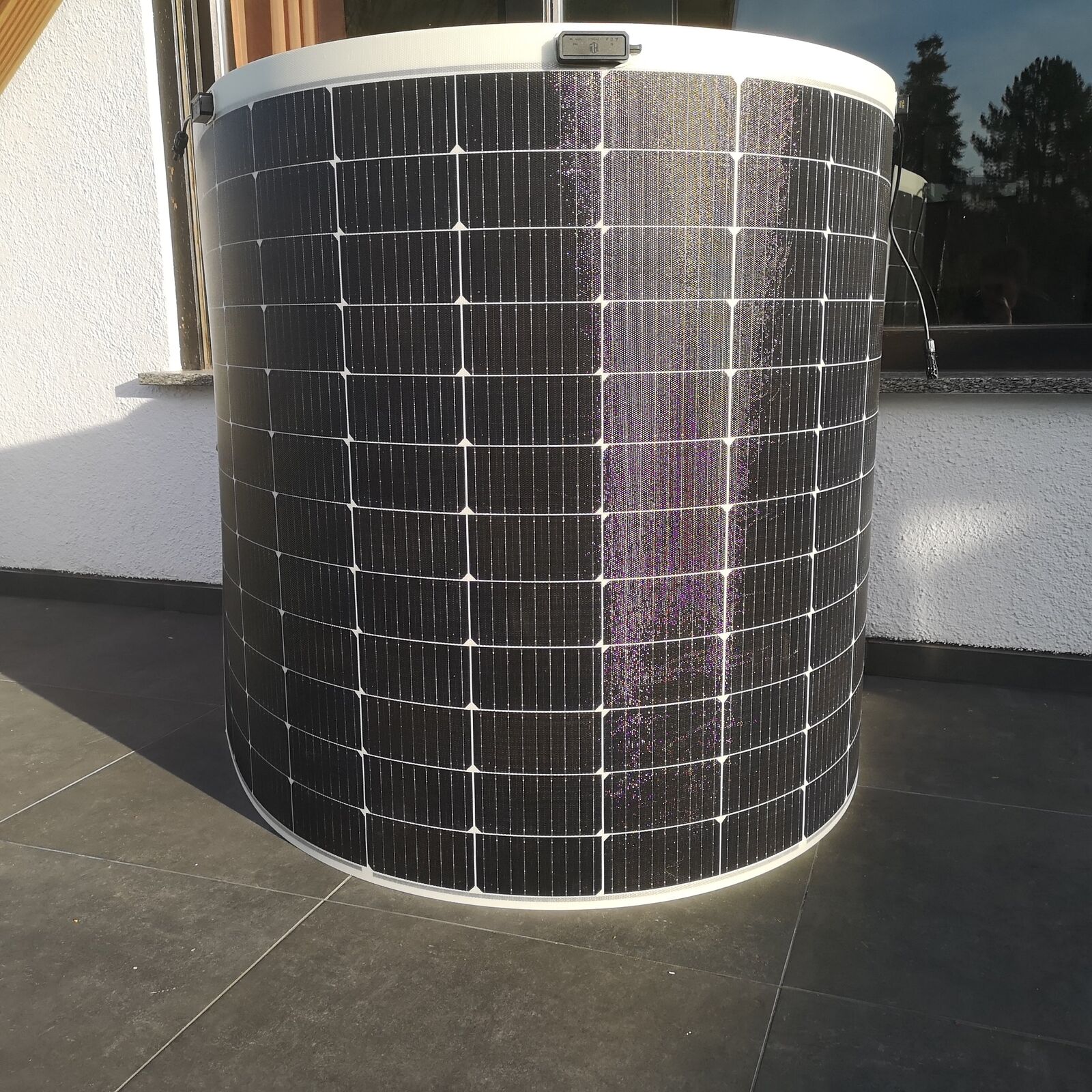

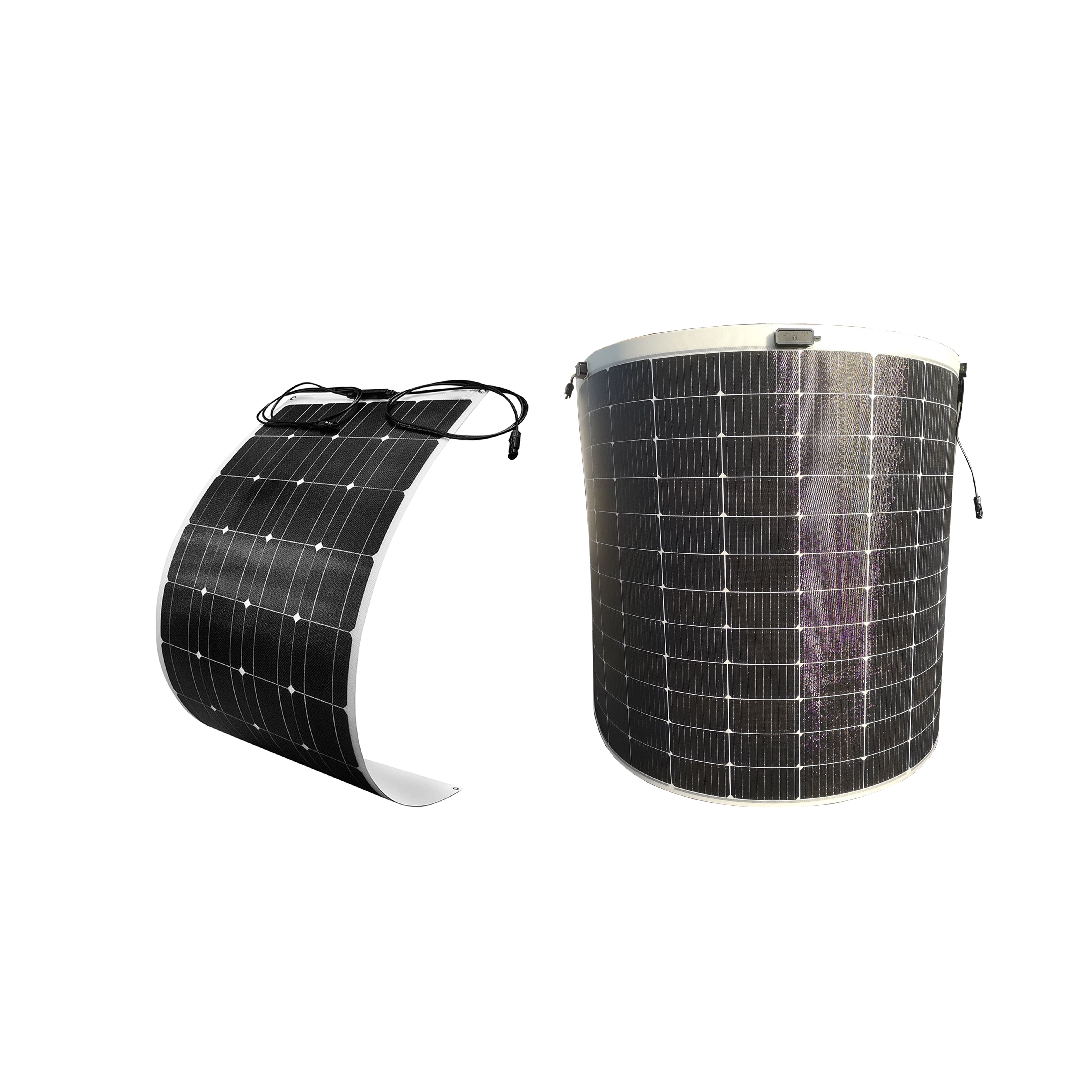

Flexible solar panel made of high-efficiency monocrystalline silicon. Multiple specifications from 100W to 520W with 18.2V and 42.3V voltage options. Bendable design fits curved installation. Lightweight, high light transmittance, heat-resistant and waterproof. Direct factory supply with 20-year warranty. Custom service and invoices available. Perfect power supply for RVs and outdoor equipment.
| 100W Flexible Solar Panel Module Parameters | |
| Maximum Rated Power | 100W |
| Voltage at Maximum Power | 18.2V |
| Open Circuit Voltage | 21.9V |
| Maximum System Voltage | 1000V |
| Power Temperature Coefficient | -0.23%℃ |
| Short-circuit Current Temperature Coefficient | ±0.05%℃ |
| Dimensions | 1030*530*2.5mm |
| Power Tolerance | 3% |
| Current at Maximum Power | 5.50A |
| Short-circuit Current | 5.83A |
| Conversion Efficiency | 23% |
| Open-circuit Voltage Temperature Coefficient | 0.04％／℃ |
| Standard Test Conditions | 45±2°C(113±3.6°F) |
| Irradiance | 1000W／㎡ |
| Air Mass | 1.5 |
| Standard Test Temperature | 25 ℃ |
| Weight | 2.0KG |
| Warranty | 20 years |
| 520W Flexible Solar Panel Module Parameters | |
| Maximum Rated Power | 520W |
| Voltage at Maximum Power | 42.3V |
| Open Circuit Voltage | 49.5V |
| Maximum System Voltage | 1500V |
| Power Temperature Coefficient | -0.23%℃ |
| Short-circuit Current Temperature Coefficient | ±0.05%℃ |
| Dimensions | 2246*1197*2mm |
| Power Tolerance | 3% |
| Current at Maximum Power | 12.31A |
| Short-circuit Current | 13.56A |
| Conversion Efficiency | 19% |
| Open-circuit Voltage Temperature Coefficient | 0.04％／℃ |
| Standard Test Conditions | 45±2°C(113±3.6°F) |
| Irradiance | 1000W／㎡ |
| Air Mass | 1.5 |
| Standard Test Temperature | 25 ℃ |
| Weight | 7.7KG |
| Warranty | 20 years |
| 520W Flexible Solar Panel Module Parameters | |
| Maximum Rated Power | 520W |
| Voltage at Maximum Power | 42.3V |
| Open Circuit Voltage | 49.5V |
| Maximum System Voltage | 1500V |
| Power Temperature Coefficient | -0.23%℃ |
| Short-circuit Current Temperature Coefficient | ±0.05%℃ |
| Dimensions | 2246*1197*2mm |
| Power Tolerance | 3% |
| Current at Maximum Power | 12.31A |
| Short-circuit Current | 13.56A |
| Conversion Efficiency | 19% |
| Open-circuit Voltage Temperature Coefficient | 0.04％／℃ |
| Standard Test Conditions | 45±2°C(113±3.6°F) |
| Irradiance | 1000W／㎡ |
| Air Mass | 1.5 |
| Standard Test Temperature | 25 ℃ |
| Weight | 7.7KG |
| Warranty | 20 years |
