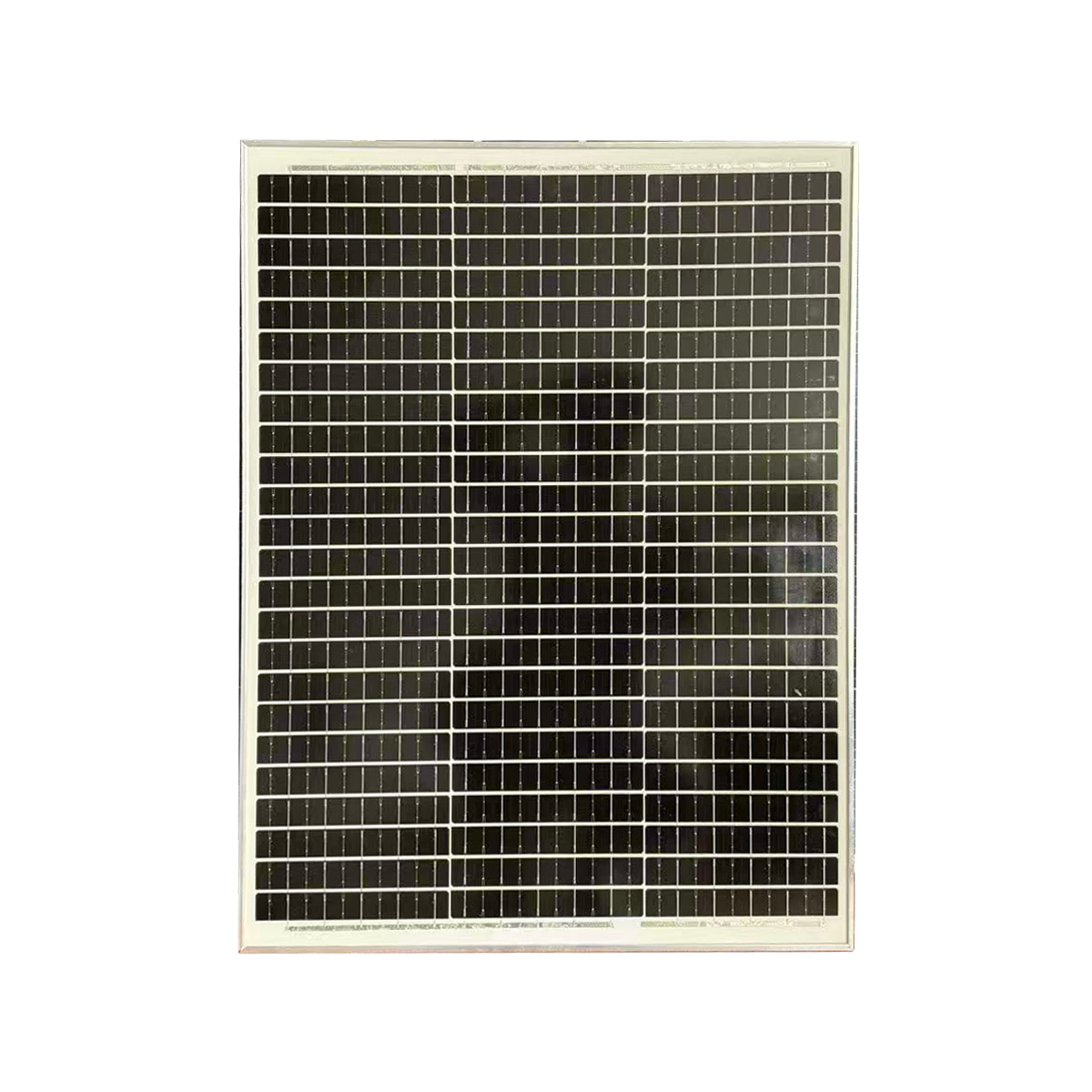

Monocrystalline 36V 80W Solar Panel
Monocrystalline 36V 80W solar panel adopts Grade A cells and high light transmittance glass, equipped with thickened anti-rust alumina frame. It delivers full power with positive tolerance output of 36V/2.2A. Dimension: 580×760×30mm, weight: 4.64KG. Factory direct supply with 20-year warranty. Customization available, damaged goods replaceable and on-time delivery guaranteed. Ideal for household and small equipment power supply, a stable and reliable small photovoltaic module.
| Module Parameters | |
| Manufacturer | Jiangxi Shangwei Technology Co.,Ltd |
| Max Rated Power | 80W |
| Voltage at Maximum Power | 36V |
| Open Circuit Voltage | 42V |
| Max System Voltage | 1000V |
| Power Temperature Coefficient | -0.23%℃ |
| Short-Circuit Current Temperature Coefficient | ±0.05%℃ |

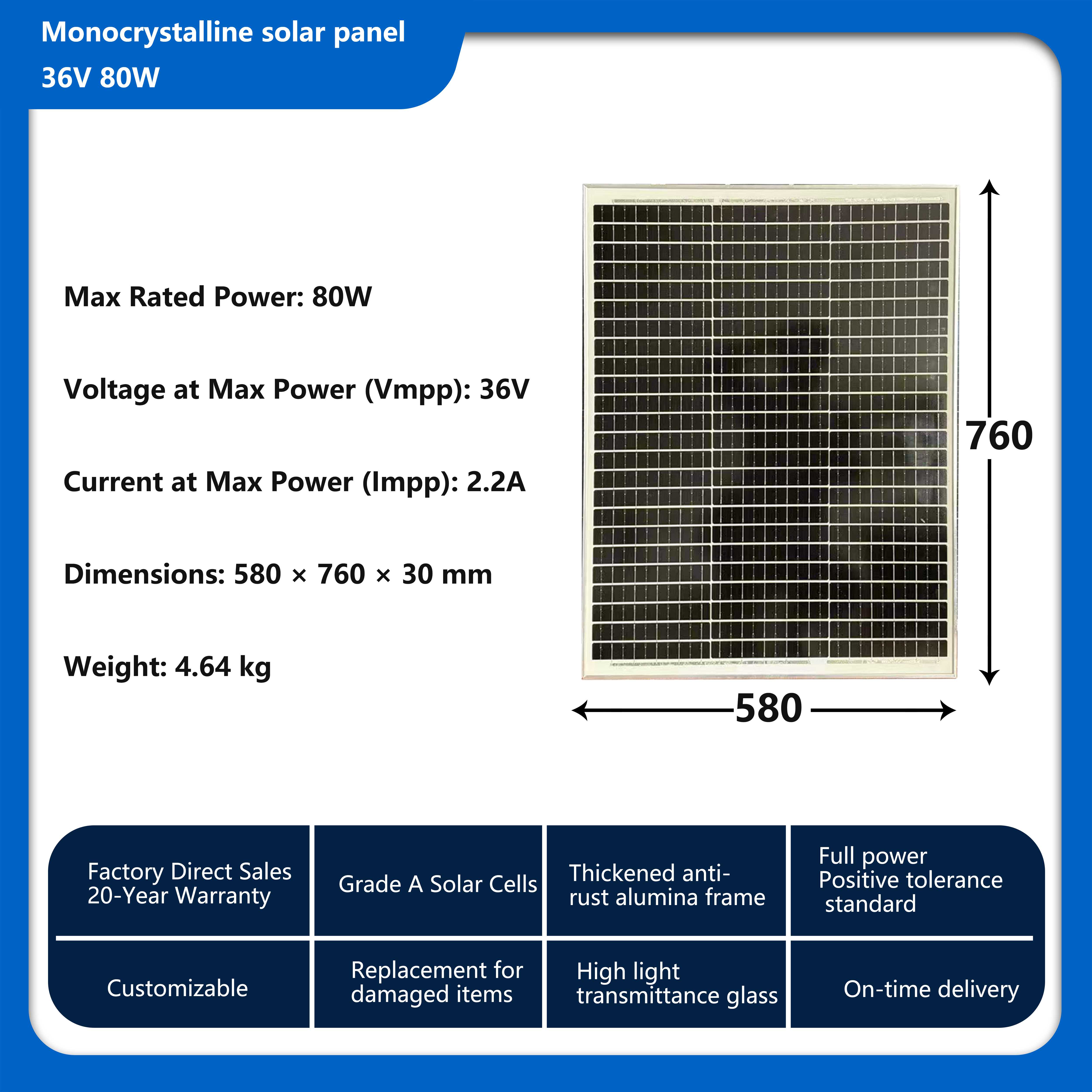

| Dimensions | 580*760*30mm |
| Power Tolerance | 0~±3% |
| Current at Maximum Power | 2.2A |
| Short-Circuit Current | 3.84A |
| Conversion Efficiency | 22% |
| Open Circuit Voltage Temperature Coefficient | 0.04％／℃ |
| Standard Test Conditions | 45±2°C(113±3.6°F) |
| Irradiance | 1000W／㎡ |
| Air Mass | 1.5 |
| Standard Test Temperature | 25 ℃ |
| Weight | 4.64KG |
| Warranty | 20-Year |
