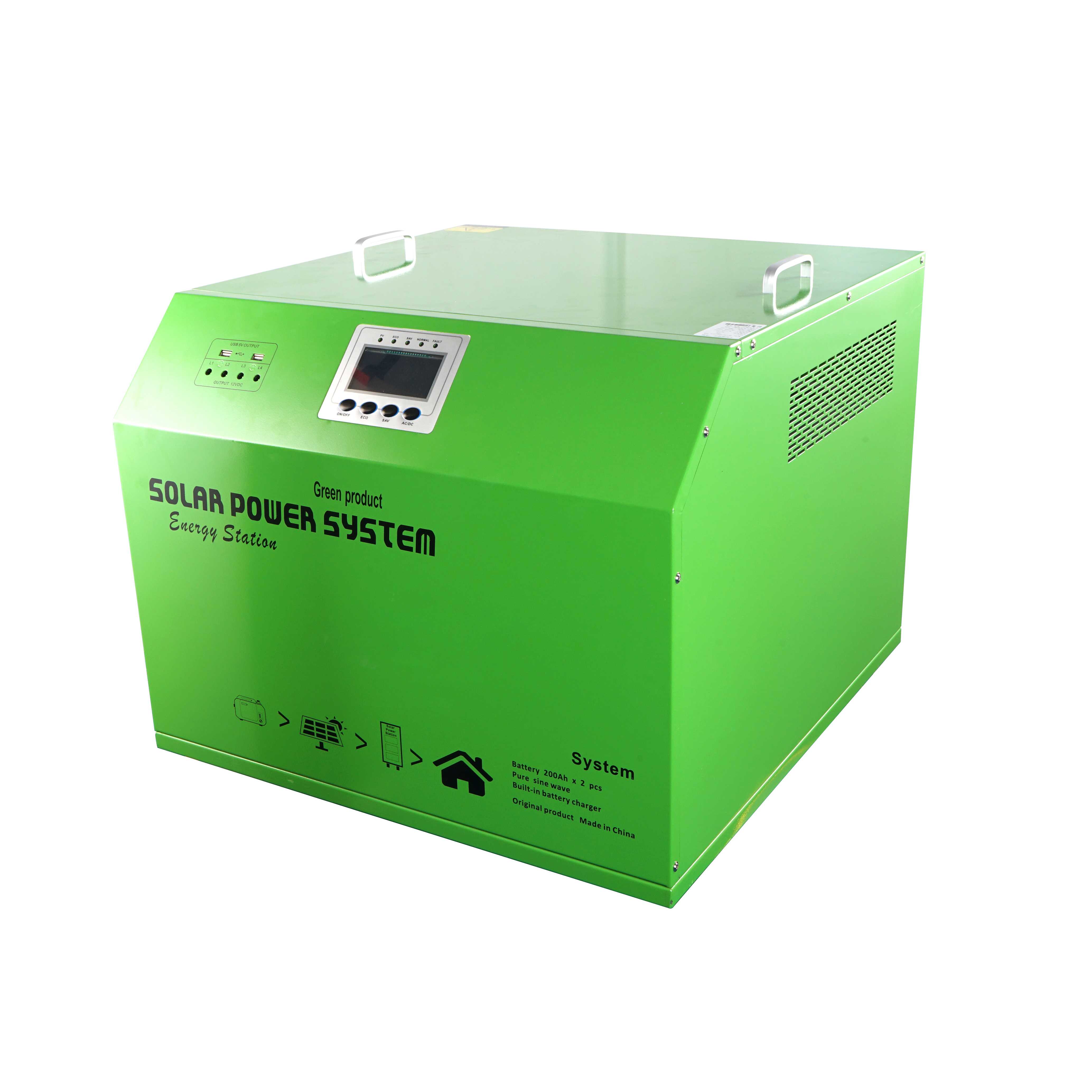

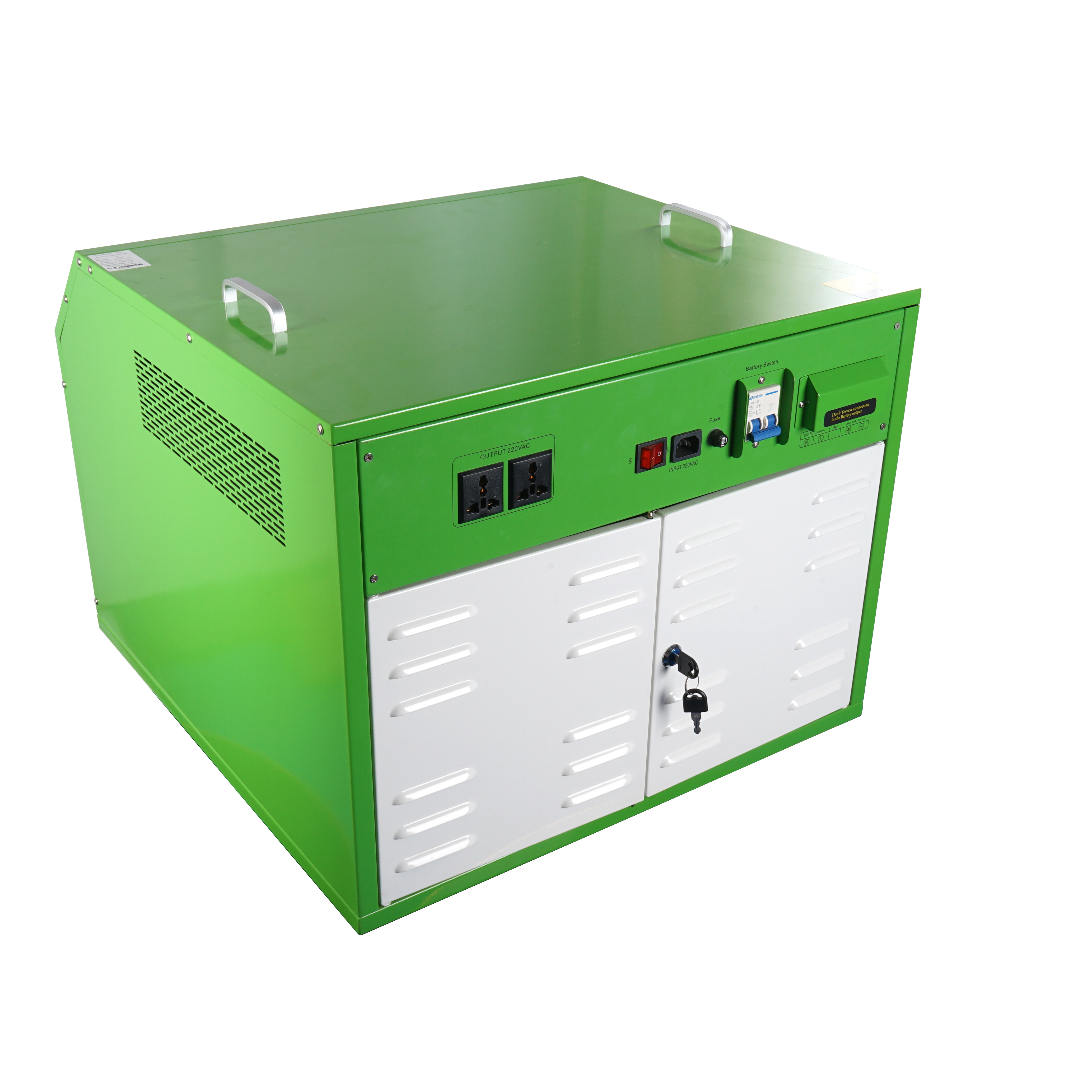

Lead-acid Energy Storage System 3000/4000/5000/6000W

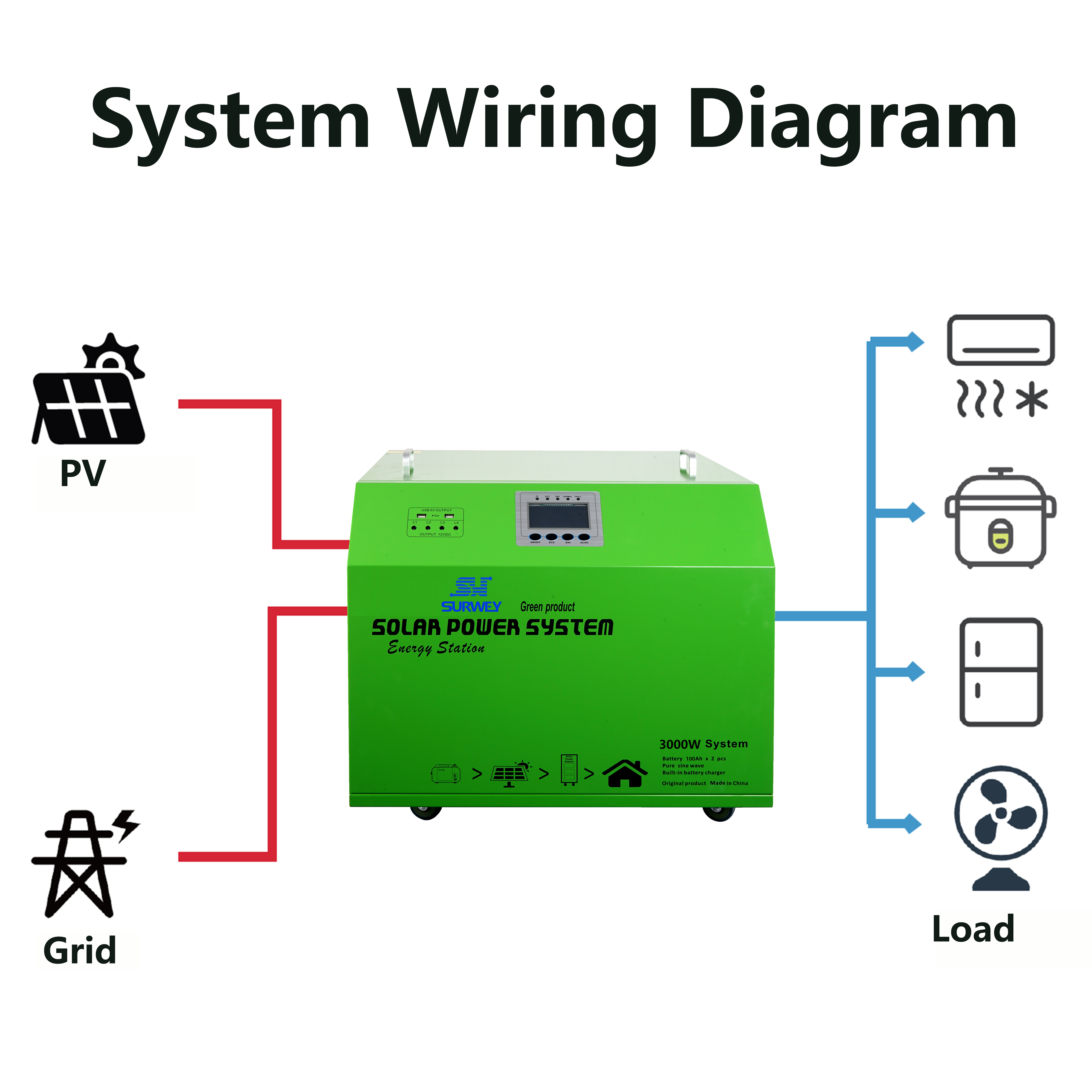

3000–6000W lead-acid energy storage system, pure sine wave output, with multiple protection features, optional Wi-Fi/GPRS, compatible with photovoltaic systems.
Product Specifications
| Technical Specifications | |||||
| Rated Power | 3000W | 4000W | 5000W | 6000W | |
| Maximum Solar Charging Current | ≤60A | ||||
| Solar Panel Open-Circuit Voltage | ≥80V | ||||
| Maximum USB Output Current | 1000mAx2 | ||||
| Maximum DC Output Current | 1Ax4 | ||||
| Battery Voltage | DC10.5-15.5V | ||||
| Battery Capacity | ≤400AH | ≤400AH | |||
| Battery Cut-off Voltage | 27V | ||||
| Battery Low Voltage Warning | 20V-21V | ||||
| Battery Overvoltage Shutdown | 30V-32V | ||||
| Battery Low Voltage Recovery | 12.6V-13.8V | ||||
| AC Output Frequency | 50Hz+/-1% | ||||
| AC Output Waveform | Sine wave | ||||
| AC Output Voltage | AC 220V+/-10% | ||||
| AC Output Power | ≤2000W | ≤3000W | |||
| Instantaneous Peak Power | 1500W | 2000W | |||
| Operating Temperature Range | -10℃-45℃ | ||||
| Product Dimensions (mm) | 620*600*530 |
||||
