500W–1000W Horizontal Pure Sine Wave Inverter

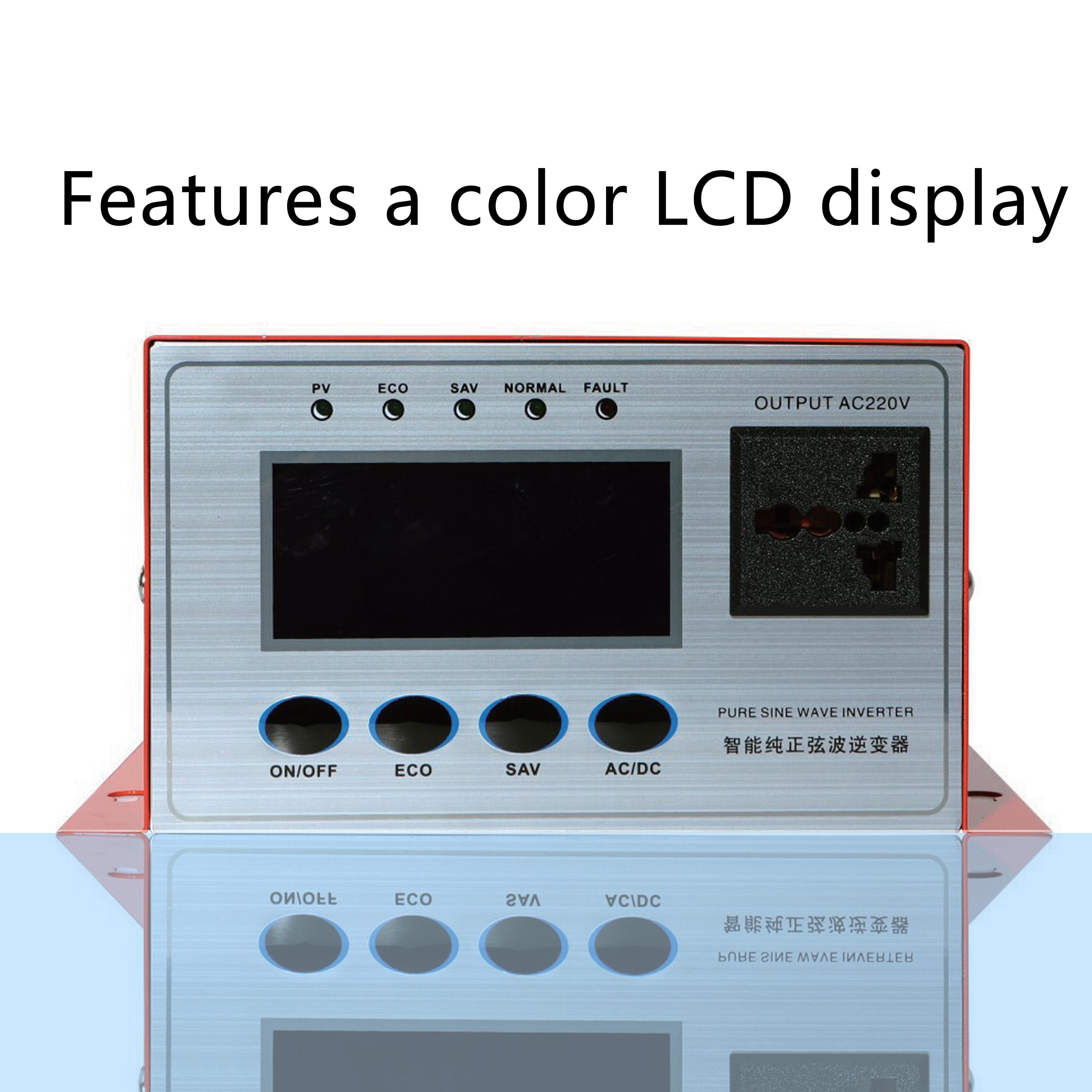

Pure Sine Wave Inverter 500W–1000W, supports 12/24V batteries, automatic switching between grid power and battery power, features an LCD display and multiple protection functions.
Product Specifications
| Model | SW-BD-10 |
| Rated Power | 500W-1000W |
| Battery | |
| Rated Voltage | DC12V DC24V |
| Charging Voltage | 13.5V/27.5V(±2%) |
Input |
|
| Mains Input Voltage | 165-260VAC |
| Mains Input Frequency | 45-50HZ |
| Solar Input Voltage | 12/24V(18-100VDC)48V(60-180VDC) |
| Solar Output Current | 20-60A |
| Output | |
| Voltage Range | 220VAC±5%(Inverter mode) |
| Frequency | 50HZ±5%(Inverter mode) |
| Output Waveform | Pure sine wave |
| Conversion Time | <10ms(Typical load) |
| Efficiency | >85%(80%Negative load) |
| Overload | 110-120%/30S:160%/300ms |
| Protection Function | Battery overvoltage and low voltage protection,overload protection, short circuit protection,overtemperature protection,etc. |
| Operating Temperature | 0-40℃ |
| Storage Temperature | -15-+50℃ |
| Operating/storage Environment |
0-90%No frost |
| Dimensions(mm) | 352*214*100 |
