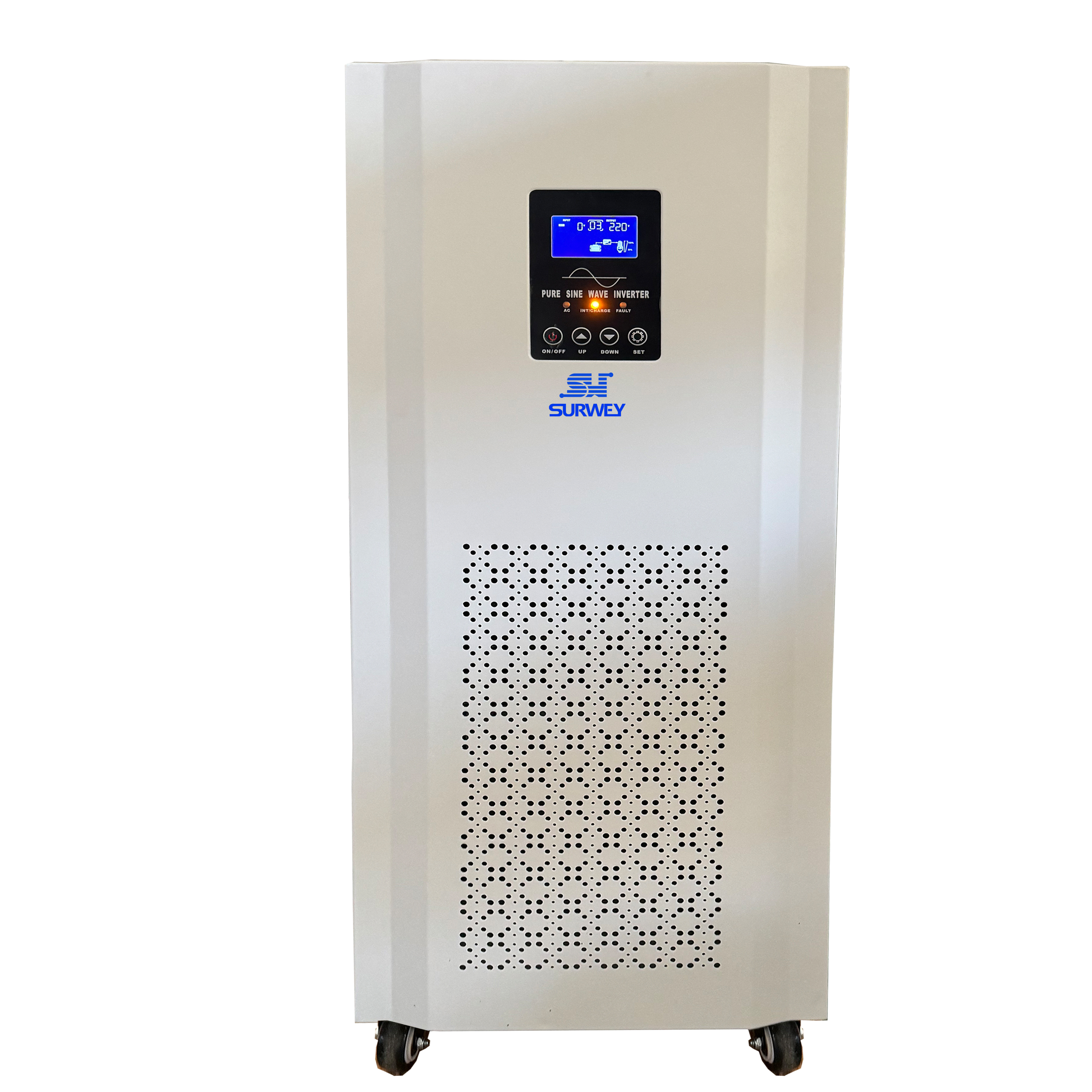

10KW,15KW,20KW,25KW,30KW,40KW Single-phase high-power photovoltaic inverter
10–40 kW off-grid single-phase high-power inverter with pure sine wave output, dual-CPU control, and multiple protection features, designed for photovoltaic energy storage applications.
Product Specifications
| Model: | 10KW | 15KW | 20KW | 25KW | 30KW | 40KW | |
| Battery | Rated Voltage | 192/240/360Vdc | 360/384Vdc | ||||
| Charging Current | 5–30 A (default) 20%–100% (configurable) | ||||||
| Charging Voltage | P2 is configurable | ||||||
| Input | Mains Voltage Range | 85-138VAC/170-275VAC | |||||
| Frequency | 45-65Hz | ||||||
| Output | Voltage Range | 110 VAC/220 VAC ±5% (inverter mode) | |||||
| Frequency | 50/60 Hz ±1% (inverter mode) | ||||||
| Output Waveform | Sine wave | ||||||
| Conversion Time | 8ms | ||||||
| Efficiency | >85% (80% resistive load) | ||||||
| Overload | 110-120%/30s;>160%/300ms | ||||||
| Protection Features | Battery overvoltage and undervoltage protection, overload protection, short-circuit protection, over-temperature protection, etc. | ||||||
| Operating Temperature | 0-40℃ | ||||||
| Storage Temperature | -15 -+50℃ | ||||||
| Operating/Storage Environment | 0–90% (no condensation) | ||||||

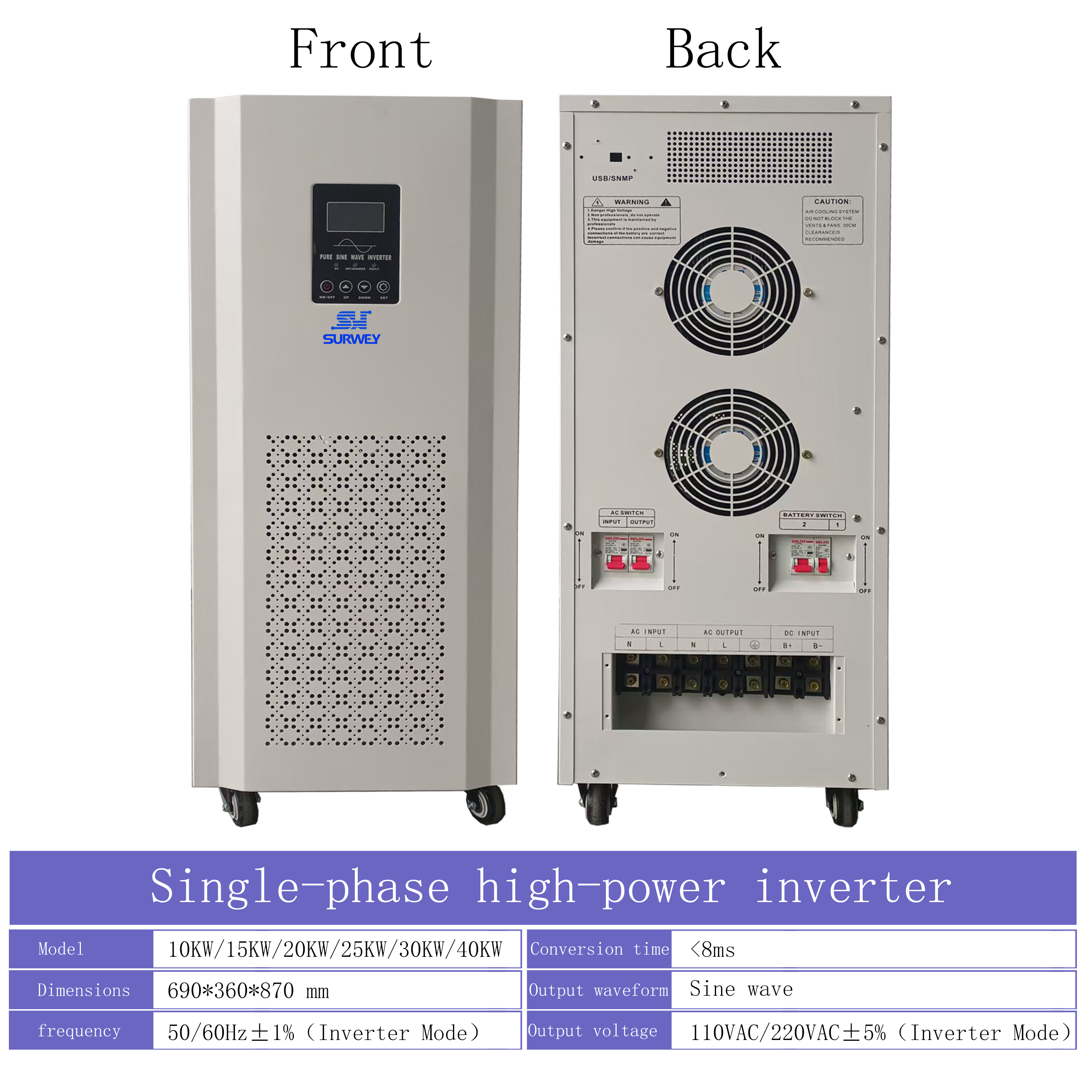

| Dimensions (mm) | 690*360*870 mm | ||||||
| Packaging Dimensions (mm) | 760*430*1020 mm | ||||||
| Note: The Company reserves the right to make changes without prior notice. | |||||||
