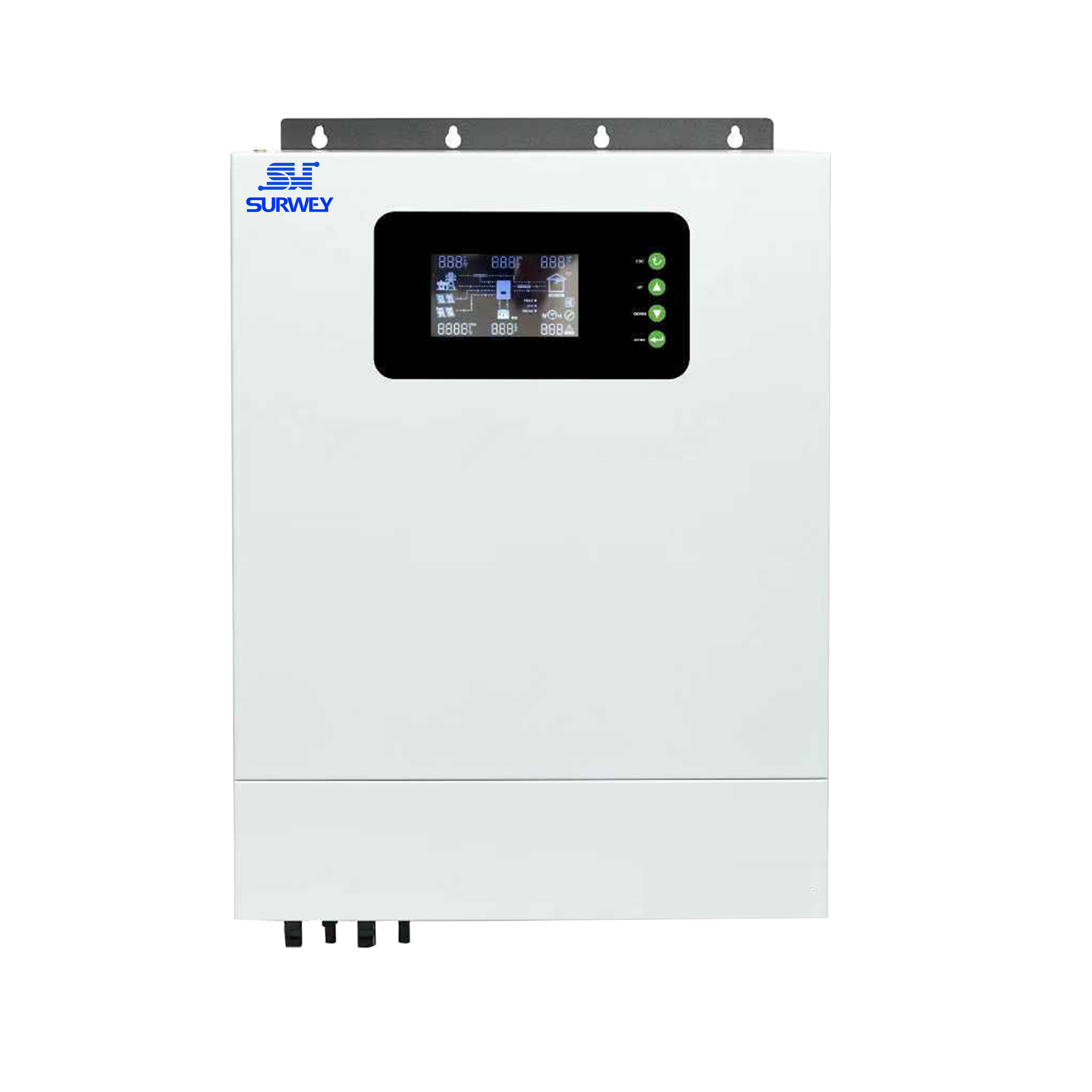

6.2/8/10.2/11 kW High-Frequency Inverter-Controller Combination Unit
1. High-frequency inverter
2. Built-in MPPT solar charging controller
3. Input voltage range is optional
4. Charging current can be selected according to the application

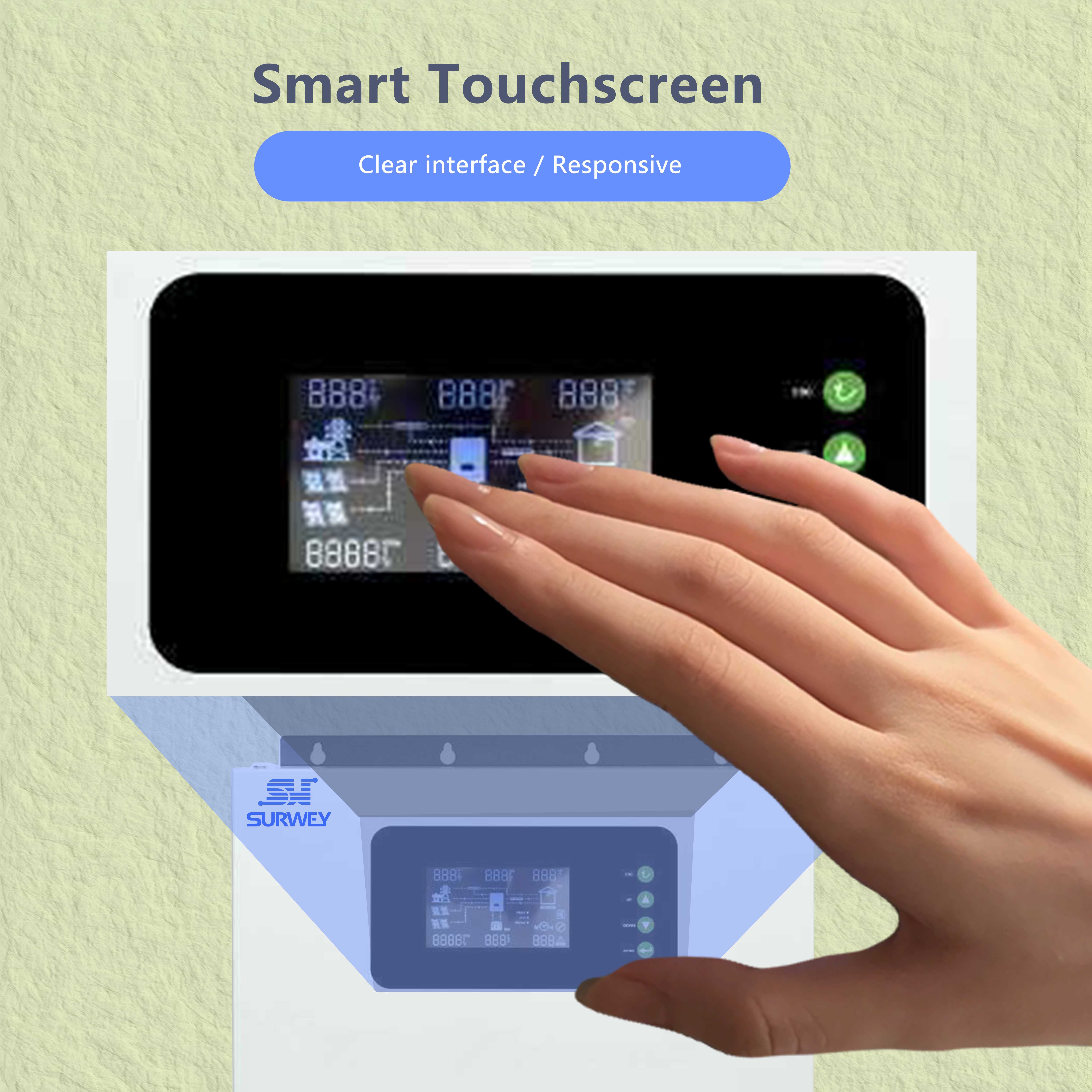

5. Set the AC input priority on the LCD
6. After the AC recovers, it automatically restarts
7. Overload and short circuit protection
8. Intelligent charger design, optimize battery performance
9. Cold start function

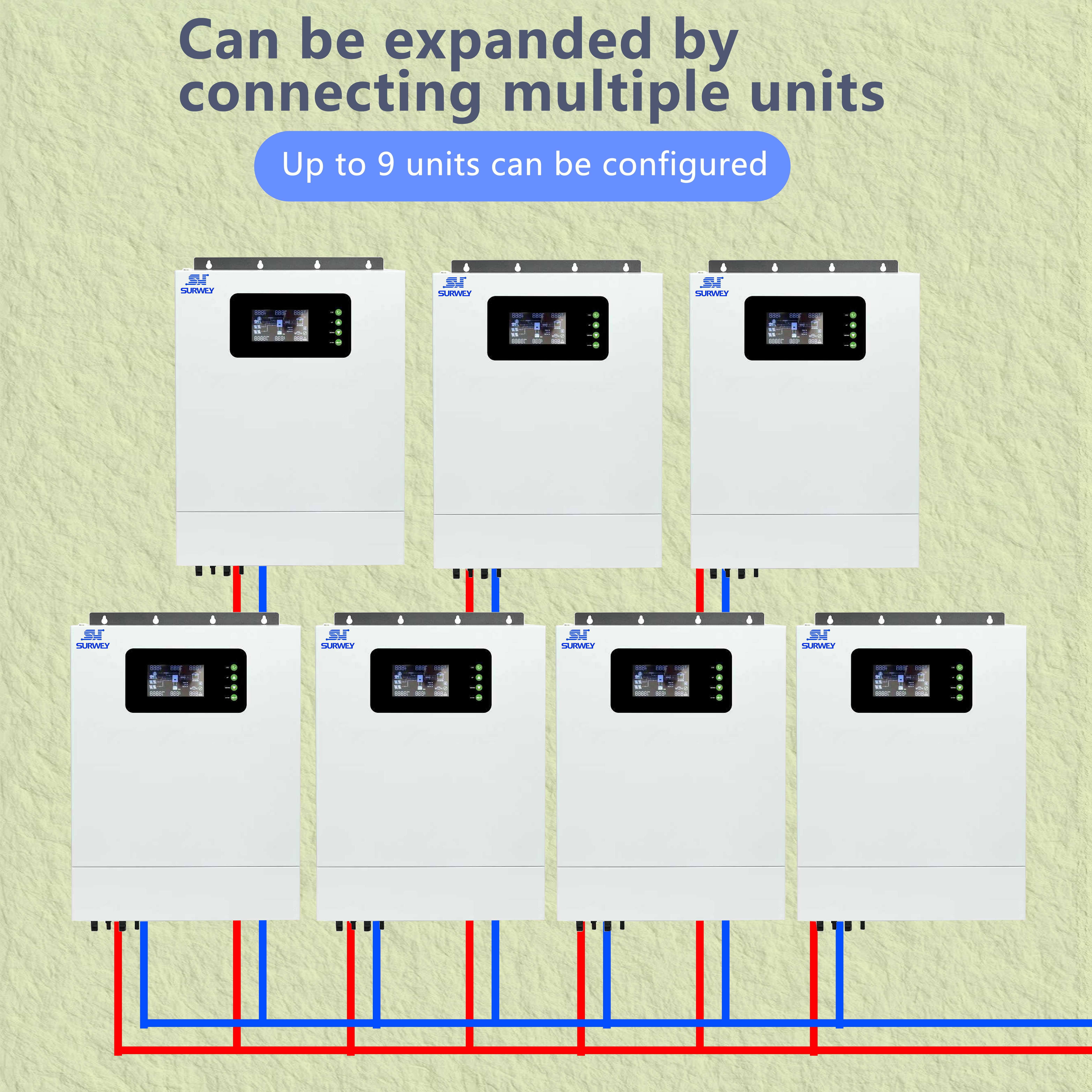

10. Run in parallel, up to 9 units can be configured
2. Built-in MPPT solar charging controller
3. Input voltage range is optional
4. Charging current can be selected according to the application
5. Set the AC input priority on the LCD
6. After the AC recovers, it automatically restarts
7. Overload and short circuit protection
8. Intelligent charger design, optimize battery performance
9. Cold start function
10. Run in parallel, up to 9 units can be configured
Product Specifications
| Model number | SW-GP6200-48 | SW-GP8000-48 | SW-GP10200-48 | SW-GP11000-48 |
| Rated power | 6200VA/6200W | 8000VA/8000W | 10200VA/10200W | 11000VA/11000W |
| input | ||||
| Input standard | L+N+PE | |||
| Input voltage range | 90~280VAC | 230VAC±5% | ||
| Rated input voltage | 208/220/230/240VAC(50/60Hz) | 300VAC | ||
| exportation | ||||
| Output standard | L+N+PE | |||
| Output voltage | 208/220/230/240VAC | 230VAC | ||
| Output frequency | Mains mode: Follows the mains frequency. Battery mode :50/60Hz±0.1Hz | 50Hz/60Hz | ||
| Switching time | APP and UPS mode :10ms(typical) | Typical 15ms (UPS); 25ms Typical (electrical) | ||
| Overload capacity (battery mode) | 1min@102%~110%L0ad/10s@110%～130%L0ad/35@130%～150%L0ad/200ms@>150%Load | |||
| Overall efficiency | ||||
| Battery Mode (Max) | 94%@48VDC | |||
| recharger | ||||
| PV charging mode | MPPT | |||
| PV Maximum charging power | 6000W | 5000W X2 | 6000W X2 | |
| PV Maximum input current | 18A | 16A X2 | 18A X2 | |
| MPPT tracking range | 120~450VDC | 65～450VDC | ||
| Maximum PV input voltage | 500VDC | 500VDC | ||
| Maximum PV charging current | 80A～100A | 150A | ||
| Maximum mains charging current | 80A～80A | 120A | ||
| Maximum charging current | 80A～100A | 150A | ||
| battery | ||||
| Rated voltage | 48VDC | |||
| Constant voltage charging voltage | 56.4VDC | Lithium battery 58.4VDC/ colloidal battery 56.4VDC | ||
| Floating charging voltage | 54VDC | |||
| port | ||||
| Expansion slot communication interface | 2×5PIN/Pitch2.54mm, lithium battery BMS communication card, WIF card, dry contact card, etc | COMM | ||
| Parallel interface | Yes | / | ||
| Protection function | Over temperature, overload, over voltage, over current, short circuit protection | |||
| Operating ambient temperature | 0~40℃ | |||
| Operating environment humidity | 20%~95%(No condensation) | |||
| Storage temperature | -15℃~60℃ | |||
| altitude | The altitude should not exceed 1000m, and the derating above 1000m is maximum 4000m。 | |||
| Product size | 456*300*131mm | 522.6*389*143mm | ||
| Package size | 510*370*195mm | 610*460*215mm | ||
