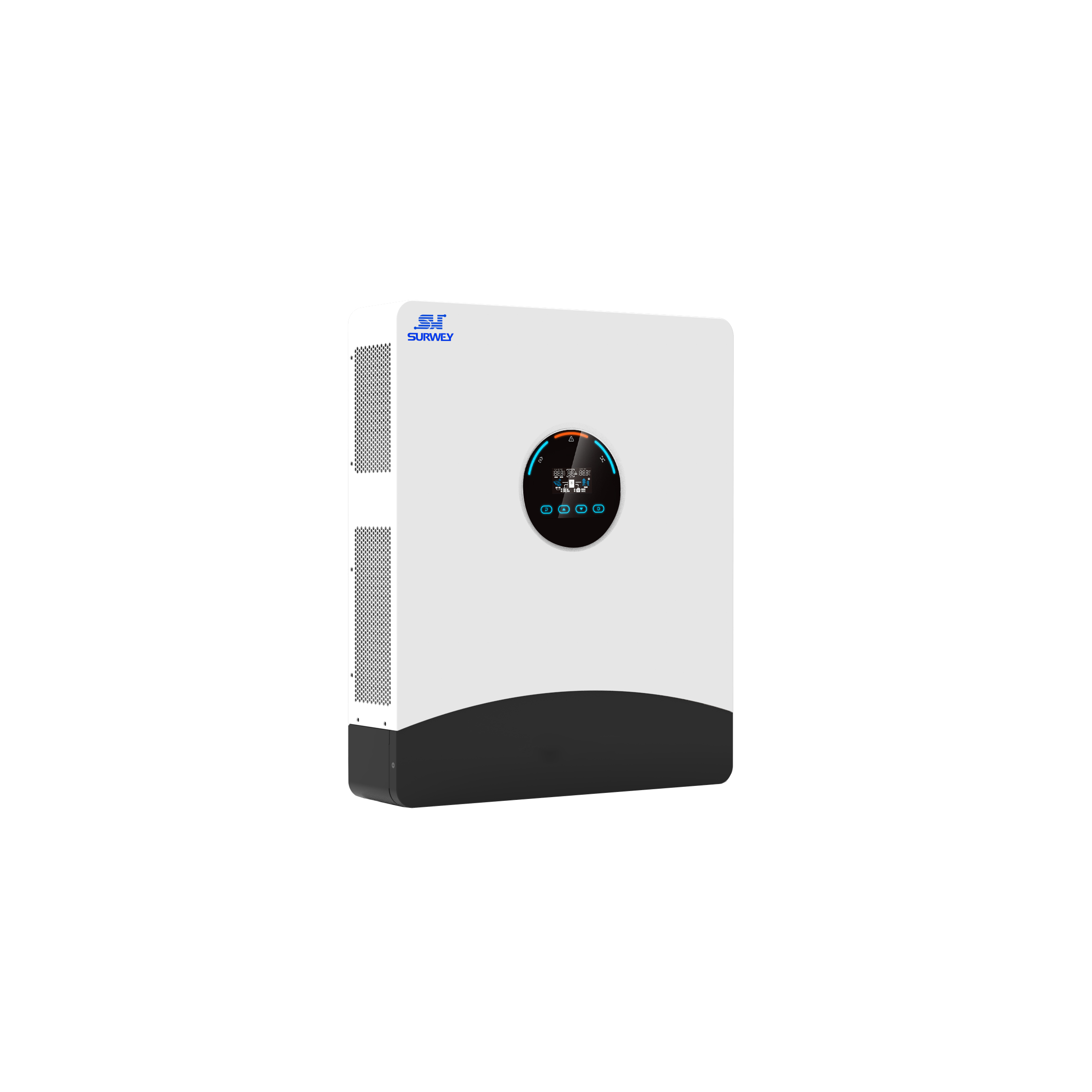

OFF GRID INVERTER SW Series EU Single Phase

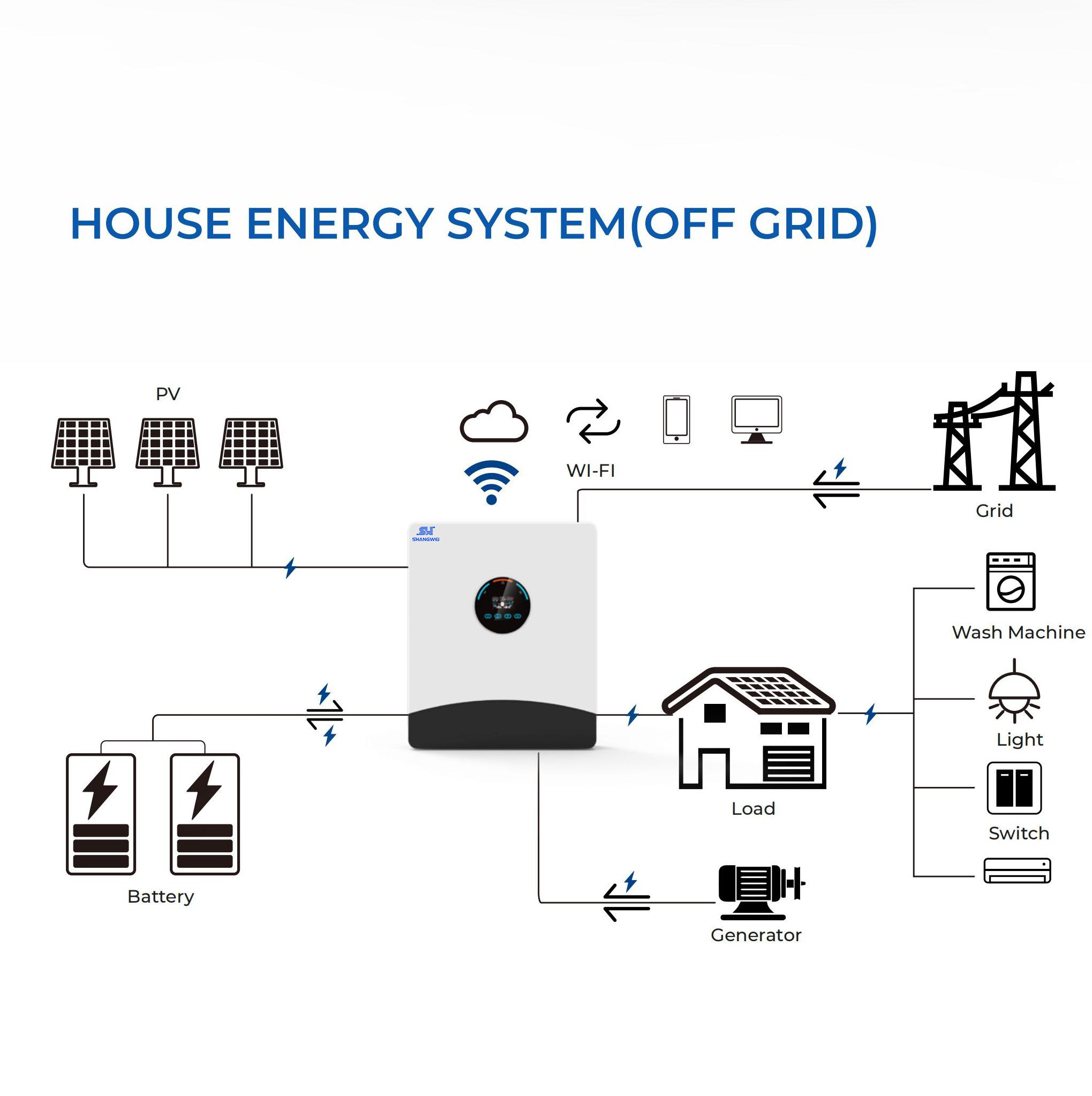

1.Twin PV Input
2.Twin AC Output
3.IP54 Design
4.3Years Warranty
5.Max. 12 Units Paralle
6.Wide MPPT Operating Range
7.Built-ln BMS Communication
2.Twin AC Output
3.IP54 Design
4.3Years Warranty
5.Max. 12 Units Paralle
6.Wide MPPT Operating Range
7.Built-ln BMS Communication

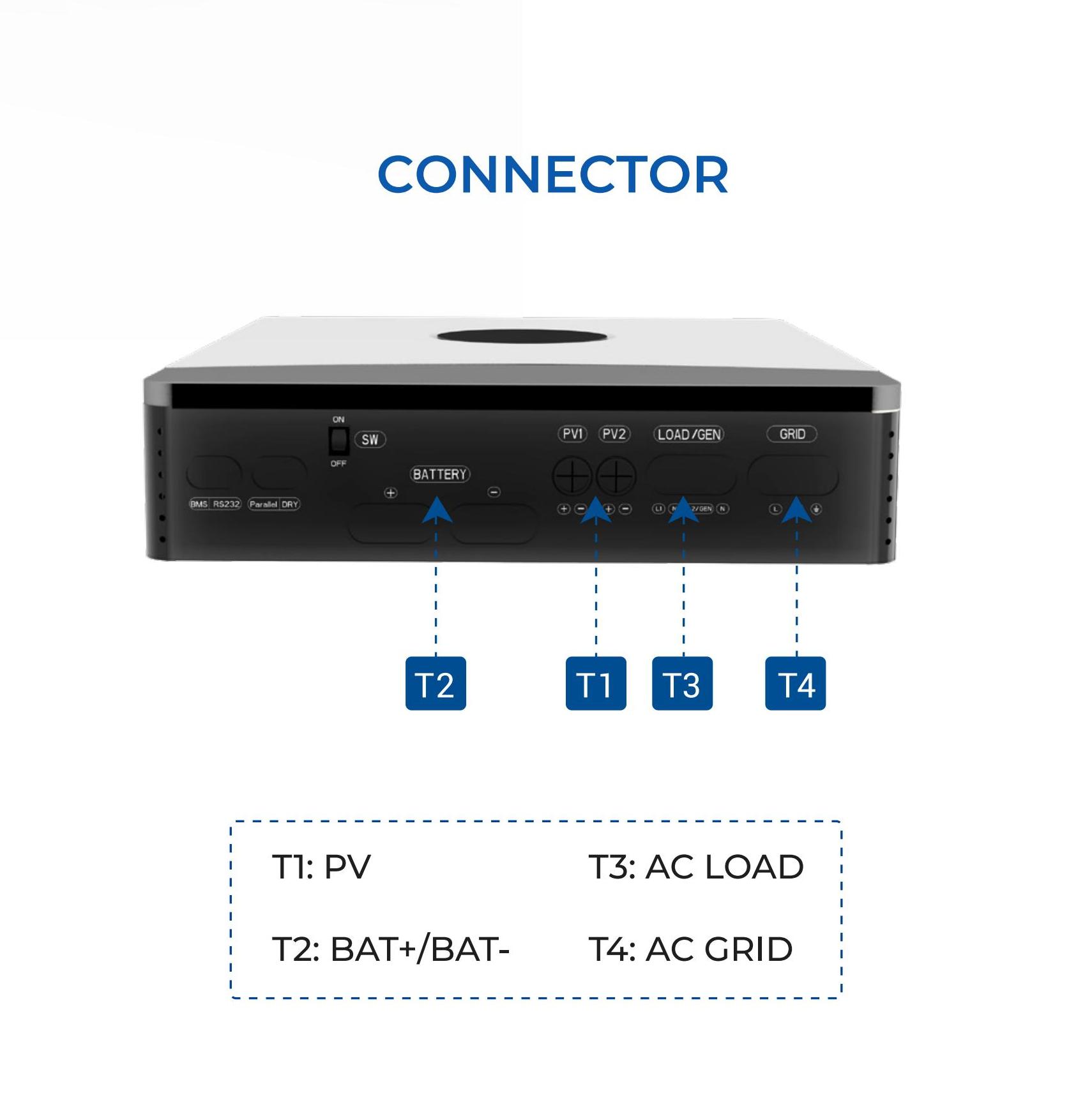

Product Specifications
| SW-12KL1 | |
| PV(DC Input) | |
| Recommended max.PV input power | 16000w |
| Max.input voltage(Voc) | 500V |
| MPPT operating voltage range | 85V-450V(@85V start up) |
| Number of MPPT | 2 |
| Max.number of input strings per MPPT | 2 |
| Max.input current per MPPT | 27/27A(MAX:54A) |
| Max.short-circuit current per MPPT | 32A/32A |
| Grid(AC Input) | |
| Max input power | 20700W |
| Max input current | 90A |
| Rated grid voltage | 220/230/240Vac |
| Rated grid frequency | 50/60Hz |
Acceptable range |
170-280Vac(For UPS);90-280Vac(For Home Appliances) |
| Battery parameters(Bidirection) | |
| Battery type | LiFePO4/Lead-acid |
| Battery voltage range | 40~60Vdc |
| Rated Battery Voltage | 48Vdc |
| Max.charge/discharge current | 210A/230A |
| BMS communication mode | RS485 |
| Back-up Output(AC Output) | |
Rated output power |
12000W/12000VA (Twin output) |
| Rated output current | 54.5A |
Rated output voltage/Frequency |
220/230/240Vac 50/60Hz |
| Parallel Capacity | Single-phase Max.6units; Three-phase Max.12 units |
| Surge power | 24000VA 5s |
| THDv(@linear load) | <3% |
| Switching time | 10ms typical(For UPS)20ms typical(For Home Appliances) |
| Efficiency | |
| Peak efficiency | 98% |
| Max.MPPT efficiency | 99.9% |
| Protection | |
| Inner protection | √Output short-circuit protection √Output overvoltage protection |
| Surge protection | PV:TypeⅢI,AC:TypeⅢ |
| IP rating | IP54 |
| General Parameters | |
| Operating temperature range | -10℃~55℃ |
| Relative humidity range | 10%~95% |
| Max.operating altitude | >2000m derating |
| Standby self-consumption | <20W |
| Installation type | Wall-mounted |
| Cooling mode | Fan cooling |
| Communication | RS232/RS485R/Dry contact/WI-FI |
| Display | LCD |
| Mechanical Specifications | |
| Inverter dimensions(L*W*H)(mm) | 630*525*725 |
| Net weight (kg) | 28.5 |
Carton dimensions(L*W*H)(mm) |
715*620*210 |
| Gross weight(kg) | 32 |
| Warranty Period | 3 Years |
