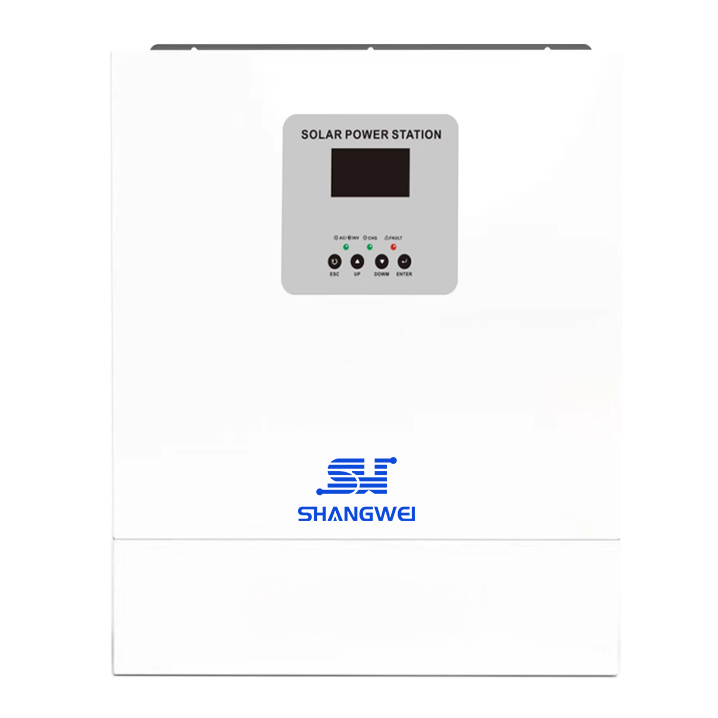

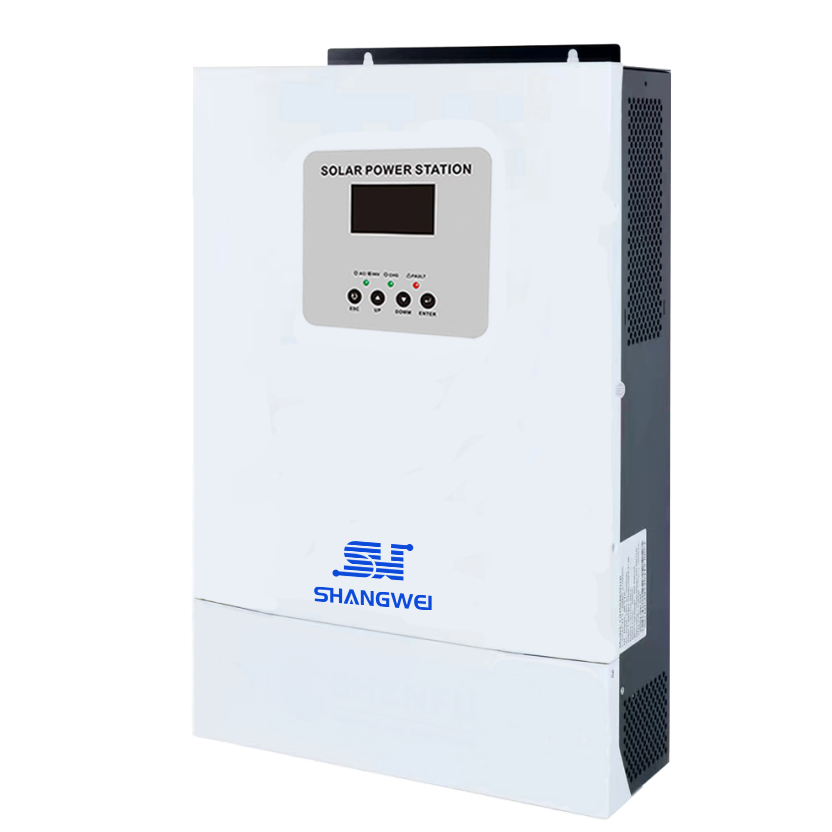

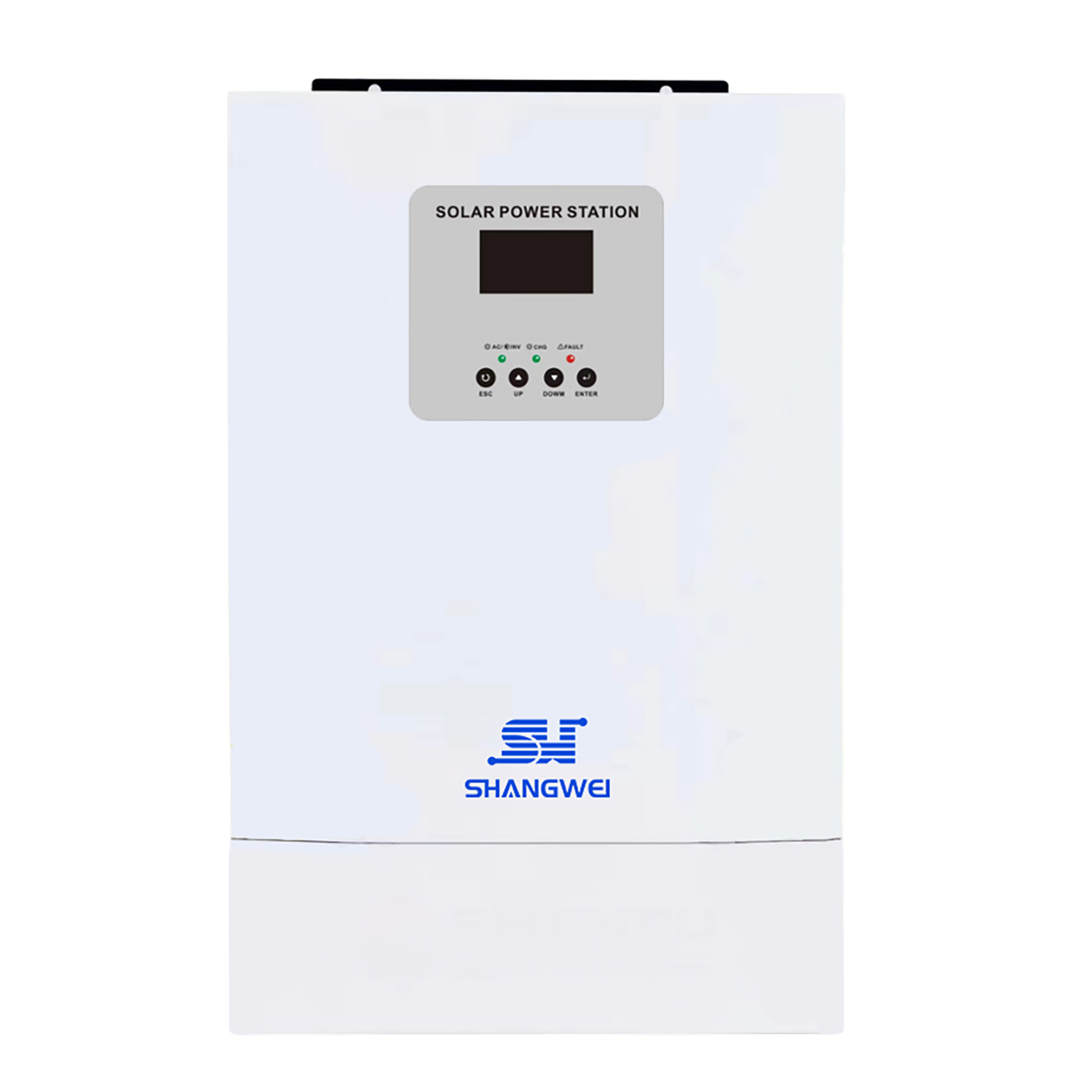

3.6–12 kW Solar-Storage Inverters
3.6–12 kW PV-storage inverter, MPPT efficiency ≥99%, supports 48–400 V wide-voltage batteries, compatible with PV direct-drive and energy storage modes, suitable for residential and commercial/industrial energy storage systems.
Product Specifications

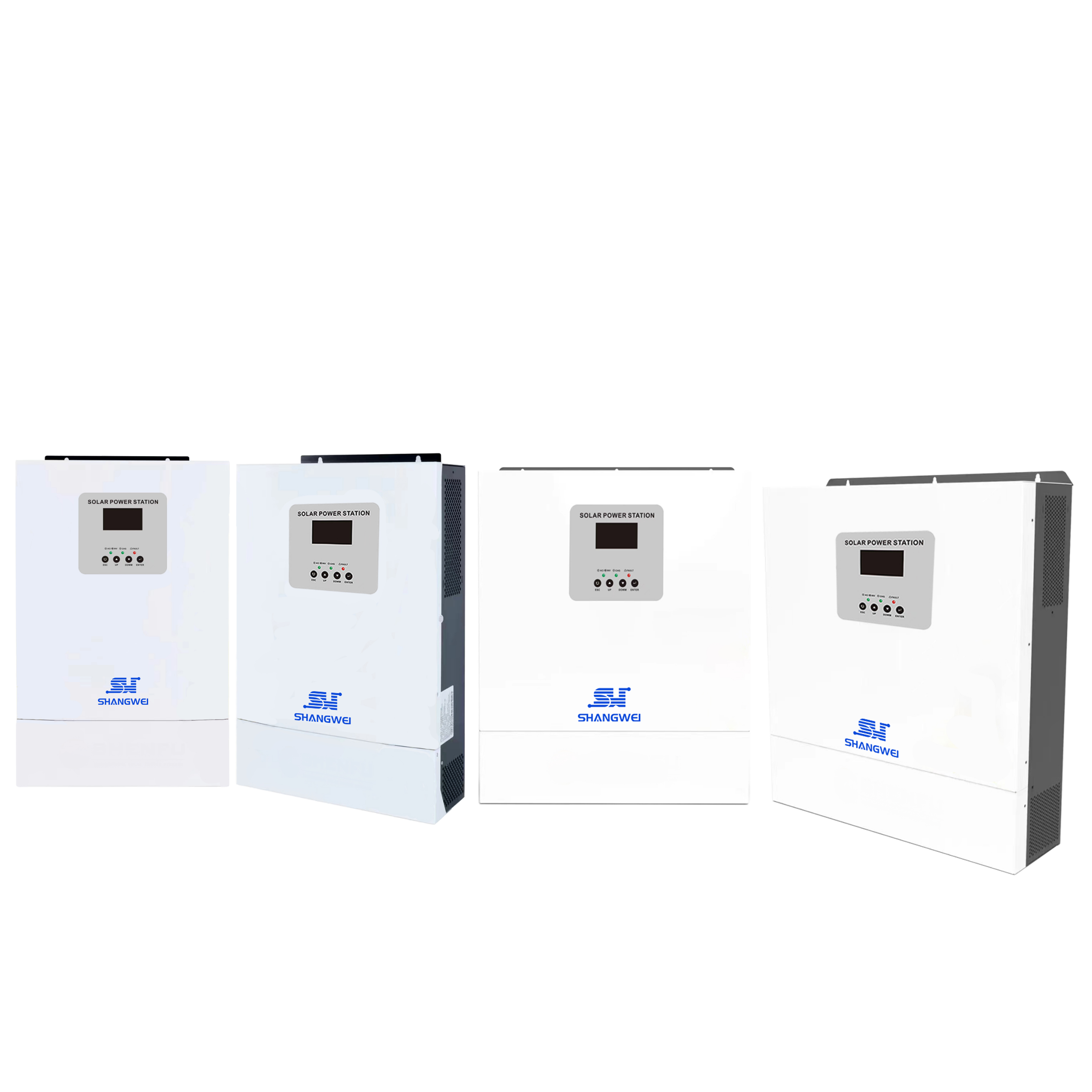

| Solar-Storage Inverters 3.6 kW/5.0 kW/6.0 kW/12.0 kW |
|||||||
| Integrated PV and inverter control / Seamless switching between grid-connected and off-grid modes / EMS energy management system for optimized peak-and-off-peak power usage / Mobile app | |||||||
| Parameters | SW-PV5000-3.6KW/24 | SW-PV6000-5KW/51.2 | SW-PV9000-6KW/51.2 | SW-PV15000-12KW/51.2 | |||
| Photovoltaic Parameters | |||||||
| Maximum Input Power (W) | 5.0KW | 6.0KW | 9.0KW | 15.0KW | |||
| Maximum Input Voltage (V) | 500V | ||||||
| MPPT Operating Range (V) | 60~450V | 90~450V | |||||
| MPPT Rated Voltage (V) | 100V-450V | 200-450V | |||||
| Start-up Voltage (V) | 60V | 90V | |||||
| Maximum Input Current (A) | 100A | 100A | 120A | 160A | |||
| Maximum Short-Circuit Current (A) | 105A | 105A | 120A | 160A | |||
| Number of MPPT Channels | 1路 | 1路 | 1路 | 2路 | |||
| Number of Strings per MPPT Channel | 2/2 | 2/2 | 2/2 | 4/4 | |||
| PV MPPT Efficiency (%) | 99% | ||||||
| AC Parameters (Input) | |||||||
| Maximum Charging Power (kW) | 1.5-3.0KW | 3-5.0KW | 3-6.0KW | 6-12.0KW | |||
| Rated Voltage (Vac) | 208/220/230/240;L+N+PE | ||||||
| Rated Frequency (Hz) | 50/60 Hz (auto-switch) | ||||||
| Voltage Range (Vac) | 90~280±3(normal mode);170~280±3(UPS mode) | ||||||
| Switching Time (ms) | 10(APP/UPS mode)/20(GEN mode) | ||||||
| Power Factor Range | ~1 (0.8 lead/0.8 lag, configurable) | ||||||
| Total Harmonic Distortion (THD) (at Rated Power) (%) | <3% | ||||||
| AC Parameters (Off-Grid Side) | |||||||
| Rated Output Power (kW) | 3.6KW | 5.0KW | 6.0KW | 12.0KW | |||
| Rated Output Voltage (Vac) | 208/220/230/240;L+N+PE | ||||||
| Rated Output Frequency (Hz) | 50/60Hz±0.1% | ||||||
| Overload Capacity in Battery Mode | 60s@102%-110%load;10s@110%-130%load; 3s@130%-150%load;0.2s@>150%load |
||||||
| Conversion Efficiency (%) | 92-95% | ||||||
| AC Parameters (Diesel Generator Side) | |||||||
| Rated Voltage (Vac) | 90~280±3(normal mode);170~280±3(UPS mode) | ||||||
| Rated Frequency (Hz) | 50/60 Hz (auto-select) | ||||||
| Rated Input Power (kW) | 1.5KW | 3.0KW | 3.0KW | 6.0KW | |||
| Battery Specifications | |||||||
| Nominal Voltage | 25.6V | 51.2V | |||||
| Operating Voltage Range (V) | 24-28V | 48-58V | |||||
| Maximum Voltage (V) | 30.6V | 61.0V | |||||
| Battery Type | Lithium iron phosphate (LFP)/Lithium-ion/Lead-acid | ||||||
| Charge/Discharge Current | 100A/100A | 100A/100A | 120A/120A | 160A/160A | |||
| Temperature Control System | |||||||
| Temperature Control System | Automatic cooling / Air cooling | ||||||
| Basic Specifications | |||||||
| Operating Temperature Range (°C) | -25 to 60 (reduced amount if over 45) | ||||||
| Operating Altitude (m) | <4000 | ||||||
| Noise Emission (dB) | <30-60 | ||||||
| Protection Rating | IP20 | ||||||
| Relative Humidity Range (%) | 0–95%, non-condensing | ||||||
| Dimensions (W x H x D) (mm) | 430*290*100MM | 410*336*110MM | 500*430*120MM | ||||
| Weight (kg) | 6.2KG | 8.6.KG | 15.0KG | ||||

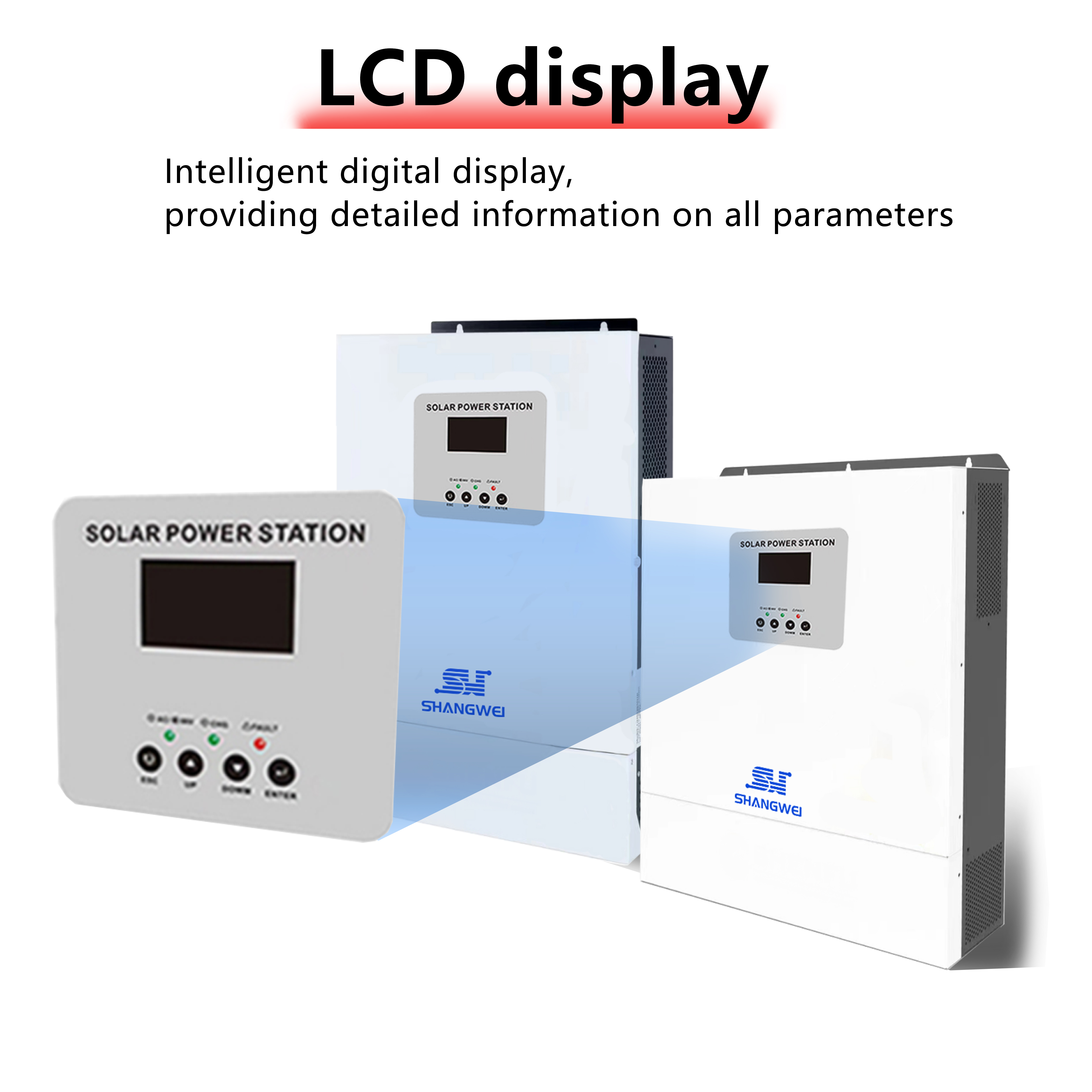

| User Interface | LCD/APP | ||||||
| Cloud Communication Method | Wi-Fi, GPRS, 4G (optional) | ||||||
| Display Interface | LCD、RS485、CAN、 | ||||||
| Certifications | UN38.3 MSDS CE | ||||||
| Safety Standards | IEC62109-1/-2 | ||||||
| EMC Standards | EN61000-6-1/-3,IEC61000 | ||||||
