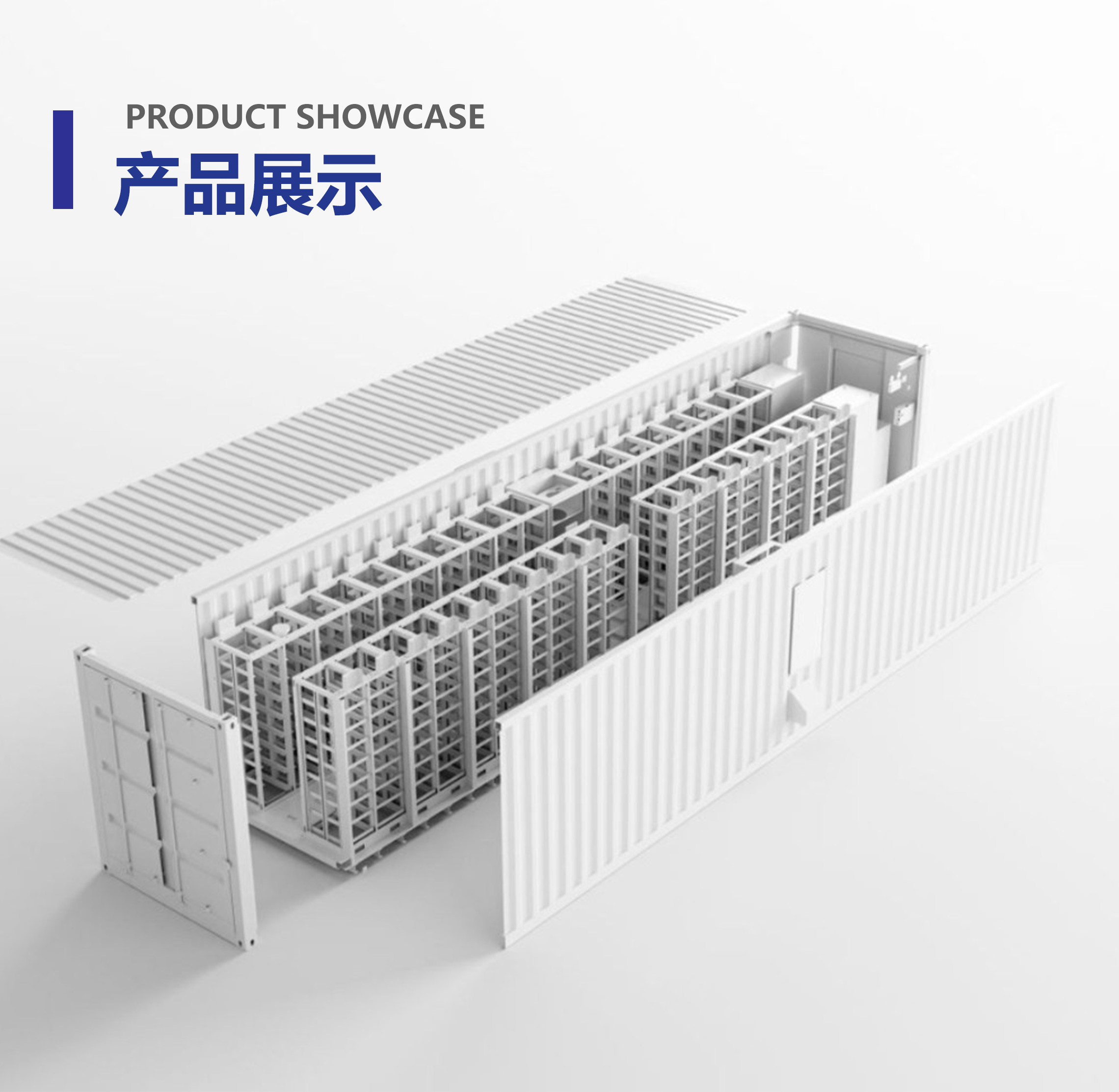

2 MW / 4 MWh Energy Storage System Solution
High energy density, cluster-level liquid cooling design, modular and flexible scalability, highly integrated temperature control, and a safe, long-lasting commercial and industrial energy storage system.
Product Specifications
| Technical Data | SW4MWh-2MW |
| DC side | |
| Cell type | LFP 3.2V/314 Ah C-rate:0.5C |
| Battery configuration | 416S*70P |
| Nominal capacity | 4179.9 kWh |
| Nominal voltage range | 1123.2V-1497.6V |
| AC side | |
| Nominal AC power | 2MW |
| AC current distortion rate | <3%(Nominal Power) |
| DC component | <0.5% |
| Nominal AC voltage | 400V-690 V |
| AC voltage range | 621V-759 V |
| Termination (LV) | 3 Phase |
| Power factor | >0.99(Nominal Power) |
| Adjustable range of reactive power | -100%-100% |
| Nominal frequency | 50/60Hz |
| Isolation method | Transformer connect to 11KV |
| System parameter | |
| Dimension(W*H*D) | 6058 mm*2896 mm*2438 mm |
| Weight | 35000 kg |
| Degree of protection | IP55 |
| Anti-corrosion Degree | C3 |
| Operation Ambient Temperature Range | -30℃-50℃(>45℃ Derating) |
| Operation humidity range | 0%-100%(Non-condensing) |
| Maximum Operation Altitude | 4000 m |
| Temperature Control Method | Intelligent Liquid Cooling |
| Fire suppression system | FACP, FK5112, Flammable gas detector, Smoke detector, Heat detector, Sounder beacon, Alarm bell, Warning sign, Extinguishant abort button, Ventilation system, Pressure relief port, Manual automatic switching and emergency starting device(Default) Sprinkler, Vent panel, Aerosol(Optional) |
| Communication | Ethernet/Modbus TCP,IEC104 |
| IEC61000, IEC62619, IEC62933,UN38.3,CE,IEC62477 | |
