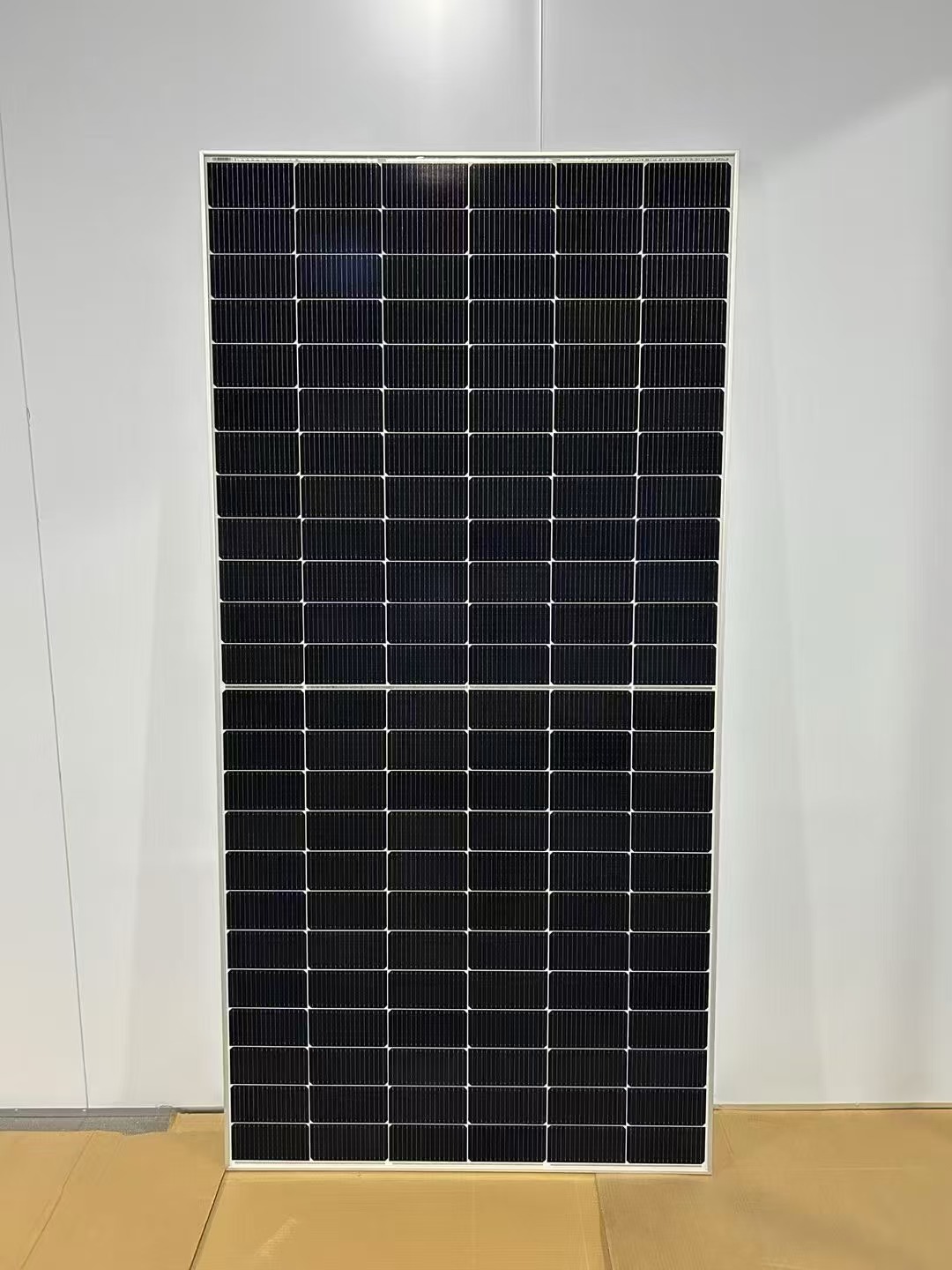

565–585 W monocrystalline laminated glass solar panel
565–585W monocrystalline solar panels, encased in tempered glass, are durable and corrosion-resistant. They are compatible with a wide range of solar systems, offering reliable and high-efficiency power generation, and are suitable for residential solar installations, commercial and industrial power plants, and other applications.
Product Specifications
| ELECTRICAL SPECIFICATIONS | ||||||||||
| Module Type | SW565N-144BDM10 | SW570N-144BDM10 | SW575N-144BDM10 | SW580N-144BDM10 | SW585N-144BDM1 | |||||
| Testing Condition | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT |
| Rated output(Pmp/Wp) | 565 | 425 | 570 | 429 | 575 | 432 | 580 | 436 | 585 | 439 |
| Maximum Power Voltage(Vmpp/V) | 42.1 | 39.5 | 42.3 | 39.7 | 42.4 | 39.8 | 42.6 | 39.9 | 42.8 | 40.0 |
| Maximum Power Current(Impp/A) | 13.42 | 10.76 | 13.48 | 10.81 | 13.56 | 10.86 | 13.62 | 10.93 | 13.67 | 10.98 |
| Open Circuit Voltage(VocV) | 50.9 | 48.3 | 51.1 | 48.5 | 51.3 | 48.7 | 51.5 | 48.9 | 51.7 | 49.1 |
| Short Circuit Current(Isc/A) | 14.19 | 11.46 | 14.25 | 11.50 | 14.31 | 11.55 | 14.37 | 11.60 | 14.43 | 11.65 |
| Module efficiency(%) | 21.9% | 22.1% | 22.3% | 22.5% | 22.6% | |||||
| Power Tolerance(W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 | |||||
| STC:Iradiance 1000W/m2,CellTemperature 25℃,Air Mass AM1.5 NMOT:Iradiance a 800W/m2,Ambient Temperatue 20°℃,Air Mass AM1.5,Wind Speed 1m/s | ||||||||||

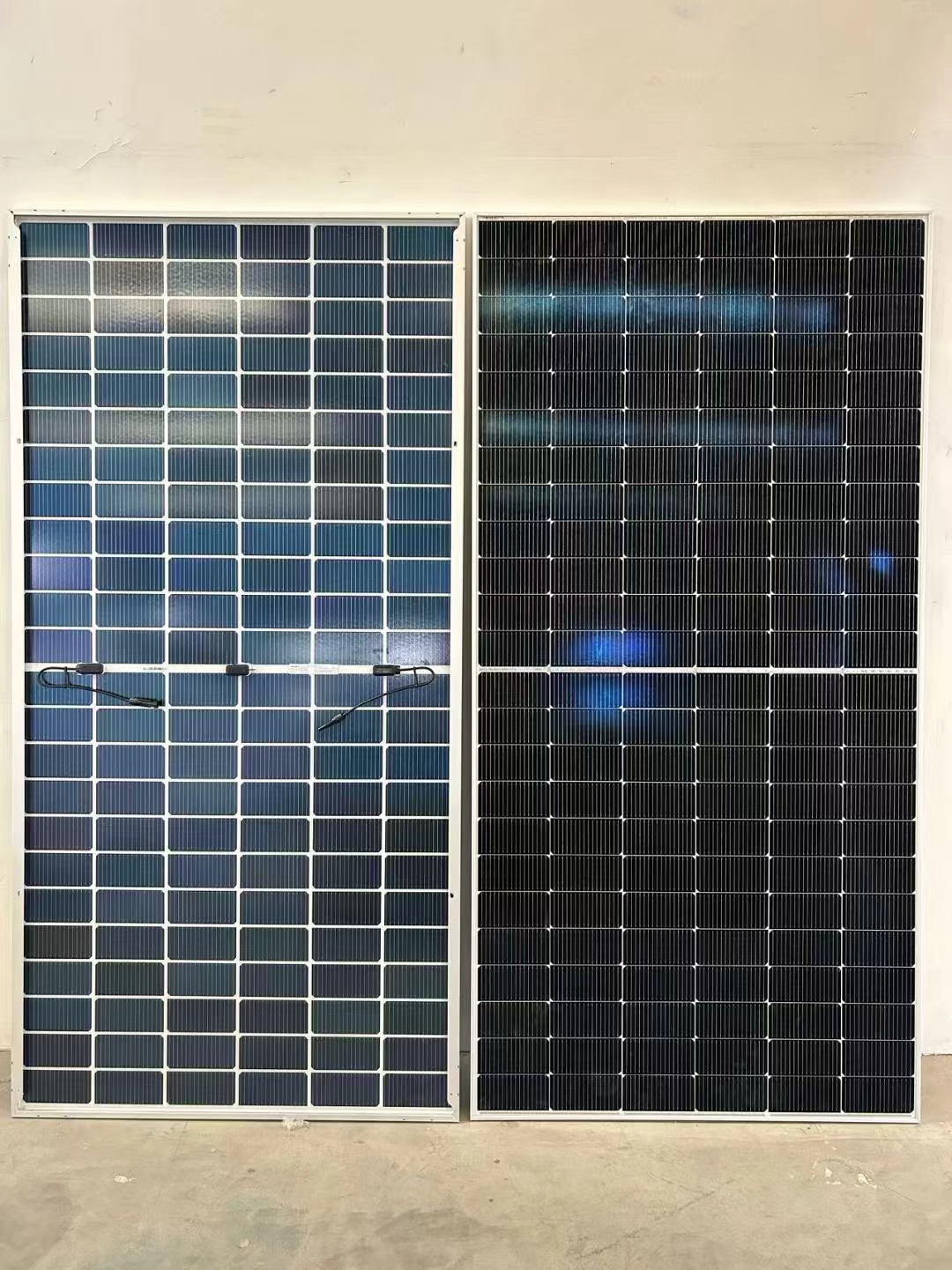

| BIFACIAL OUTPUT-REARSIDE POWER GAIN | ||||||||||
| 5% | Maximum Power(Pmax) | 593 | 599 | 604 | 609 | 614 | ||||
| Module Efficiency STC(%) | 23.0% | 23.2% | 23.4% | 23.6% | 23.8% | |||||
| 15% | Maximum Power(Pmax) | 650 | 656 | 661 | 667 | 673 | ||||
| Module Efficiency STC(%) | 25.2% | 25.4% | 25.6% | 25.8% | 26.1% | |||||
| 25% | Maximum Power(Pmax) | 706 | 713 | 719 | 725 | 731 | ||||
| Module Efficiency STC(%) | 27.3% | 27.6% | 27.8% | 28.1% | 28.3% | |||||
| MAXIMUM RATINGS | ||||||||||
| Maximum System Voltage | 1000V/1500V DC(IEC) | |||||||||
| Operating Temperature | -40℃~+85℃ | |||||||||
| Maximun Series Fuse | 30A | |||||||||
| Static Loading | Snow Loading:5400Pa/Wind Loading:2400Pa | |||||||||
| Conductivity at Ground | ≤0.1Ω | |||||||||
| Safety Class | II | |||||||||
| Resistance | ≥100MΩ | |||||||||
| TEMPERATURE CHARACTERISTICS | ||||||||||
| NMOT Temperature | 45℃±2℃ | |||||||||
| Temprature Coefficient(Pmax) | -0.30%/℃ | |||||||||
| Temprature Coefficient(Voc) | -0.25%/℃ | |||||||||
| Temprature Coefficient(Isc) | 0.046%/℃ | |||||||||
| MECHANICAL SPECIFICATIONS | ||||||||||
| Cell Type | N type Mono-crystalline | |||||||||
| Cell Dimensions | 182*182mm | |||||||||
| Cell Arrangement | 144(6*24) | |||||||||
| Weight | 32kg | |||||||||
| Module Dimensions | 2278*1134*30mm | |||||||||
| Cable Length | Portrait 300mm/Landscape 1200mm/Customized | |||||||||
| Cable Cross Section Size | TUV:4mm²/UL:12AWG | |||||||||
| Front Glass | 2.0mm,Anti-Reflection Coating | |||||||||
| Back Glass | 2.0mm,Heat Strengthened Glass | |||||||||
| No.of Bypass Diodes | 3/6 | |||||||||
| Packing Configuration(1) | 36pcs/pallet,720pcs/40hq | |||||||||
| Frame | Anodized Aluminium Alloy | |||||||||
| Junction Box | IP68 | |||||||||
