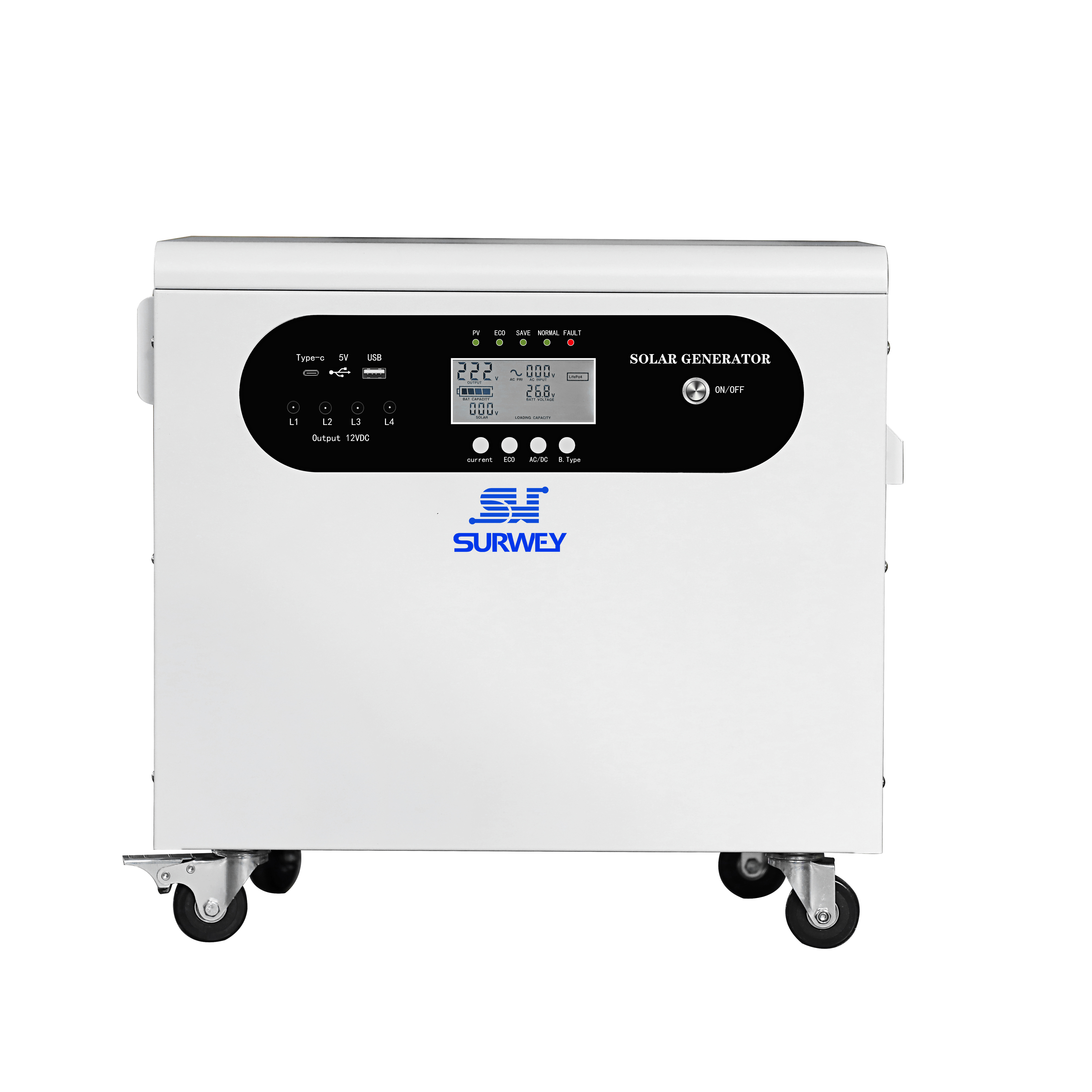

1–6 kW All-in-One Energy Storage System
This solar-storage system boasts 99.9% MPPT efficiency and supports high-power modules. It provides pure sine wave output with LiFePO4 batteries and great expandability. Sleek and easy to install, it comes with comprehensive safety protection and certified reliability. Compatible with various batteries, it enables smart time-shift charge-discharge for efficient energy saving.
Product Specifications
| Model | SW-T1K | SW-T2K | SW-T3K | SW-T3K | SW-T3K | SW-T5K | SW-T5K | SW-T6K |
| Rated power | 1000W | 2000W | 3000W | 3000W | 3000W | 5000W | 5000W | 6000W |
| Introduction | ||||||||
| Voltage | 220VAC | |||||||
| Input voltage range | 165V-260VAC | |||||||
| Frequency range | 50 Hz/60 Hz | |||||||
| Exit | ||||||||
| AC Output Voltage | 2 0 0 V A C 士 5 % | |||||||
| Peak Power | 600VA | |||||||
| Efficiency (Peak) | 83%~85% | |||||||
| Transition Time | 15 minutes (personal computer); 20 milliseconds (household appliance) | |||||||
| Waveform | Pure sine wave | |||||||
| Battery | ||||||||
| Battery capacity | 50AH | 100AH | 120AH | 160AH | 100AH | 100AH | 200AH | 200AH |
| Battery voltage | 25.6VDC | 25.6VDC | 25.6VDC | 25.6VDC | 51.2VDC | 51.2VDC | 51.2VDC | 51.2VDC |
| Charging voltage | 29.2VDC | 29.2VDC | 29.2VDC | 29.2VDC | 57.2VDC | 57.2VDC | 57.2VDC | 57.2VDC |
| Overcharge protection | 32VDC | 32VDC | 32VDC | 32VDC | 58.4VDC | 58.4VDC | 58.4VDC | 58.4VDC |
| Solar charger and AC charger | ||||||||
| Solar Charger Type | MPPT | |||||||
| Maximum Photovoltaic Power | 960 W | 1800 W | 1920 W | 1920 W | 1920 W | 3840 W | 4200 W | 4800 W |
| PW M Operating Voltage Range | 72-170 VDC | |||||||
| Maximum Open-Circuit Photovoltaic Voltage | 200VDC | |||||||
| Maximum Solar Charging Current | 30A | 50A | 60A | 60A | ||||
| Maximum DC current | 20A | 10-50A | ||||||
| Maximum charging current | 30A | 50A | 60A | |||||
| Physical parameters | ||||||||
| Product dimensions (mm) | 398*230*405 | 467*300*445 | 520*370*520 | |||||
| Package dimensions (mm) | 472*303*480 | 550*380*515 | 600*453*655 | |||||
| Communication interface | Optional | |||||||
| Work environment | ||||||||
| Humidity | Relative humidity from 5% to 95% (non-condensing) | |||||||
| Operating temperature | -10℃t50℃ | |||||||
| Storage temperature | -15℃m60℃ | |||||||
