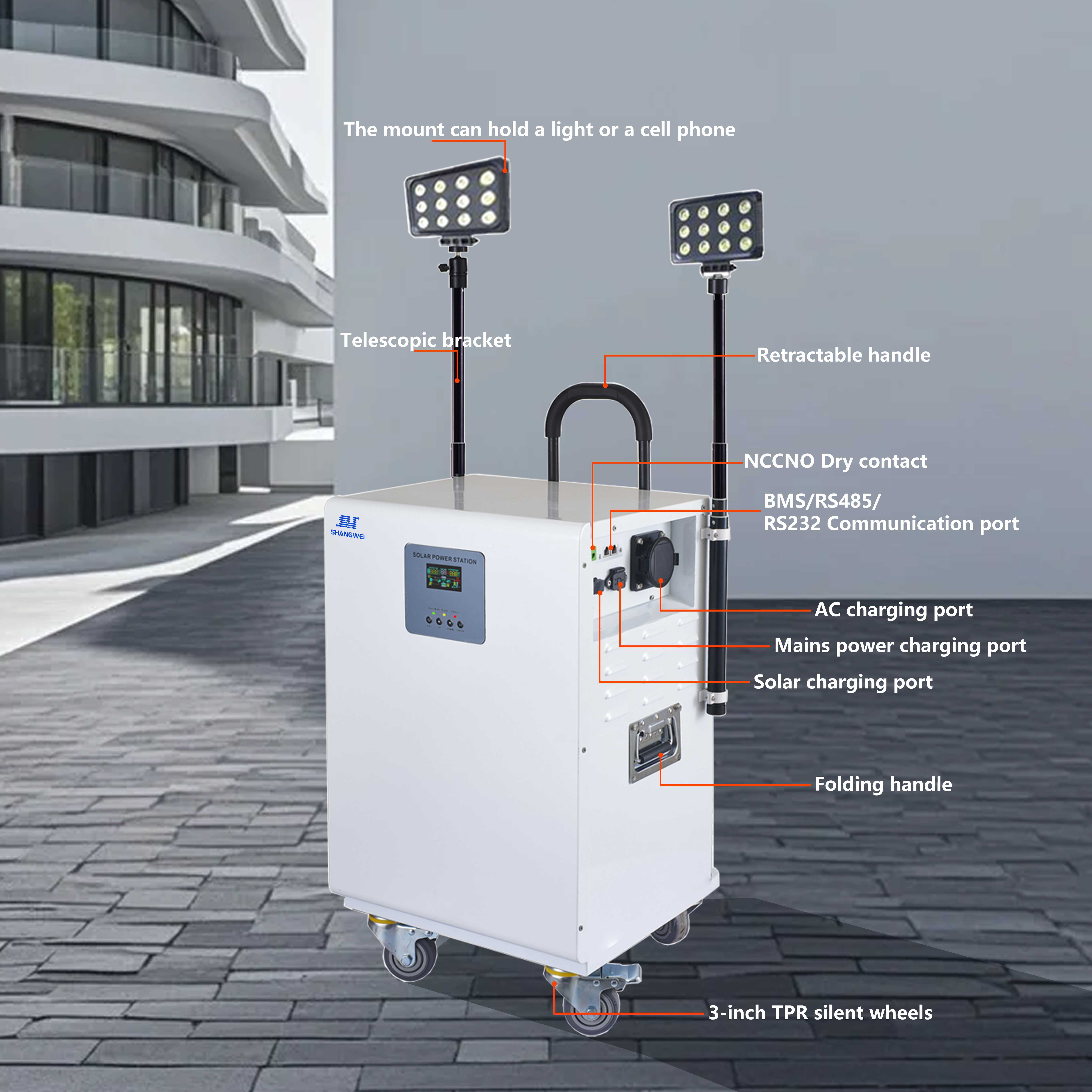

Outdoor Telescopic Pole-Mounted Solar-Storage Integrated Micro-Power Station 3.6–12 kW / 5–32 kWh
Outdoor portable solar-storage micro-power station featuring lithium iron phosphate battery cells, built-in emergency lighting, and a standard charging port, designed to meet emergency power needs in various scenarios, including grid-connected and solar-powered applications.
Product Specifications
| Outdoor Pole-Mounted Solar-Storage Hybrid Micro-Power Station 3.6 kW–12.0 kW / 5 kWh–32.0 kWh |
|||||||
| Outdoor Emergency Power / Multi-Scenario Charging via Grid Power and Solar / Mobile Solar-Storage Integrated Systems | |||||||
| Parameters | SW-PV5000-8KWH-F | SW-PV6000-5KWH-F | SW-PV6000-10KWH-F | SW-PV9000-16KWH-F | SW-PV15000-16KWH-F | SW-PV15000-32KWH-F | |
| Photovoltaic Parameters | |||||||
| Maximum Input Power (W) | 5.0KW | 6.0KW | 9.0KW | 15.0KW | |||
| Maximum Input Voltage (V) | 500V | ||||||
| MPPT Operating Range (V) | 60~450V | 90~450V | |||||
| MPPT Rated Voltage (V) | 100V-450V | 200-450V | |||||
| Start-up Voltage (V) | 60V | 90V | |||||
| Maximum Input Current (A) | 100A | 100A | 120A | 160A | |||
| Maximum Short-Circuit Current (A) | 105A | 105A | 120A | 160A | |||
| Number of MPPT Channels | Line 1 | Line 1 | Line 1 | Line 2 | |||
| Number of Strings per MPPT Channel | 2/2 | 2/2 | 2/2 | 4/4 | |||
| PV MPPT Efficiency (%) | 99% | ||||||
| AC Parameters (Input) | |||||||
| Maximum Charging Power (kW) | 1.5-3.0KW | 3-5.0KW | 3-6.0KW | 6-12.0KW | |||
| Rated Voltage (Vac) | 208/220/230/240;L+N+PE | ||||||
| Rated Frequency (Hz) | 50/60 Hz (auto-switching) | ||||||
| Voltage Range (Vac) | 90~280±3(normal mode);170~280±3(UPS mode) | ||||||
| Switching Time (ms) | 10(APP/UPS mode)/20(GEN mode) | ||||||
| Power Factor Range | ~1 (0.8 lead/0.8 lag, configurable) | ||||||
| Total Current Harmonic Distortion (at Rated Power) (%) | <3% | ||||||
| AC Parameters (Off-Grid Side) | |||||||
| Rated Output Power (kW) | 3.6KW | 5.0KW | 6.0KW | 12.0KW | |||
| Rated Output Voltage (Vac) | 208/220/230/240;L+N+PE | ||||||
| Rated Output Frequency (Hz) | 50/60Hz±0.1% | ||||||
| Overload Capacity in Battery Mode | 60s@102%-110%load;10s@110%-130%load; 3s@130%-150%load;0.2s@>150%load |
||||||
| Conversion Efficiency (%) | 92-95% | ||||||
| AC Parameters (Diesel Generator Side) | |||||||
| Rated Voltage (Vac) | 90~280±3(normal mode);170~280±3(UPS mode) | ||||||
| Rated Frequency (Hz) | 50/60 Hz (auto-switching) | ||||||
| Rated Input Power (kW) | 1.5-3.0KW | 3.0KW | 3.0KW | 6.0KW | |||
| Battery Specifications | |||||||
| Nominal Voltage | 25.6V | 51.2V | |||||
| Operating Voltage Range (V) | 24-27V | 48-58V | |||||
| Battery Type | Lithium iron phosphate (LFP) | ||||||
| Battery Model | 314AH | 100AH | 200AH | 314AH | |||
| Charge/Discharge Current | 150A/150A | 100A/100A | 150A/150A | 200A/200A | 300A/300A | ||
| Number of Cells | 1P8S | 1P16S | 1P16S | 2P16S | |||
| Rated Capacity (kWh) | 8.0KWH | 5.12KWH | 10.0KWH | 16.0KWH | 32.0KWH | ||
| Temperature Control System | |||||||
| Temperature Control System | Automatic cooling / Air cooling | ||||||
| Fire protection system | |||||||
| Passive fire protection | Hot gas aerosol fire suppression | ||||||
| Basic Specifications | |||||||
| Operating Temperature Range (°C) | -25 to 60 (reduced capacity above 45) | ||||||
| Operating Altitude (m) | <4000 | ||||||
| Noise Emission (dB) | <30-60 | ||||||
| Protection Rating | IP20 | ||||||
| Relative Humidity Range (%) | 0–95%, non-condensing | ||||||
| Dimensions (W x H x D) (mm) | 500*390*600MM/80MM | 505*390*860MM/80MM | 680*500*860MM/100MM | 680*500*1000MM/100MM | |||
| Weight (kg) | 72.0KG | 68.0KG | 49.6KG | 86.6KG | 128.0KG | 132.0KG | 216.0KG |

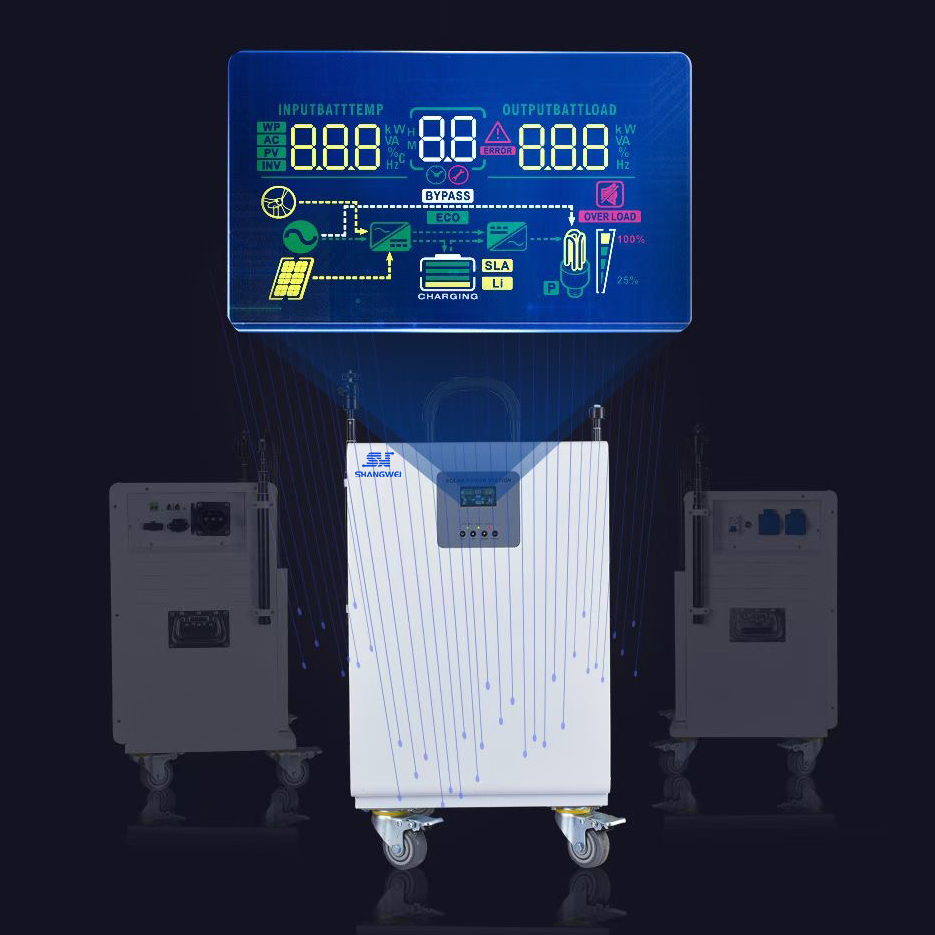

| User Interface | LCD/APP | ||||||
| Cloud Communication Method | Wi-Fi, GPRS, 4G (optional) | ||||||
| Display Interface | LCD, RS485, CAN, | ||||||

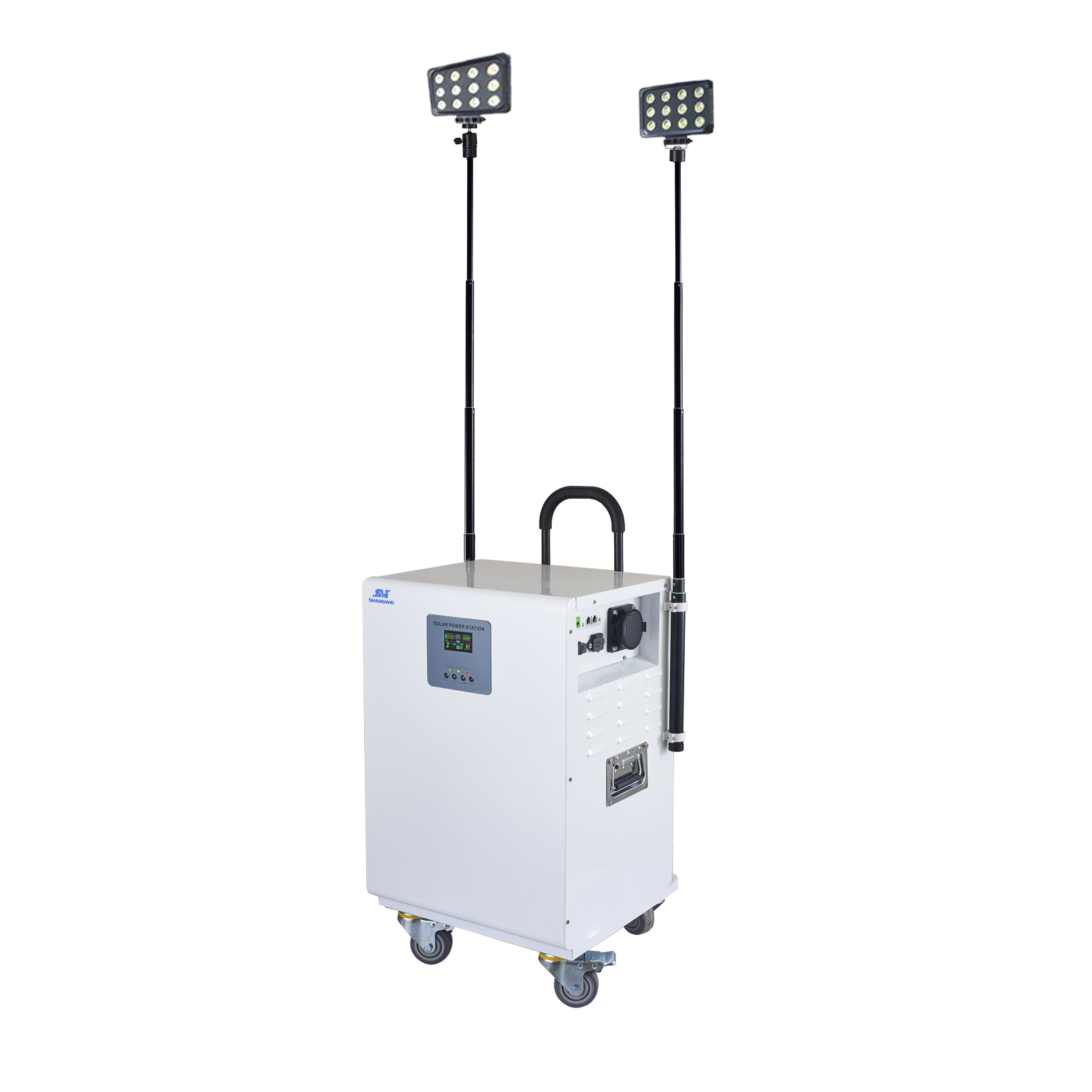

| Emergency Lighting Telescopic Pole | 2 x 1.5-meter poles / 2 x 100W LED lights | ||||||
| Charging Pistol Port | Standard single-phase 32A/220V charging | ||||||
| Certifications | UN38.3 MSDS CE | ||||||
| Safety Standards | IEC62109-1/-2 | ||||||
| EMC Standards | EN61000-6-1/-3,IEC61000 | ||||||
