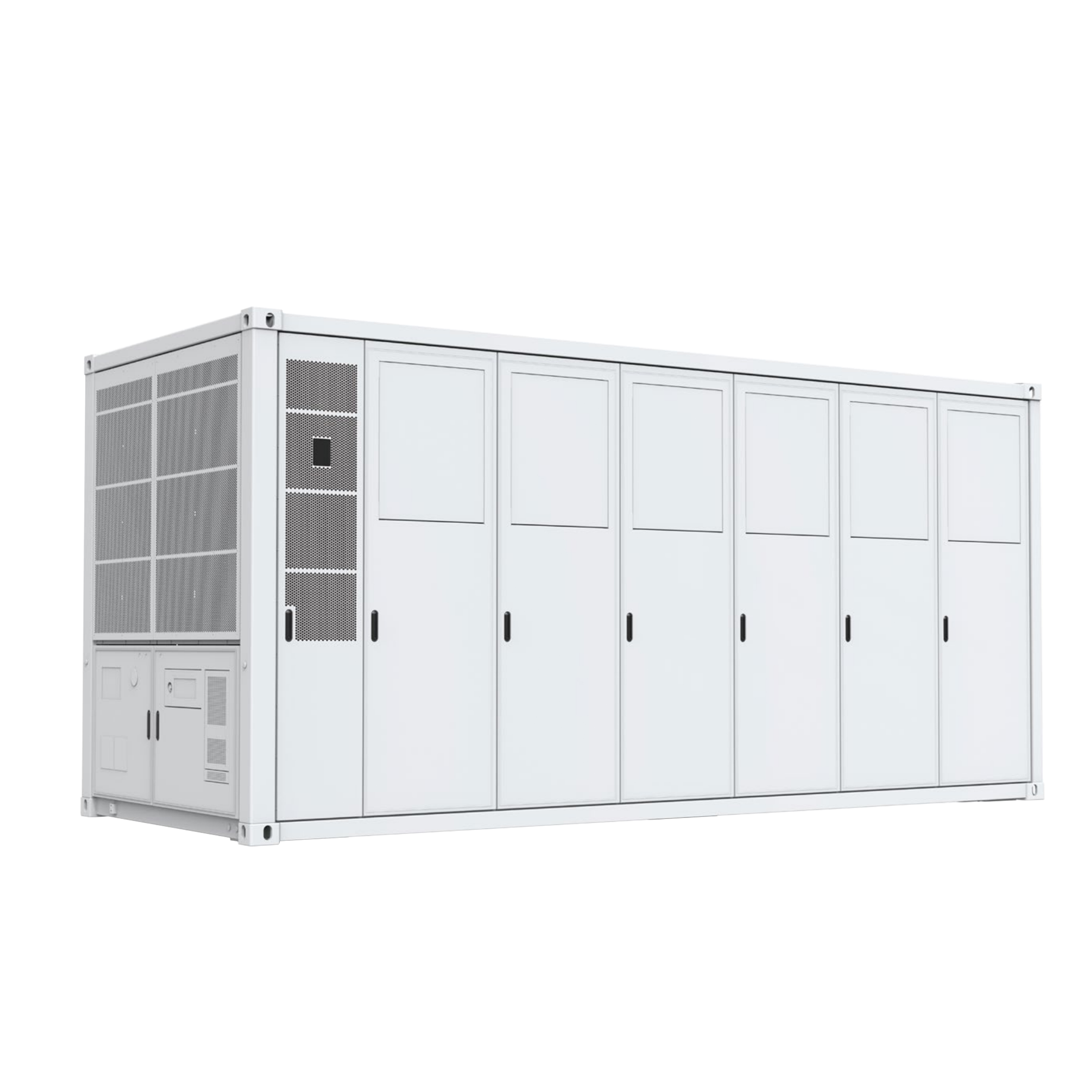

4.5 MWh Liquid-Cooled Containerized Energy Storage System
2 MW/4.5 MWh containerized energy storage system, featuring LFP battery cells, liquid-cooled temperature control, and IP55 protection, suitable for large-scale commercial and industrial applications as well as grid-side energy storage scenarios.
Product Specifications
| Battery Container | ||
| Model | SW2000-4.5MWH-2H1 | |
| DC Rated Voltage | 1,331.2V | |
| DC Max.Voltage | 1,500 V | |
| Nominal Energy Capacity | 4,472 kWh | |
| Charge &Discharge Rate | ≤0.5 C | |
| Rated Power | 2,236 kW | |
| Dimension(WxHxD) | 6,058×2,896×2,438 mm | |
| Weight | ≤41 t | |
| Operation Temperature Range | -30℃~55℃ | |
| Storage Temperature Range | -40℃~60℃ | |
| Relative Humidity | 0～100%(Non-condensing) | |
| Max.Operating Altitude | 4,700 m | |
| Cooling Method | Liquid Cooling | |
| Fire Suppression System | Water Sprinkler,Novec 1230(Optional) | |
| Communication Interface | Ethemet/SFP | |
| Communication Protocol | Modbus TCP | |
| Protection Degree | IP55 | |
| Anti-corrosion Degree | C5-Medium | |
| Standards Compliance | ||
| RoHS,IEC62477-1,IEC62040-1,IEC61000-6-2,IEC62933-5-2,UL9540A,IEC62619,UN38.3,etc. | ||
| Battery Pack | ||
| Cell Material | LFP | |
| Number of Cell | 104 | |
| Nominal Capacity | 280 Ah/93.18 kWh | |
| Protection Degree | IP65 | |
| Weight | 670±10 kg | |
| Dimensions(W×H×D) | 785×249×2182 mm | |
