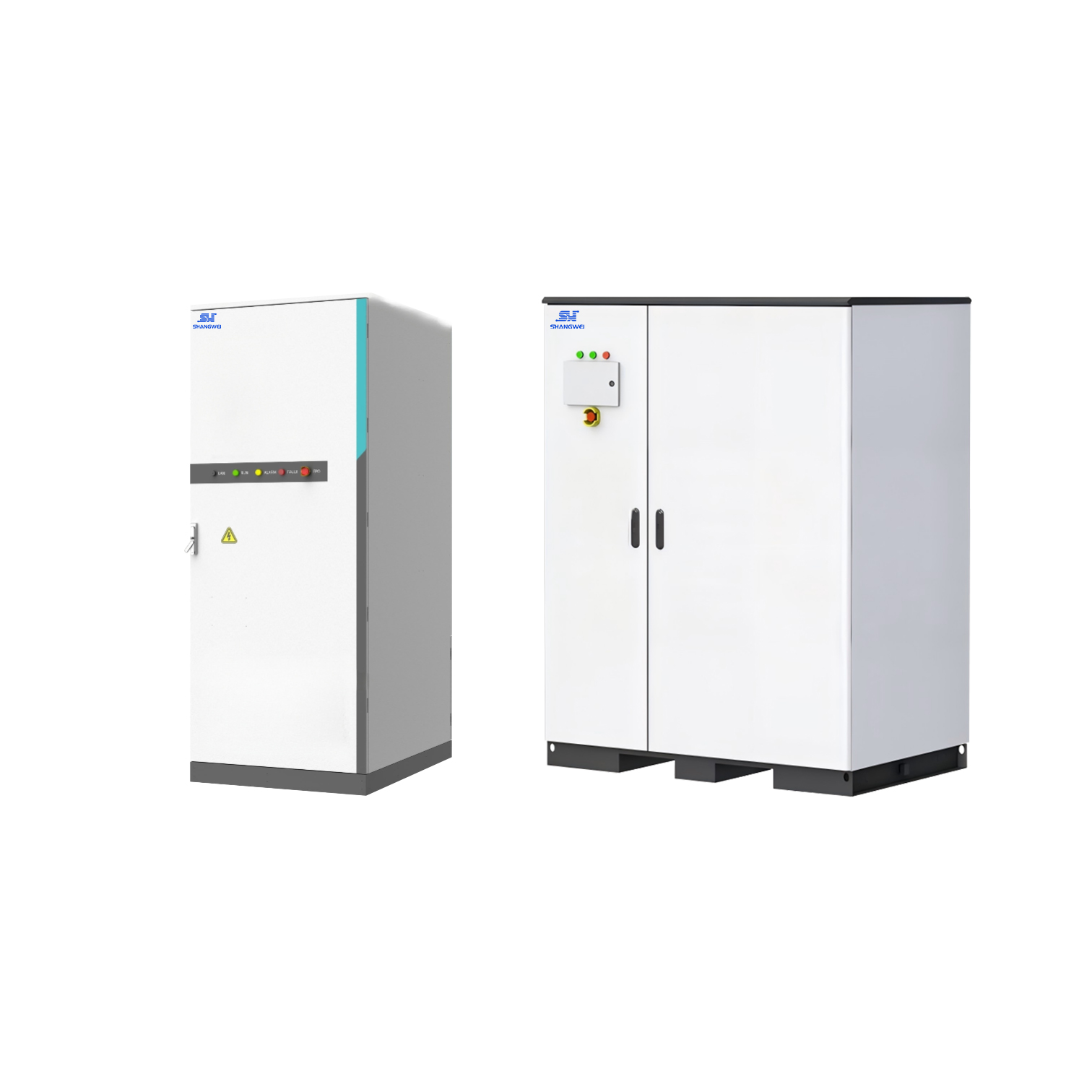

12–50 kW Hybrid Solar-Storage Outdoor Commercial and Industrial System

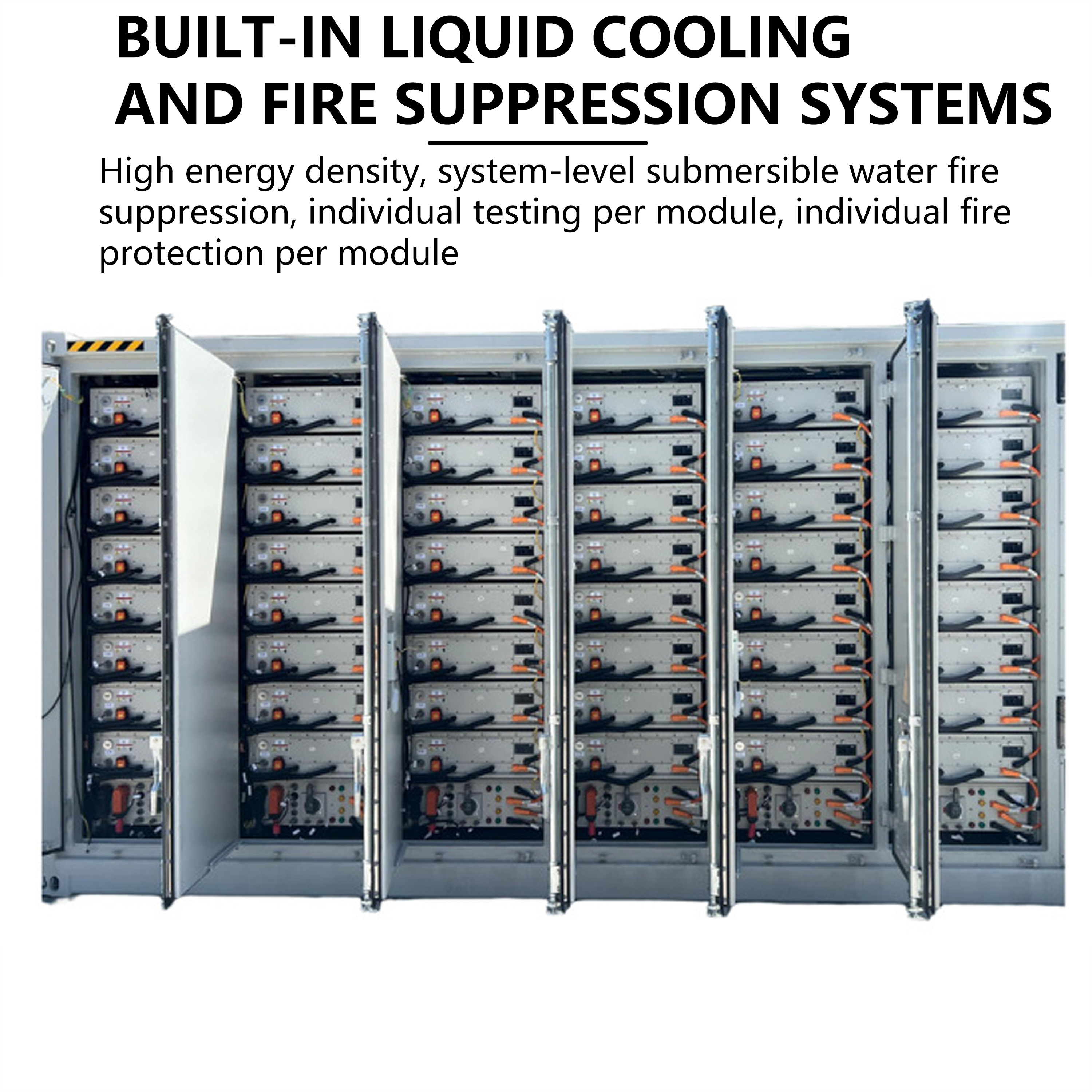

High energy density + cluster-level liquid cooling + flexible scalability + high integration + temperature control protection: a safe, long-lasting commercial and industrial energy storage system.
Product Specifications
|
Distributed Hybrid Solar-Storage Micro-Power Plant (Outdoor Commercial and Industrial Power Plant) |
|||||
|

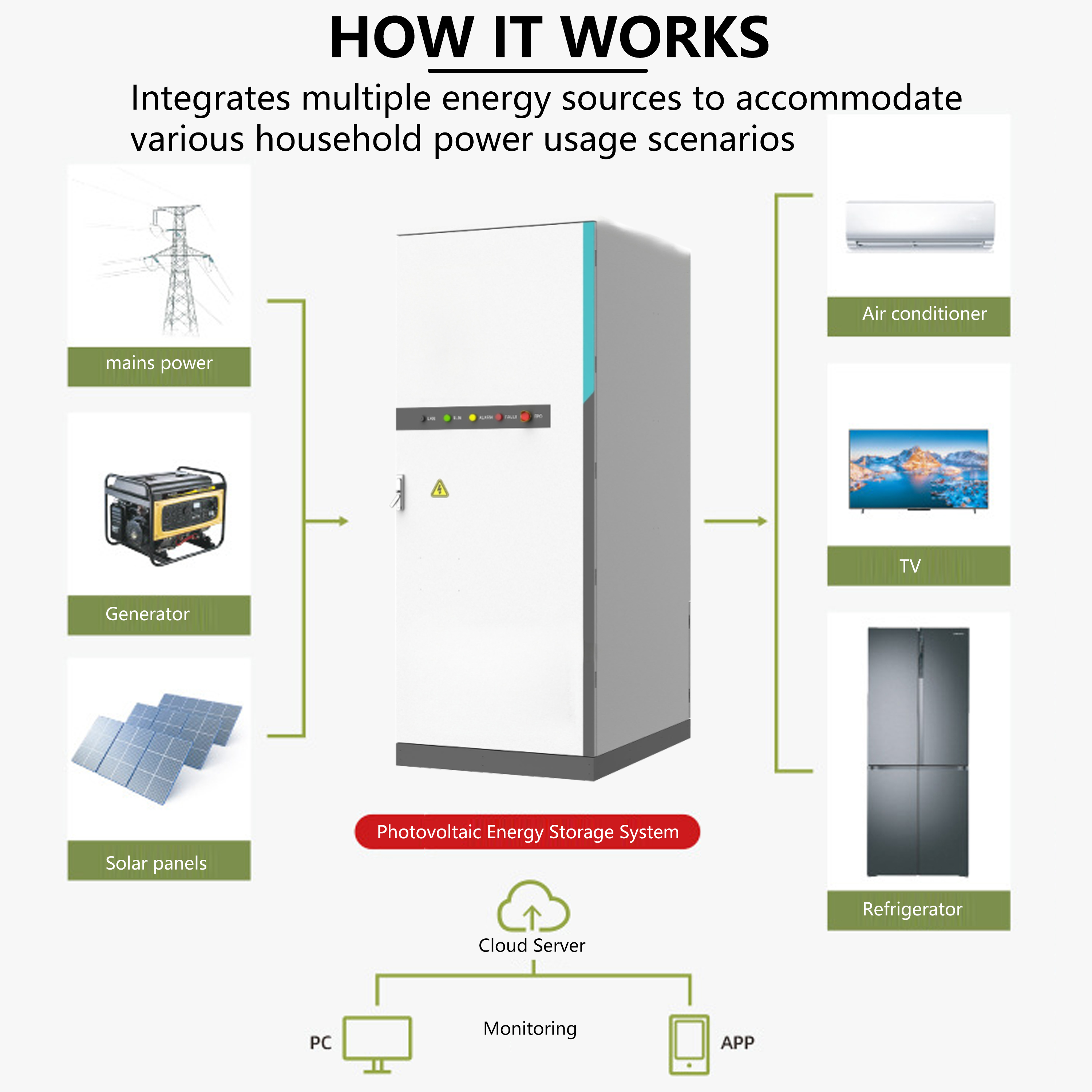

All-in-one solar-storage cabinet / Outdoor-rated and waterproof / Seamless switching between grid-tied and off-grid modes / Flexible power configuration / Scalable capacity / EMS energy management system optimizes peak-valley electricity usage |
|||||
| Parameters | SW20KW-128KWH-HP3-H8 | SW30KW-160KWH-HP3-H10 | SW50KW-198KWH-HP3-H12 | SW125KW-256KWH-HP3-H16 | SW125KW-512KWH-HP3-H32 |
| Photovoltaic Parameters | |||||
| Maximum Input Power (W) | 30.0KW | 45.0KW | 75.0KW | 250.0KW | 250.0KW |
| Maximum Input Voltage (V) | 1000V | ||||
| MPPT Operating Range (V) | 180~850V | ||||
| MPPT Rated Voltage (V) | 500V-850V | 750-950V | |||
| Start-up Voltage (V) | 200V | ||||
| Maximum Input Current (A) | 32A/32A | 40A/40A | 40A/40A/40A/40A | 40A*8 | 40A*8 |
| Maximum Short-Circuit Current (A) | 48A/48A | 60A/60A | 48A/48A/48A/48A | 55A*8 | 55A*8 |
| Number of MPPT Channels | 2路 | 2路 | 4路 | 8路 | 8路 |
| Number of Strings per MPPT Channel | 4/4 | 4/4 | 8/8 | 4/4 | 4/4 |
| PV MPPT Efficiency (%) | 99% | ||||
| AC Parameters (Grid-connected side) | |||||
| Rated Output Power (W) | 20.0KW | 30.0KW | 50.0KW | 125.0KW | 125.0KW |
| Maximum Output Power (kW) | 30.0KW | 45.0KW | 100.0KW | 137.5KW | 137.5KW |
| Maximum Charging Power (kW) | 20.0KW | 30.0KW | 50.0KW | 125.0KW | 125.0KW |
| Hybrid Output Power (kW) | 40.0KW | 130.0KW | 130.0KW | 300.0KW | 300.0KW |
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60Hz | ||||
| Maximum Output Current (A) | 32A | 48A | 83A | 198.2A | 198.2A |
| Maximum Three-Phase Output Unbalance | 0-97% | ||||
| Power Factor Range | ~1 (0.8 lead/0.8 lag, configurable) | ||||
| Total Harmonic Distortion (THD) (@ Rated Power) (%) | <3% | ||||
| AC Parameters (Off-Grid Side) | |||||
| Rated Output Power (kW) | 20.0KW | 30.0KW | 50.0KW | 125.0KW | 125.0KW |
| Rated Output Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Output Frequency (Hz) | 50/60(Hz) | ||||
| Maximum Single-Phase Apparent Output Power (kW) | 6.6KW | 10.0KW | 16.7KW | 41.6KW | 41.6KW |
| Grid-Tied/Off-Grid Switching Time (ms) | 10(ms) | ||||
| Conversion Efficiency (%) | 98.00% | ||||
| AC Parameters (Diesel Generator Side) | |||||
| Rated Voltage (Vac) | 380/400V,3L/N/PE | ||||
| Rated Frequency (Hz) | 50/60(Hz) | ||||
| Rated Input Power (kW) | 20.0KW | 30.0KW | 50.0KW | 125.0KW | 125.0KW |
| Battery Specifications | |||||
| Operating Voltage Range (V) | 320-464.0V | 400-580.0V | 480-696.0V | 640-928.0V | 640-928.0V |
| Battery Type | Lithium iron phosphate (LFP) | ||||
| Battery Model | SF-T512V314AH-L | ||||
| Rated Charge/Discharge Current (A) | 50A/50A | 50A/50A | 120A/120A | 240A(80A*3)/240A(80A*3) | 240A(80A*3)/240A(80A*3) |
| Maximum Charging Power (kW) | 20.0KW | 30.0KW | 50.0KW | 125.0KW | 125.0KW |
| Number of Battery Packs | 8 | 10 | 12 | 16 | 32 |
| Capacity per Battery Pack (kWh) | 16.0KWH | ||||
| Rated Capacity (kWh) | 128.0KWH | 160.0KWH | 192.0KWH | 256.0KWH | 512.0KWH |
| Temperature Control System | |||||
| Temperature Control System | Air-cooled air conditioner | ||||
| Fire Protection System | |||||
| Passive fire protection | Hot gas aerosol fire suppression system/detector | ||||
| Basic Specifications | |||||
| Operating Temperature Range (°C) | -25 to 60 (reduced capacity above 45) | ||||
| Operating Altitude (m) | <4000 | ||||
| Noise Emission (dB) | <30-60 | ||||
| Protection Rating | IP54 | ||||
| Relative Humidity Range (%) | 0–95%, non-condensing | ||||
| Dimensions (W x H x D) (mm) | 1000*1400*1600MM | 1000*1400*2000MM | 1000*1400*2200MM | 1500*1400*2200MM | 2600*1400*2200MM |
| Weight (kg) | |||||
| User Interface | LCD/APP | ||||
| Cloud Communication Method | Wi-Fi、GPRS、4G | ||||
| Display Interface | LCD、RS485、CAN、 | ||||
| Certifications | UN38.3 MSDS CE | ||||
| Safety Standards | IEC62109-1/-2 | ||||
| EMC Standards | EN61000-6-1/-3,IEC61000 | ||||
| Grid Connection Standards | NRS97、G98/G99、EN50549-1、C10/C11、as 4777、VDE-AR-N4105、VDE0126、IEC62040 | ||||
