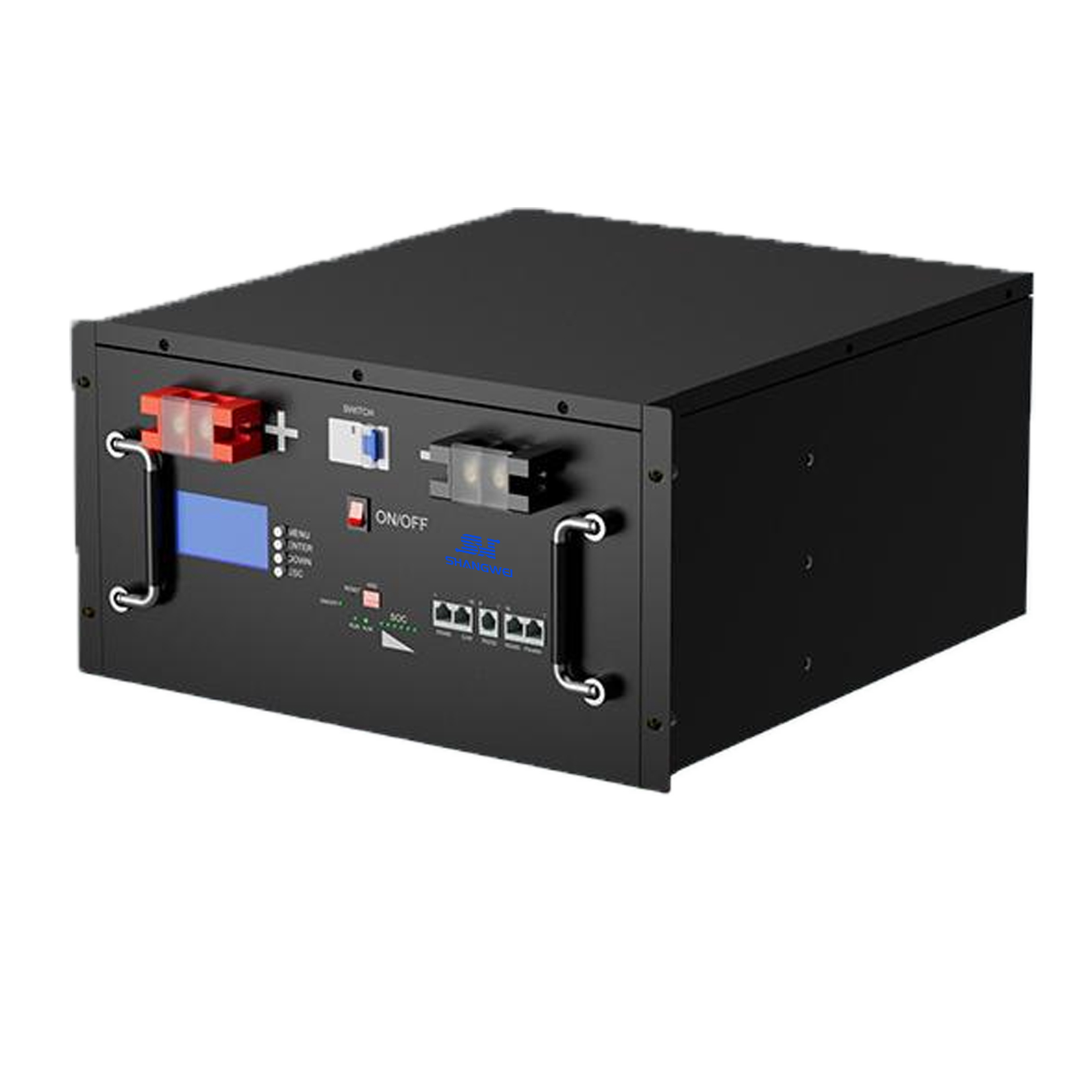

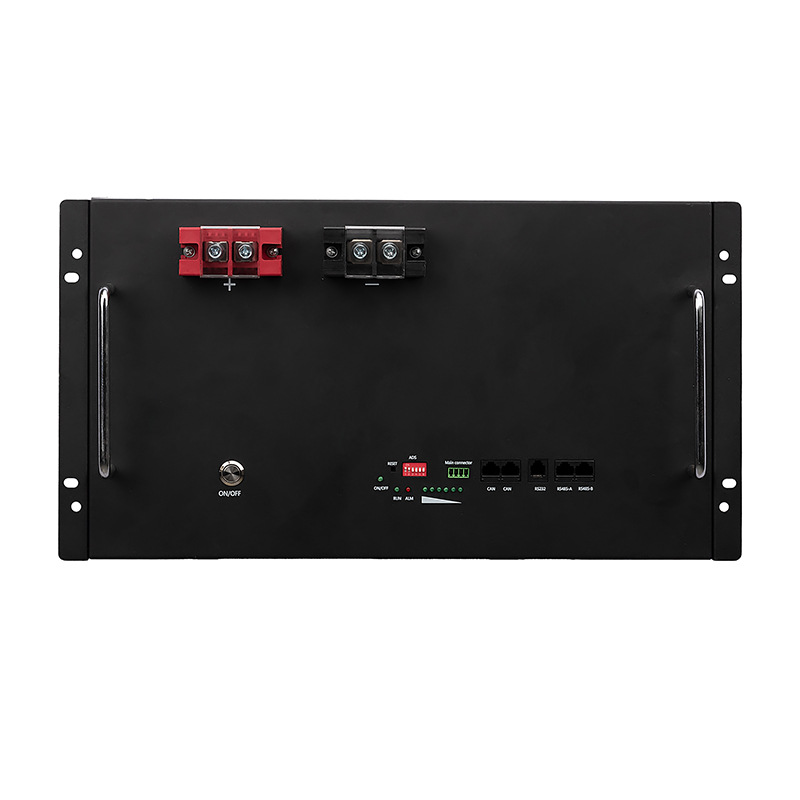

Stackable/rack-mounted lithium-ion batteries
No setup required
BMS system
Intelligent LCD display
Grade A battery cells
BMS system
Intelligent LCD display
Grade A battery cells
Product Specifications
| Model | SW-TR48100 | SW-TR-48150 | SW-TR-48200 | |||
| Battery | ||||||
| Nominal Voltage | 51.2V | 51.2V | 51.2V | |||
| Nominal Capacity | 100Ah | 150Ah | 200Ah | |||
| Rated Energy | 5120WH | 7680WH | 10240WH | |||
| Continuous Charge Current | 0-120A | 0-120A | 0-150A | |||
| Continuous Discharge Current | 0-120A | 0-120A | 0-200A | |||
| Charge Cut-off Voltage | 58.4V | 58.4V | 58.4V | |||
| Discharge Cut-off Voltage | 44.8V-46.5V | 44.8V-46.5V | 44.8V-46.5V | |||
| Communication Interface | RS232 RS485 CAN | |||||
| Cycle Life | >3000 | |||||
| Operating Environment | Temperature: -20°C to 60°C; Humidity: <95%; Altitude: <4,000 m | |||||
| Protection Features | Overvoltage, undervoltage, overload, short circuit, overheating, etc. | |||||
| Product Dimensions (mm) | 480*430*180 | 480*455*258 | 480*455*258 | |||
| Packaging Dimensions (mm) | 550*505*360 | 550*525*438 | 550*525*438 | |||
| Weight (kg) | 48/59 | 72/83 | 80/91 | |||

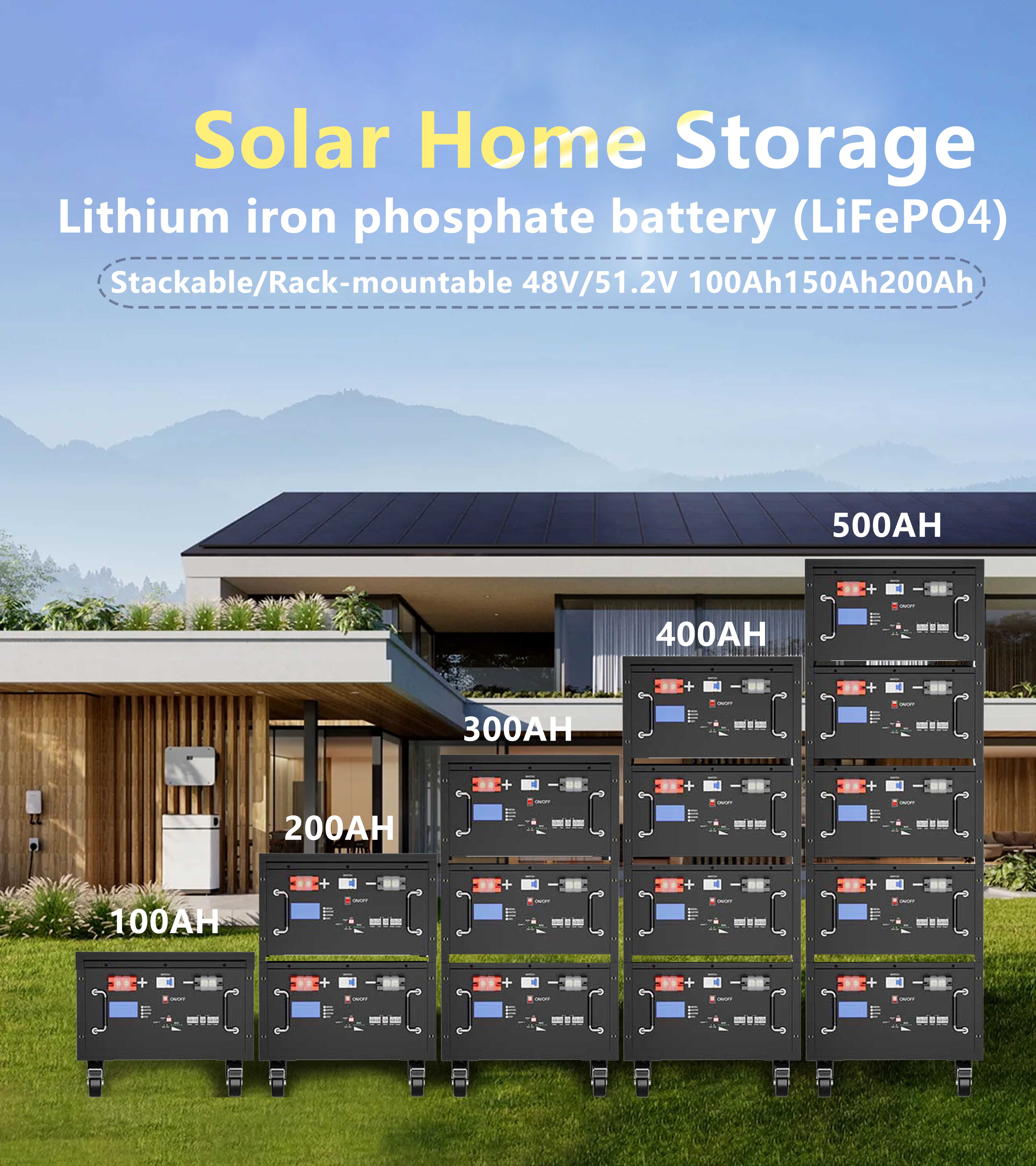

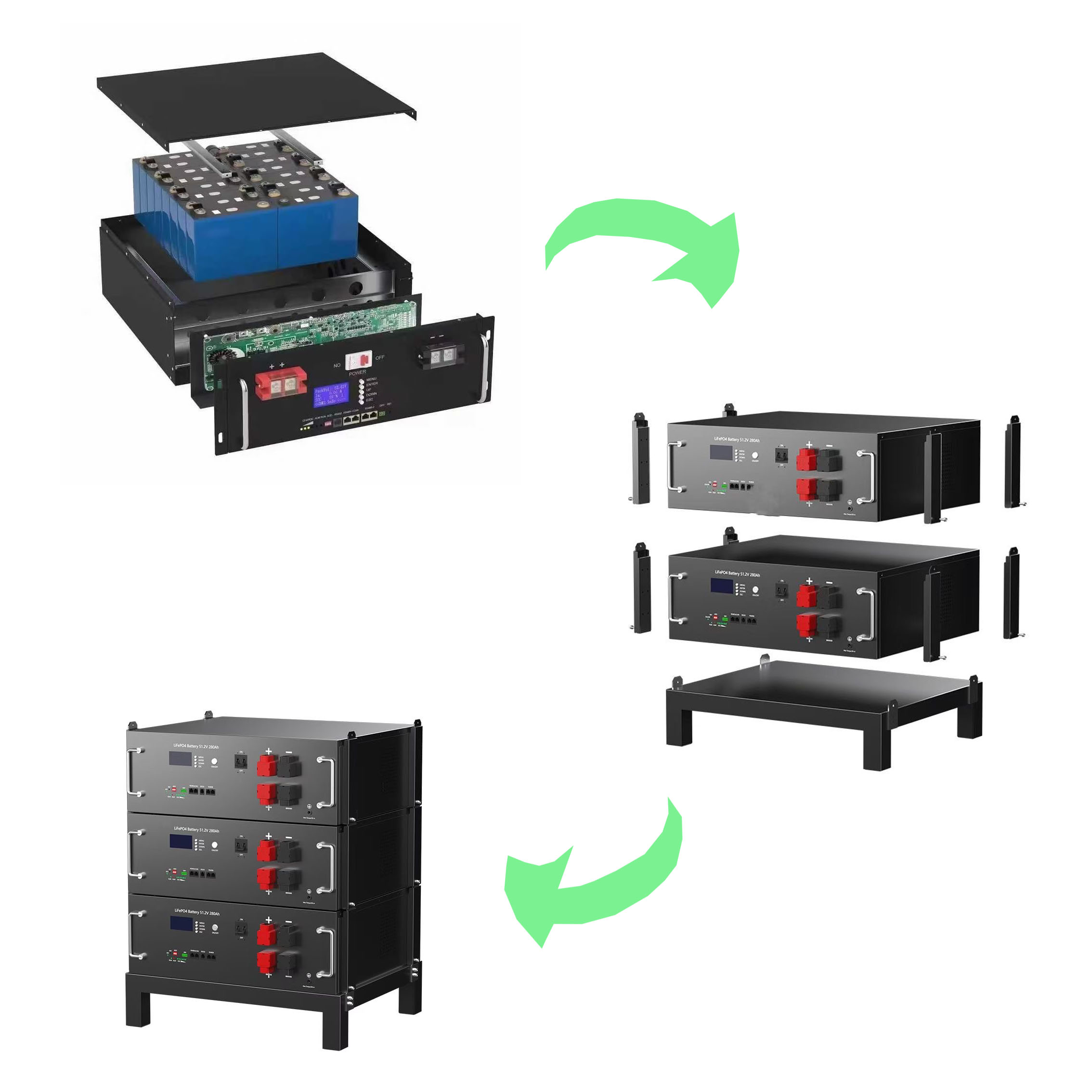

| Multi-layer energy storage battery stack | ||||||
| Number of cells | 1st floor | 2st floor | 3st floor | 4st floor | 5st floor | 6st floor |
| Continuous charging current | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah | 600Ah |
| Continuous discharging current | 0-100A | 0-200A | 0-300A | 0-400A | 0-500A | 0-600A |
| Dimensions (mm) | 250 | 500 | 750 | 1000 | 1250 | 1500 |
| Weight (kg) | 58.5 | 108.5 | 158.5 | 208.5 | 258.5 | 308.5 |
| Rated capacity | 5KWh | 10KWh | 15KWh | 20KWh | 25KWh | 30KWh |
